MB-15E Enclosed LED Trailer

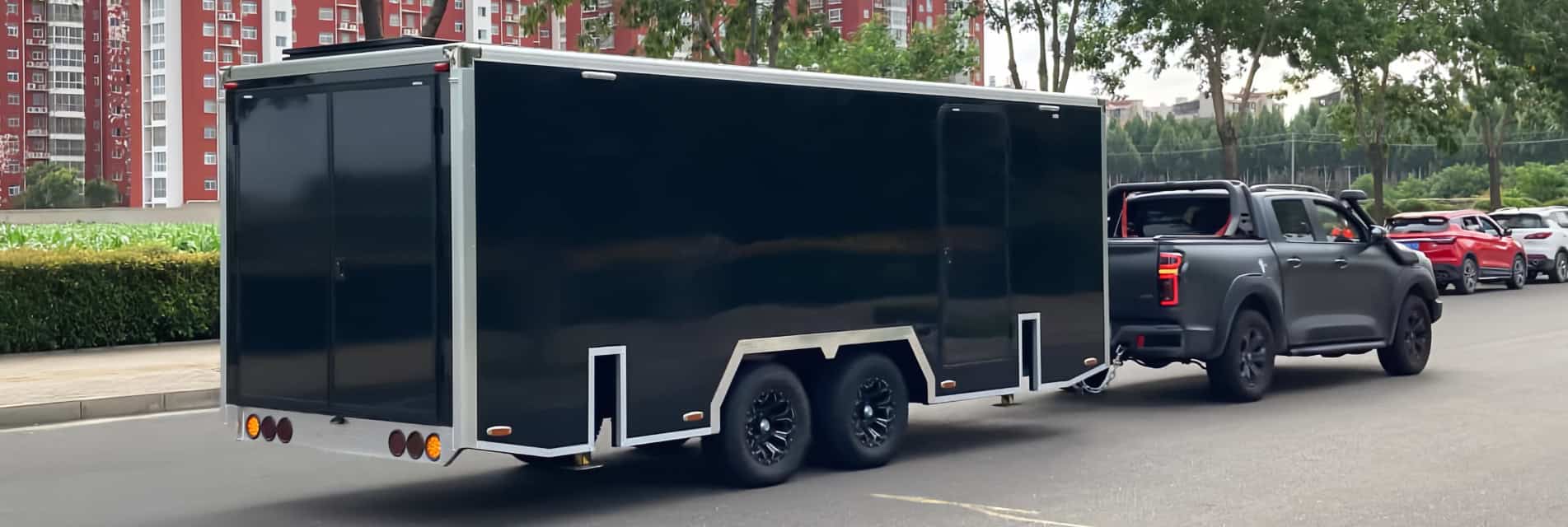

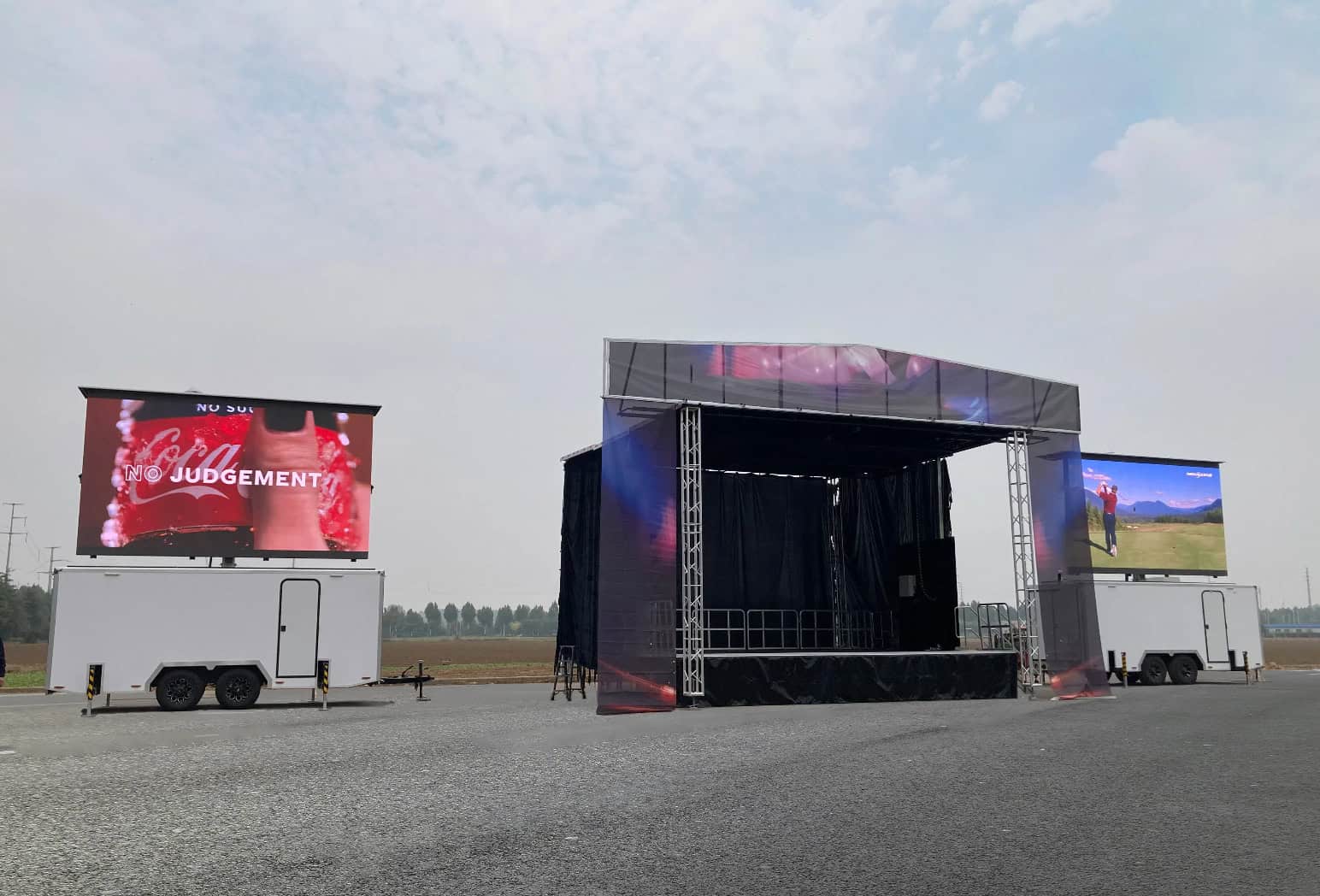

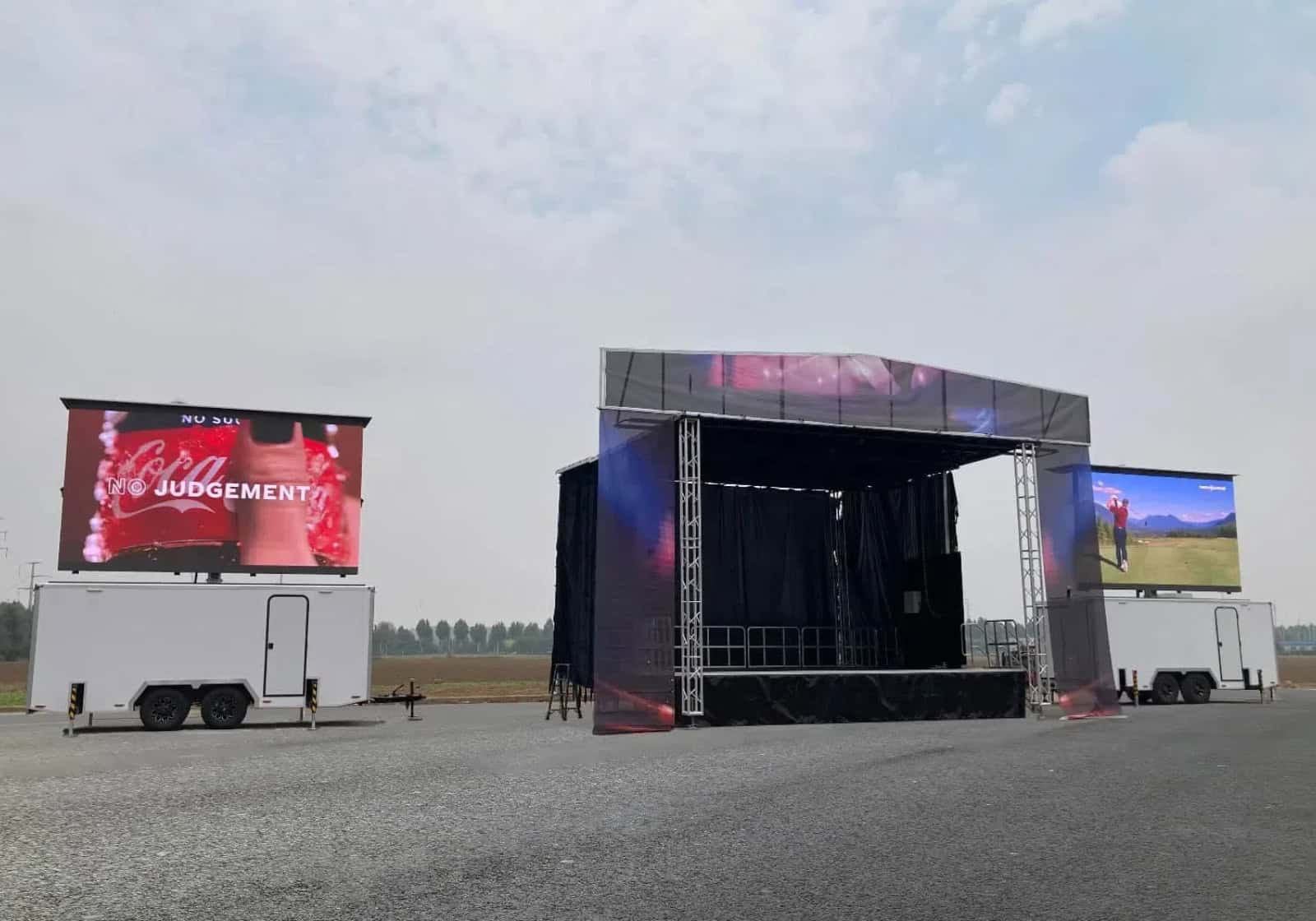

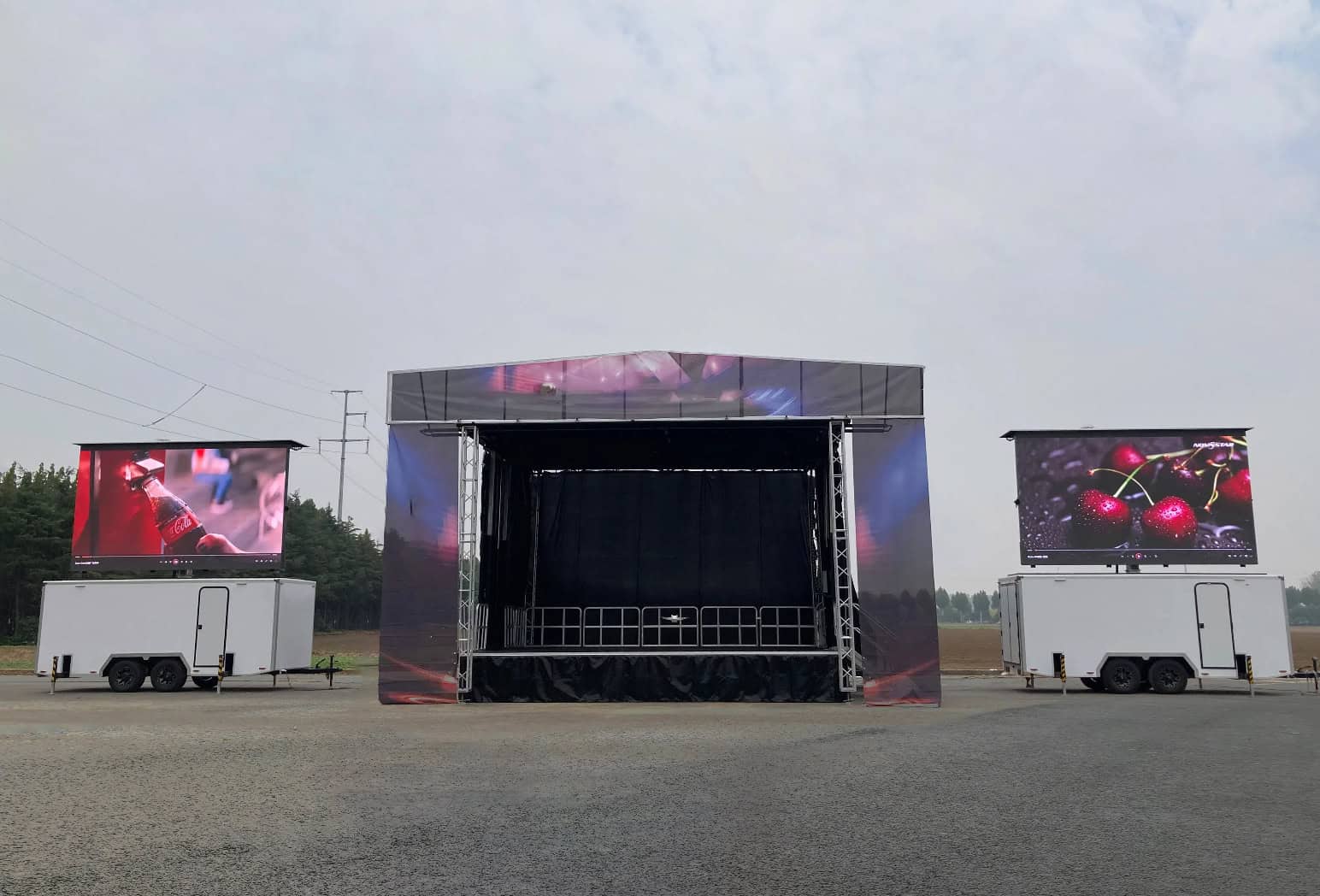

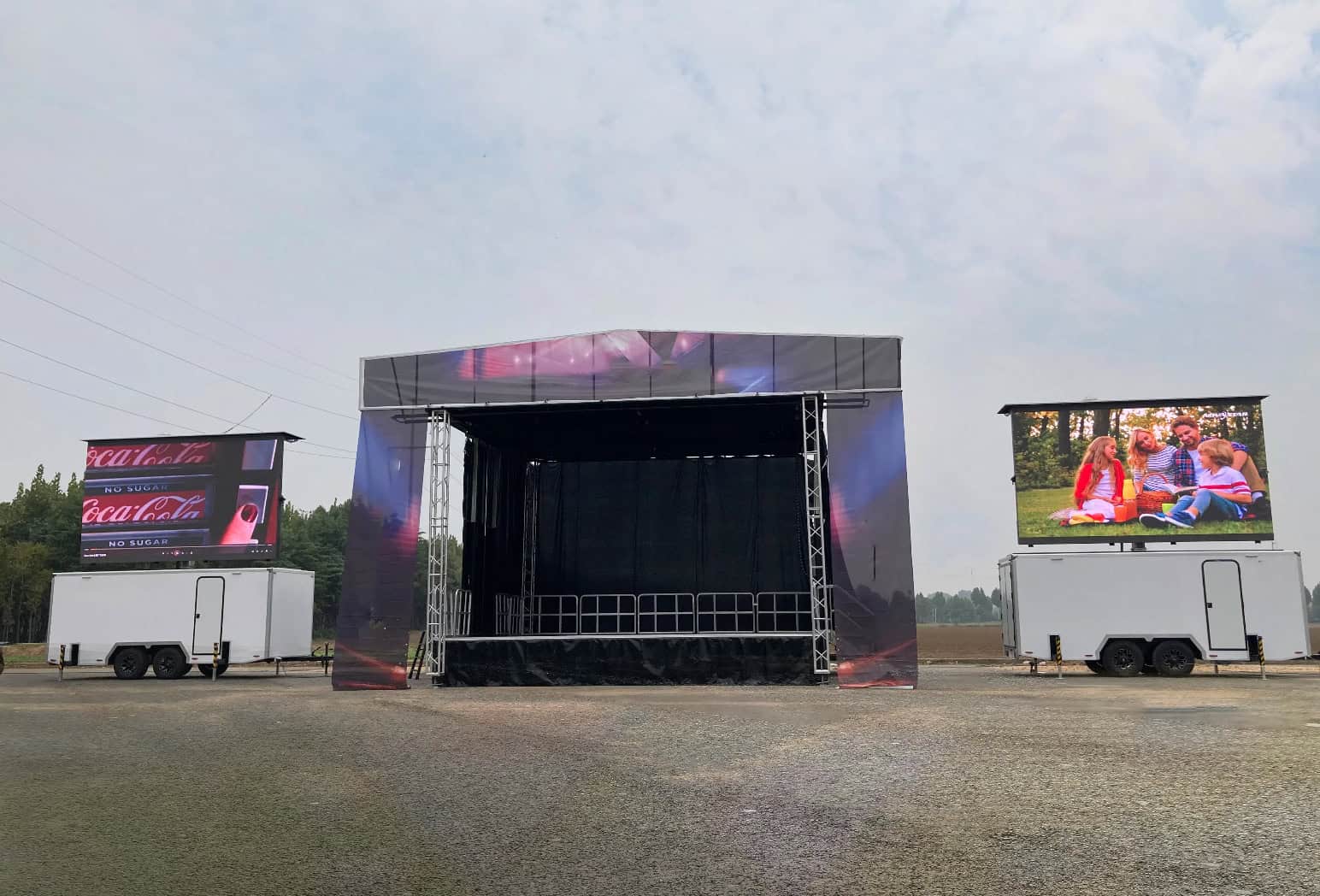

The MB-15E is an enclosed LED trailer that serves as a reliable partner for various events. It is constructed with high-quality materials, ensuring durability and protection against rain, sunshine, wind, dust, and sand. The trailer's design allows for easy storage and operation in limited spaces, and it complies with US DOT regulations. The LED screen can be lifted and rotated, offering flexibility in positioning and enhancing the interaction between the screen and the audience. It offers a high-resolution display that can be used for streaming content in large events such as concerts, sports, and ceremonies.

16.4ft by 9.84ft outdoor fine pitch LED screen

Benefit: Appropriate screen size enclosed trailer capable of daily use.

The starter option for buying an enclosed trailer

Benefit: High-quality trailer at a budget-friendly and affordable cost.

Enhance the level and experience of the activity

Benefit: Enhances visual appeal and makes a strong impression at events.

Get A Quote +

Other benefits

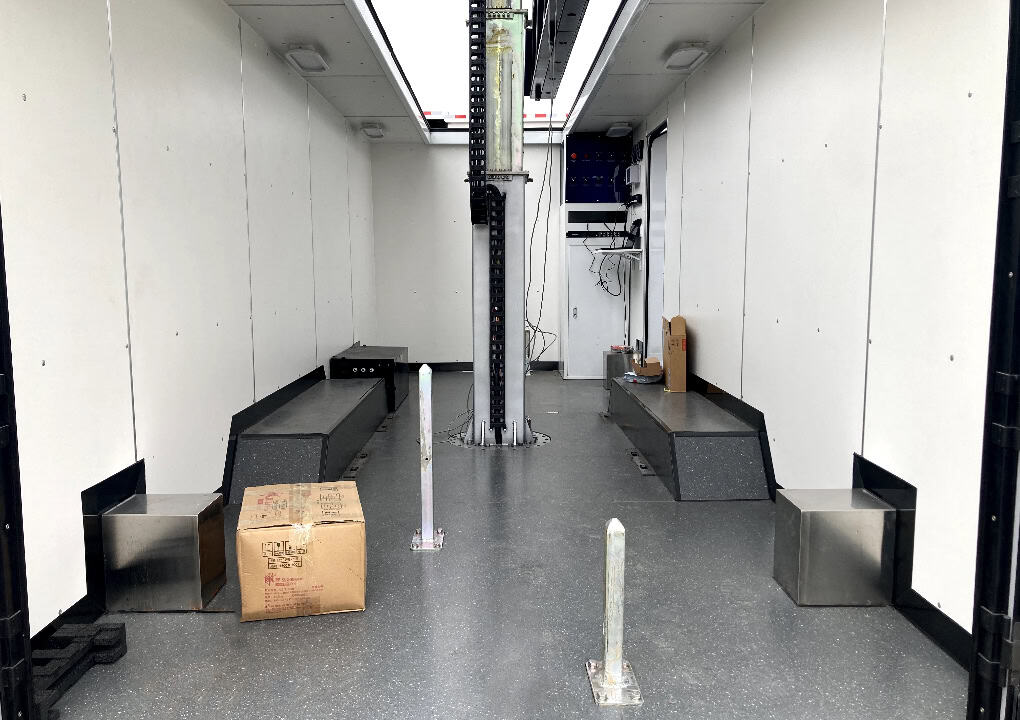

Additional storage space inside
Popular appearance for Europe and US market
Van version of popular model MB-15
Reliable 3 year warranty service
100% hydraulic control to replace manual
Unique curve shape for enhanced aesthetics

Feature and Benefits

The MB-15E is a portable LED screen trailer designed to elevate any event. It offers a high-resolution LED display that provides excellent viewing angles, making it ideal for a wide range of events such as concerts, sports, parties, and more. The trailer is built with durable materials to protect the screen from various weather conditions and environmental factors. Its compact design allows for easy storage and transportation, making it a convenient and reliable choice for event organizers. Here are the nine core features and benefits of the MB-15E.

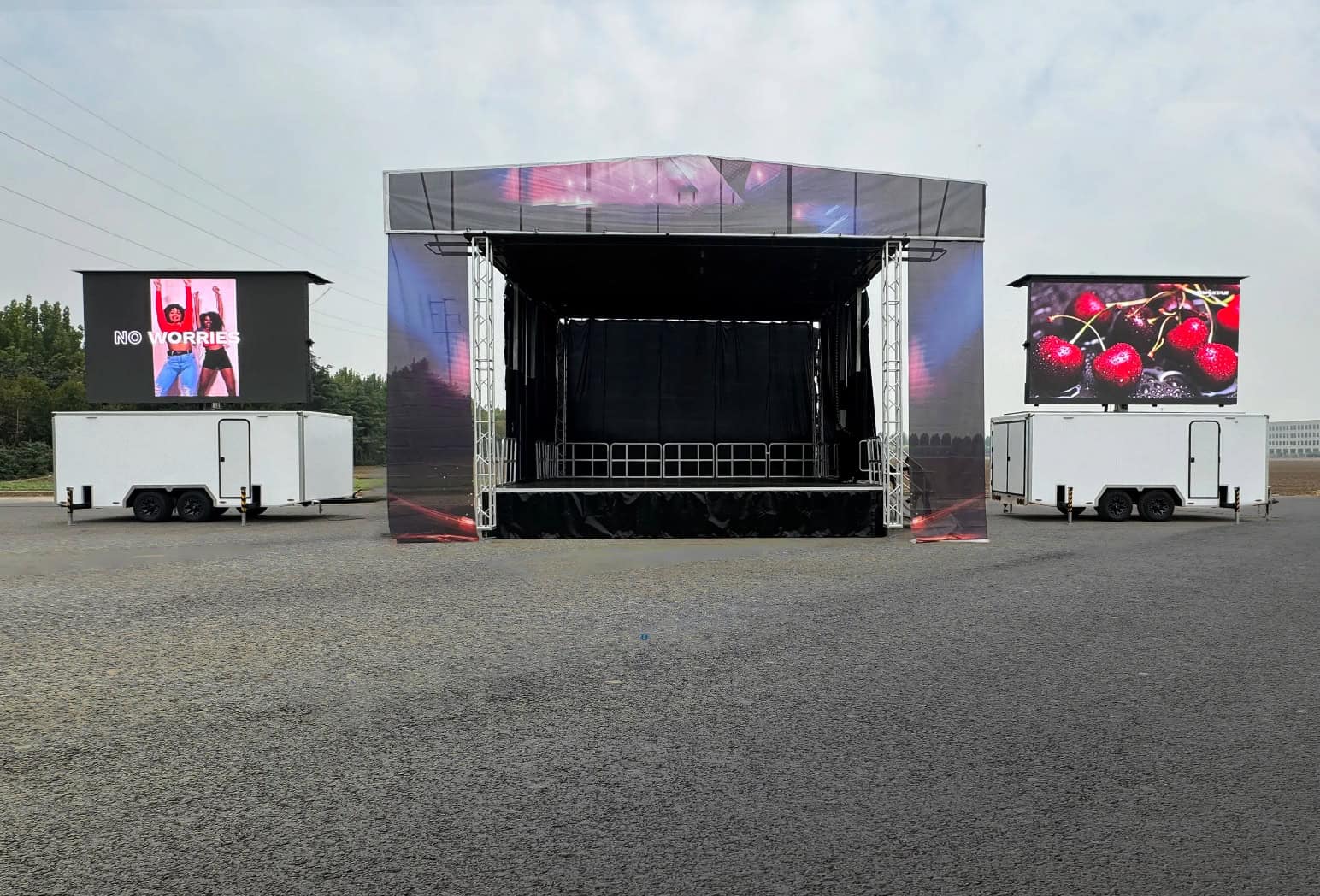

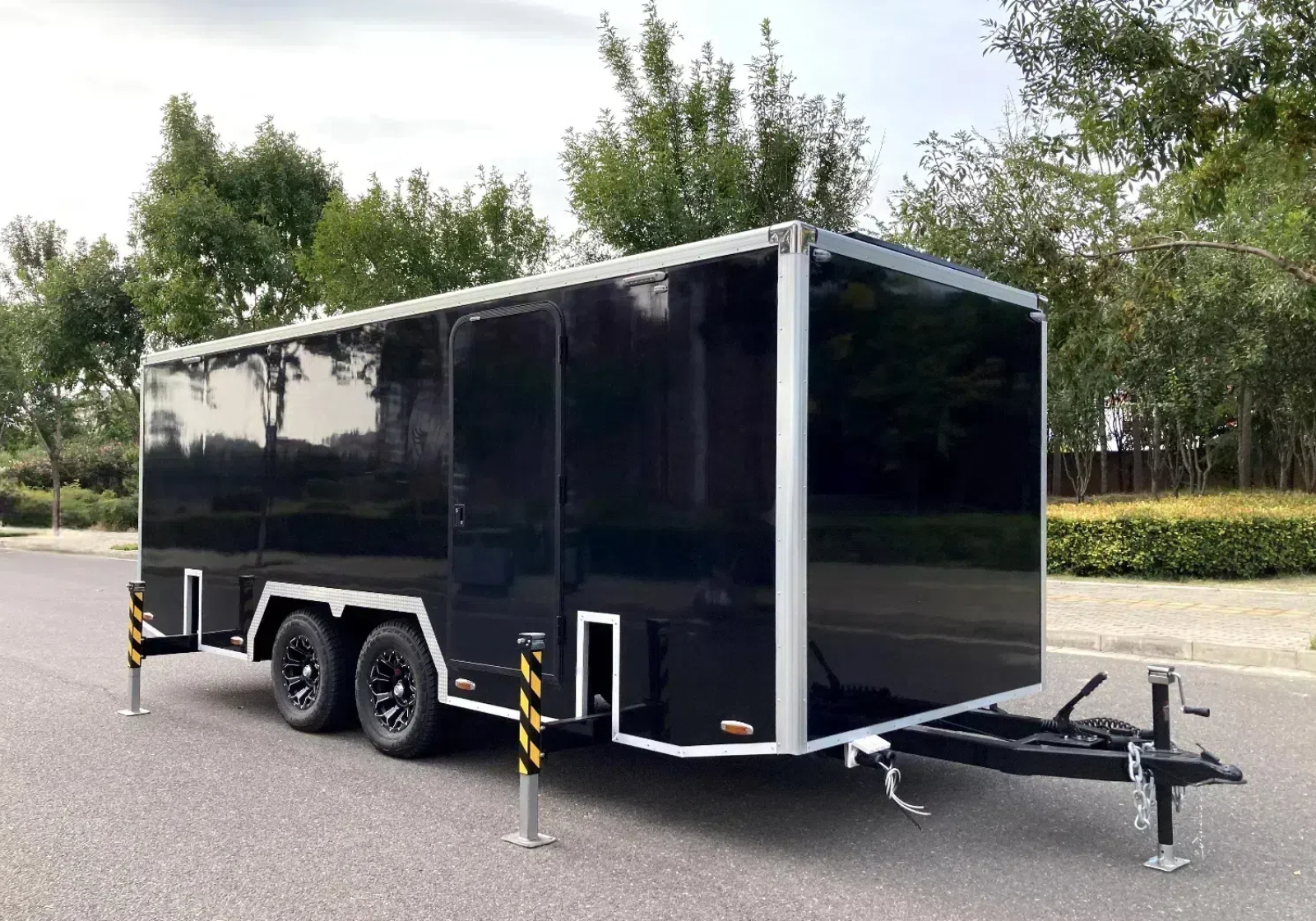

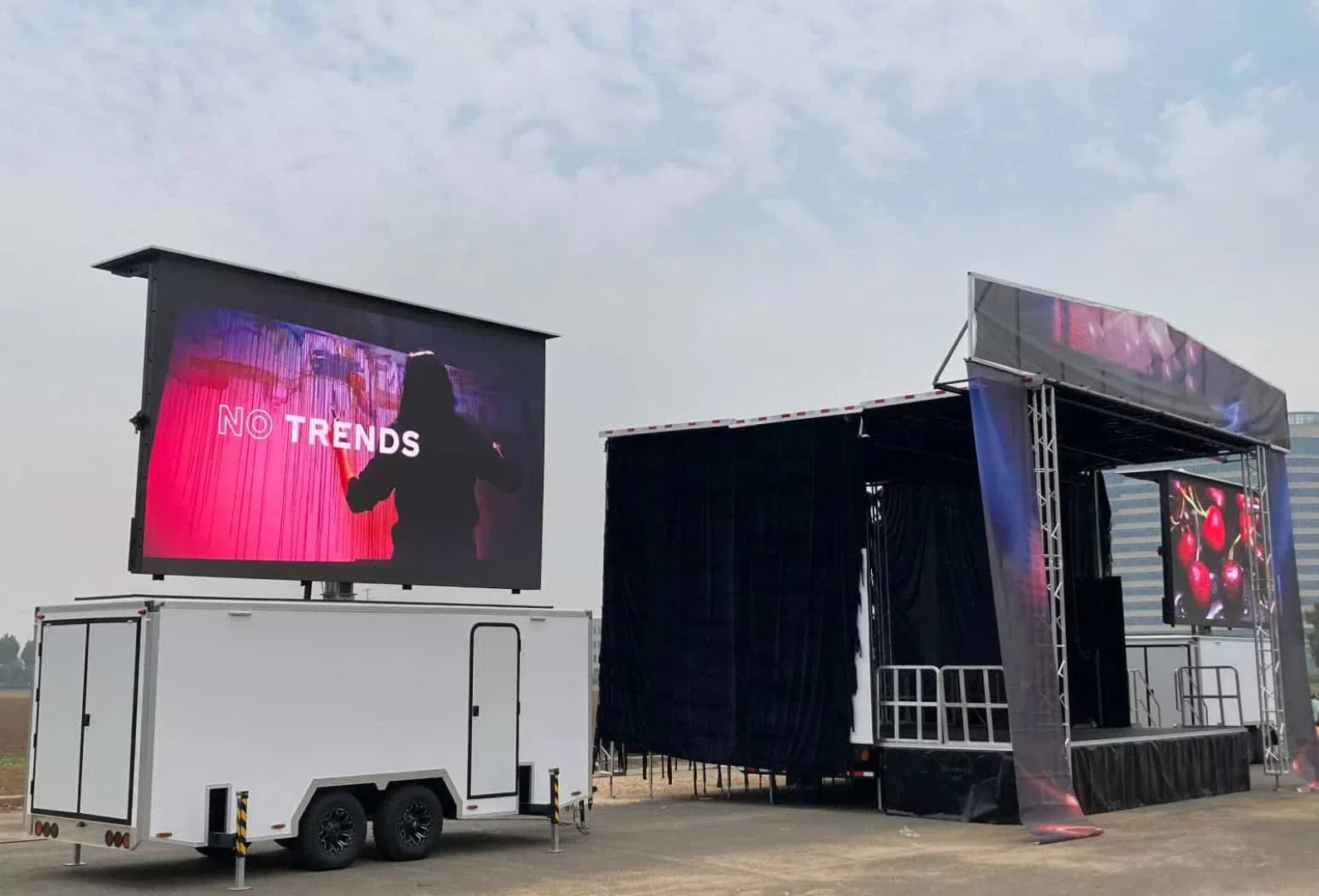

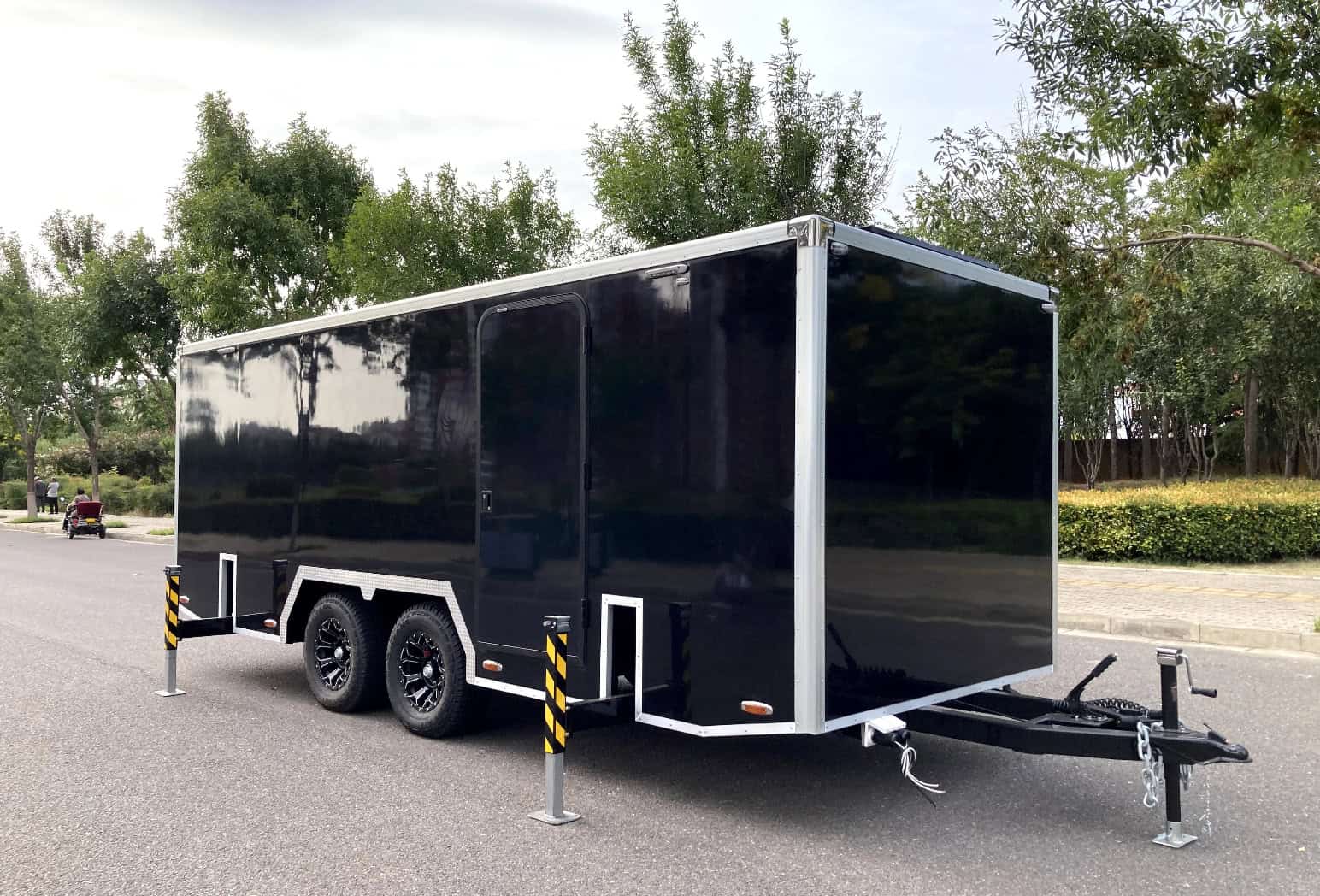

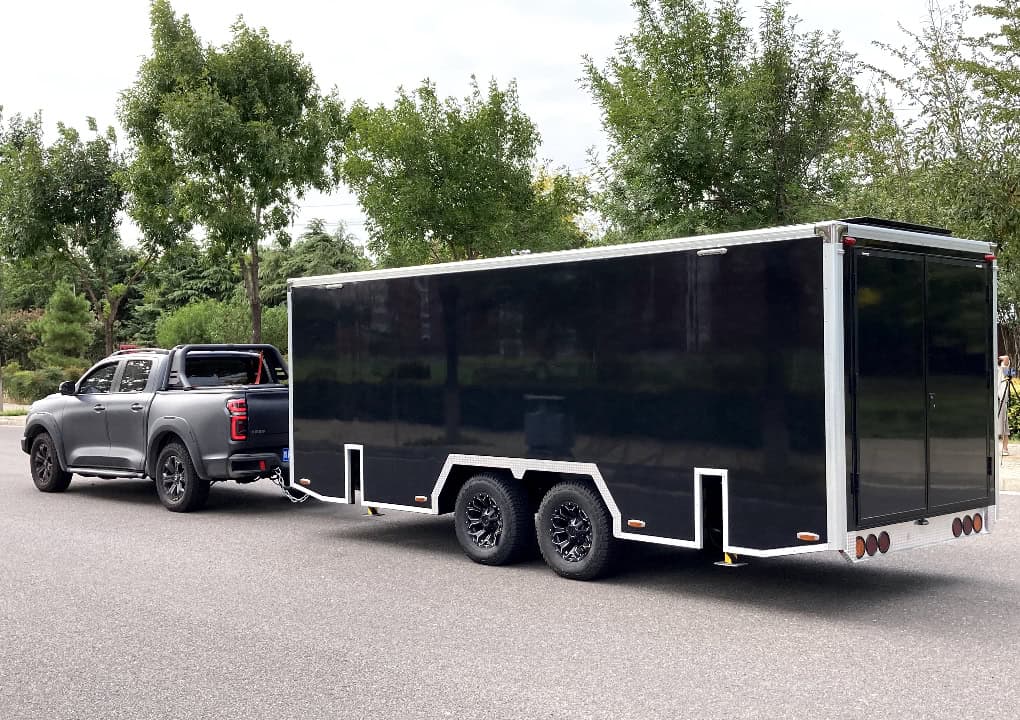

Robust enclosure shields LED screen from weather

The MB-15E’s enclosed trailer is designed to protect the LED screen from the elements. Its elegant design not only enhances the visual appeal but also ensures optimal performance in any weather. The robust structure shields the screen from rain, wind, and dust, ensuring longevity and reliability. This feature is crucial for outdoor events, as it guarantees that the screen remains in pristine condition, regardless of the weather conditions. The MB-15E trailer’s aesthetic enhances event atmospheres, making it a valuable asset for any outdoor event.
Sleek design and high-quality construction

The MB-15E LED trailer is a stunning piece of craftsmanship. Its sleek and stylish design immediately catches the eye, with smooth lines and a modern aesthetic that makes it a true head-turner. The combination of the LED screen and the trailer chassis adds a touch of elegance and sophistication, making it not just a LED trailer, but a work of art on wheels. It’s a perfect blend of functionality and beauty, enhancing the visual appeal of any event.

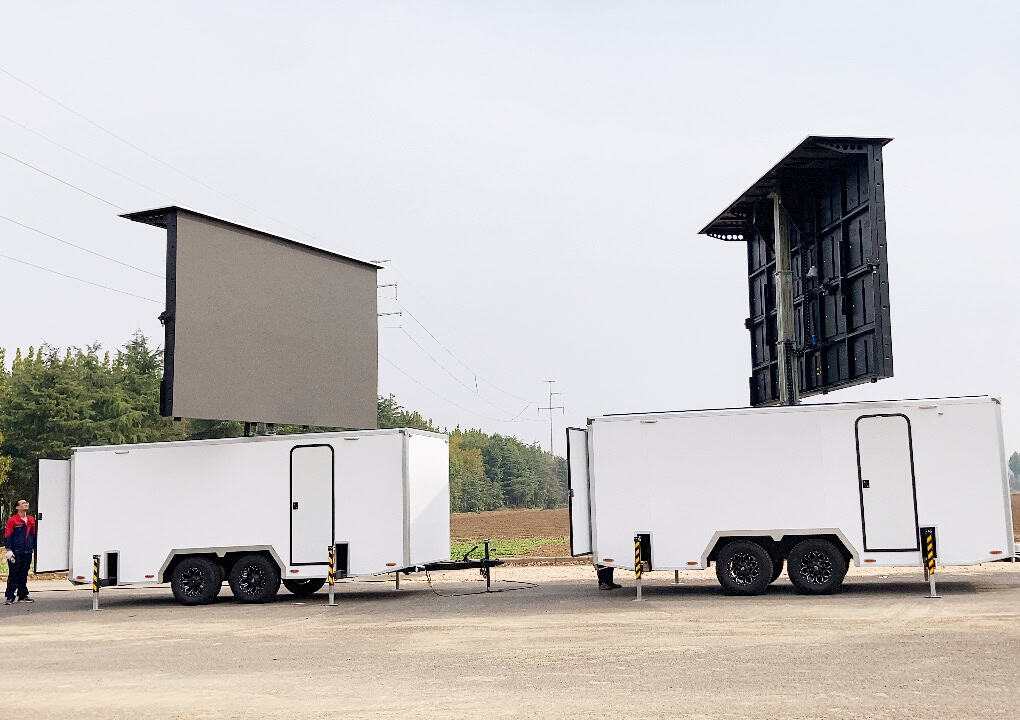

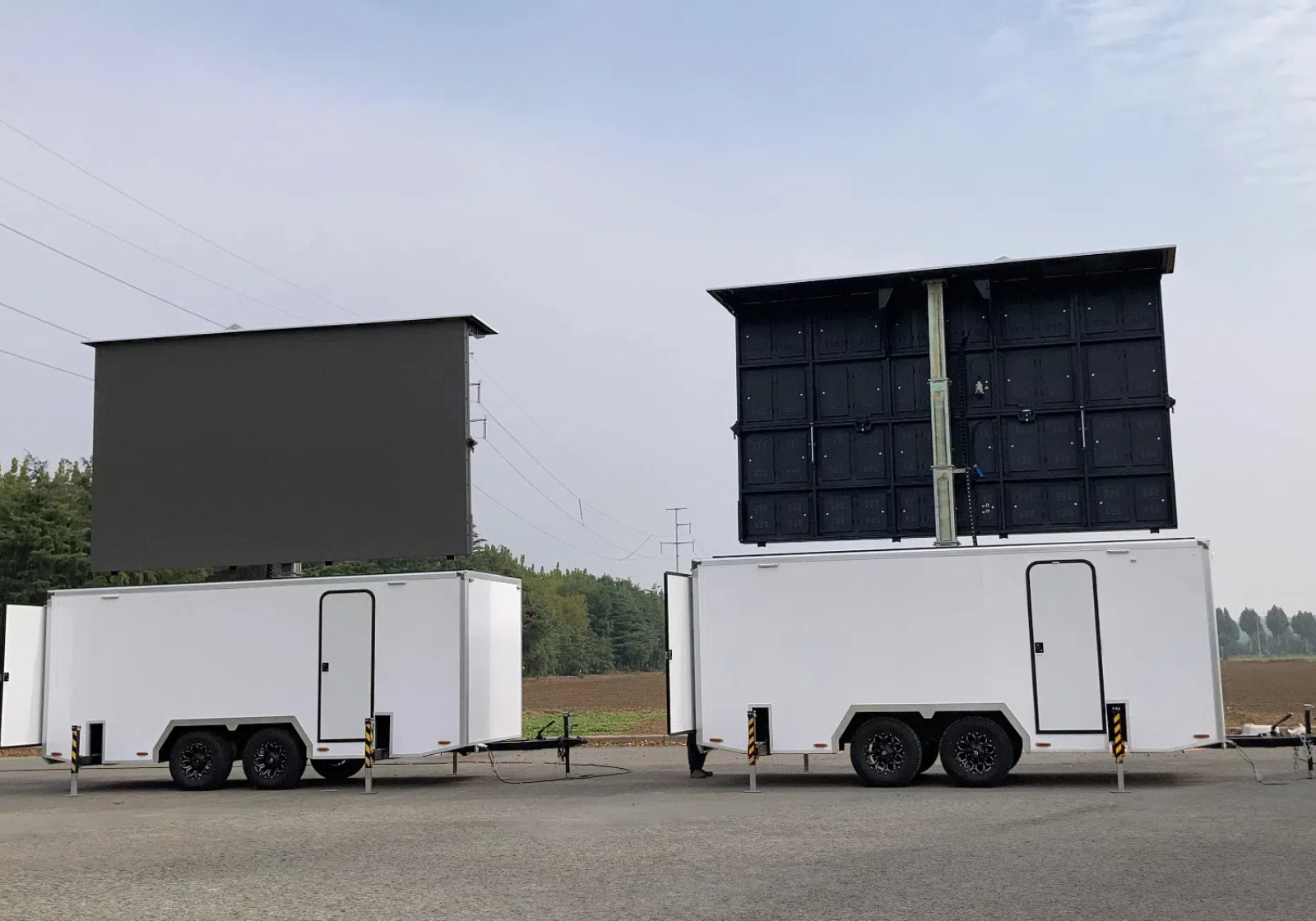

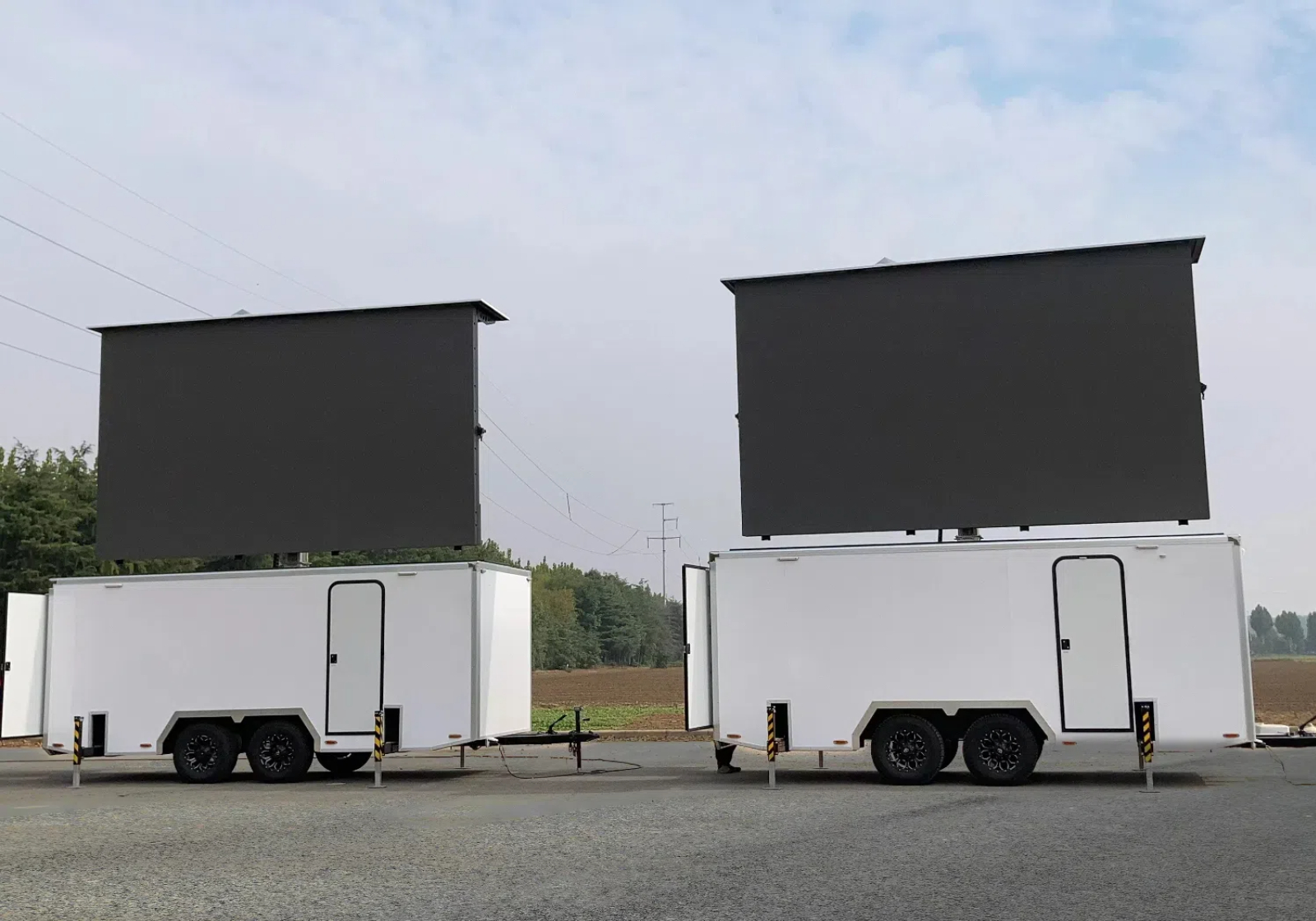

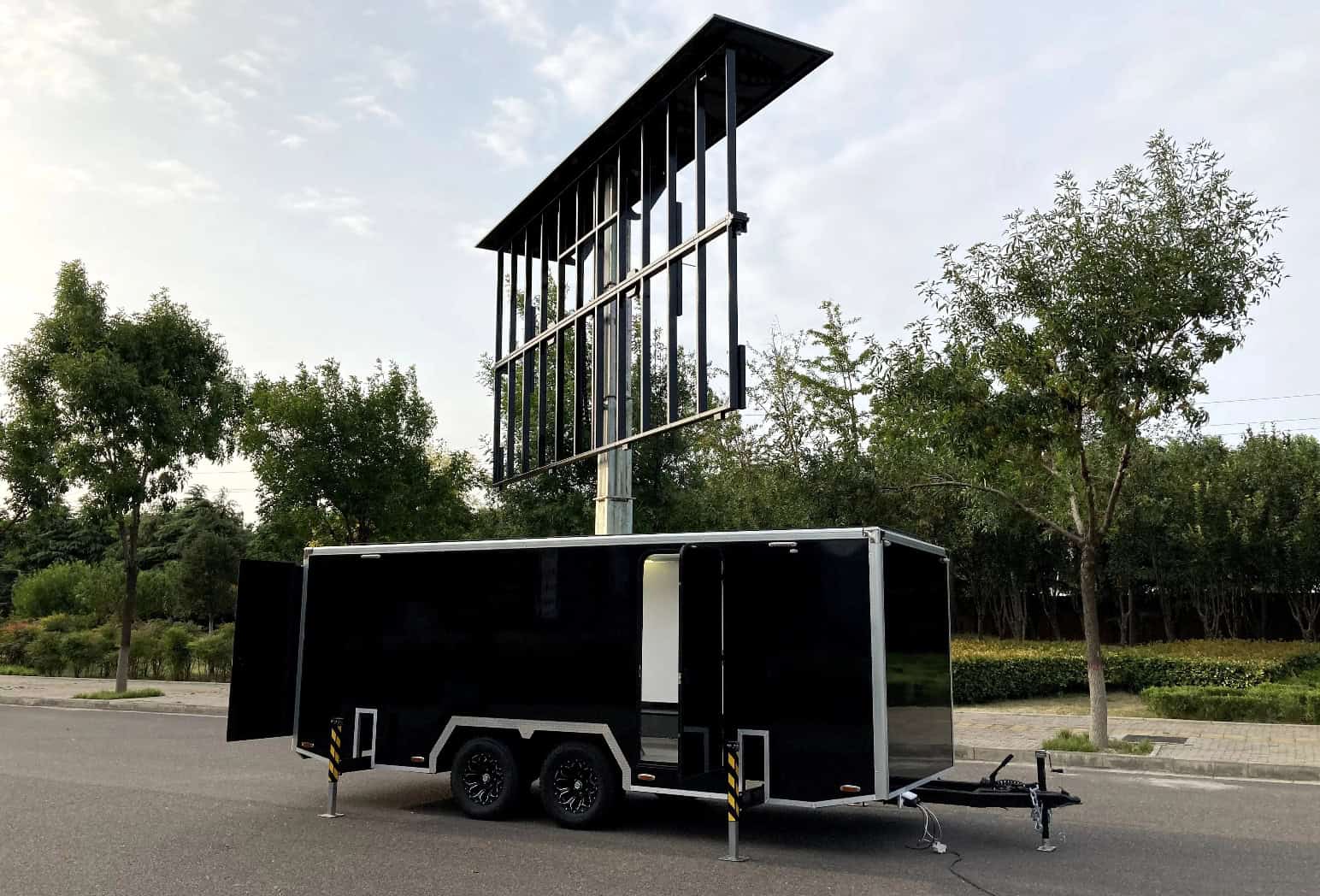

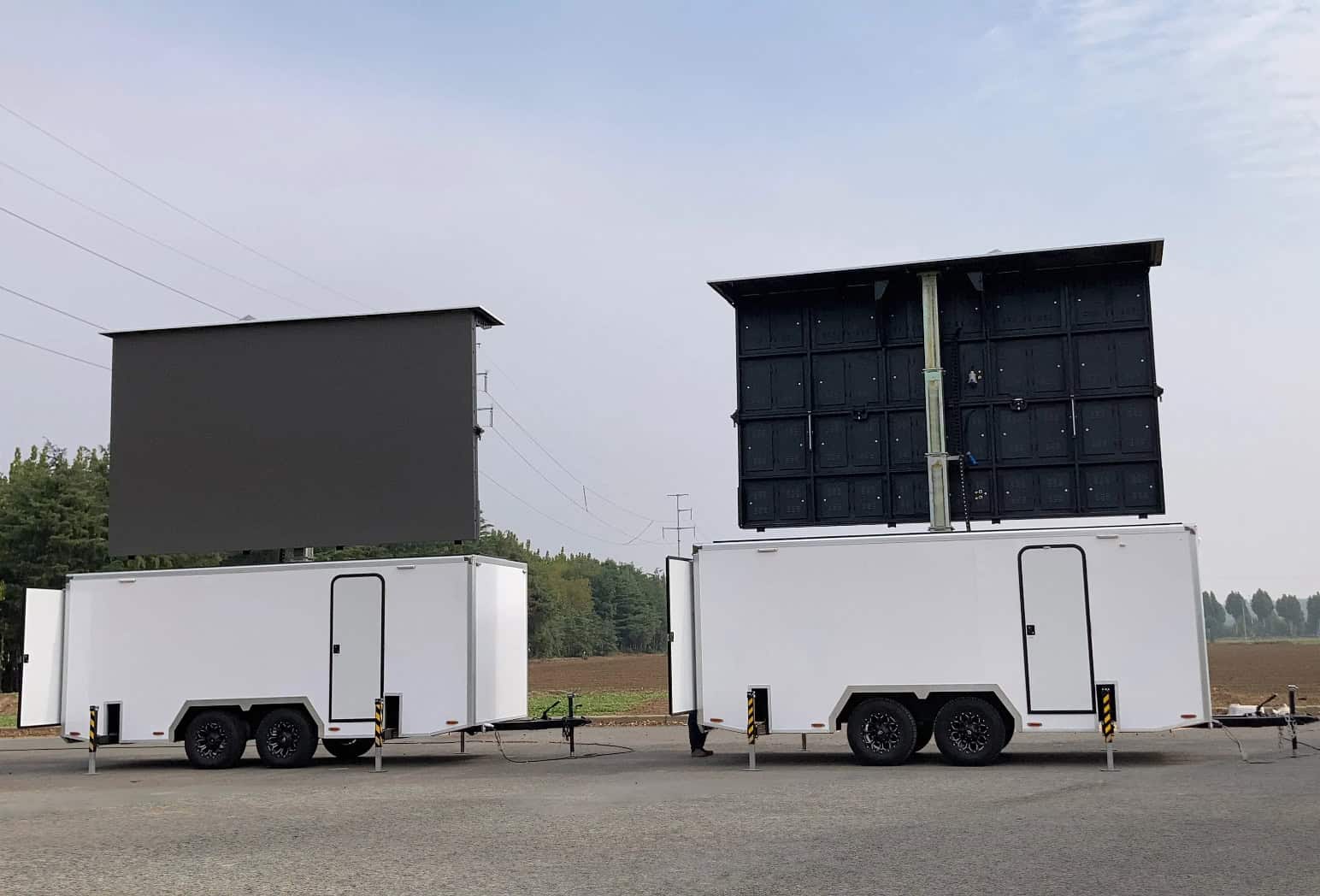

Adjustable height and 360-degree rotation for viewing.

The MB-15E LED screen trailer offers a standard lifting height of 12.6 feet from the platform, with a maximum screen lifting height of 18 feet from the ground (customizable to higher positions). The screen can be continuously rotated 360 degrees, providing unparalleled flexibility and interaction between the screen and the audience. The hydraulic operation is highly stable, ensuring smooth and reliable adjustments. This feature greatly enhances the visual experience by allowing the screen to be positioned optimally for any event setup.
High-resolution display with small pixel pitch

MOBO’s outdoor LED screen offers small pixel pitches ranging from 1.9mm to 4.8mm, ensuring crisp and detailed visuals. The highest screen resolution can reach 2K, providing stunning visual performance for displaying videos and images. This high-resolution capability ensures that every detail is visible, even from a distance, making it ideal for large-scale events. MOBO’s LED screen delivers stunning visual effects, enhancing the overall experience for your audience.

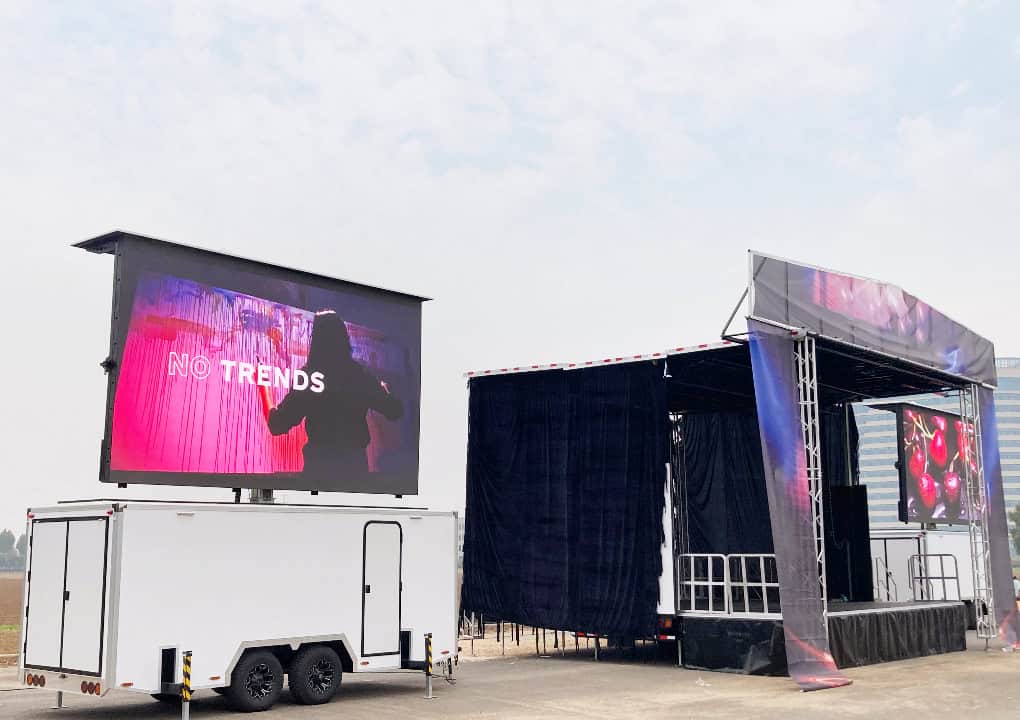

High brightness ensures visibility in sunlight

The MOBO trailer LED screen features a brightness of up to 5500 nits (with an optional maximum of 7500 nits), ensuring clear content delivery even under strong sunlight. The screen’s brightness can be automatically adjusted based on ambient light conditions, providing a comfortable viewing experience at any time of day. This feature ensures that your content remains visible and vibrant, regardless of the lighting conditions, making it perfect for outdoor events.

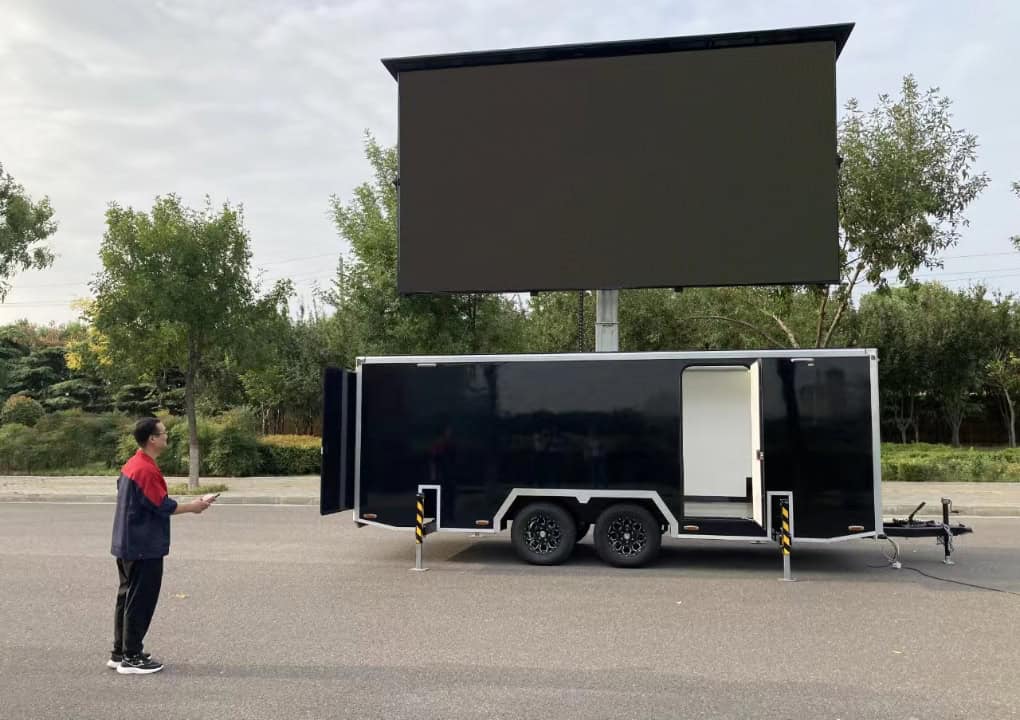

Quick and easy setup by one person

The MB-15E screen setup can be easily completed in about 20 minutes by a single operator. The hydraulic system simplifies the process, significantly reducing the time and effort required for screen installation. This user-friendly design and efficient operation make it an ideal choice for event planners looking to save time and effort while ensuring a high-quality display experience. The quick setup allows for more efficient event management and setup processes.

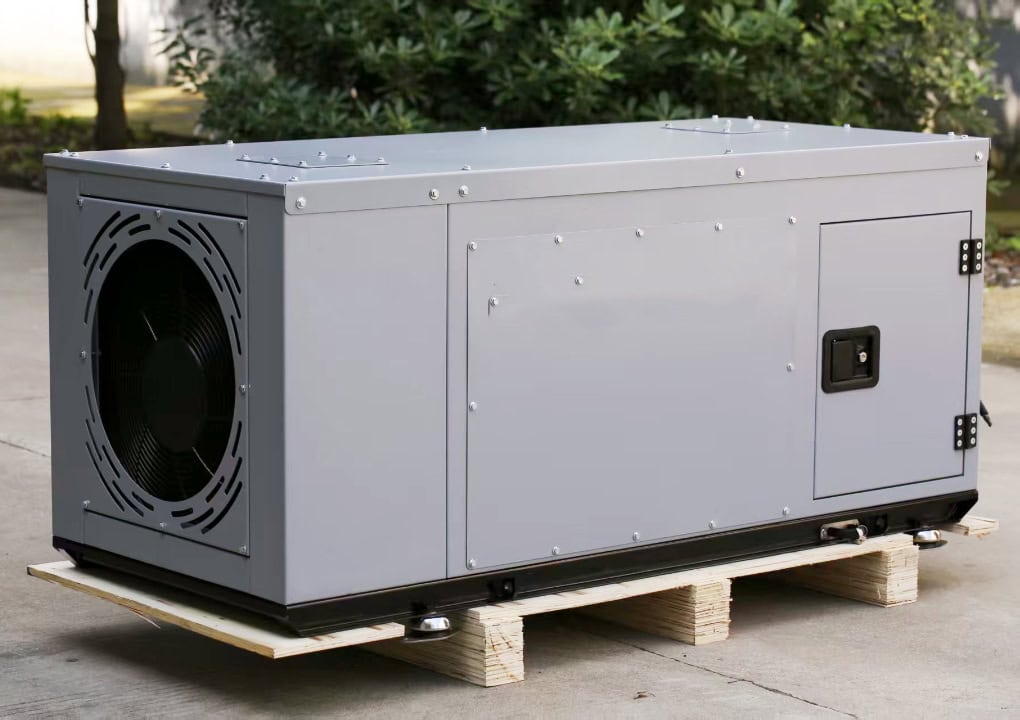

Customized On-board Diesel Generator For LED Wall

The MB-15E trailer uses the NovaStar VX400 video processor, which supports a variety of video signals including SDI, HDMI, and DVI. This high-performance processor ensures that high-resolution images and videos are displayed with exceptional clarity and detail. Whether you’re hosting a concert, sports event, or corporate presentation, the NovaStar video processor guarantees an excellent display experience, making your event stand out.
Stable Chassis With Wind Speed Alarm System

MB-15E trailer features a wide and heavy chassis frame with four stabilizers at the corners, providing strong stability when the screen is lifted. Additionally, a wind speed sensor with an alarm on the roof ensures a safe working environment by alerting operators to high wind speed conditions. This feature is crucial for outdoor events, as it ensures the safety and stability of the trailer, even in windy conditions.

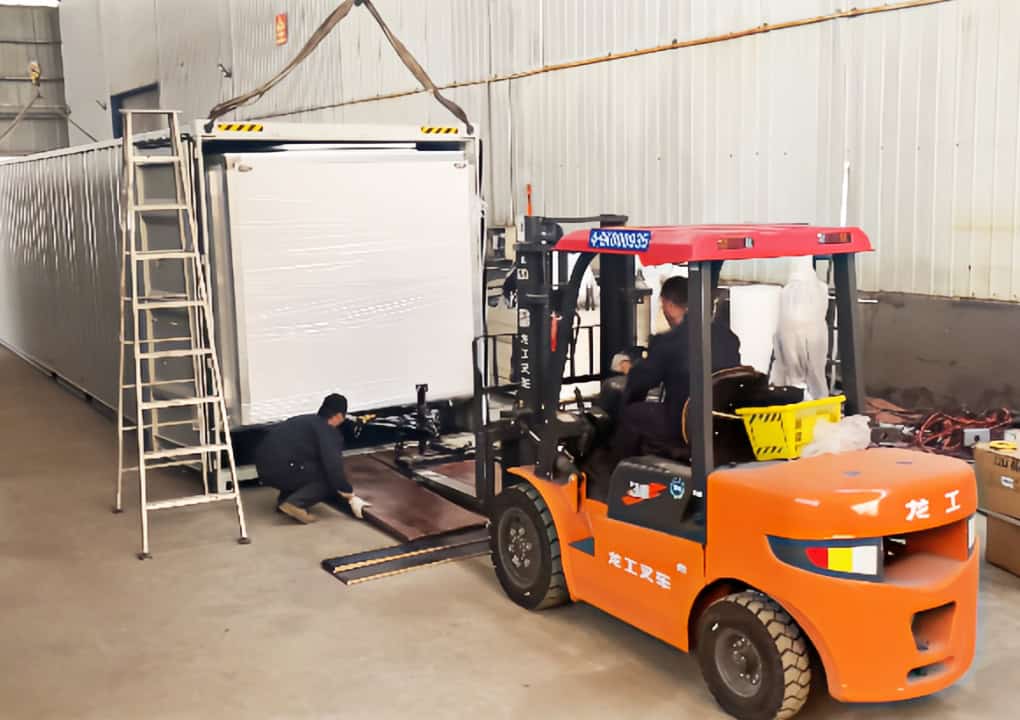

Fit Into 40HQ Container Shipping To Door

The MB-15E enclosed LED video wall trailer can be put inside the 40HQ container. After well installed, the container will be loaded on the ocean ship from MOBO factory. The truck will take the container directly to your door in the United States. You only need to pull the trailer out at the dock warehouse. This way of shipping can be very convenient and save shipping cost for clients.

View All Feature

Specifications

Part I Trailer Chassis

Trailer Type	Enclsoed
Operating Dimension (with drawbar)	24’x 7’ x 19.3’
Gross Vehicle Weight Rating(GVWR)	8,500 LBS
Axles	Tandem
Tires	LT265/70R16
Rim	8’’ x 16’’, Aluminum Alloy
Coupler	2-5/16’’ Ball Hitch
Color	Grey, Black, White or Custom color
Wind Rating	45 MPH

Part III Hydraulic Mechanical Parameter

Screen Lifting Height(top to ground)	19.3ft
Screen Rotating Degree	360 continuous
Control Mode	Remote controller + Wire control
Motor Power	3KW
Nominal Pressure	11KPa
Oil Type	Aviation hydraulic fluid
Overheat Protection	✓

Part V Power System Parameter

Max. Screen Power Consumption	9,600 Watts
Avg. Screen Power Consumption	4,425Watts
Other Equipment Power Consumption (Speaker, amplifier, Video processor etc)	2,100 Watts
Input Voltage	120V
Plug Type	50A breaker x 2 sets

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	16.4'W x 9.84'H /5000mmx3000mm
Pixel Pitch	2.97		3.91		4.81
Screen Resolution	1680p x 980p		1280p x 768p		1040p x 624p
Standard Brightness(Nits)	4000-4500	5000-5500		5000-5500
Optional Highest Brightness (Nits)	≤5500	≤7000		≤7000
Max. Refreshing Rate(Hz)	≥3840Hz
Max. Power Consumption (Watt/㎡)	≤640
Protection Grade	IP65 (Fully waterproof)

Part IV Media Control System

Speakers(Watts)	120Watts x 4 sets
Amplifier	660watts x 1 set
Video Processor	NovaStar VX400
Input Resolution	Up to 1920 x 1200p @60Hz
Video Input	DPx1, HDMIx1, VGAx2, DVIx1, CVBSx2, SDIx1
Video Output	DVI Loop x1, DVI x1, VGA x1, SDI Loop x1
Audio Input	1/8inch(3.5mm)

Part VI Optional Equipment List

Power Generator

Super silent inverter generator

Trailer Wrap

Customized

Named LED Screen brand

✓

Warranty Extending

Extended from 3 years to 5 years
