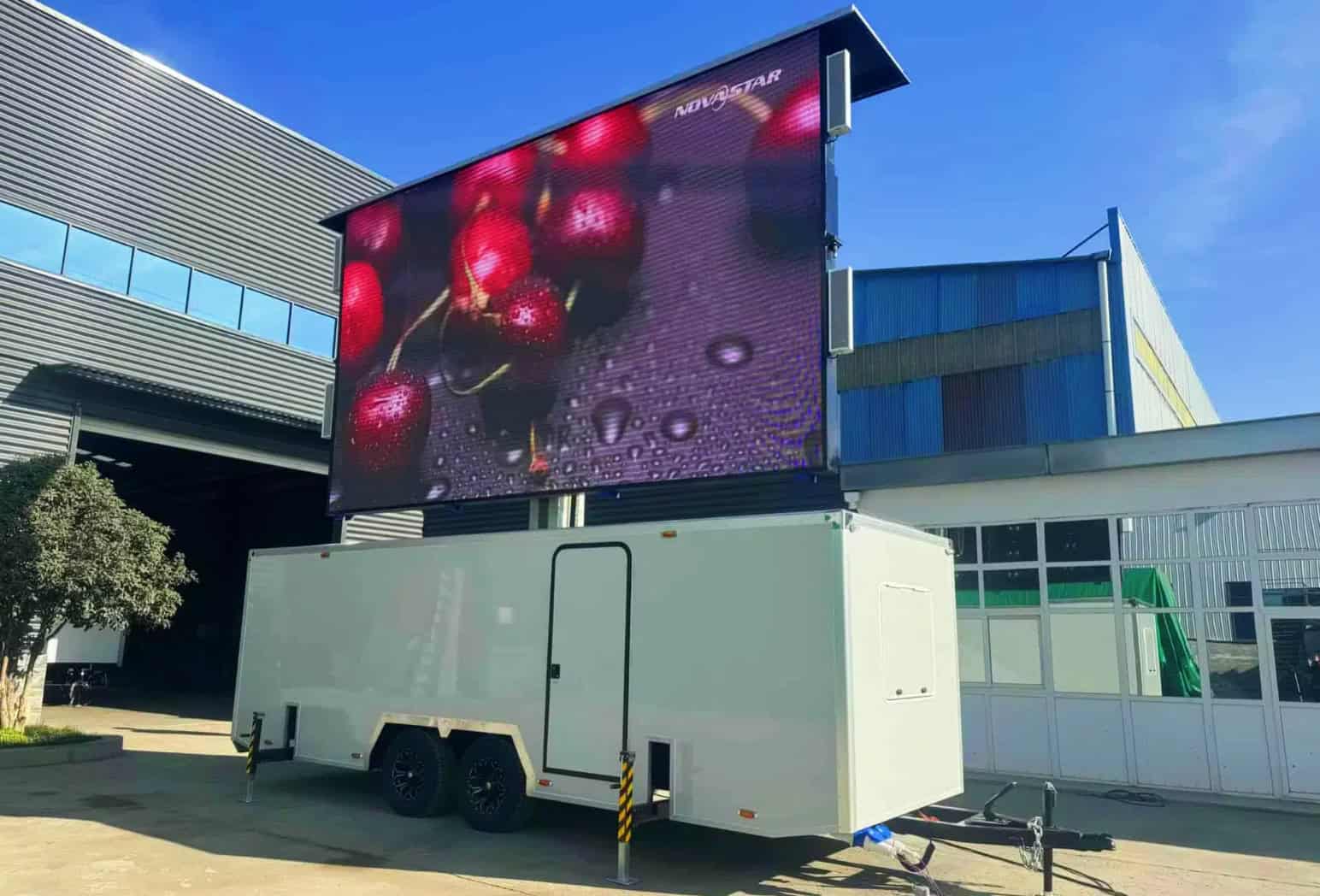

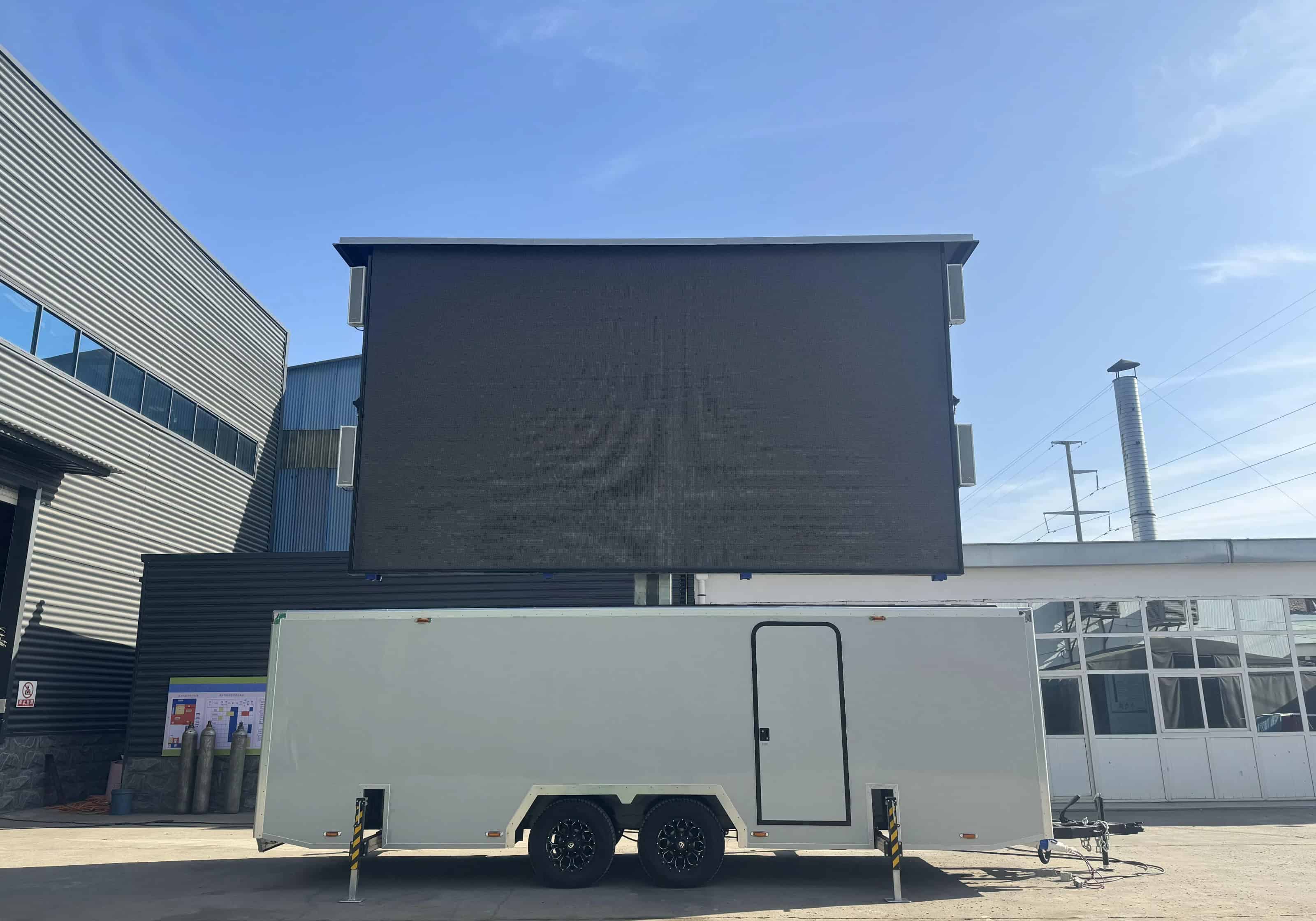

MB-22E Enclosed LED Trailer

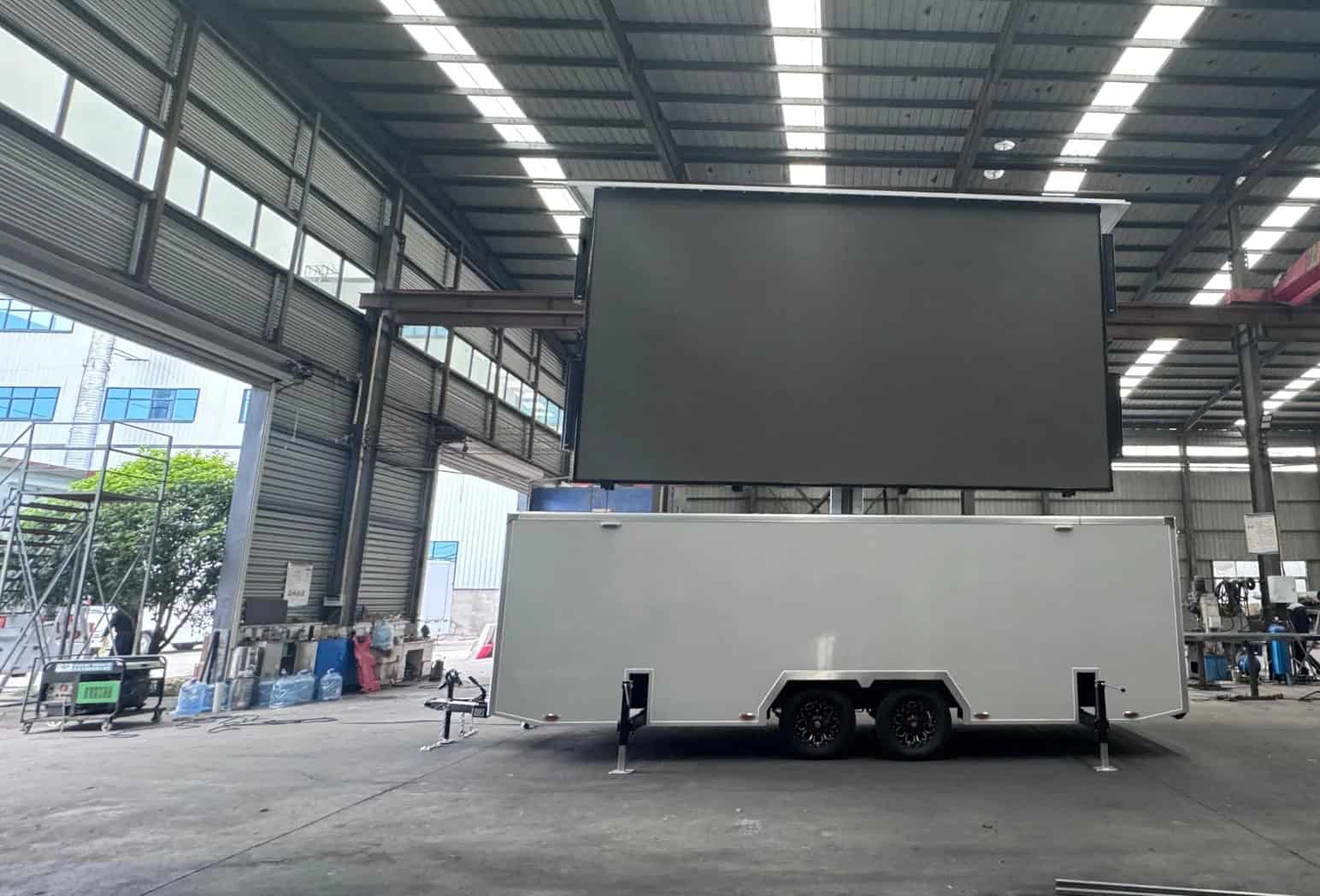

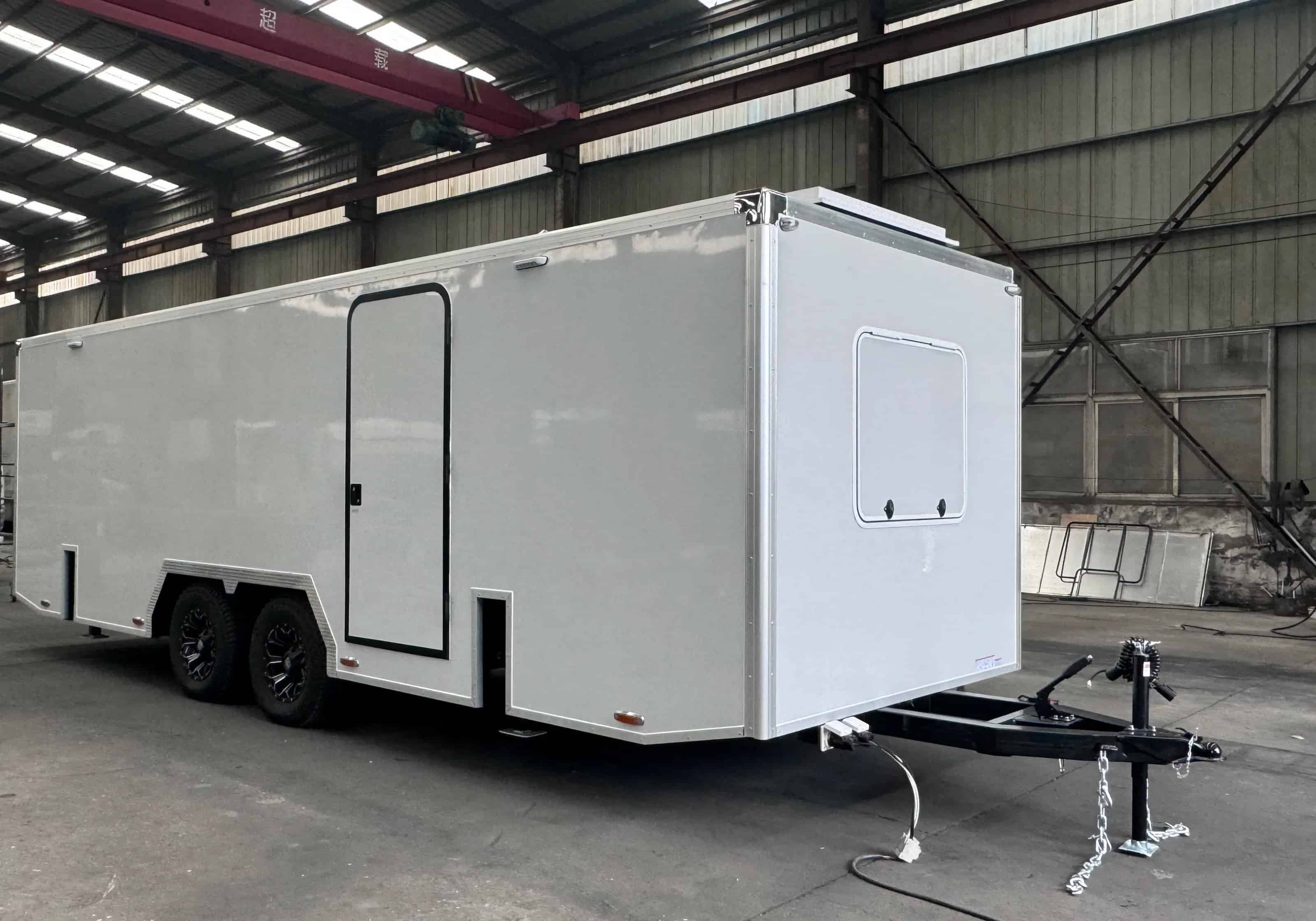

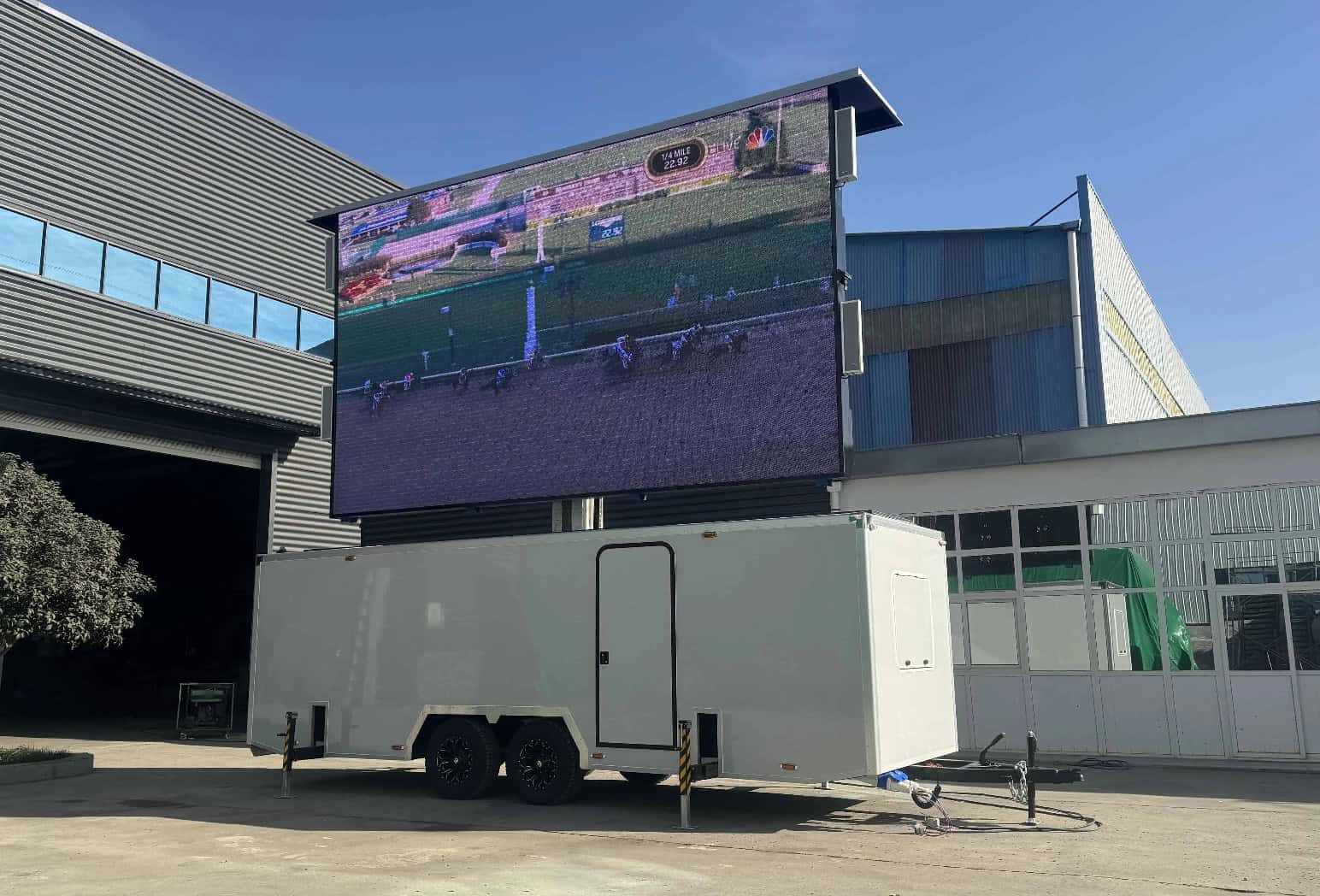

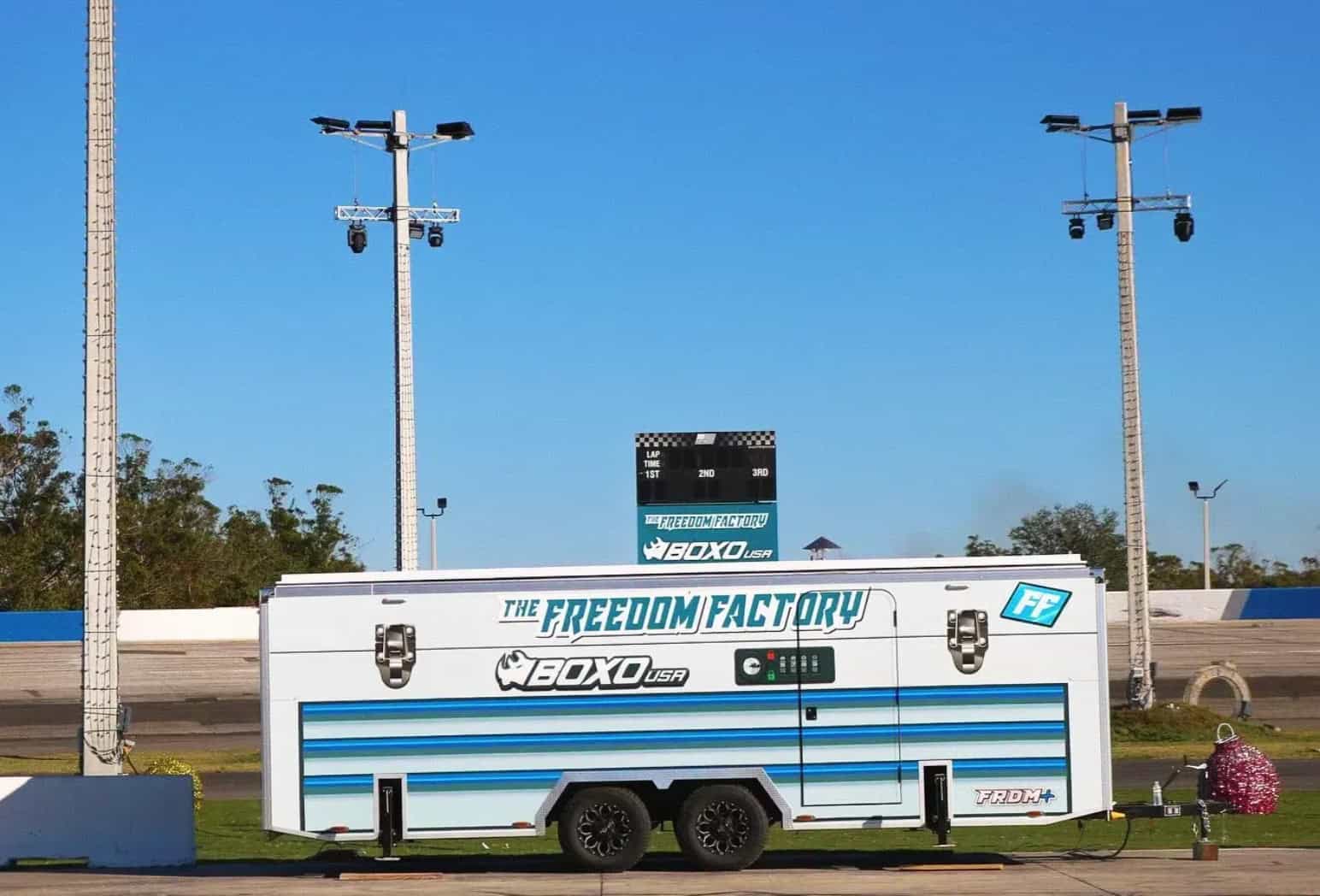

MB-22E LED screen trailer is an enclosed trailer fitted with a hydraulic system to lift the mounted LED screen. It is a popular and portable enclosed LED trailer that features a classic American trailer style. The huge digital LED sign is foldable inside the trailer and can be lifted up when you need to display at the event. With the enclosed structural design, the MB-22E mobile LED screen trailer can protect the LED screen from rain, sunshine, wind, dust and sand. The beautiful classic enclosed trailer design can also attract more sights, impressions and visual experience in your event.

20ft by 11.5ft outdoor fine pitch LED screen

Benefit: 21.3ft screen lifting height increases the optimal field of view.

Beautiful trailer shape and convenient storage

Benefit: Customizable trailer appearance with your company information.

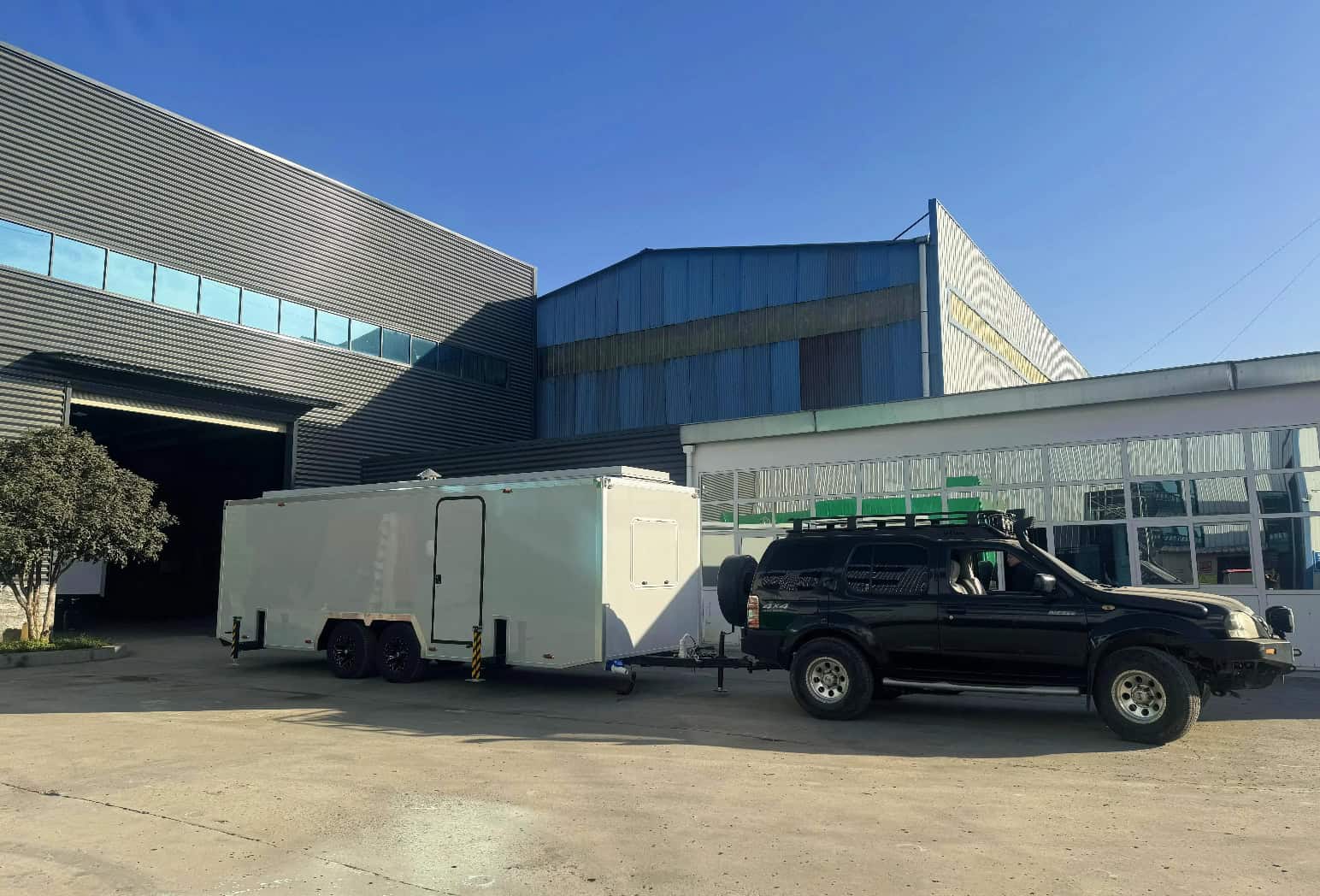

Popular and portable enclosed LED trailer

Benefit: The high-end and classic design can enhance your activity level.

Get A Quote +

Other benefits

Enclosed container to protect LED display
Popular appearance for Europe and US market
20 minutes to set up with one worker
100% hydraulic control to replace manual
Reliable 3 year warranty service
High elevation and superior vision

Feature and Benefits

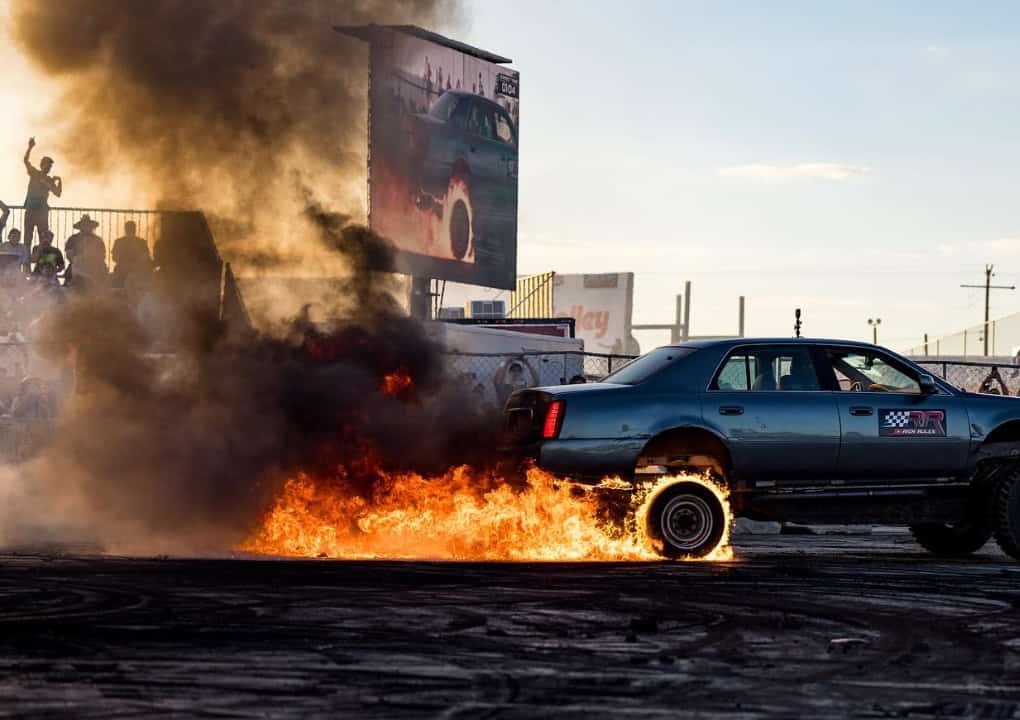

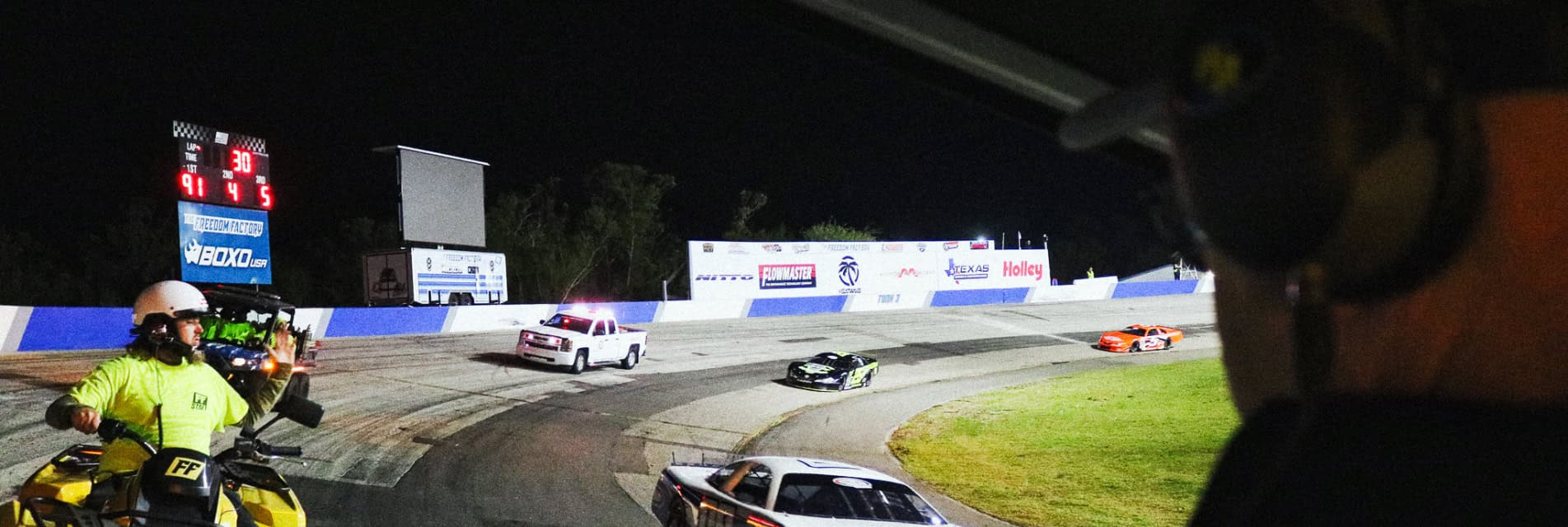

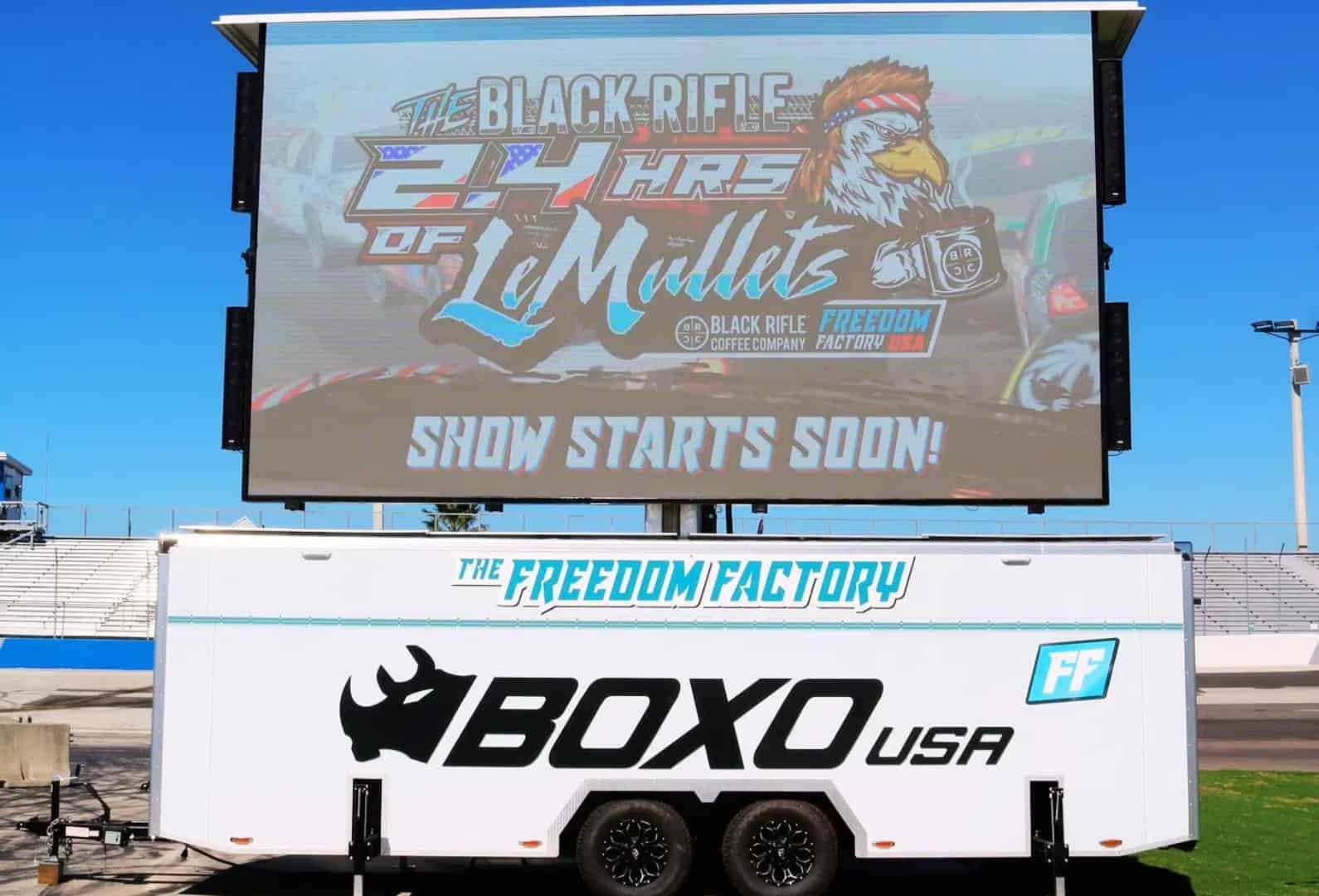

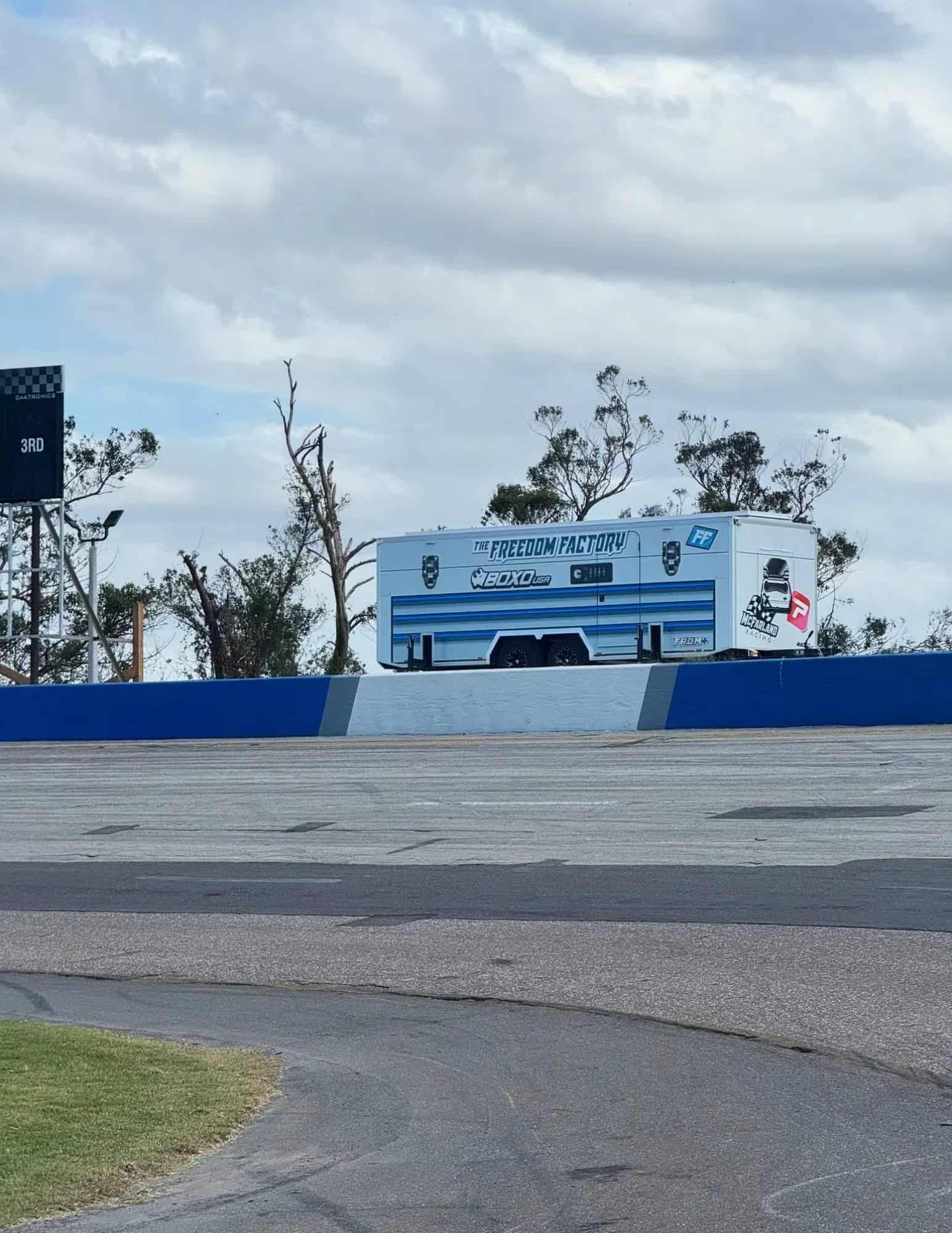

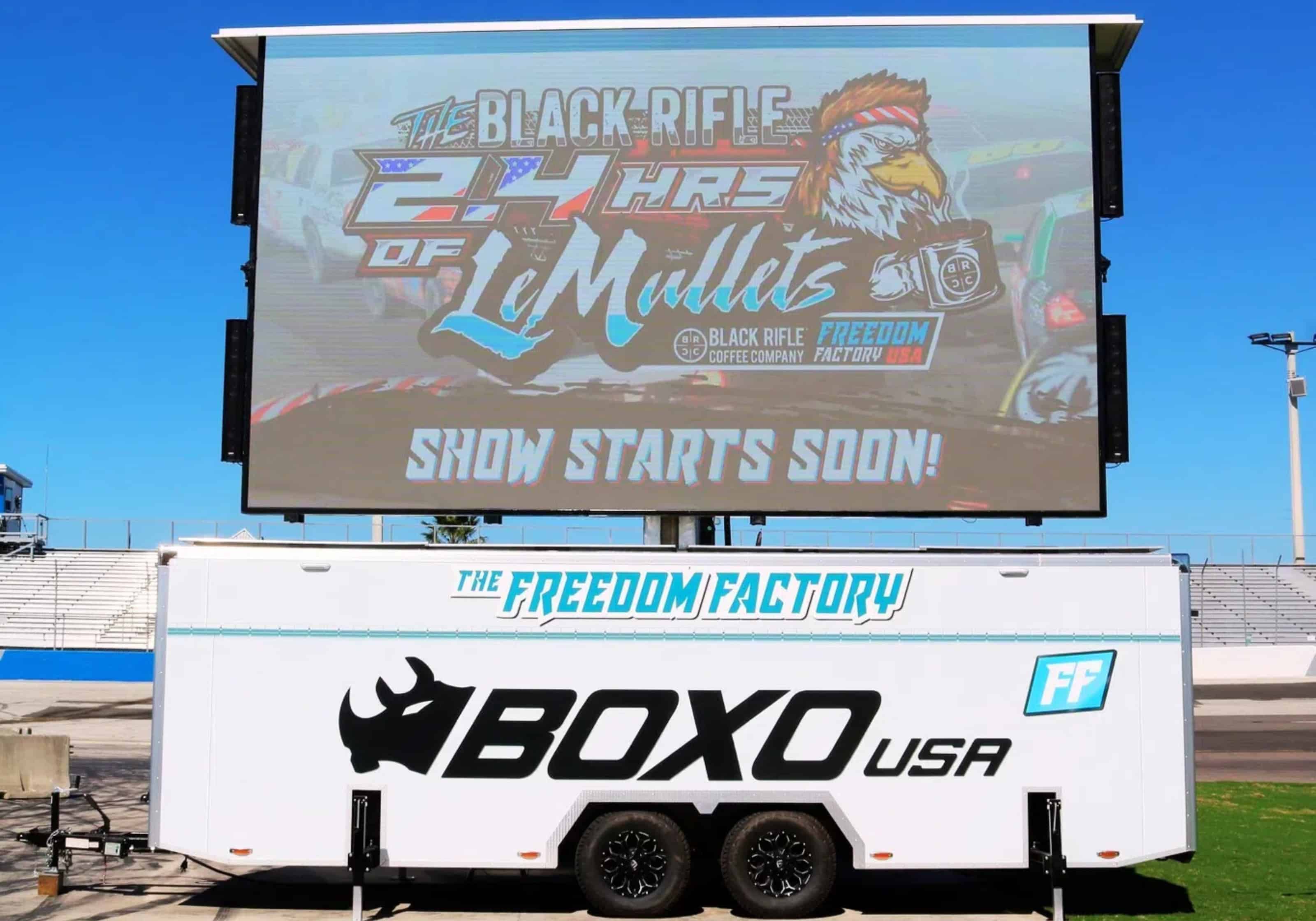

The MB-22E is a popular and portable enclosed LED sign trailer that features a classic European and American trailer style. The huge digital LED sign is foldable inside the trailer and can be lifted up when you need to display at the event. MB-22E is your best partner for events like musical, sports, car racing, graduation ceremonies, political campaigns, stage events and golf tournaments. Here are the nine core features and benefits of the MB-22E.

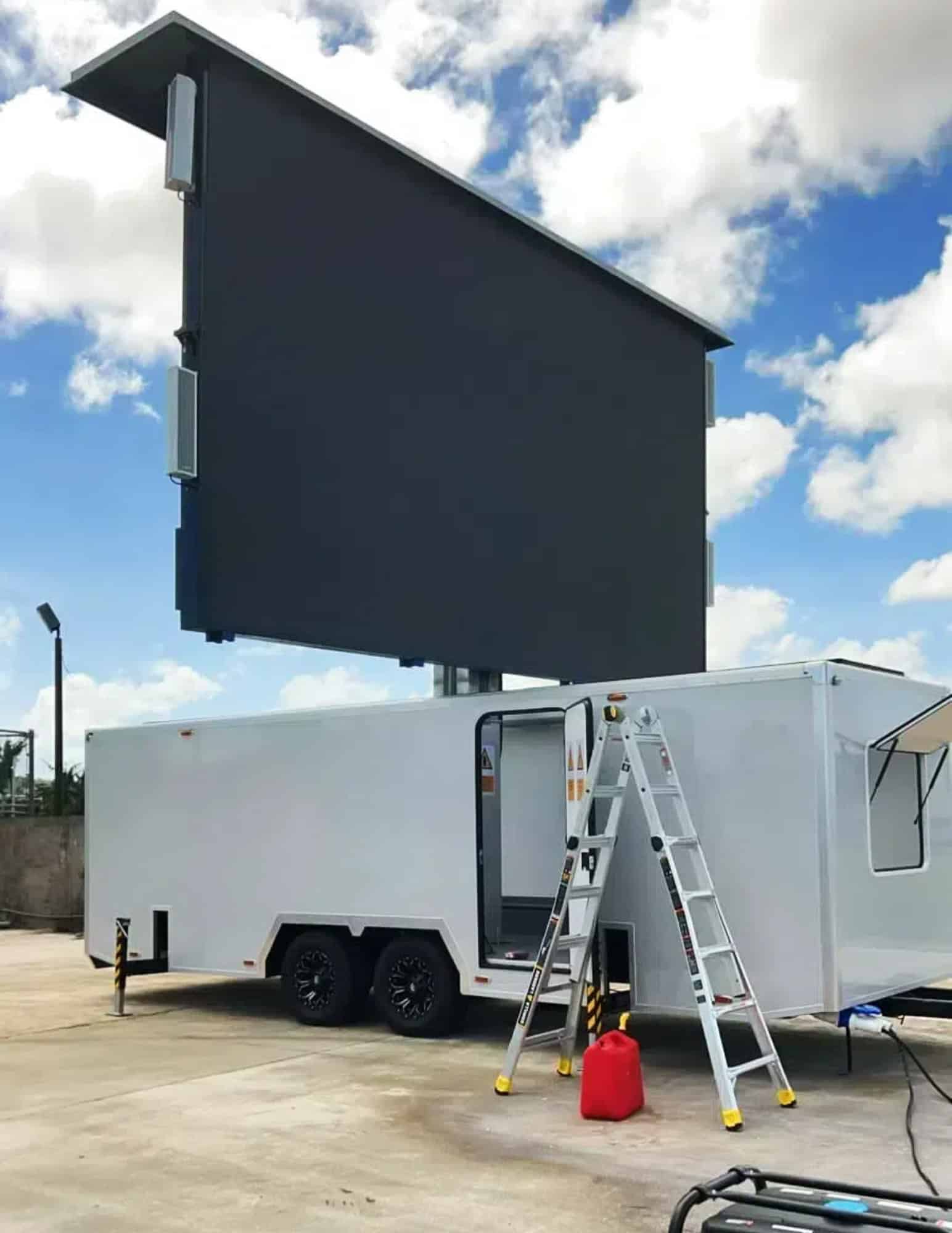

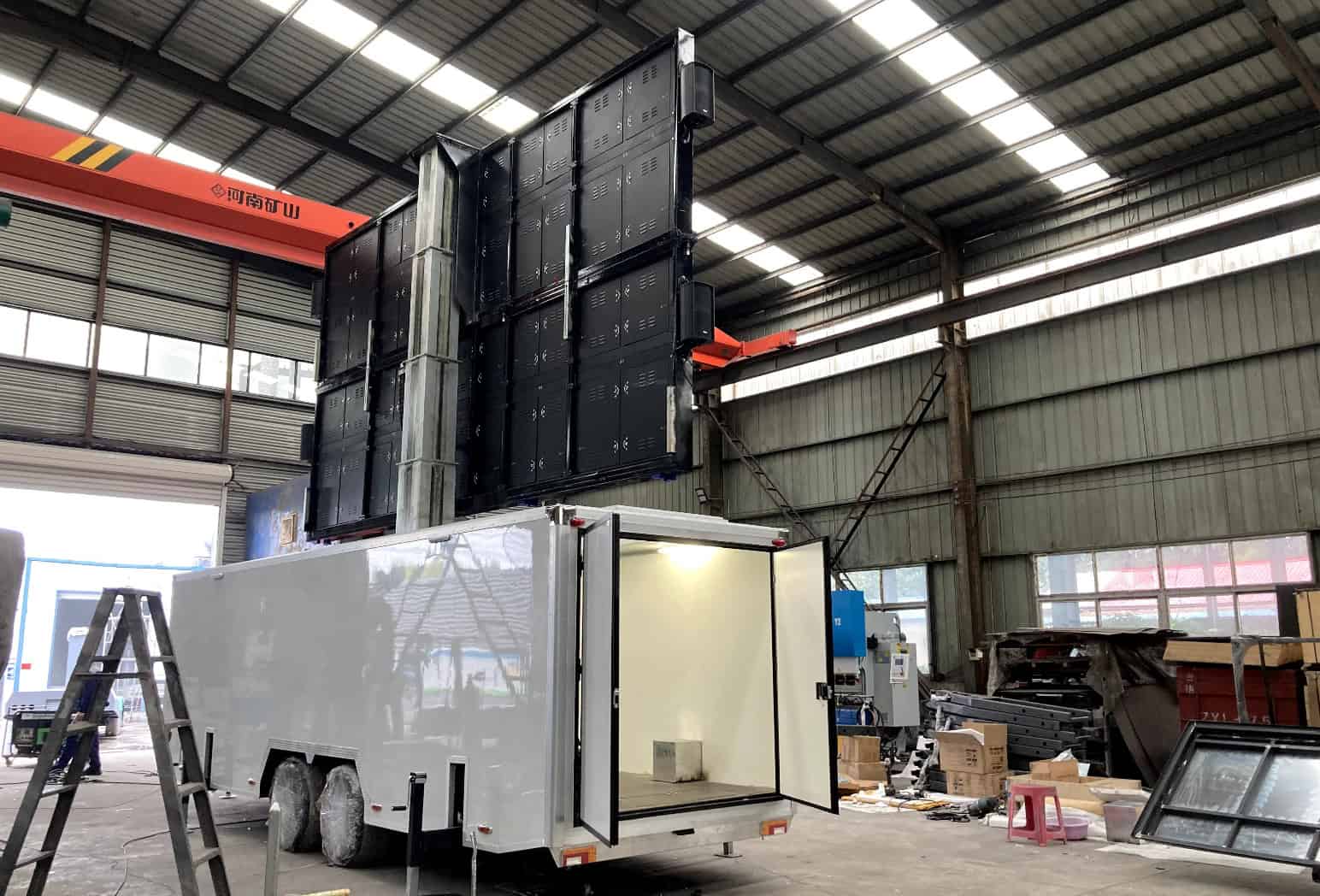

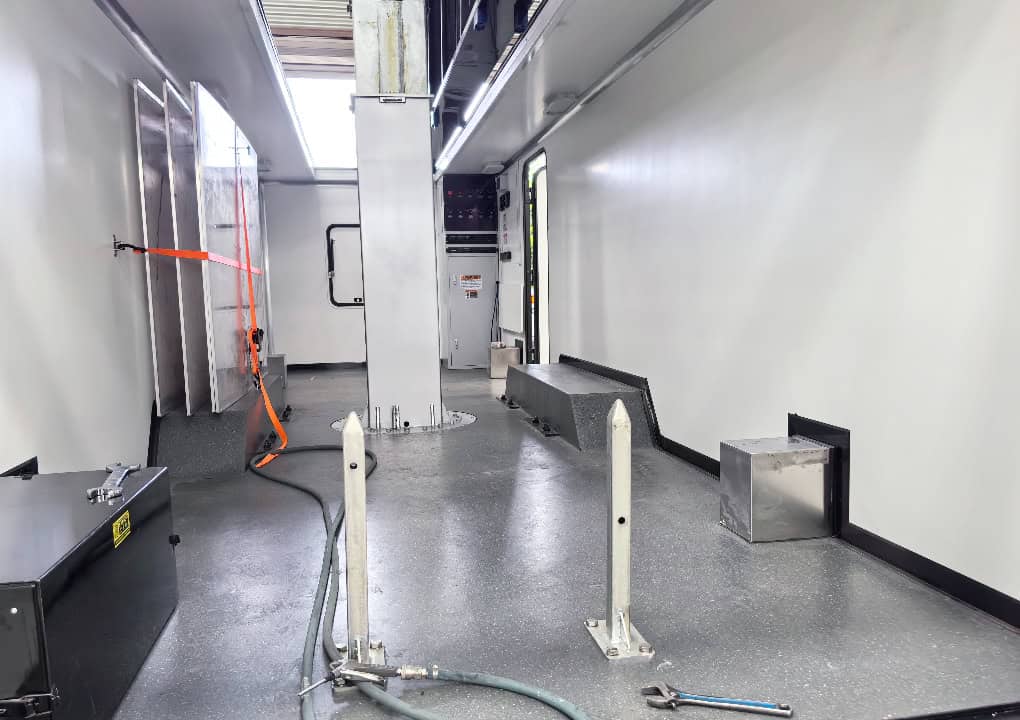

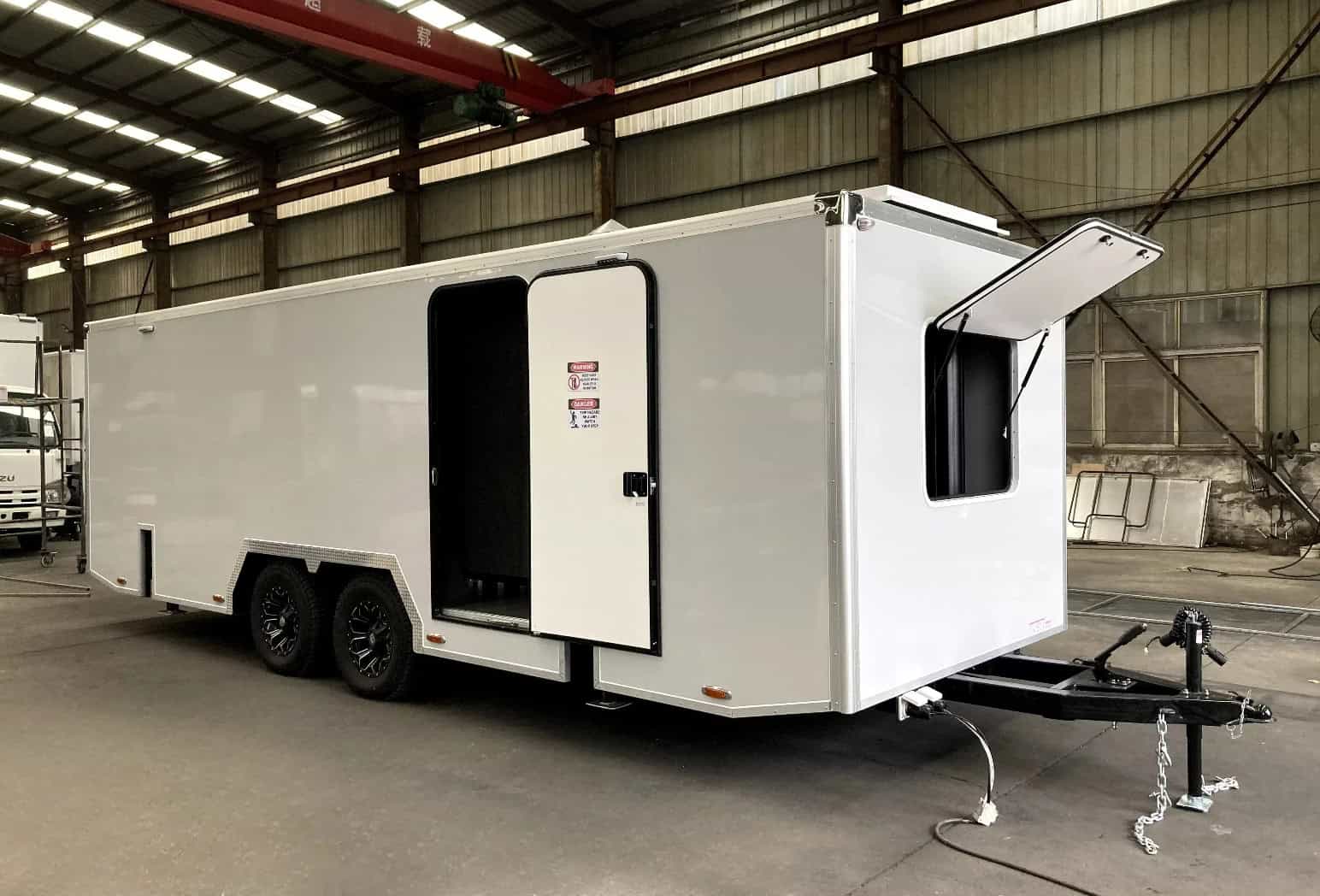

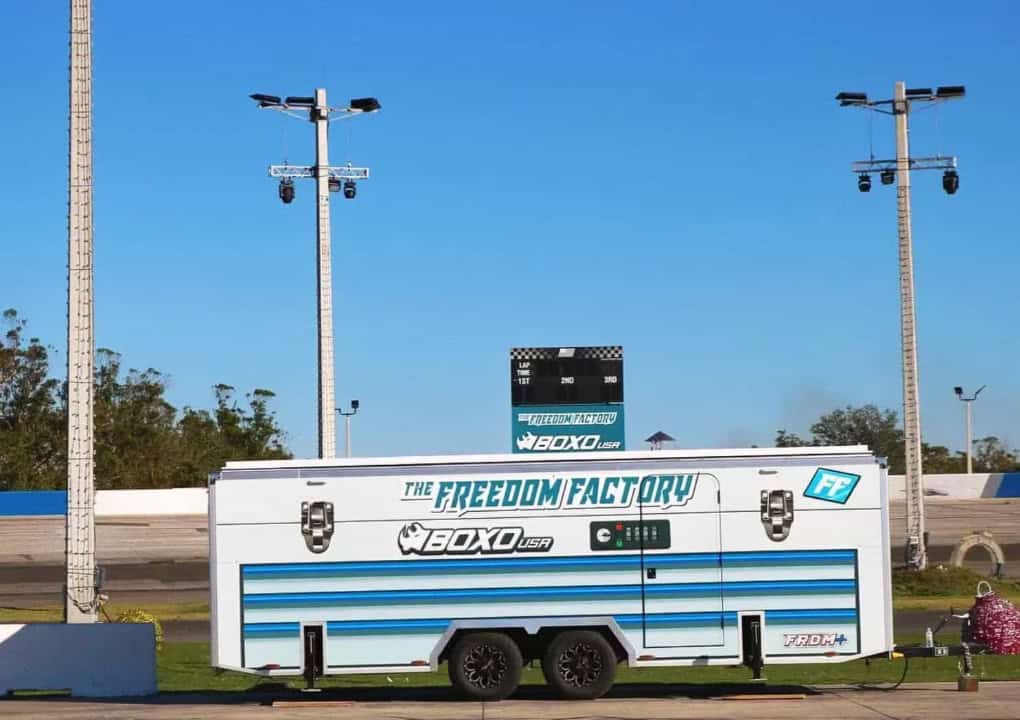

Enclosed trailer with high protection

The MB-22E enclosed trailer's elegant design not only provides a striking visual appeal but also serves a practical purpose. Its robust structure shields the LED screen from the elements, ensuring optimal performance in any weather. The MB-22E trailer's aesthetic enhances event atmospheres, while its protective features guarantee the screen's longevity, making it a valuable asset for outdoor events.

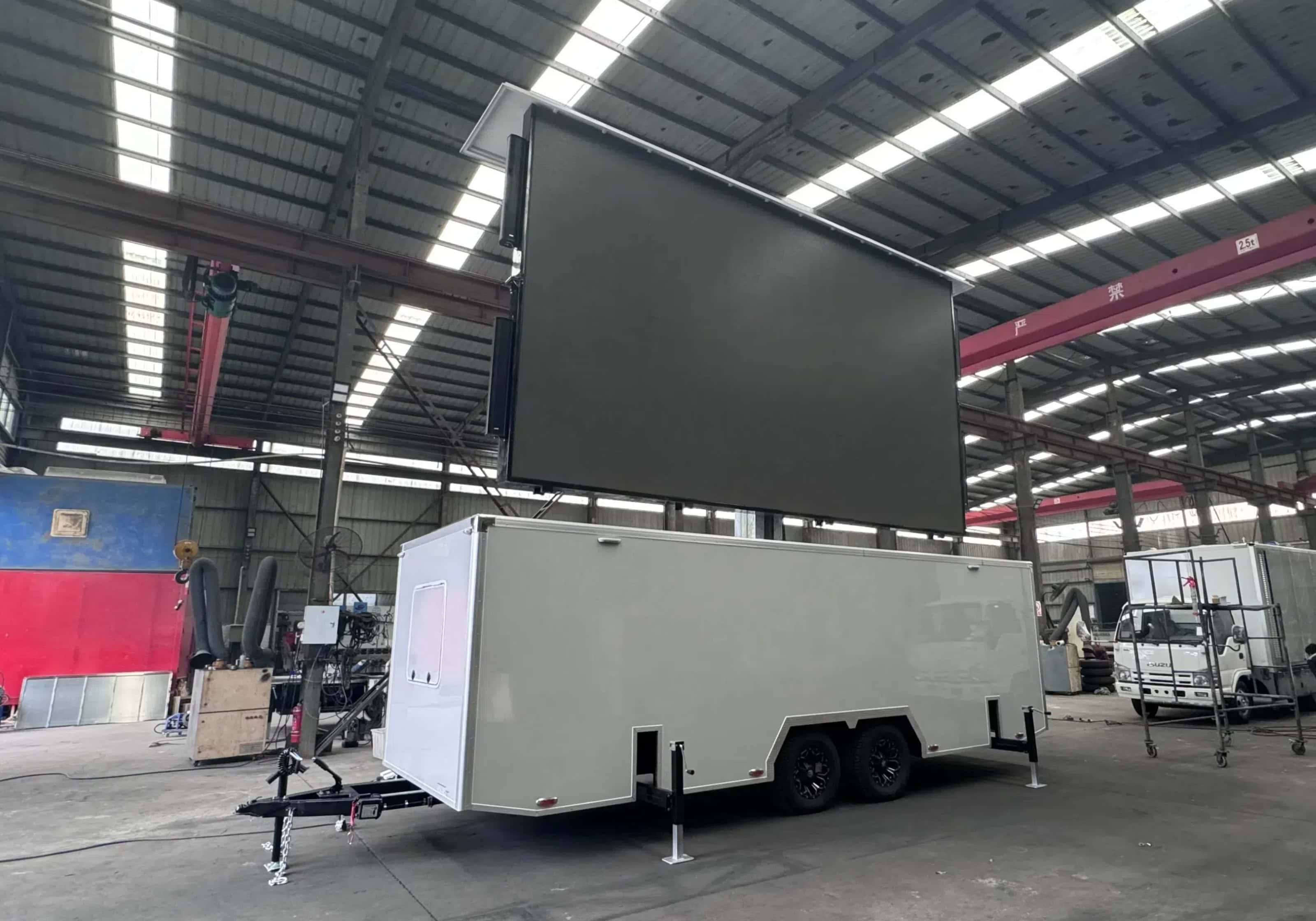

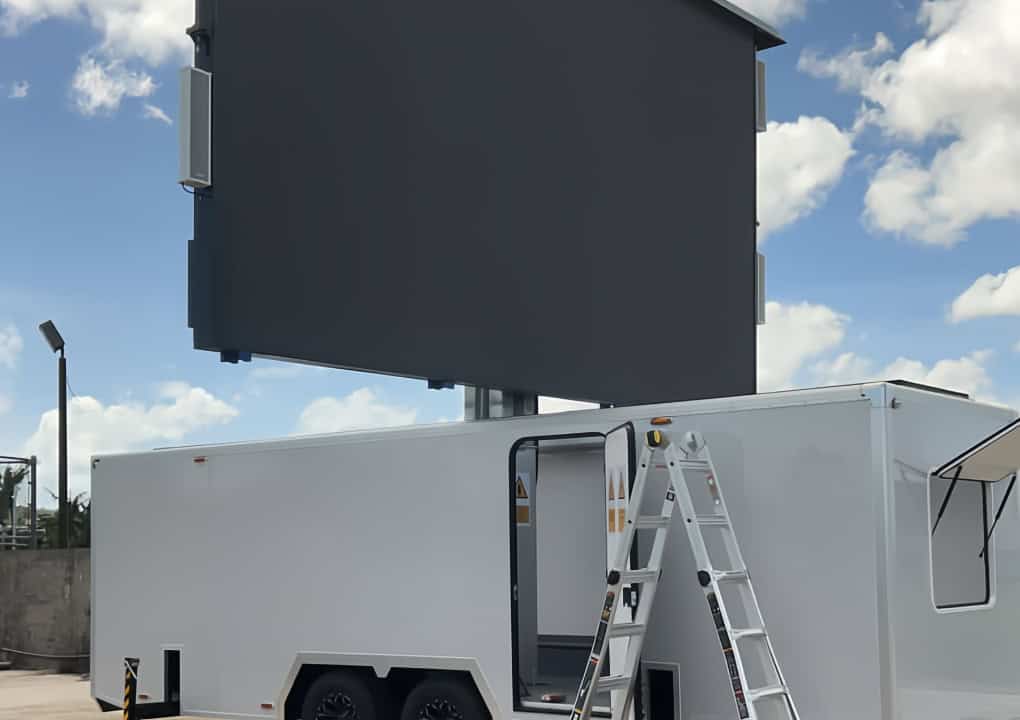

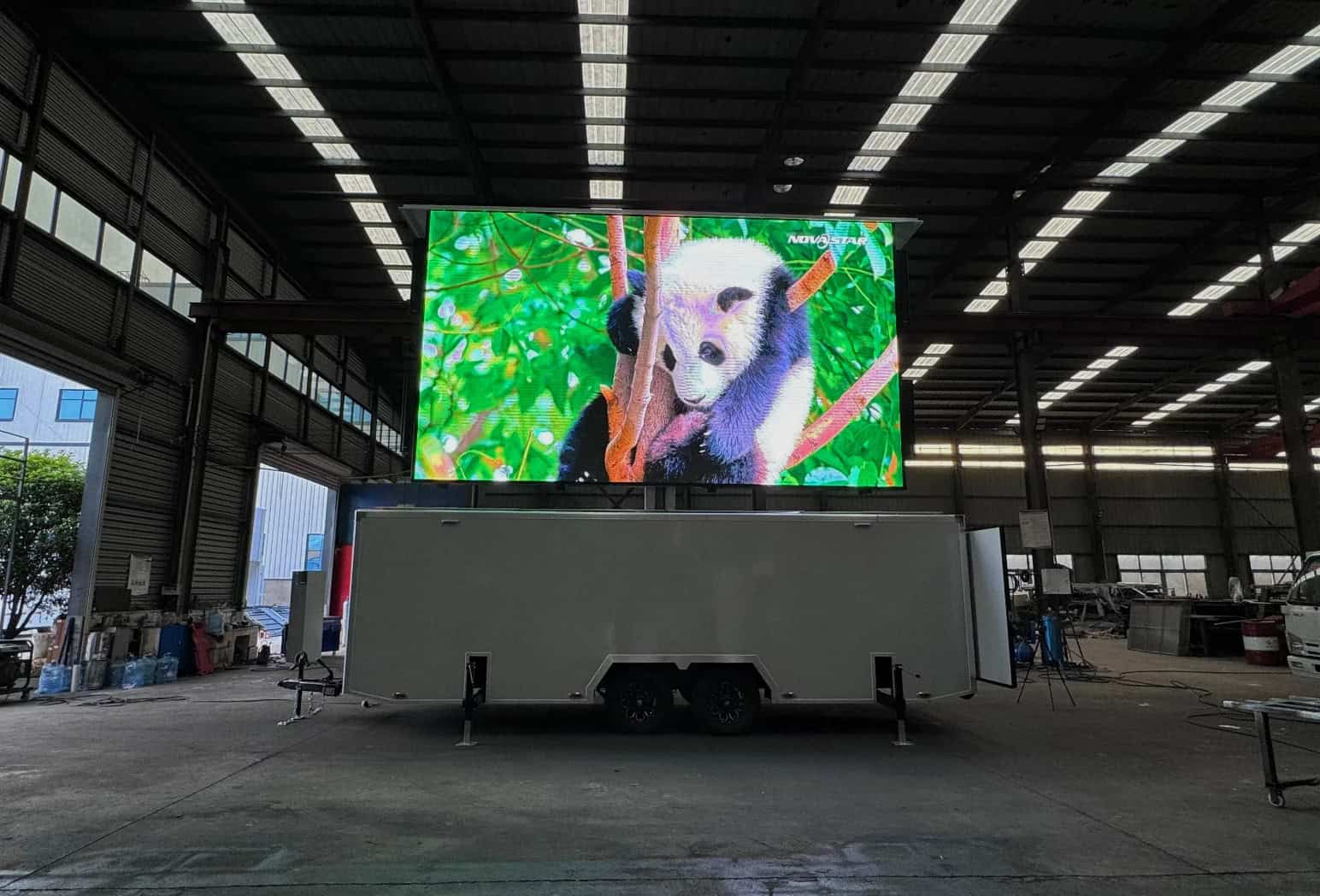

Lifting & rotating LED screen

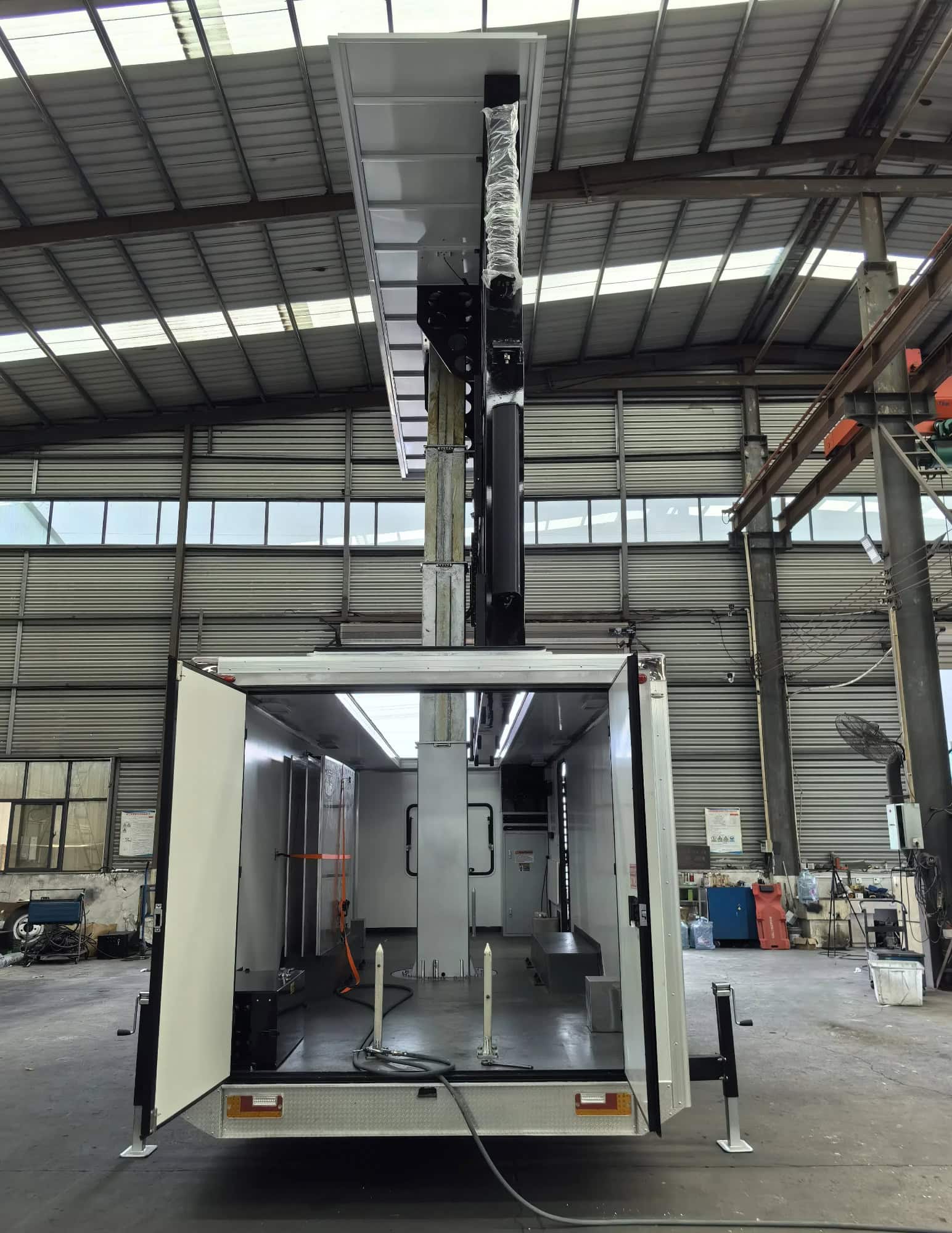

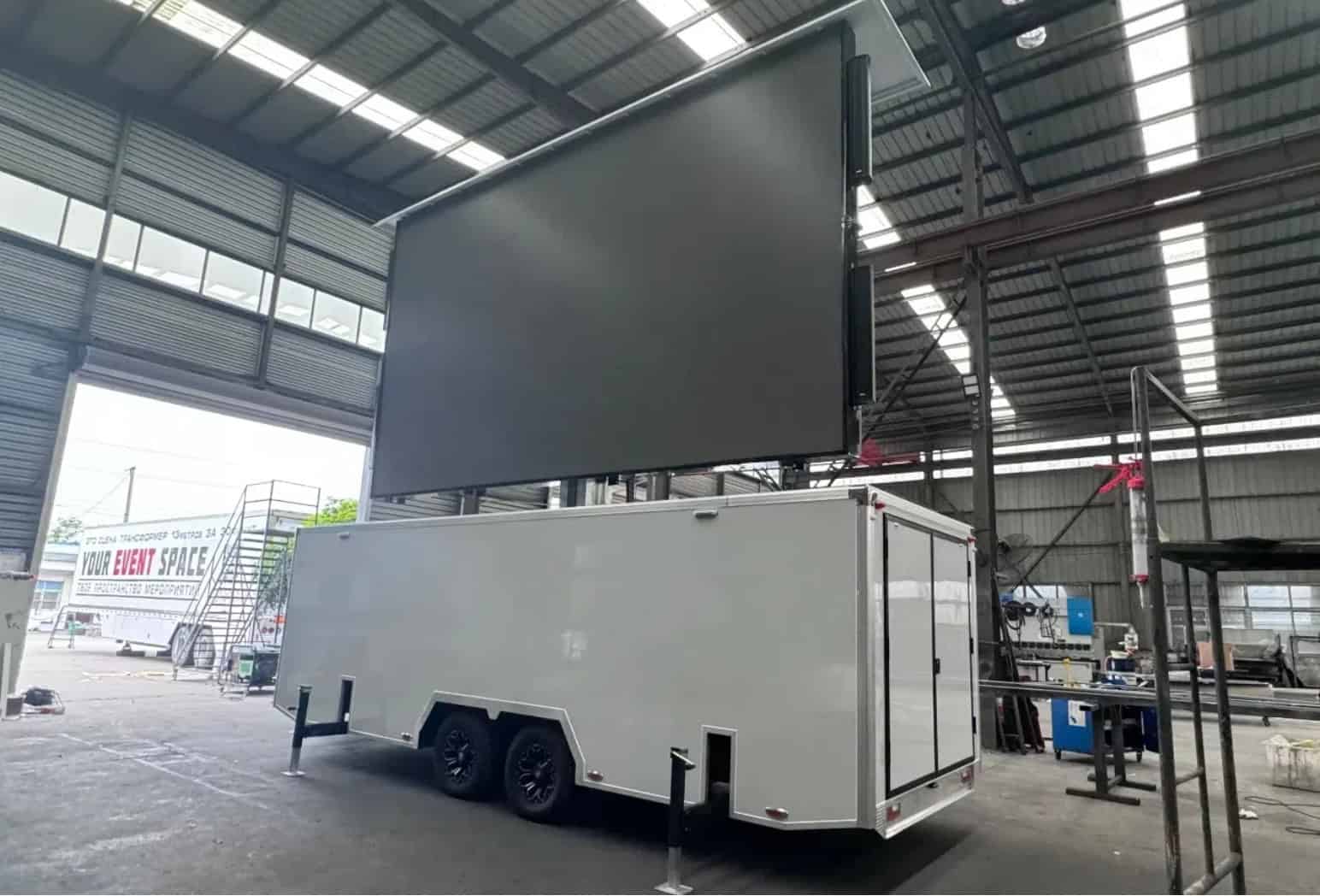

MB-22E LED screen trailer has a standard lifting height of 12.6ft from the platform and maximum screen lifting height of 21.3ft from top to the ground(can be customized with higher position). The screen can also be continuously rotated with 360 degrees. The hydraulic operation is highly stable and can improve the interaction between screen and audience in your event. It greatly creates a better visual experience for you!

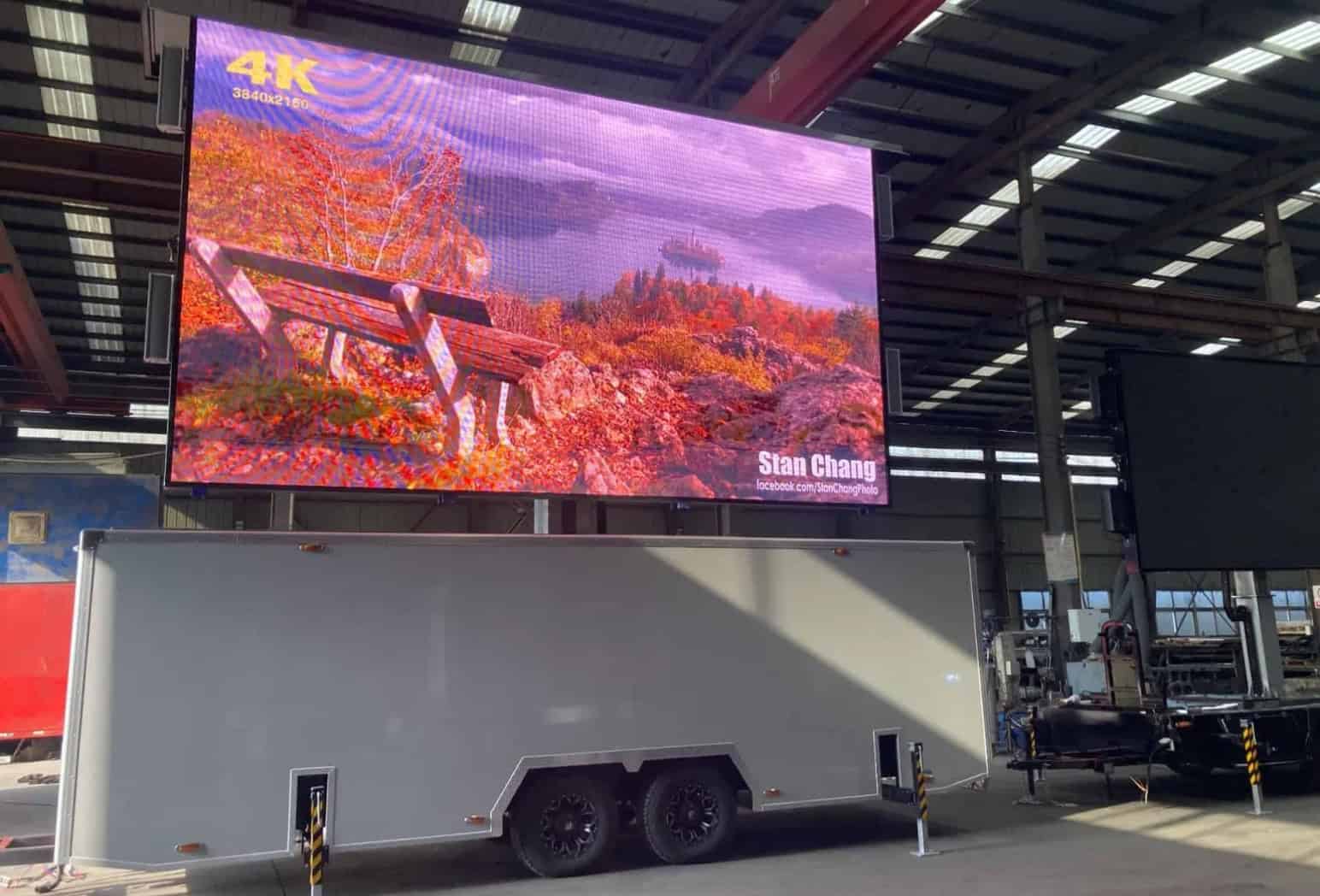

Small Pixel Pitch & Max. 4K Resolution Solution

MOBO trailer outdoor LED screen can give you small pixel pitch from 1.9mm, 2.9mm, 3.9mm, 4.8mm etc. Our highest screen solution can reach 4K visual performance to display your videos and images. MOBO trailer LED screen will supply your event with stunning visual effects!

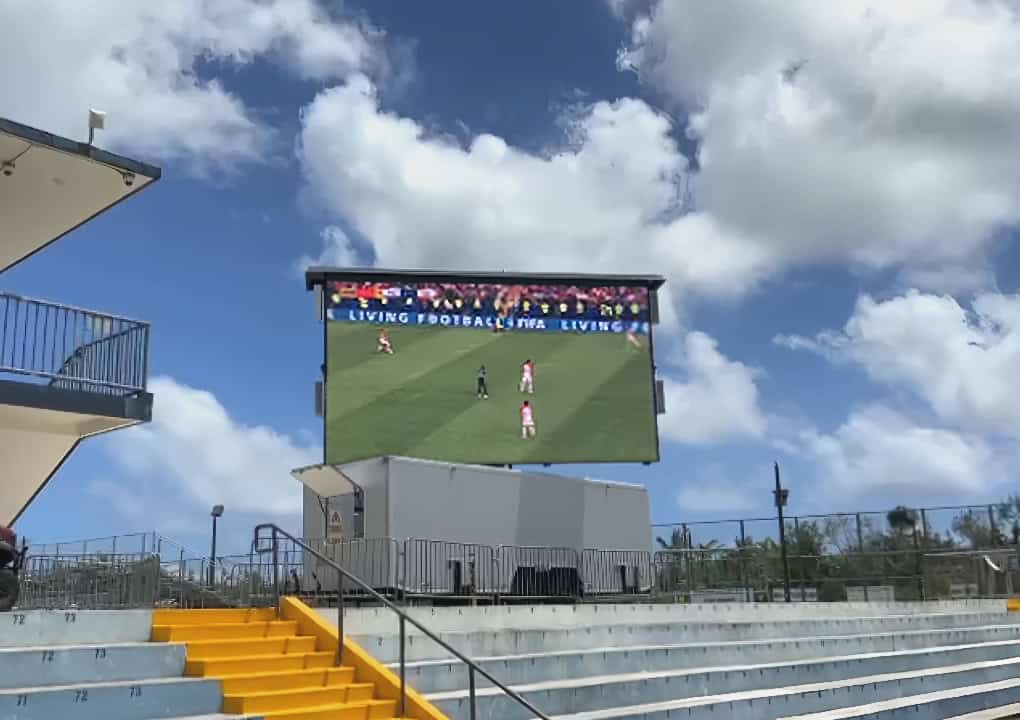

High Brightness Against Sunlight

With a great brightness of 5500nits (optional max. 7500nits), MOBO trailer LED screen clearly delivers content for outdoor visibility under strong sunlight. The screen brightness can be automatically adjusted depending on the ambient light at different time. MOBO trailer screen will offer a very comfortable brightness for your event.

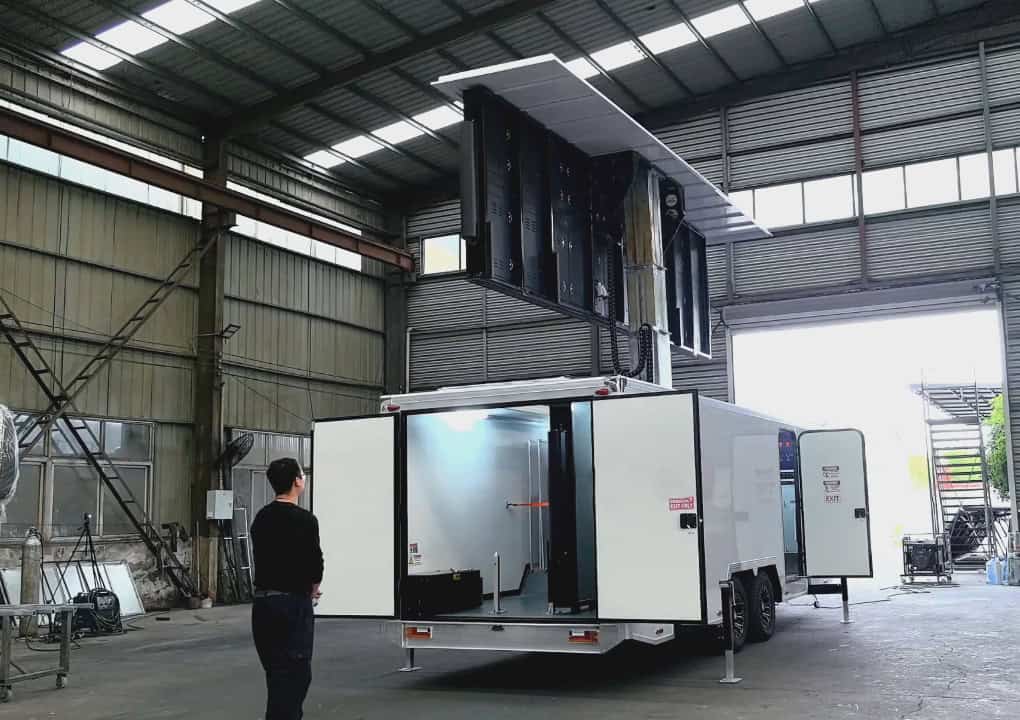

One labor, 20 minutes setting up

After parking the MOBO LED trailer, the MB-22E screen set up can be easily done in about 20 minutes by one operator. With its convenient hydraulic system, the MOBO LED trailer significantly reduces the cost of screen installation for various events. Its user-friendly design and efficient operation make it an ideal choice for any event planner looking to save time and effort while ensuring a high-quality display experience.

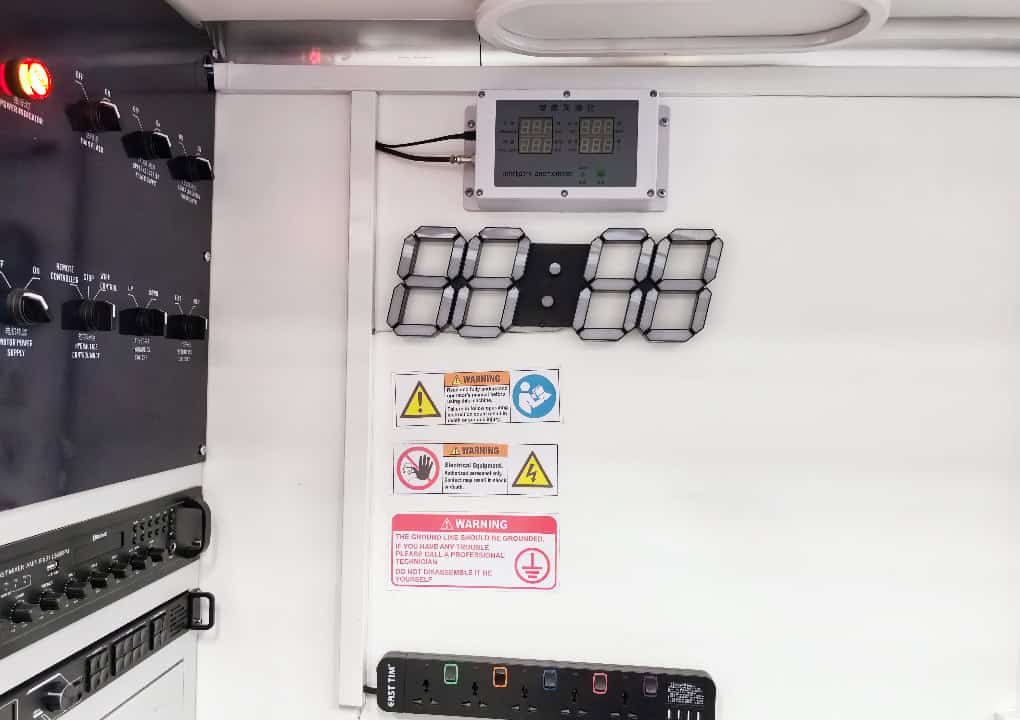

NovaStar Video Processor for Various Kinds of Events

MOBO trailer uses NovaStar VX400 video processor as standard signal output equipment for trailer screen. This video processor can receive a variety of video signals such as SDI, HDMI, DVI etc. It processes high-resolution images and videos to present you with an excellent image display experience.
Windproof Structure & Wind Speed Sensor

MOBO LED screen trailers has wide and heavy trailer chassis frames. 4 stabilizers at corners are extended out and offer strong stability for the whole trailer system after lifted up. There is wind speed sensor with alarm on roof and offers a safe working environment for your events.
Waterproof screen with IP65 protection level

The IP65-rated LED screen is engineered for outdoor use, offering superior protection against dust and water. Its robust design ensures durability and reliability, even in harsh weather conditions. The waterproof feature makes MB-22E ideal for various outdoor applications, providing a long-lasting service life. This high-grade protection guarantees that your display remains vibrant and functional, making MB-22E a wise investment for any outdoor setting.

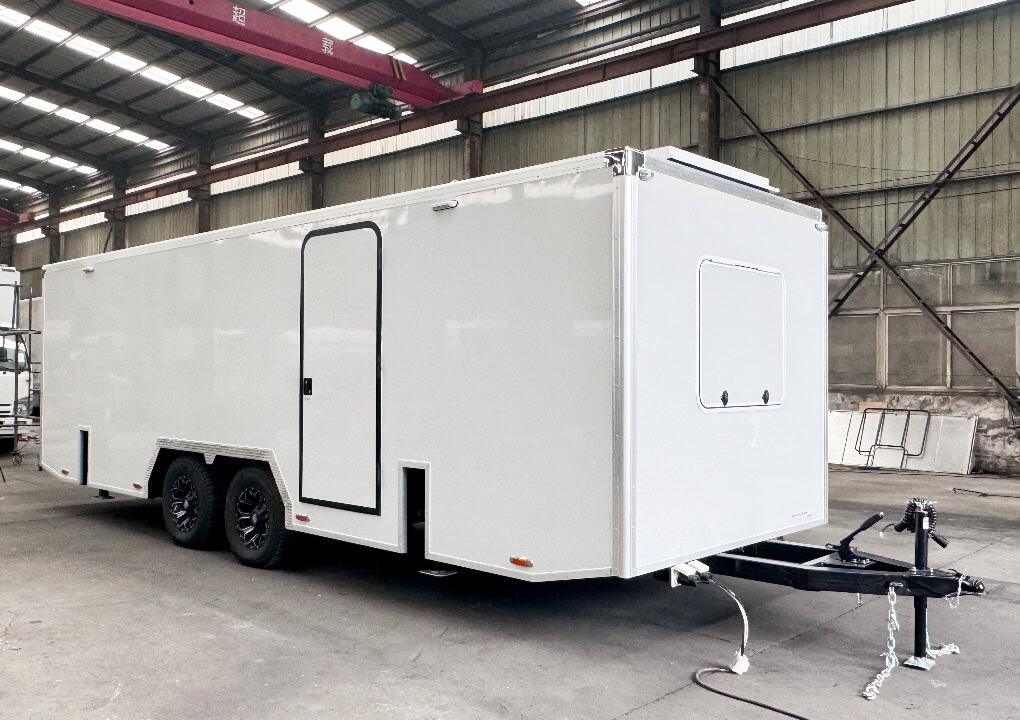

A exquisite and perfect piece of craftsmanship

The MOBO LED trailer is incredibly stunning. Its sleek and stylish design catches the eye immediately. The body is beautifully crafted, with smooth lines and a modern aesthetic that makes it a true head-turner. The beautiful combination of the led screen and the trailer chassis adds a touch of elegance and sophistication, making it not just a LED trailer, but a work of art on wheels. It’s a perfect blend of functionality and beauty!

View All Feature

Specifications

Part I Trailer Chassis

Trailer Type	Enclsoed
Operating Dimension (with drawbar)	27.4’x 6.89’ x 21.3’
Gross Vehicle Weight Rating(GVWR)	11,000 LBS
Axles	Tandem
Tires	LT265/70R16
Rim	8’’ x 16’’, Aluminum Alloy
Coupler	2-5/16’’ Ball Hitch
Color	Grey, Black, White or Custom color
Wind Rating	45 MPH

Part III Hydraulic Mechanical Parameter

Screen Lifting Height	21.3ft (Screen top to ground)
Screen Rotating Degree	360 continuous
Control Mode	Remote controller + Wire control
Nominal Pressure	11KPa
Oil Type	Aviation hydraulic fluid
Overheat Protection	✓

Part V Power System Parameter

Max. Screen Power Consumption	13,440 Watts
Avg. Screen Power Consumption	6,195 Watts
Other Equipment Power Consumption (Speaker, amplifier, Video processor etc)	2,100 Watts
Input Voltage	120V
Plug Type	30A breaker x 5 sets

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	20'W x 11.5'H / 6000mmx3500mm
Pixel Pitch	2.97		3.91		4.81
Screen Resolution	2016p x 1176p		1536p x 896p		1248p x 728p
Standard Brightness(Nits)	4000-4500	5000-5500		5000-5500
Optional Highest Brightness (Nits)	≤5500	≤7000		≤7000
Max. Refreshing Rate(Hz)	≥3840Hz
Input Voltage/Frequency	110V～240V, 50~60Hz
Protection Grade	IP65(Fully waterproof)
Control System	NovaStar

Part IV Media Control System

Speakers(Watts)	120Watts x 4 sets
Amplifier	660watts x 1 set
Video Processor	NovaStar VX400
Video Input	DPx1, HDMIx1, VGAx2, DVIx1, CVBSx2, SDIx1
Video Output	DVI Loop x1, DVI x1, VGA x1, SDI Loop x1
Audio Input	1/8inch(3.5mm)

Part VI Optional Equipment List

Power Generator

Super silent inverter generator

Trailer Wrap

Customized

Named LED Screen brand

✓

Warranty Extending

Extended from 3 years to 5 years
