MB-5 Lite LED Trailer

The MB-5 Lite LED Screen Trailer is a compact and cost-effective solution designed for a wide range of events and outdoor activities. With its appropriate digital LED display , the MB-5 Lite offers high-resolution visuals that are perfect for attracting attention and delivering impactful messages. The trailer's simple styling and small footprint make it easy to maneuver and set up in various locations, whether it's a busy street, a crowded event, or a remote location. The MB-5 Lite is an ideal choice for businesses and event organizers looking for a portable and efficient way to enhance their visual presence.

9.45ft by 5.25ft outdoor fine pitch LED screen

Benefit: Provides clear and vibrant visuals and perfect for large audiences.

Sleek, portable and minimalist trailer design

Benefit: Enhances visual appeal, ease of use and cost minimization at events.

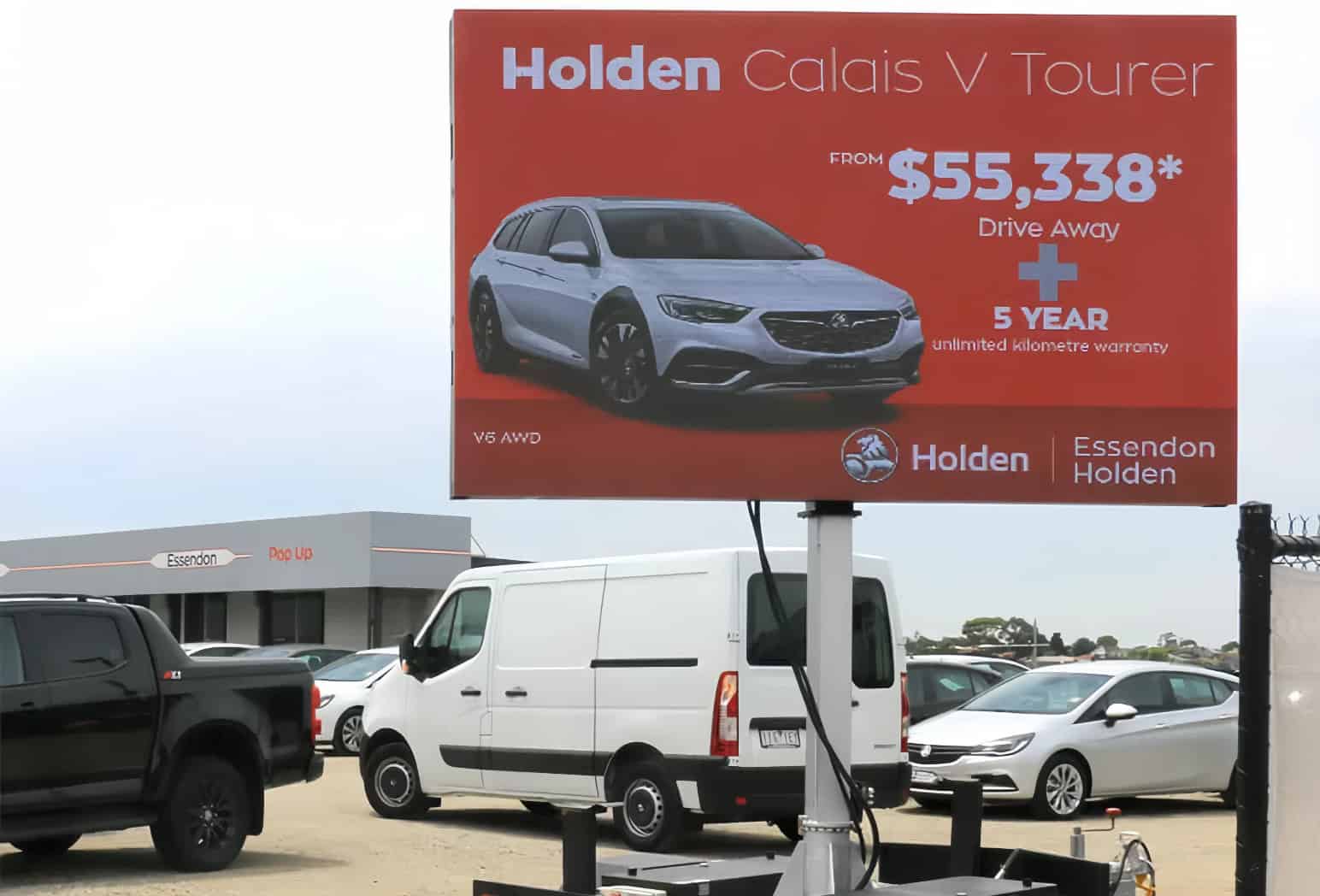

The most cost effective electronic billboard

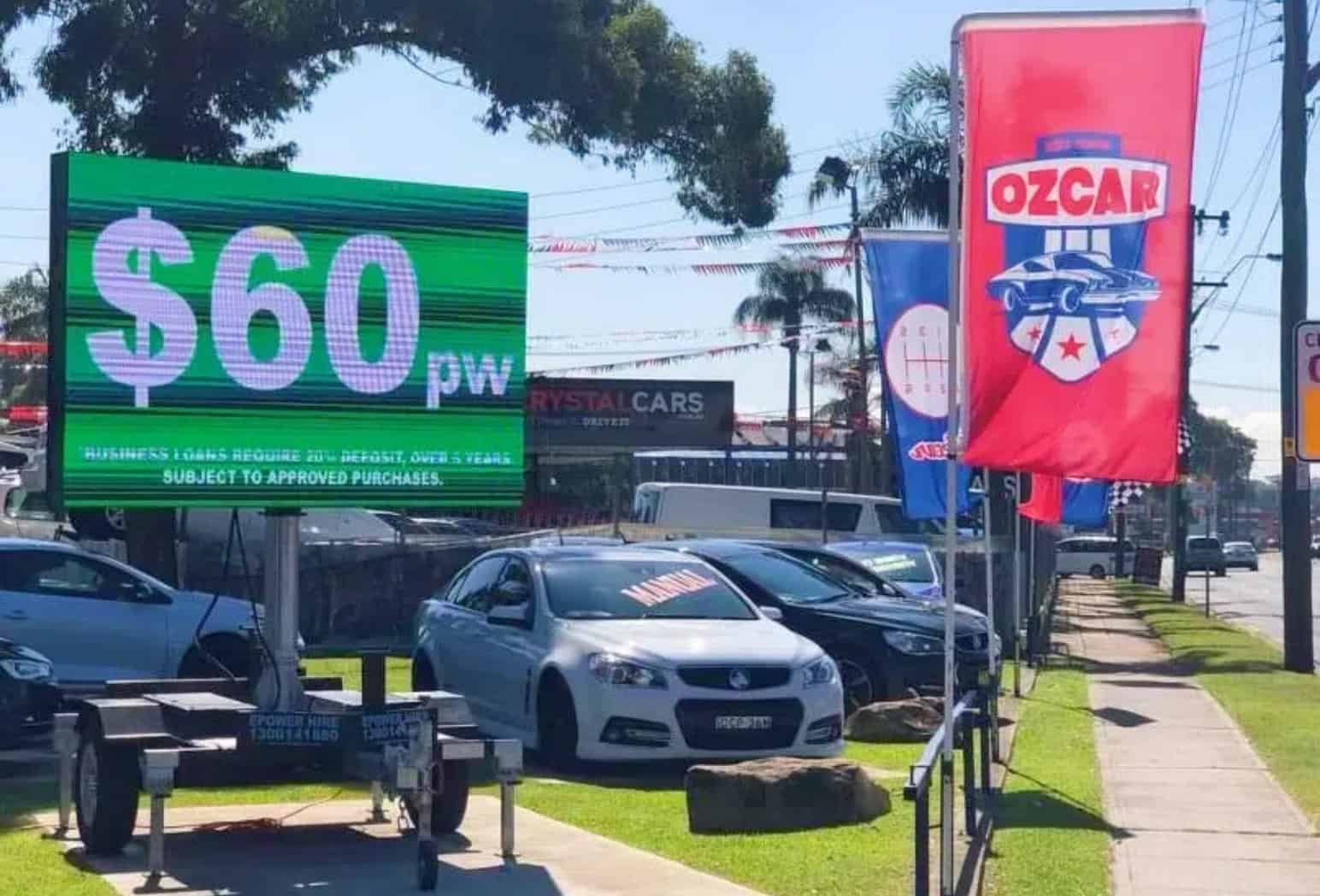

Benefit: Maximize the promotional publicity needs at the front of the store.

Get A Quote +

Other benefits

Outdoor trailer LED display with high resolution

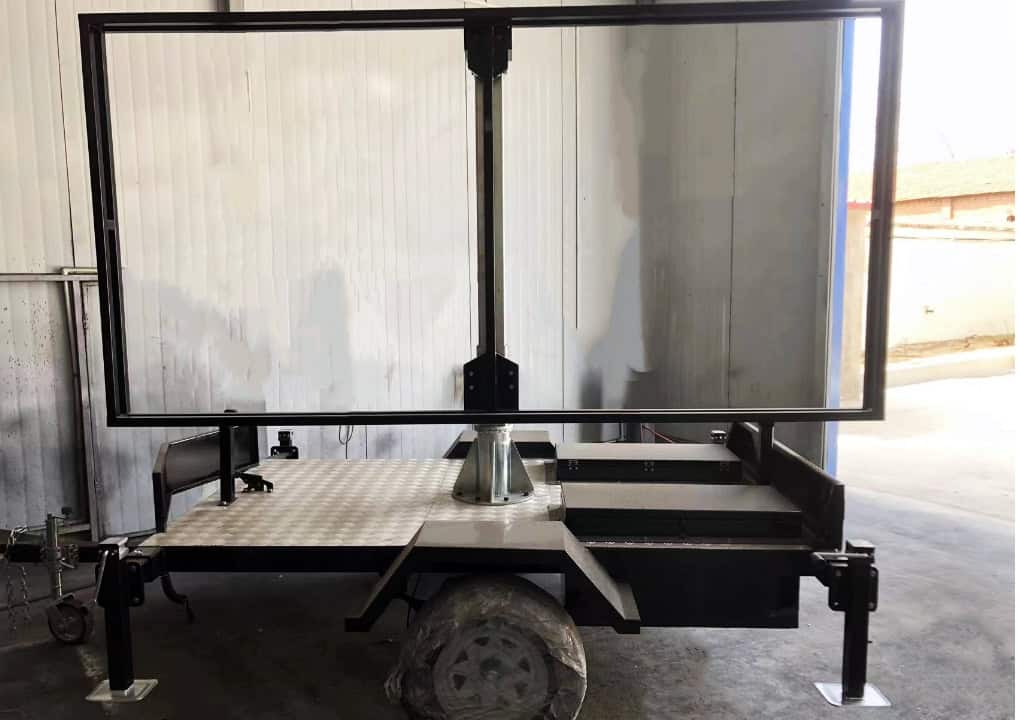

Price friendly and simple trailer chassis design
3 year warranty for peace of mind

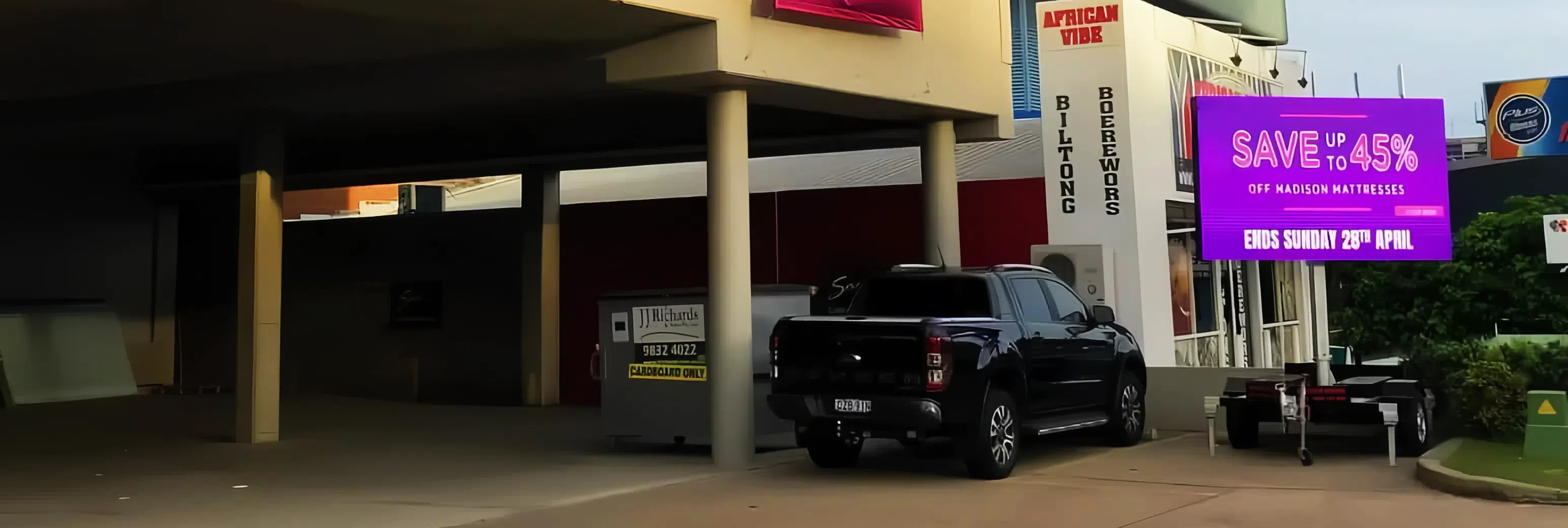

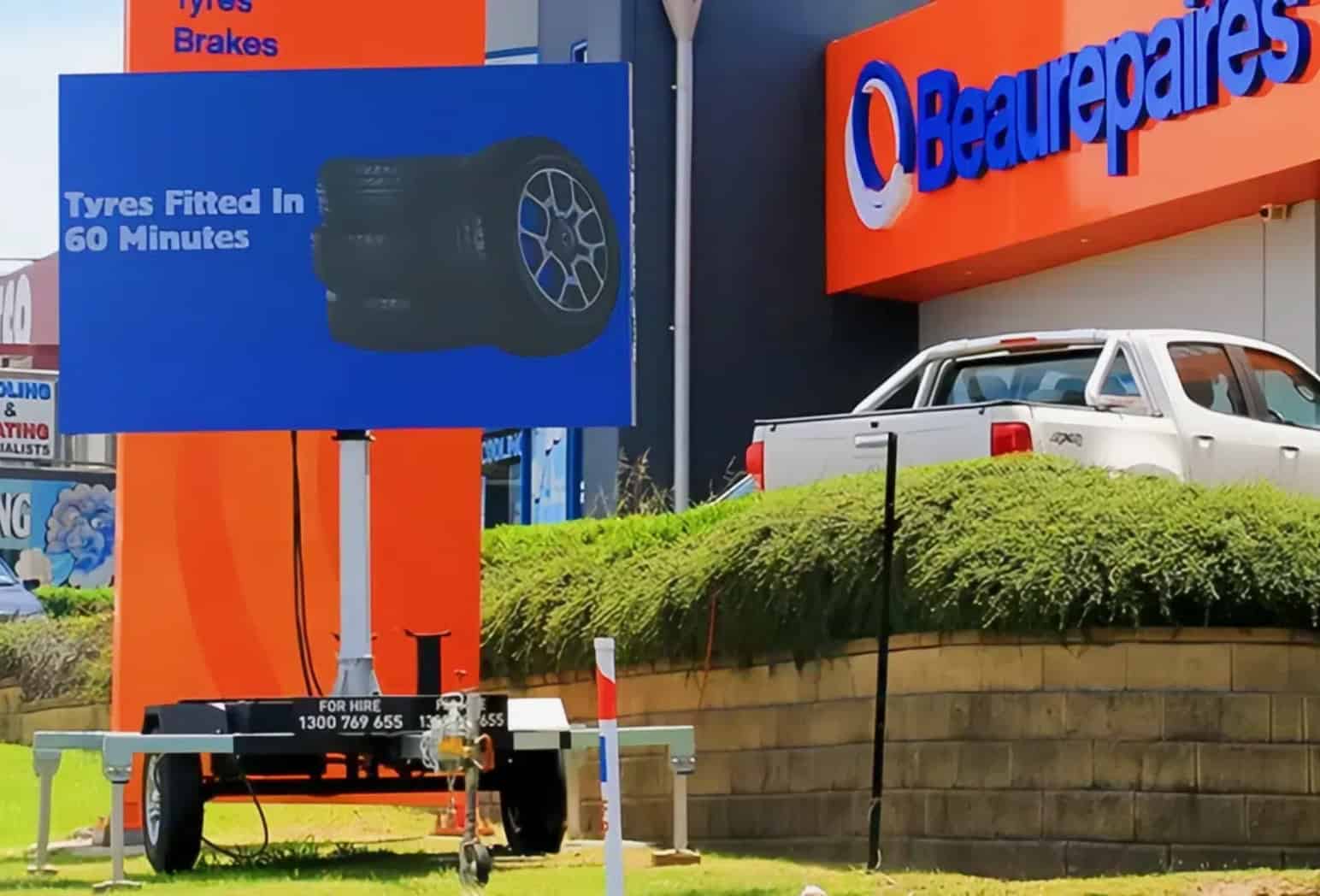

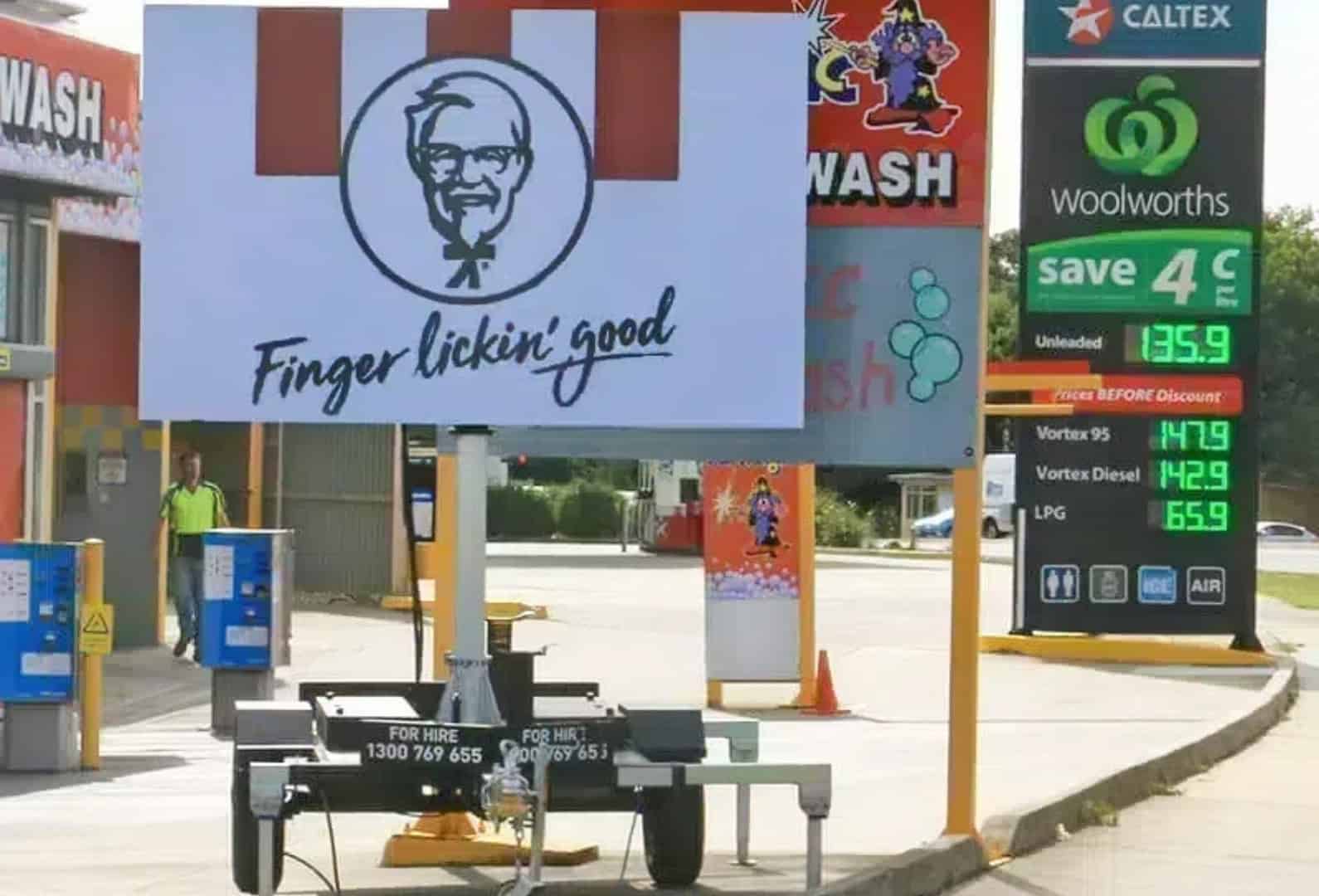

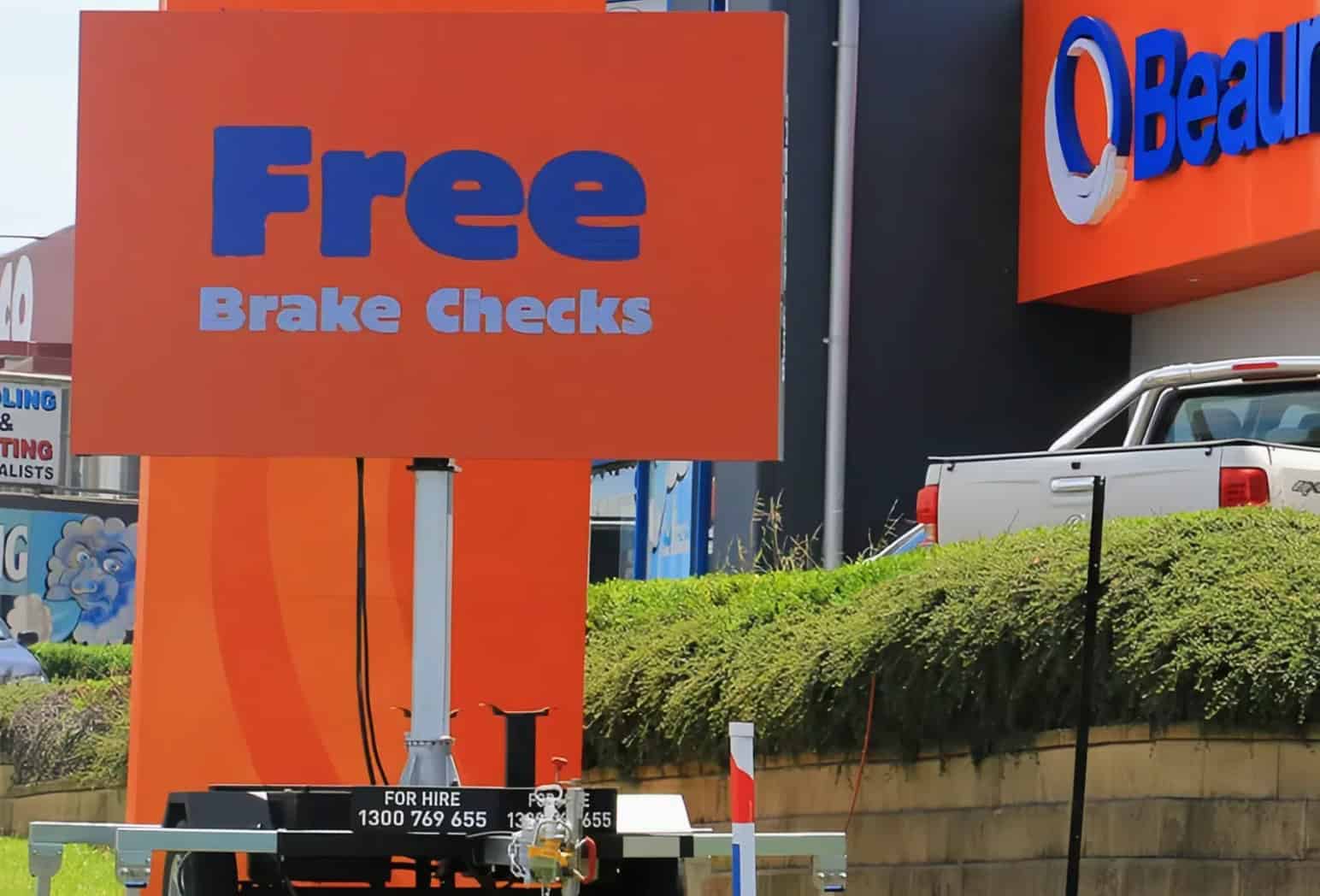

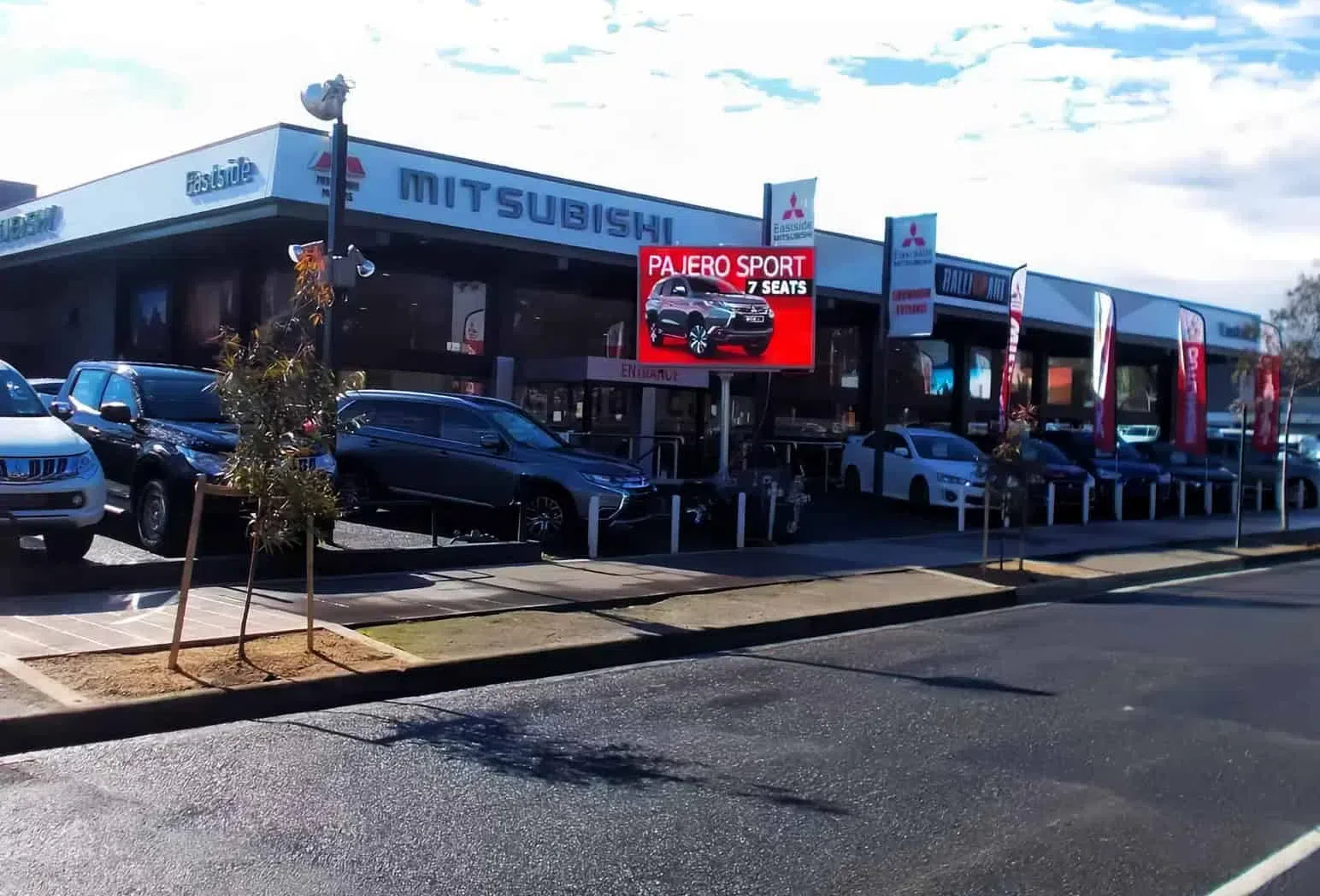

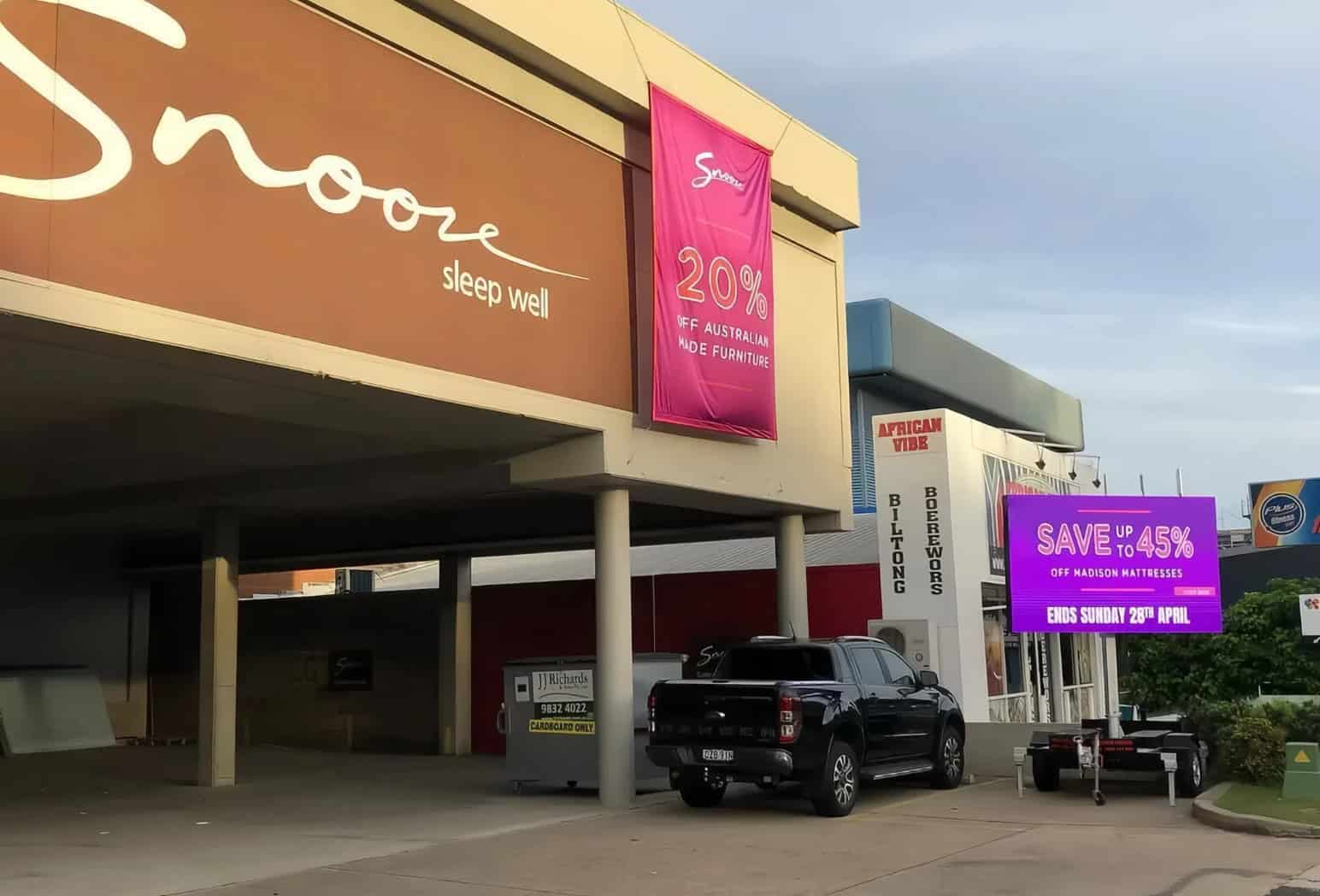

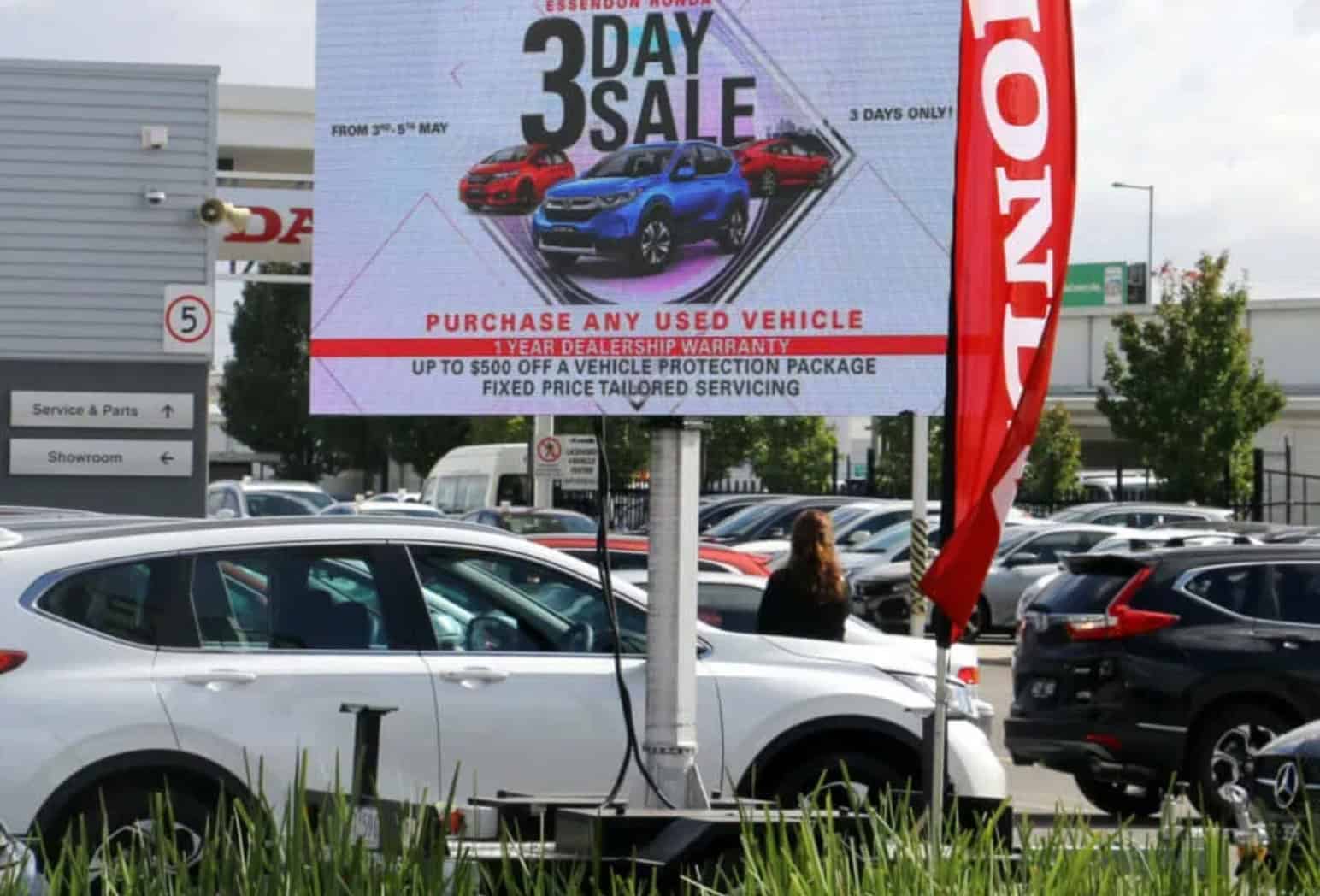

A popular choice for daily promotions in stores
Compact and portable design for easy transport
Small footprint fits in limited spaces

Feature and Benefits

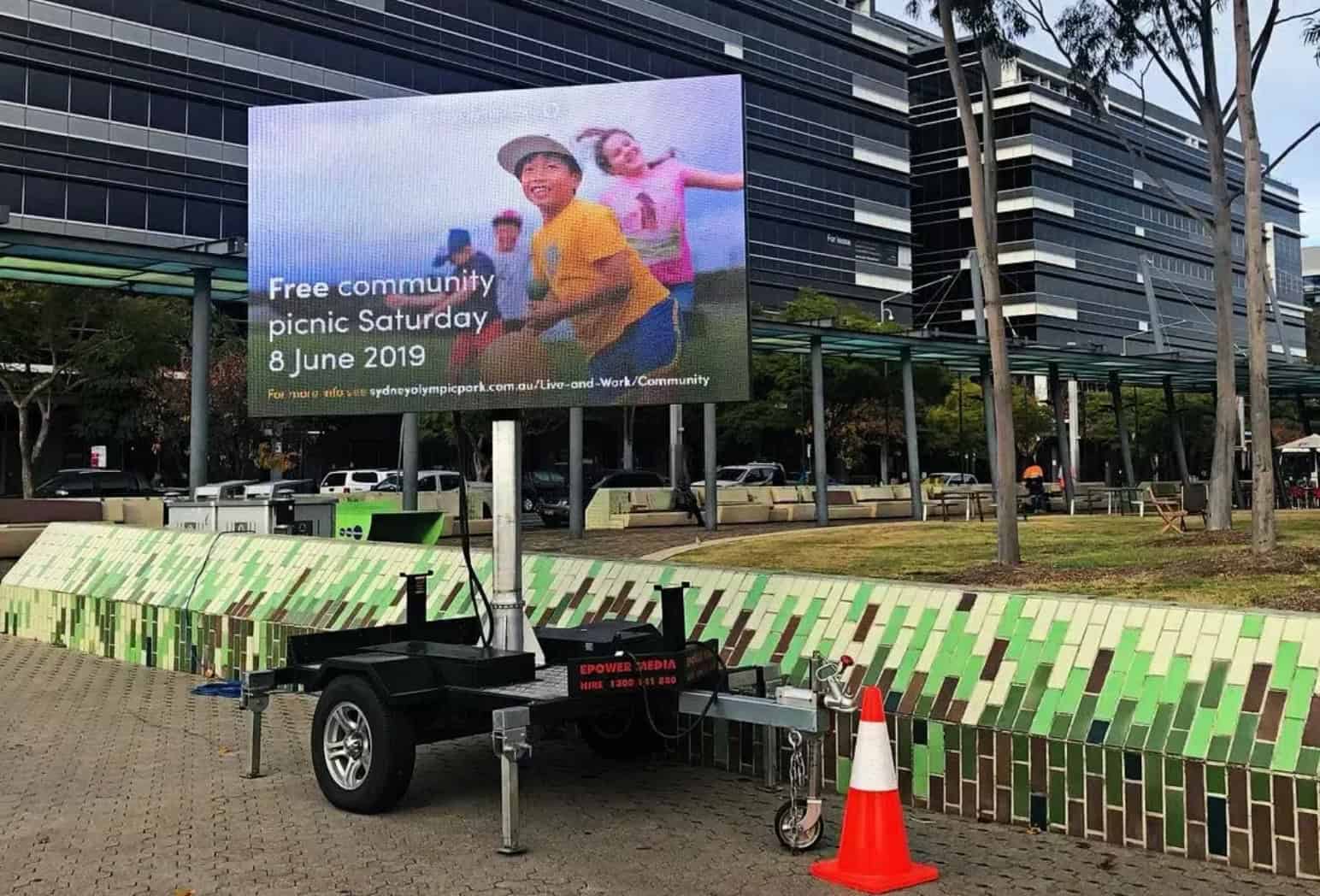

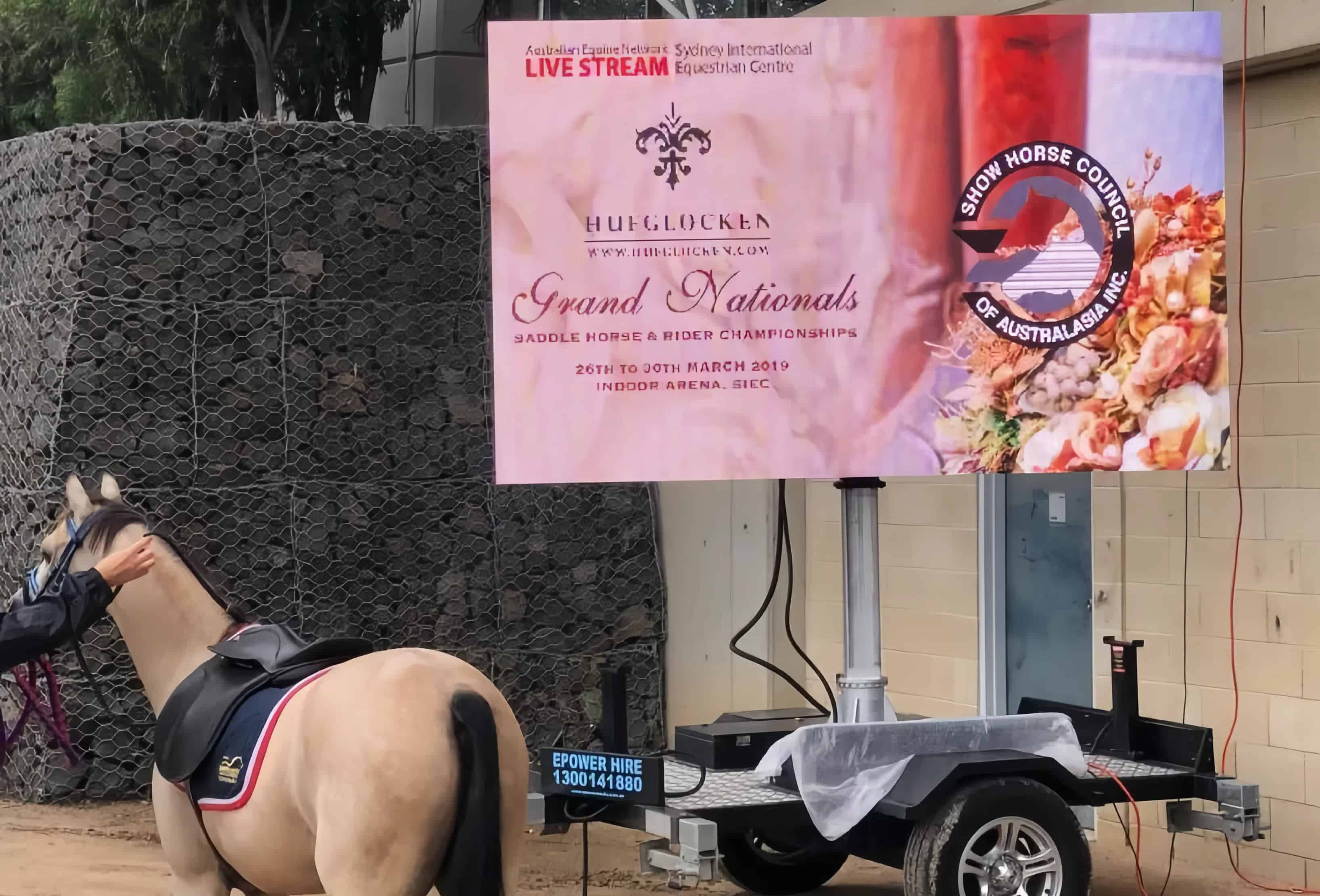

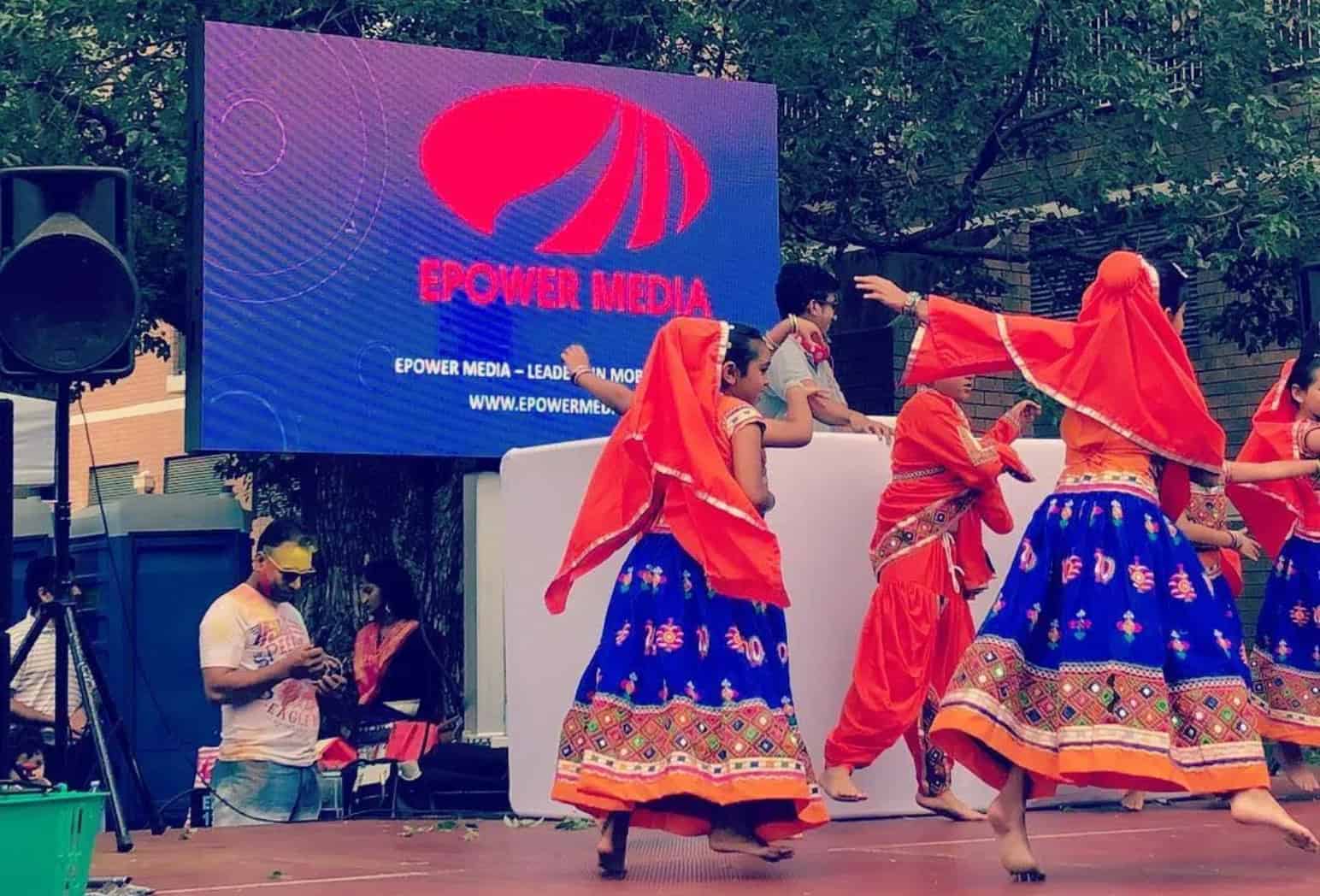

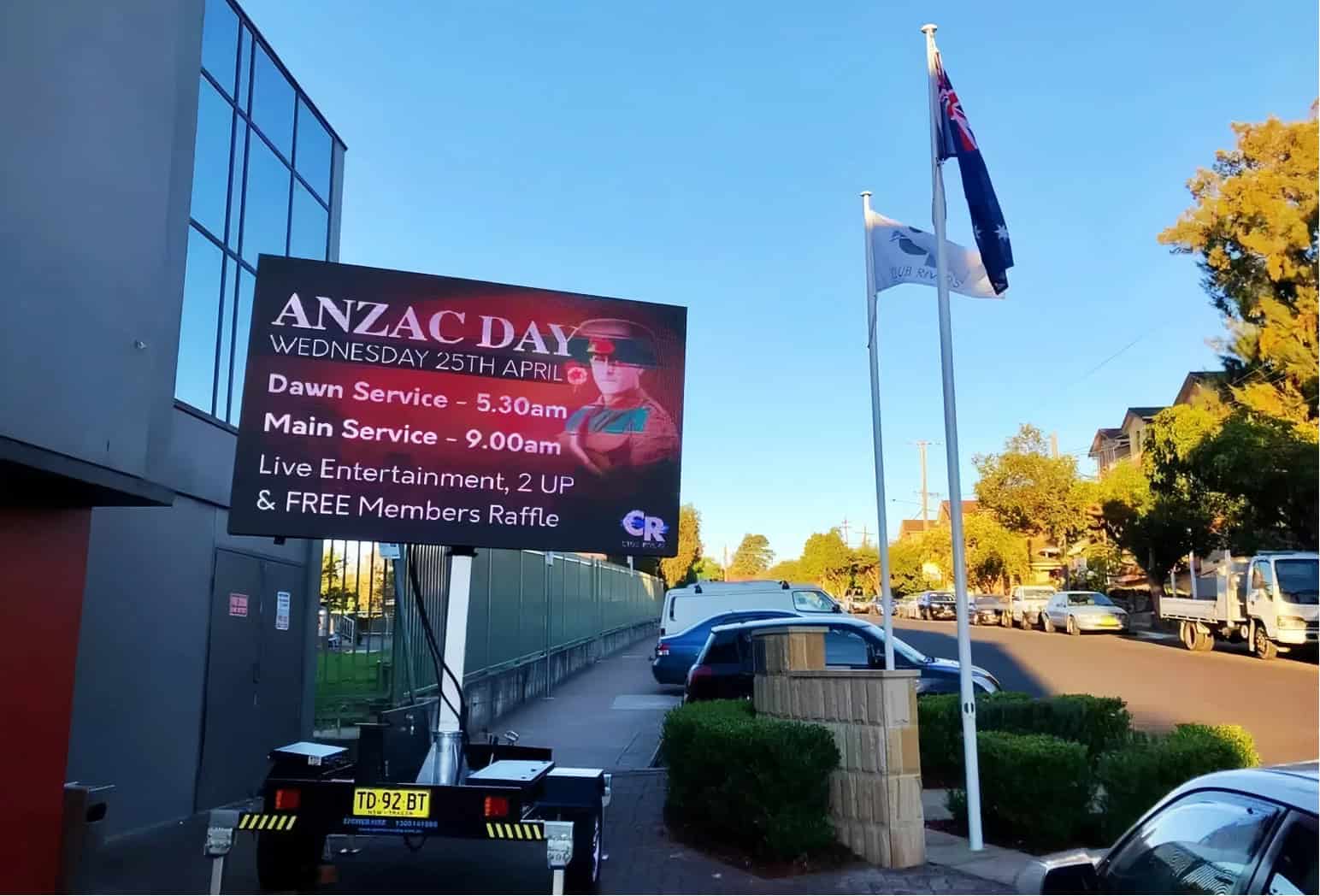

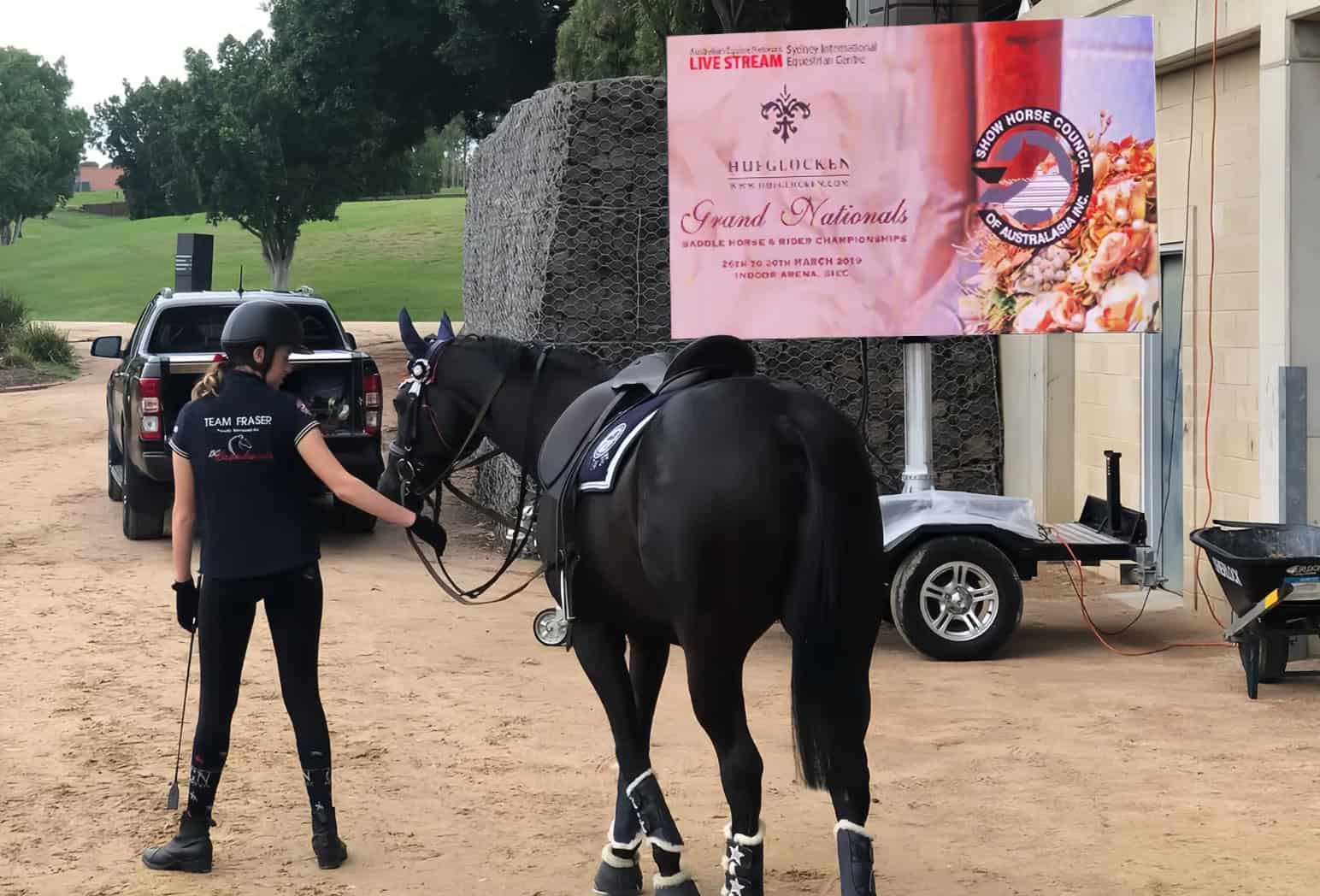

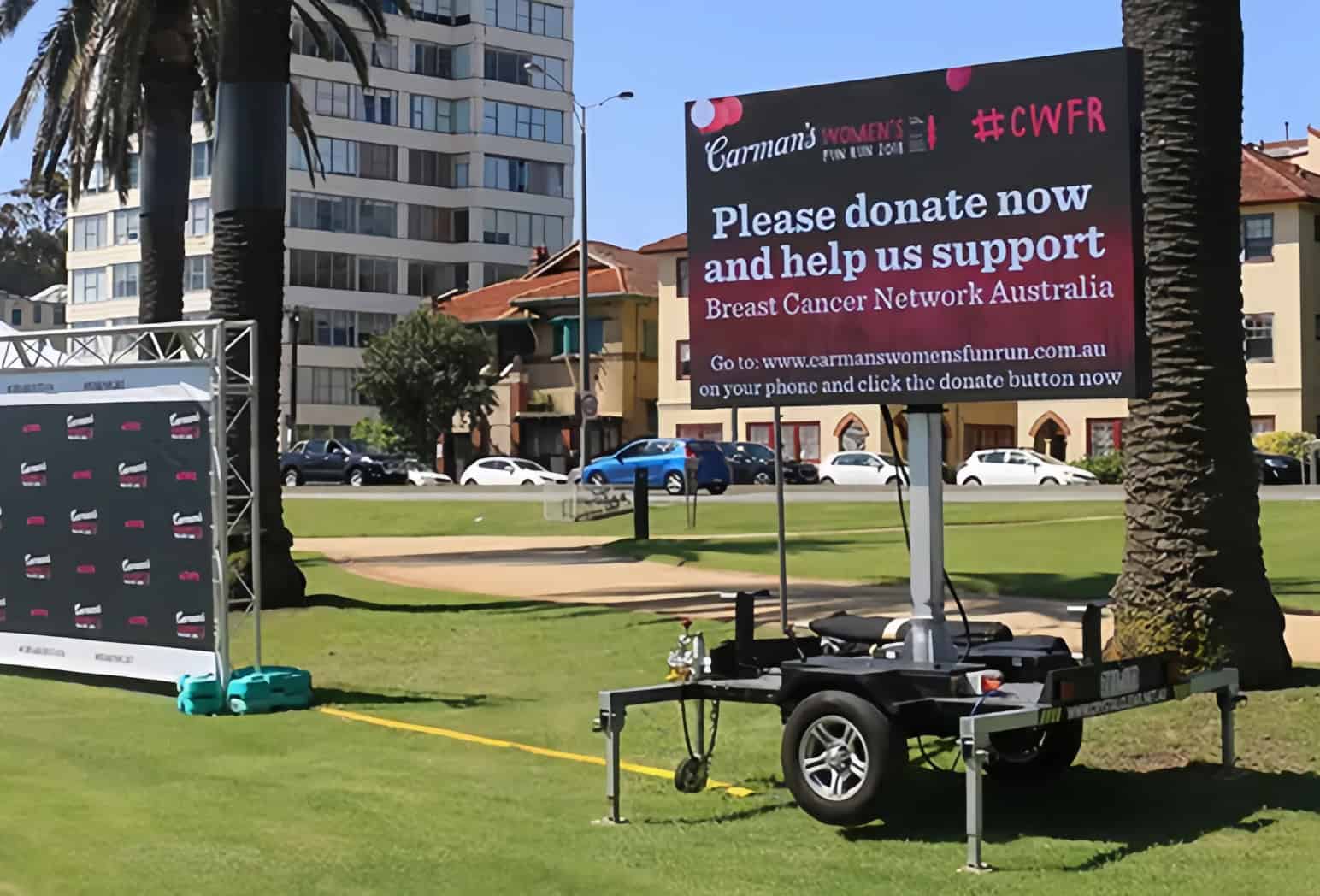

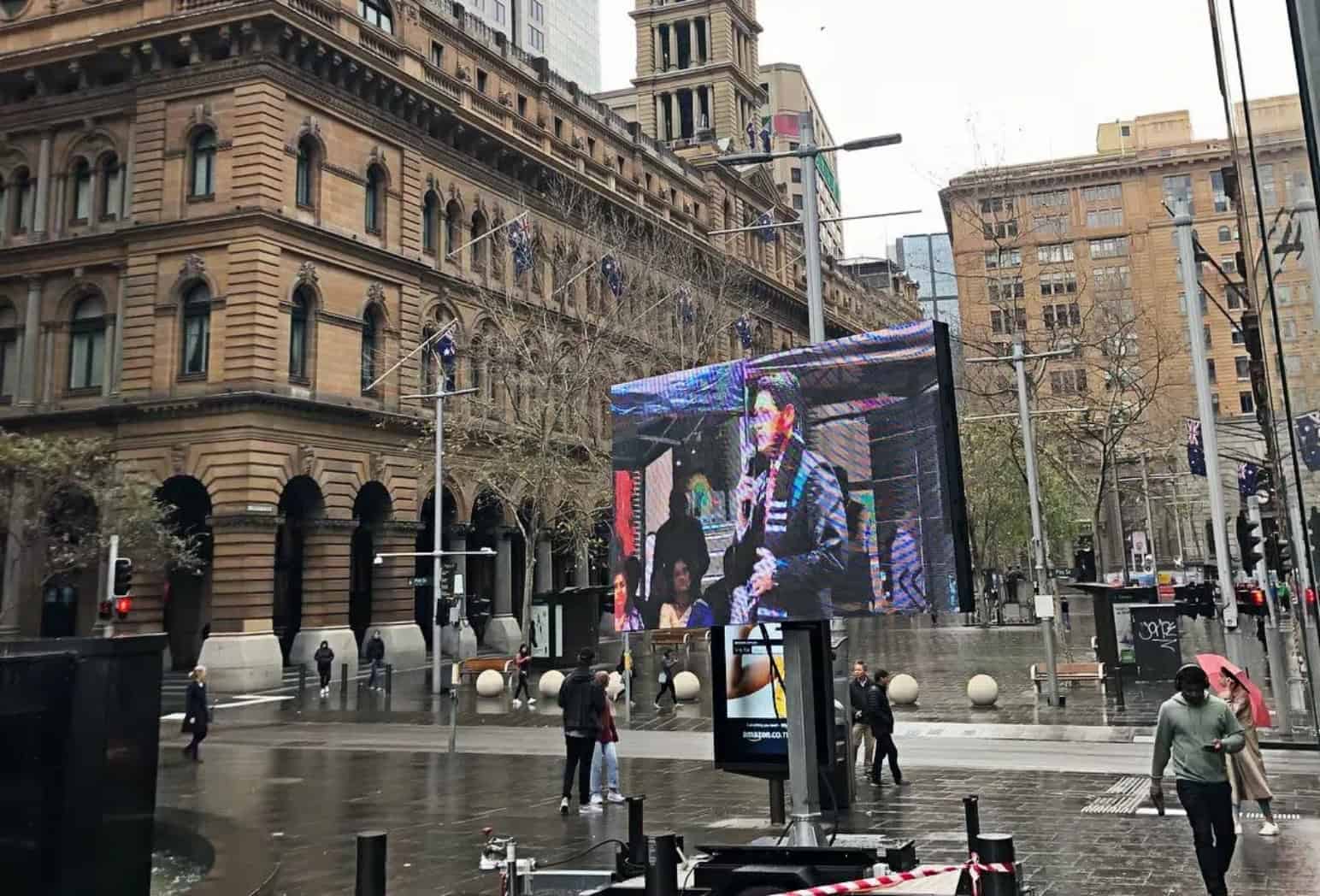

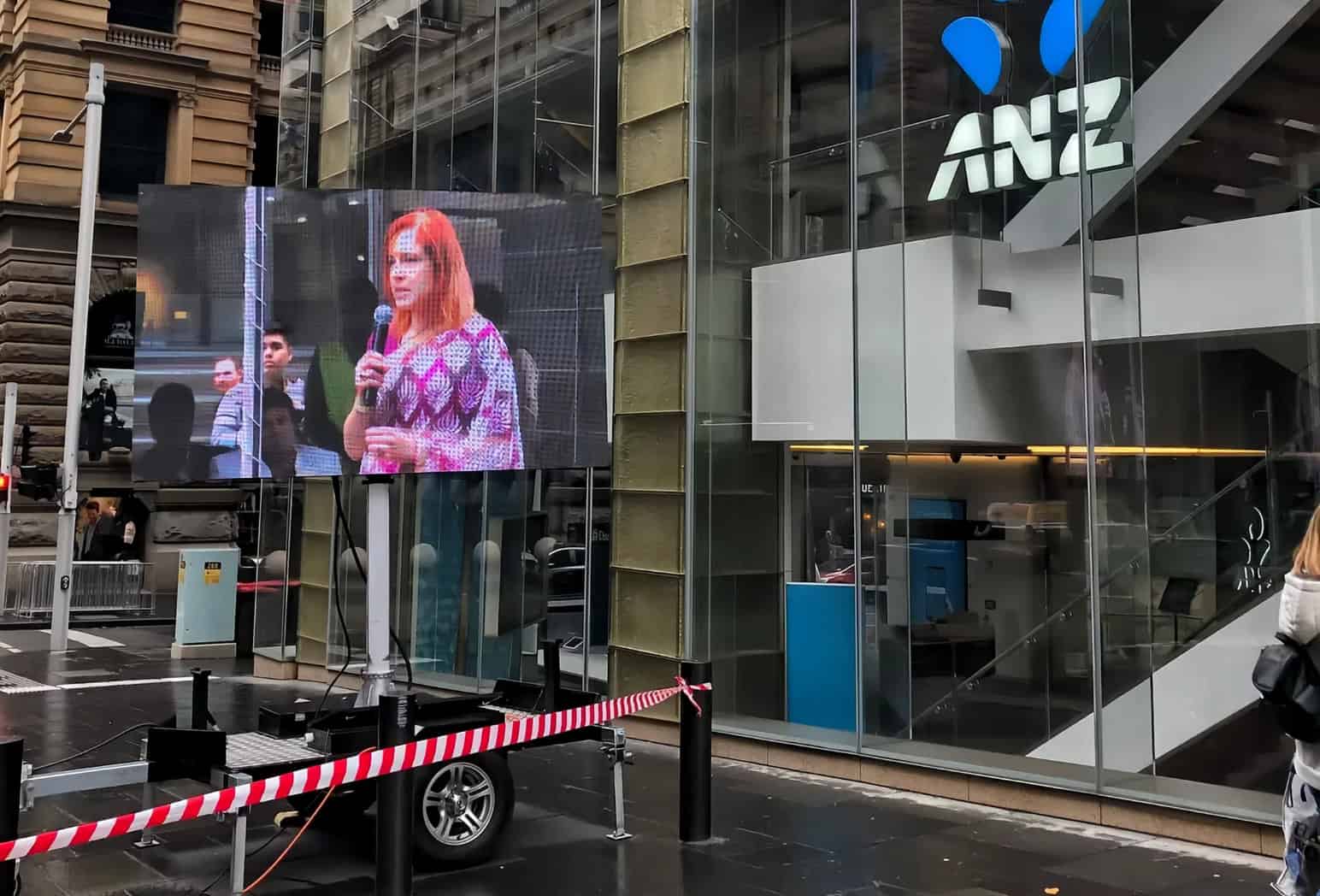

The MB-5 Lite LED screen trailer is equipped with several features that make it a standout choice for portable advertising and event displays. Its LED screen offers great flatness and small pixel pitch options, ensuring high-resolution visuals. The trailer is also perfect for events such as concerts, graduations, sports events, and charity campaigns, where its screen can display live feeds, graphics, and information to engage the audience. Its portable design and easy setup make it an ideal choice for businesses and event organizers looking to enhance their visual impact without breaking the bank. Here are the nine core features and benefits of the MB-5 Lite.

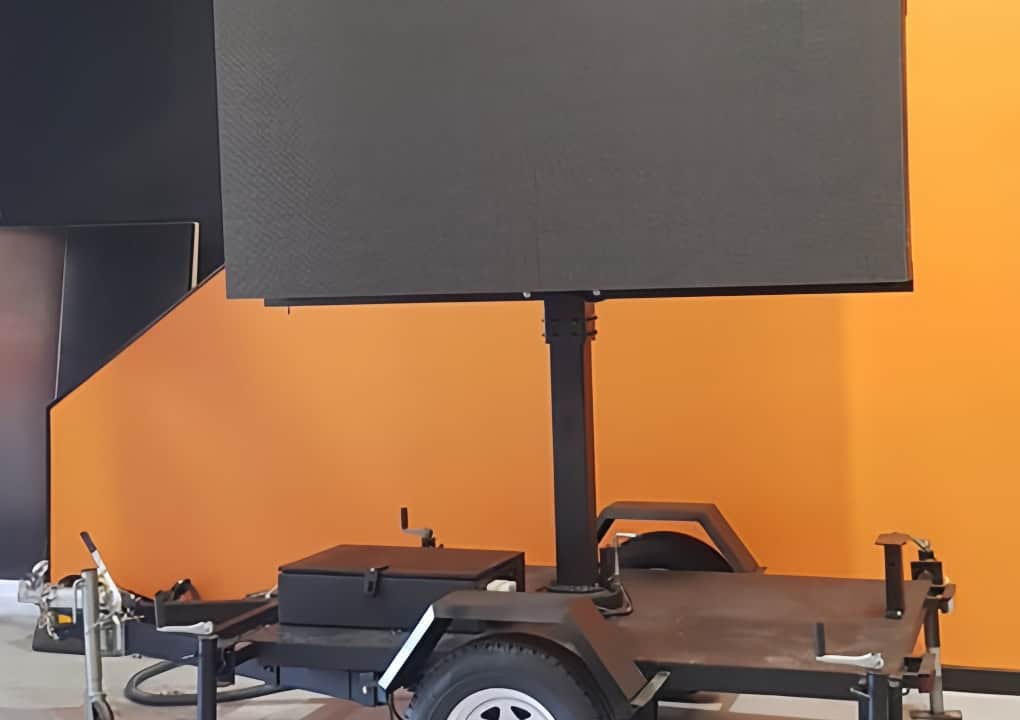

Adjustable height and 360-degree rotation

The MB-5 Lite features a lifting and rotating LED screen, offering unparalleled flexibility and interactivity. The screen can be raised to a standard height of 11.45 feet, with options for customization to meet specific needs. Additionally, the screen can be continuously rotated 360 degrees, ensuring optimal viewing angles for audiences from all directions. This feature enhances audience engagement and makes the MB-5 Lite an ideal choice for events requiring dynamic and interactive displays.

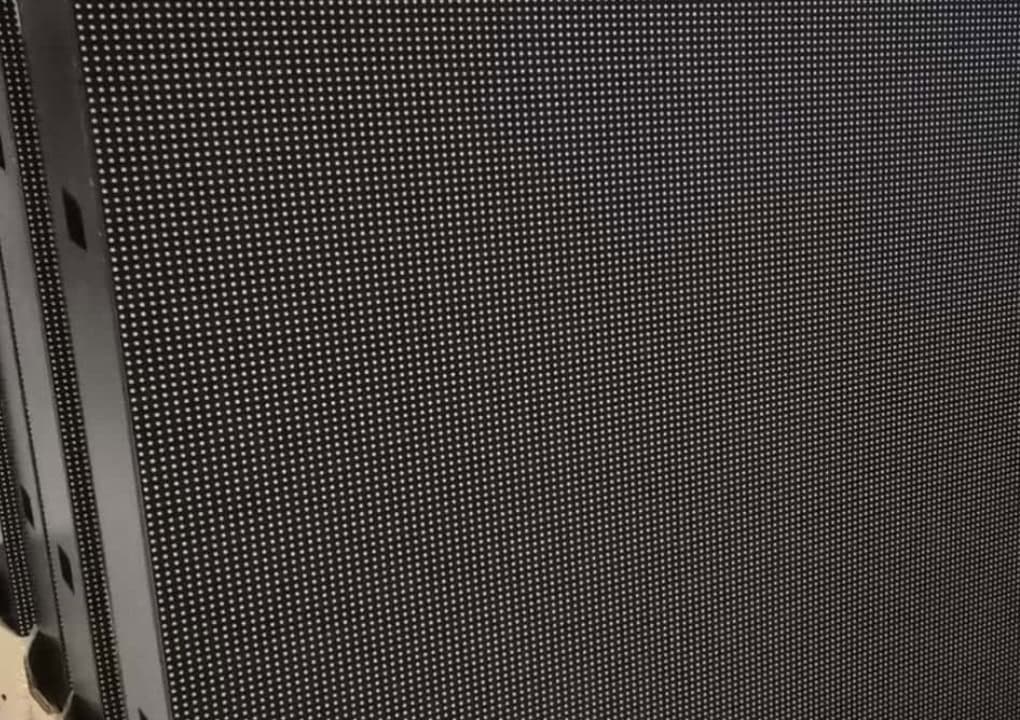

High-Quality LED Display

The MB-5 Lite features a high-quality LED display with a pixel pitch of 3mm, 4mm, or 5mm, ensuring crisp and vibrant visuals. The screen offers a maximum resolution of up to 2K, providing stunning visual effects that are perfect for displaying detailed graphics and fast-moving action. This makes it an ideal choice for any event needing a reliable and high-performing display.
Easy Setup and Operation

The MB-5 Lite is designed for ease of use, with a hydraulic system that allows the LED screen to be raised and lowered quickly. The setup process can be completed by a single operator in about 10 minutes, reducing the time and effort required. This feature makes the MB-5 Lite a practical and efficient choice for any event.
High Brightness and refresh rate

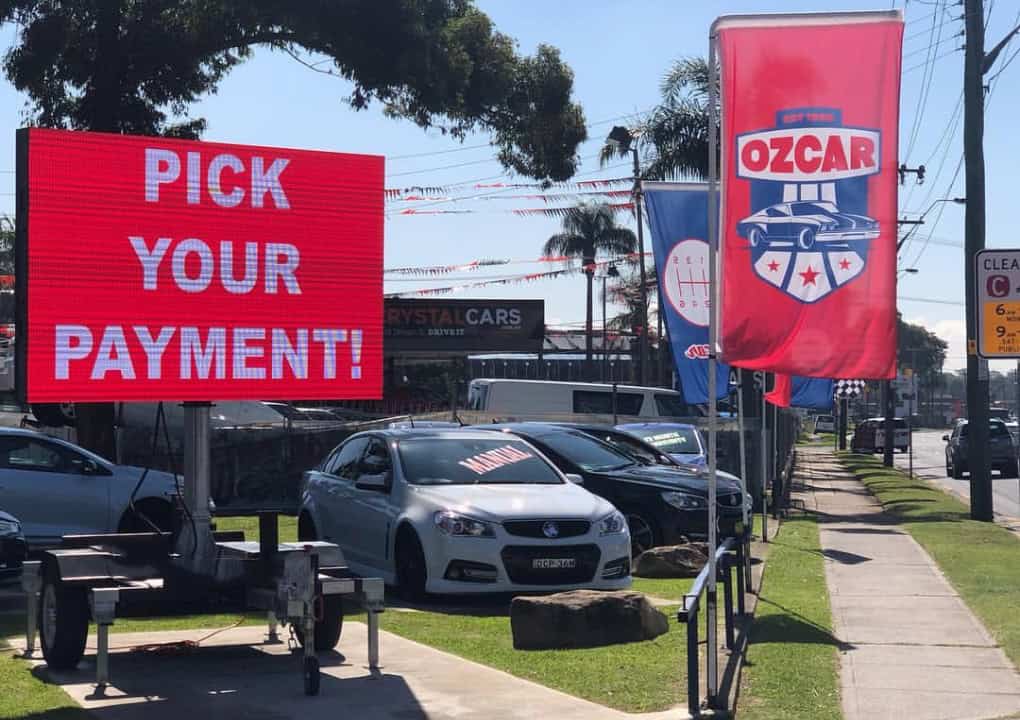

With a great brightness of 5500nits (optional max. 7500nits), MOBO trailer LED screen clearly delivers content for outdoor visibility under strong sunlight. The screen brightness can be automatically adjusted depending on the ambient light at different time. MOBO trailer screen will offer a very comfortable brightness for your event. The MB-5 Lite features a high refresh rate of 3840Hz, ensuring smooth motion and a captivating viewing experience. This feature is particularly beneficial for displaying fast-moving action, such as sports events or video games, ensuring that the visuals remain clear and engaging.
Remote Control Capability

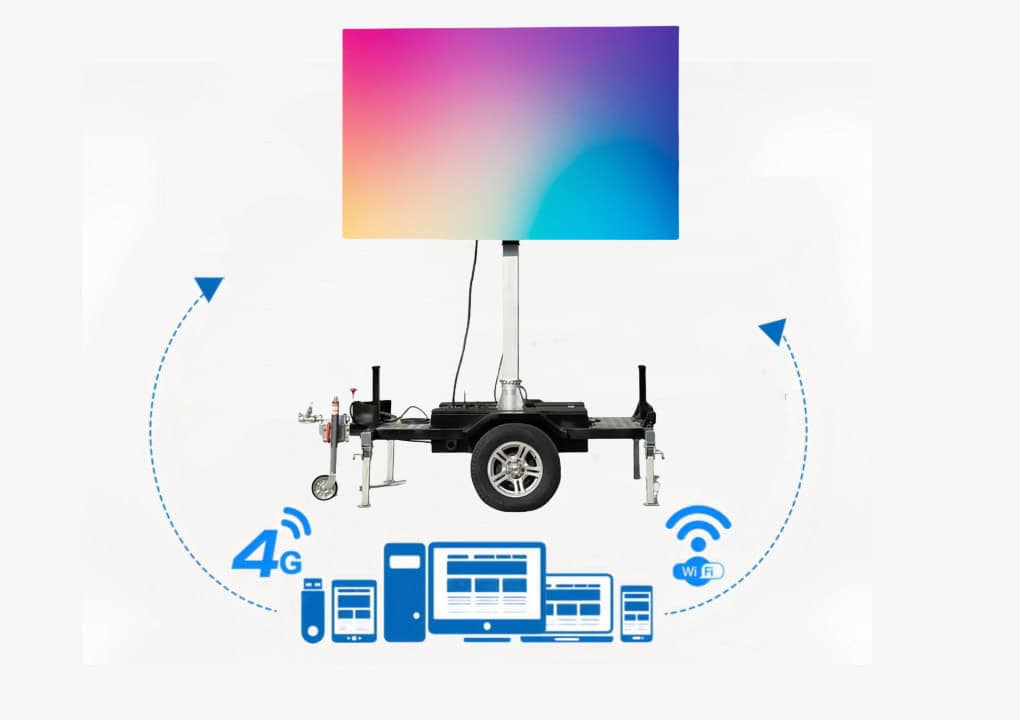

MB-5 Lite LED screen trailer uses NovaStar TB-40 LED control box to upload and manage the content on the trailer screen. It supports both synchronous control and asynchronous control with your laptop, PC, tablet, cellphone etc. The MB-5 Lite offers remote control capabilities, allowing operators to manage the display from a distance. This feature enhances convenience and flexibility, making it easier to manage content and adjust settings as needed. The remote control can be operated via WiFi or 3G/4G sim card, ensuring seamless operation.

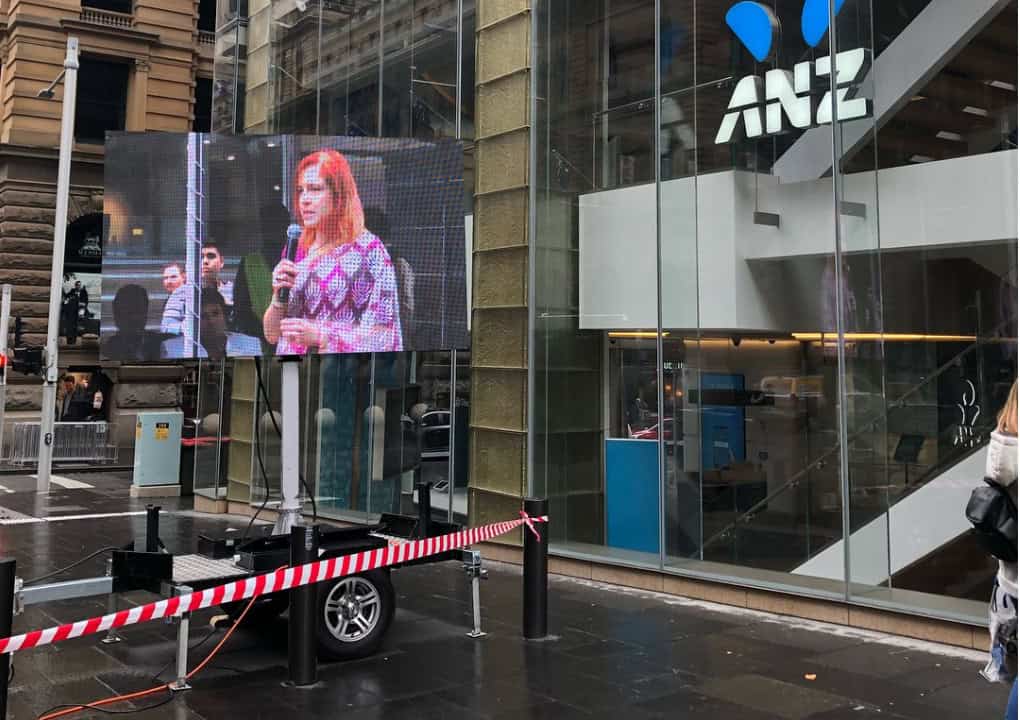

Waterproof screen with IP65 protection level

The IP65-rated LED screen is engineered for outdoor use, offering superior protection against dust and water. Its robust design ensures durability and reliability, even in harsh weather conditions. The waterproof feature makes MB-5 Lite ideal for various outdoor applications, providing a long-lasting service life. This high-grade protection guarantees that your display remains vibrant and functional, making MB-5 Lite a wise investment for any outdoor setting.

View All Feature

Specifications

Part I Trailer Chassis

Trailer Type	Platform, Flatbed
Transport Dimension (with drawbar)	14’ x 5.25’ x 8.7’
Gross Vehicle Weight Rating(GVWR)	2100LBS
Axles	Single
Tires	LT265/70R16
Rim	8’’ x 16’’, Aluminum Alloy
Coupler	2-5/16’’ Ball Hitch
Color	Glossy Black or Custom RAL color
Wind Rating	45 MPH

Part III Hydraulic Mechanical Parameter

Screen Lifting Height(top to ground)	3.28ft
Screen Rotating Degree	360 continuous
Control Mode	Wire control
Motor Power	1.5KW
Nominal Pressure	11KPa
Oil Type	Aviation hydraulic fluid
Overheat Protection	✓

Part V Power System Parameter

Max. Screen Power Consumption	4,000 Watts
Avg. Screen Power Consumption	1,300 Watts
Other Equipment Power Consumption (Speaker, amplifier, LED controller etc)	500 Watts
Input Voltage	120V
Plug Type	30A Twist Lock x 1 set

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	9.45'W x 5.25'H / 2880mmx1600mm
Pixel Pitch	3		4		5
Screen Resolution	960p x 512p		720p x 400p		576p x 320p
LED Module Size (mm)	192 x 192/ 320 x 160
Standard Brightness(Nits)	4000-4500	5000-5500		5000-5500
Optional Highest Brightness (Nits)	≤5500	≤7500		≤7500
Max. Refreshing Rate(Hz)	≥1920Hz
Protection Grade	IP65 (Fully waterproof)

Part IV Media Control System

LED Controller	NovaStar TB-40
Input Resolution	Up to 1920 x 1080p @60Hz
Video Input	1 x HDMI 1.4 2 x Sensor Connectors
Video Output	2 x Gigabit Ethernet Ports, 1 x Stereo Audio Connector − 1 x HDMI 1.4
Audio Input	1/8inch(3.5mm)

Part VI Optional Equipment List

Audio System	Speakers and Amplifier
Power Generator	Super Silent Inverter Generator
Cover	Logo Printable, Tarpaulin
Customize LED Screen brand	✓
Warranty Extending	Extended from 3 years to 5 years
