Home > Trailers > Deluxe LED Screen Trailer

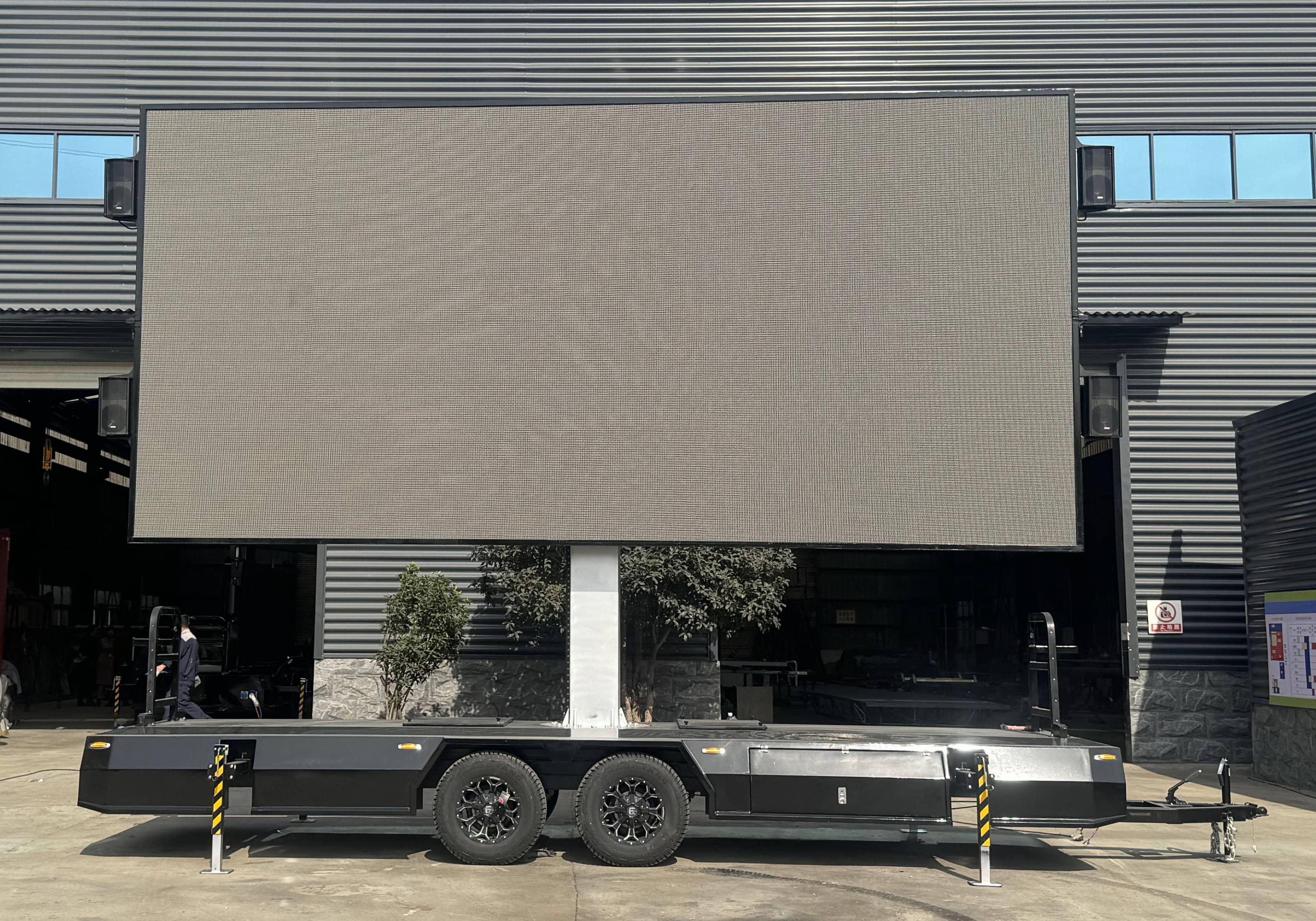

MB-28 LED trailer is one of the largest mobile LED display in the market. The 23ft by 13ft outdoor LED screen can be easily set up by one operator to work for your big outdoor events. The huge foldable LED screen is raised smoothfully by hydraulic mast and can then rotate 360 degrees to face any direction.
MB-28 large mobile LED screen trailer is also a good solution fot stage LED screen. You do not need install outdoor LED screens on the truss any more. It will take few efforts to set up 23’ x 13’ screen to start the show. 3.91mm or 4.81mm pixel and high brightness screen will take your events to the next level.

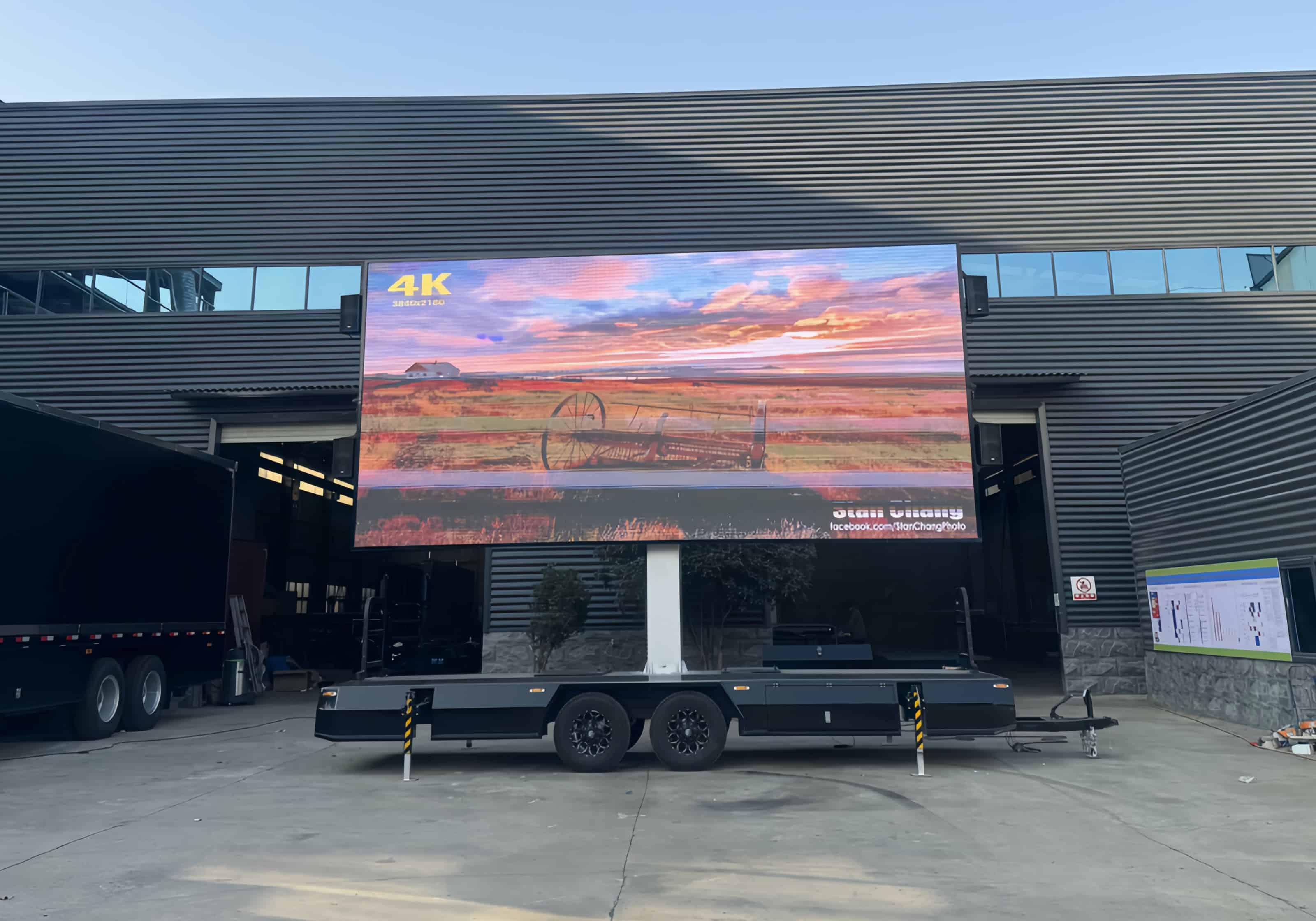

23ft by 13ft outdoor high definition LED screen
Hydraulic lifting screen design to set up in 20 minutes
Large Mobile LED jumbotron screen for outdoor events
Popular appearance for Europe and US market
Hight resolution with better visual effect
One-operator, twenty-minute full setup
Fully waterproof products (IP65) and weather free
Extendable warranty service
Customized ultra-silent generator set available
Setting up a large outdoor LED jumbotron display often requires hours of work or even a full day. The total cost to set up the big screen is also very high. However, large LED screens are essential equipment for any event, significantly enhancing the audience's visual experience and overall performance.
MOBO MB-28 mobile LED jumbotron trailer is the ideal solution for quickly setting up outdoor screens and conducting live broadcasts. Its sophisticated mechanical design replaces the traditional labor-intensive setup, making the process highly efficient. MB-28 LED trailer can be widely used in large-scale events, such as resorts, golf courses, racetracks, motorsports venues, outdoor movie theaters, outdoor music festivals, and more applications.

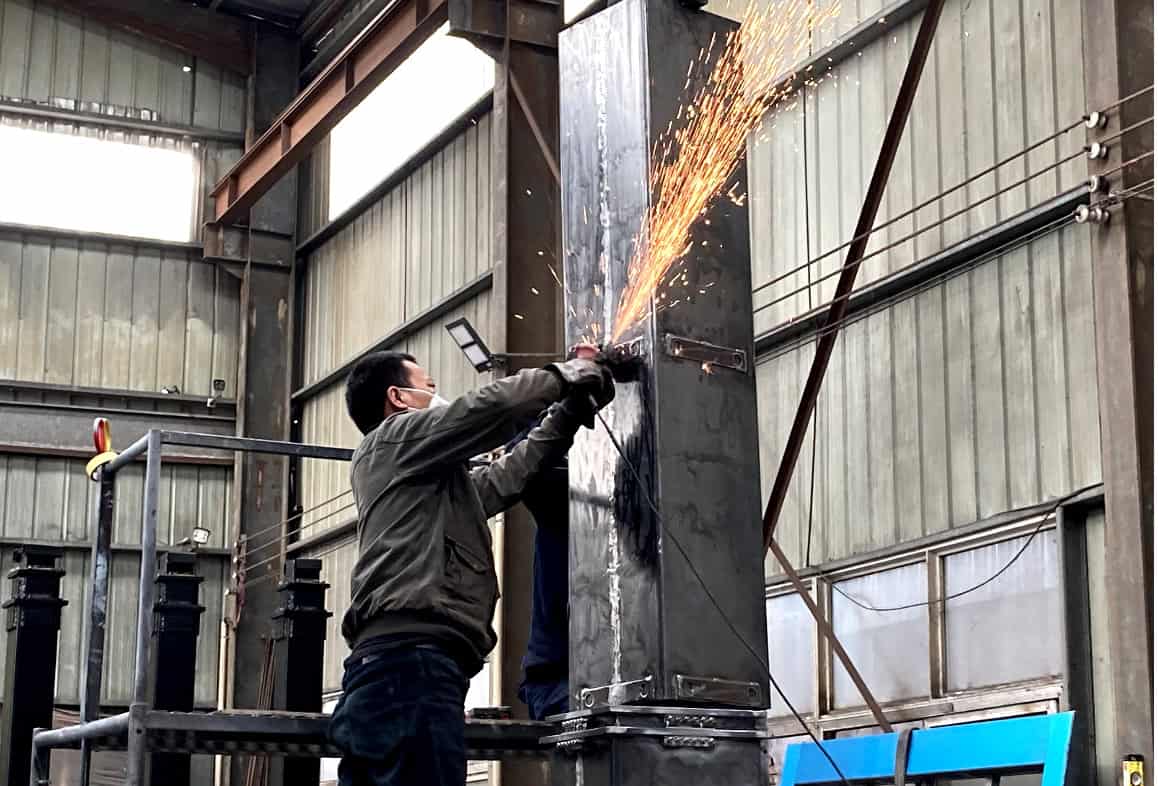

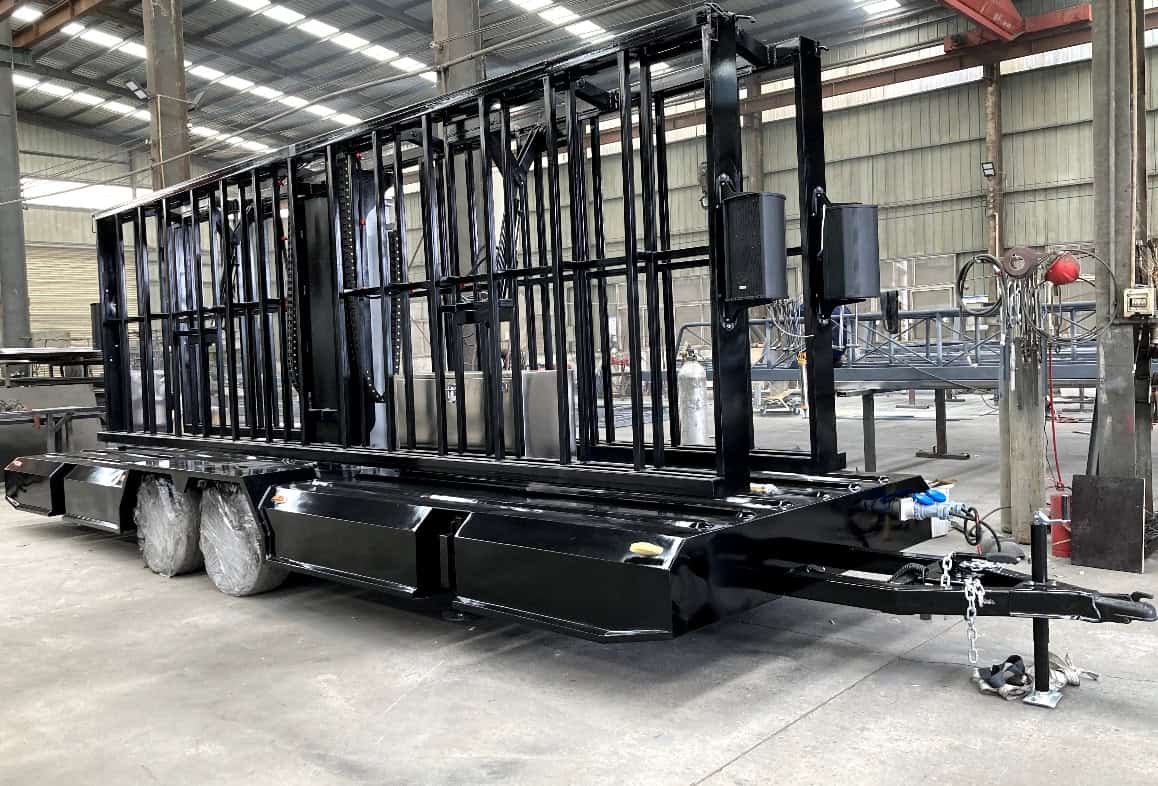

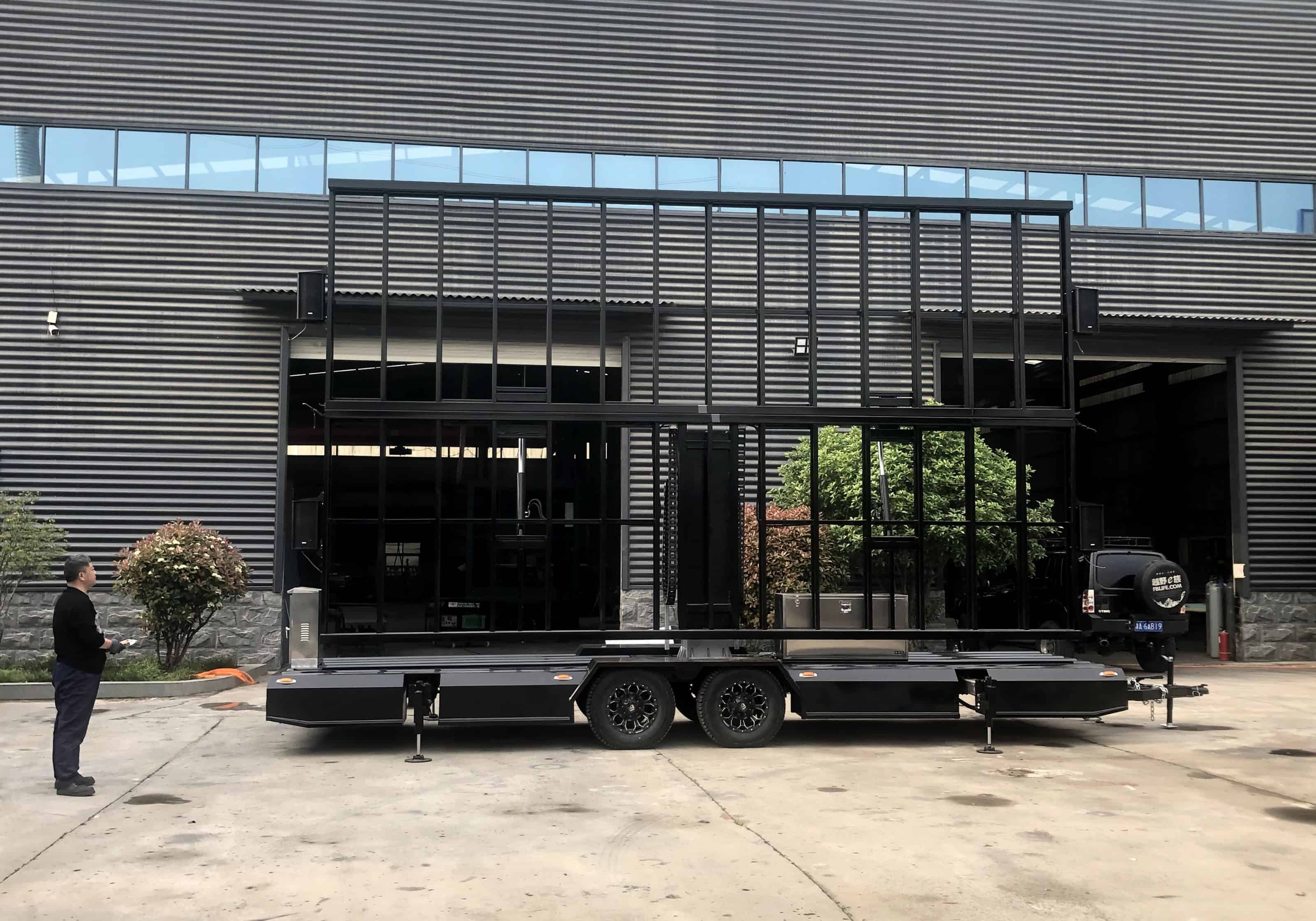

MB-28 LED trailer has high-strength chassis that offers great safety and stability. It is built by high grade steel materials and high welding quality, ensuring the trailer can handle heavy loads on strong axles. The durable construction allows larger outdoor LED screen to sit on, making it ideal for various events and locations. The high-strength chassis enhances the overall safety of the trailer, reducing the risk of damage or accidents.

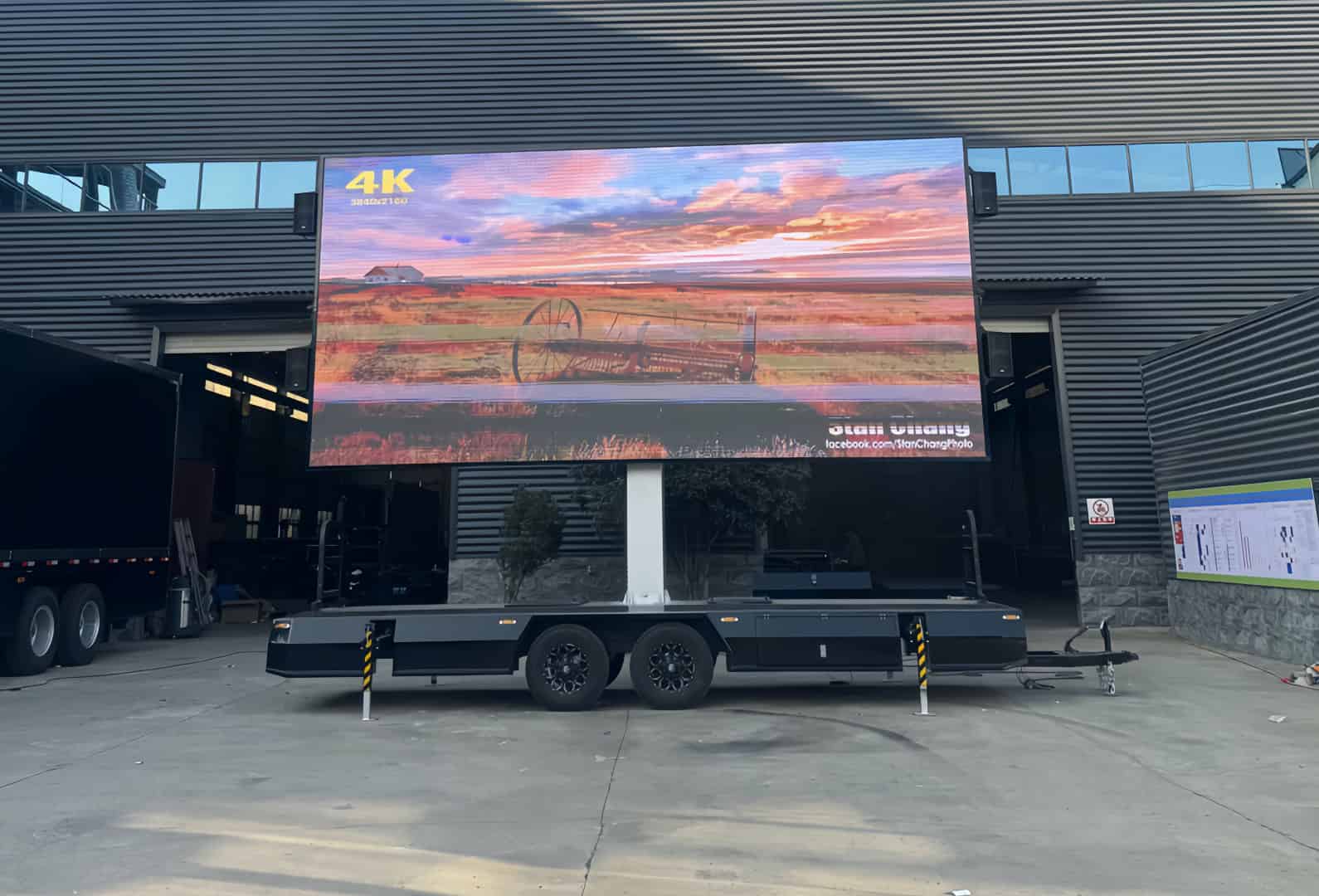

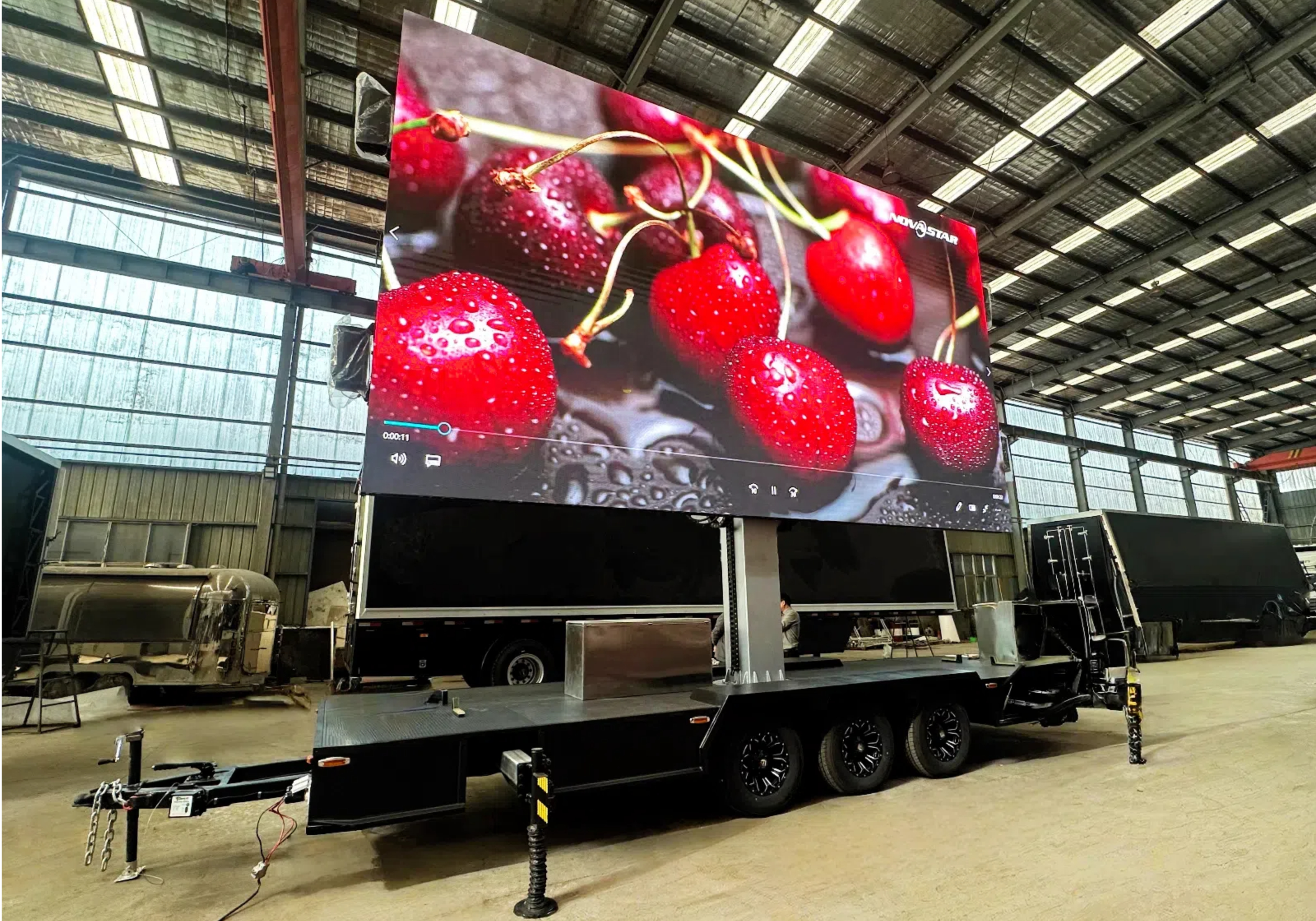

MOBO can provide 2.97mm, 3.91mm, and 4.81mm smaller outdoor LED screen pixel pitches. Those high definition and high resolution can ensure the bigger 23ft by 13ft LED screen can display sharp videos and photos for viewers. Installed with the most popular outdoor LED screens, MB-28 LED trailer will provide stunning screen effect to the audience with an unparalleled visual experience.
7000nits high brightness trailer LED screens are no longer troubled by the fading of images caused by sunlight. This bright LED screen can keep the sponsor advertisements, real-time broadcasting clearly visible under the direct sunlight at noon. MOBO mobile trailer LED screens use high quality LED lamps instead of increasing the current or modify the numbers to make the screen brighter.

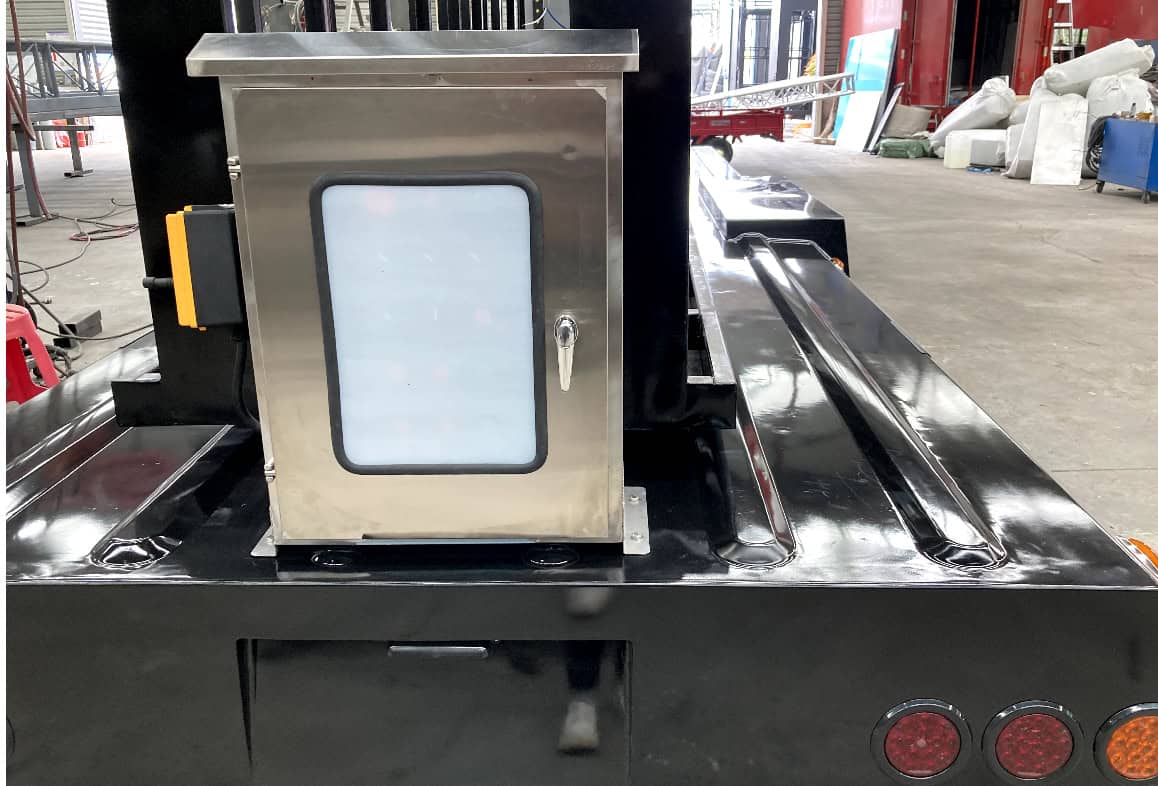

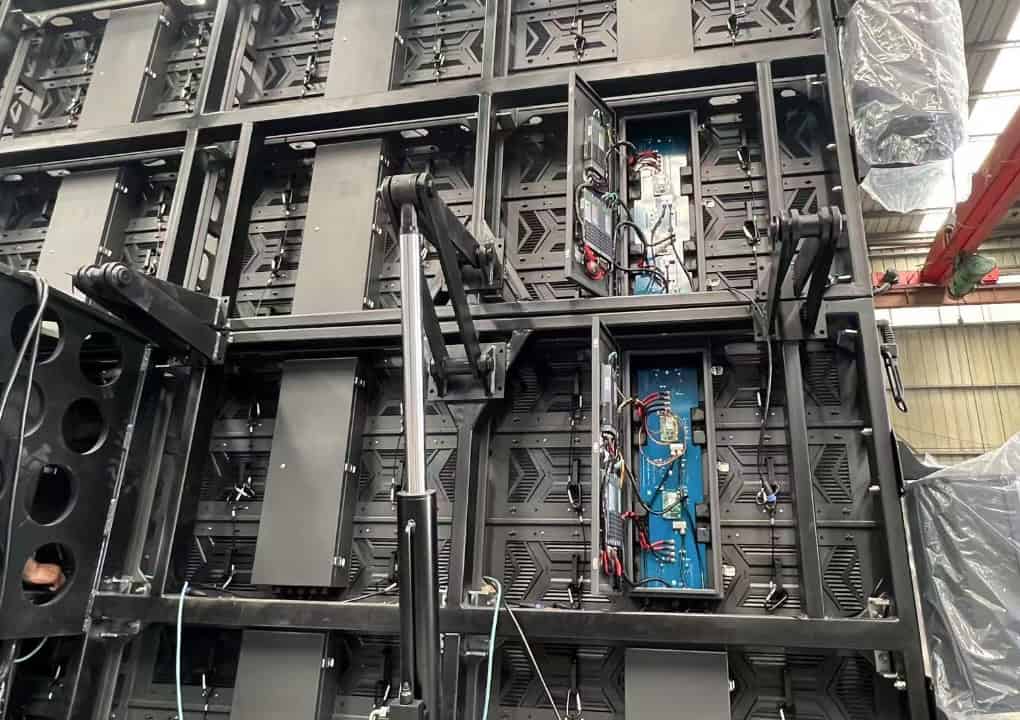

Each LED screen cabinet on MB-28 trailer adopts a receiving card and LED power supply backup design, significantly improving its reliability. This design ensures that if any one of the main power supply or signal fails, the backup unit will immediately take over and ensure the normal operation of the screen. This dual backup design prevents screen blackouts during outdoor performances, ensuring that the viewing experience of the audience is not disrupted.

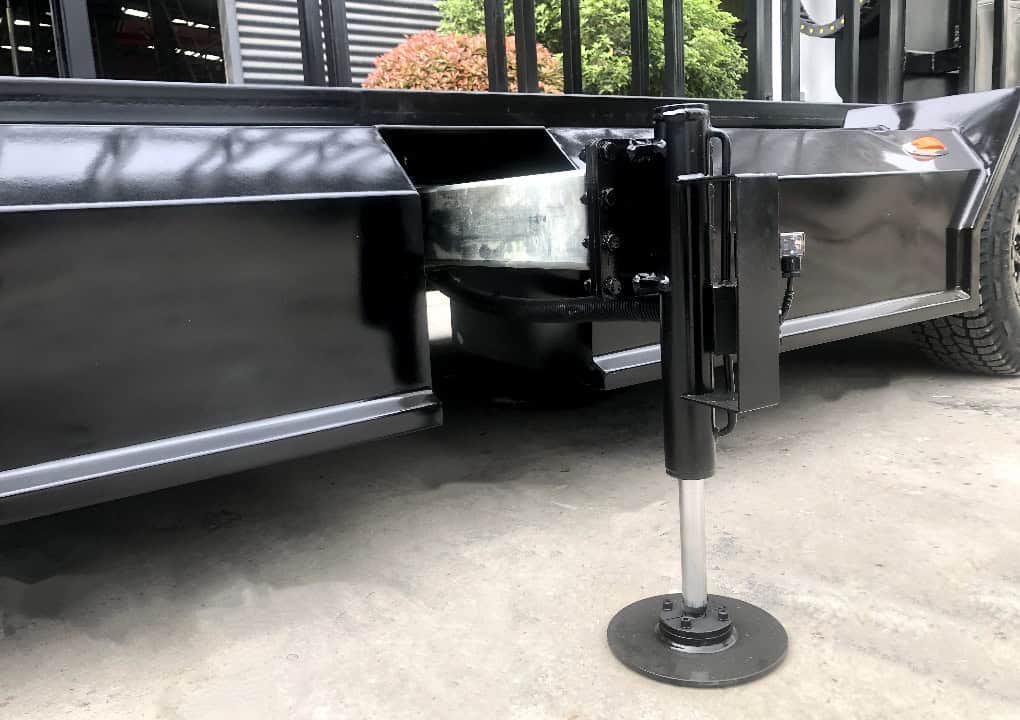

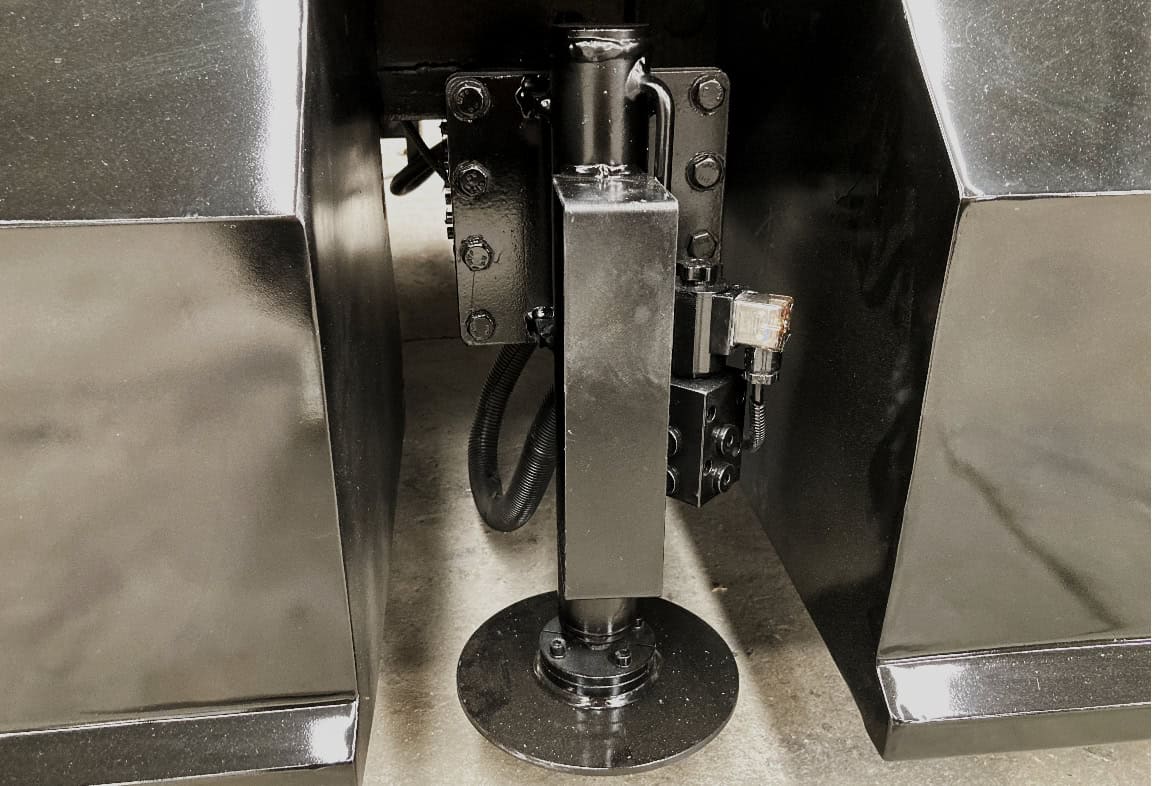

Safety comes first when we build the MB-28 LED trailer. Four hydraulic outriggers are installed at the four corners of the MB-28 LED screen trailer. You can use hydraulic remoter to land the stabilizers in few minutes. After the 23’ x 13’ large LED screen is raised up, the entire trailer remains stable and safe. The strong outriggers, trailer chassis, tires, hydraulic mast, screen frame are matching well to make the trailer work safely.

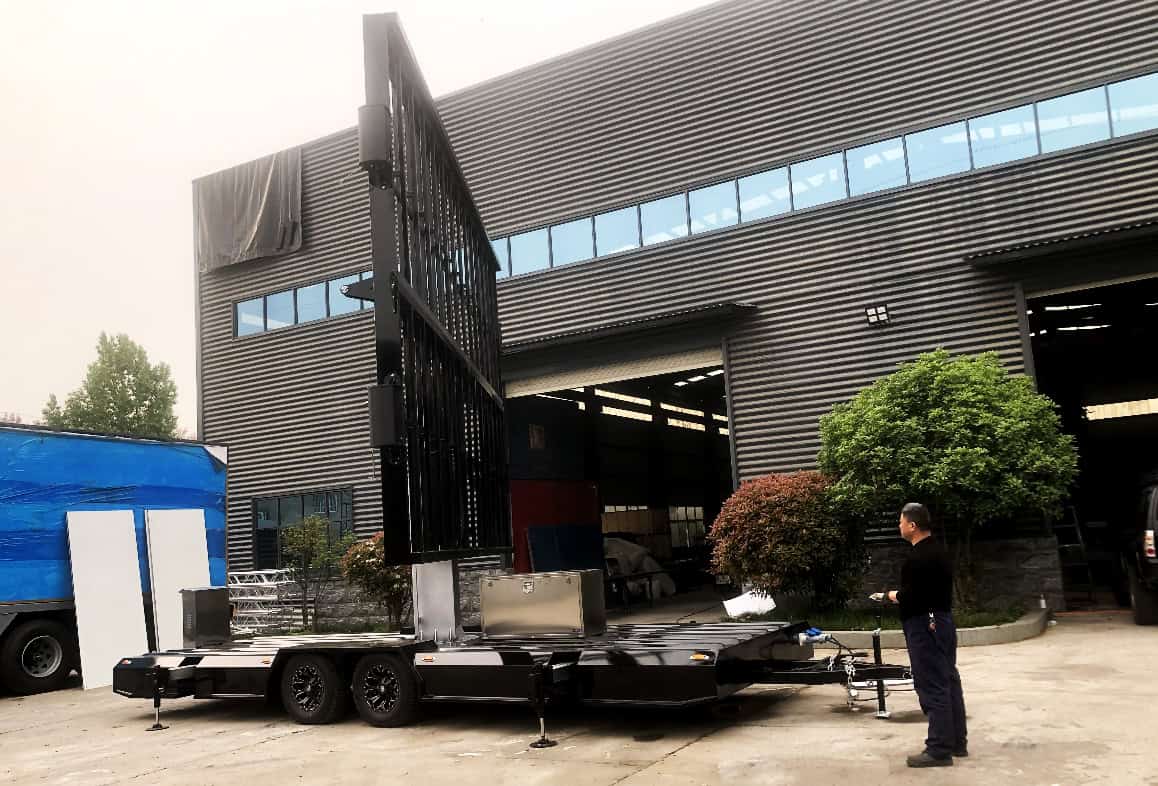

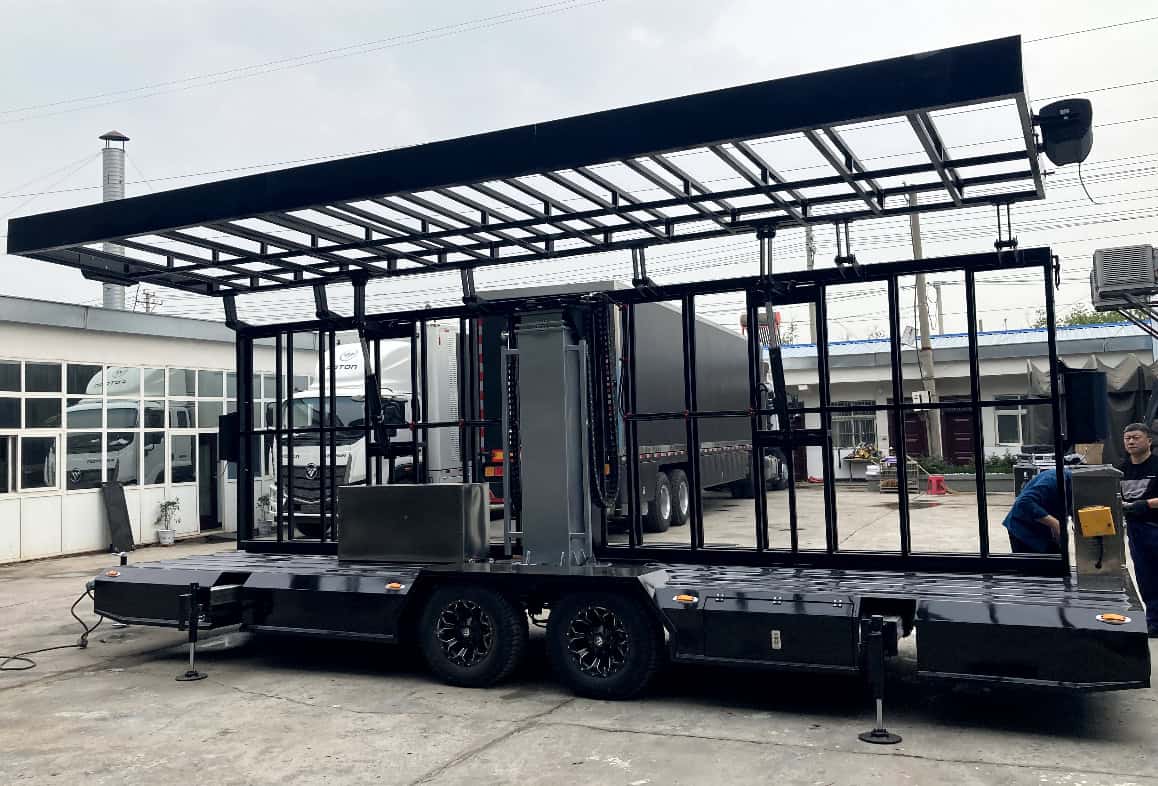

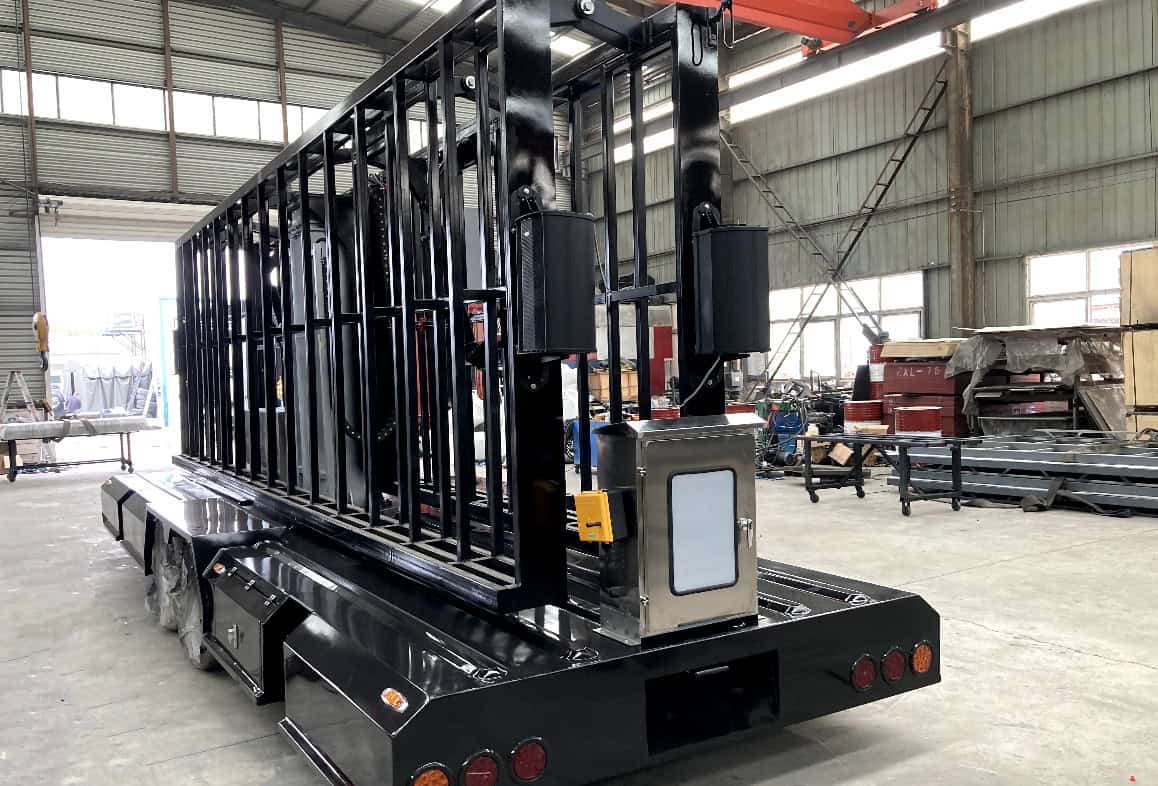

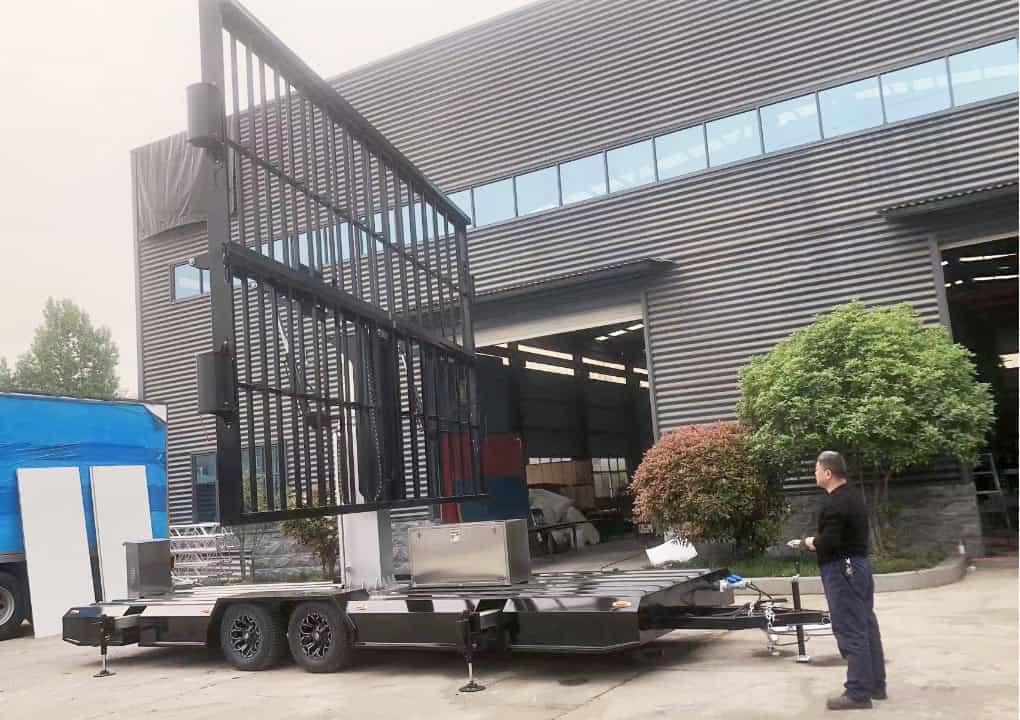

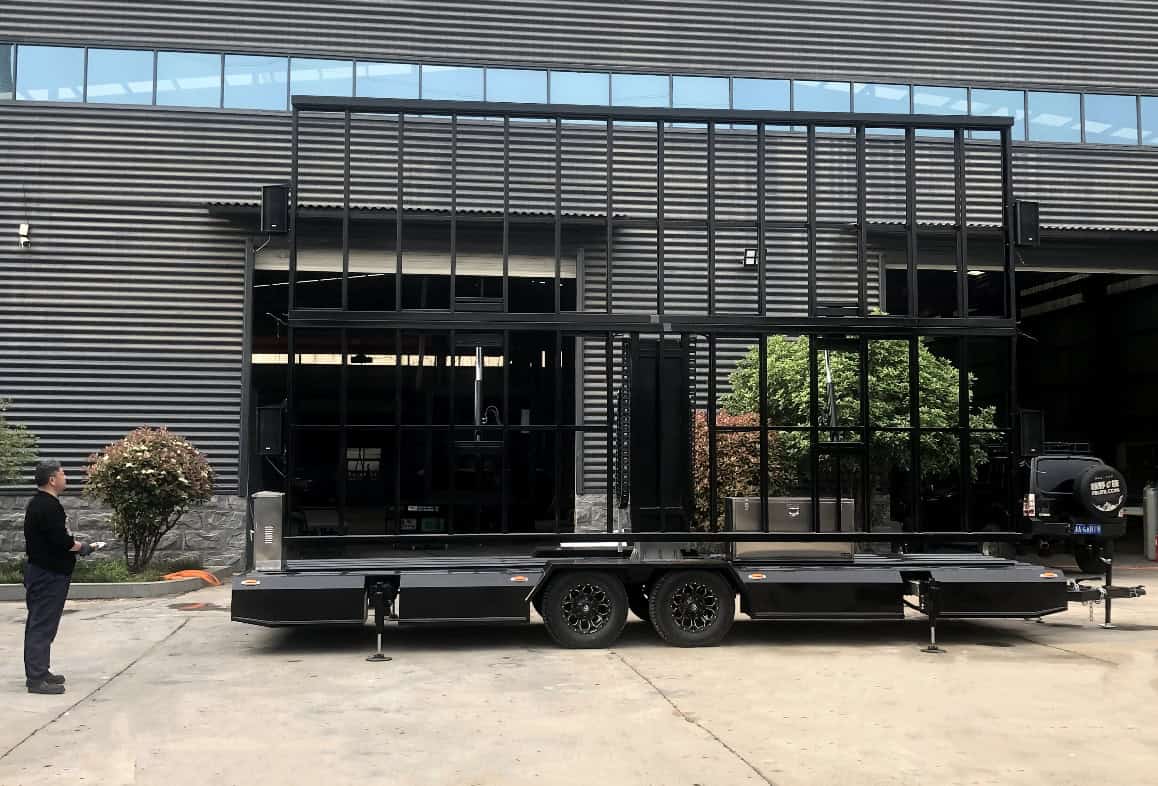

The entire LED wall of the MB-28 can be folded into two pieces of screens for safe towing on the road. It can also be raised to 24.26 feet by hydraulic system and can be rotated at 360 degrees. The operator can orient the screen towards the audience seats at various angles. The visual performance of the MB-28 LED screen trailer will be excellent and all the screen set up only need about 20 minutes.
MB-28 LED trailer is equipped to facilitate live video broadcasts of on-site events with ease. The NovaStar VX400 video processor can work with high-resolution trailer LED display. The system ensures that live footage is shown in crisp, clear detail, engaging audiences effectively. The video processor also supports seamless integration with other broadcasting equipment, enabling real-time transmission of high-quality video content in the outdoor events.

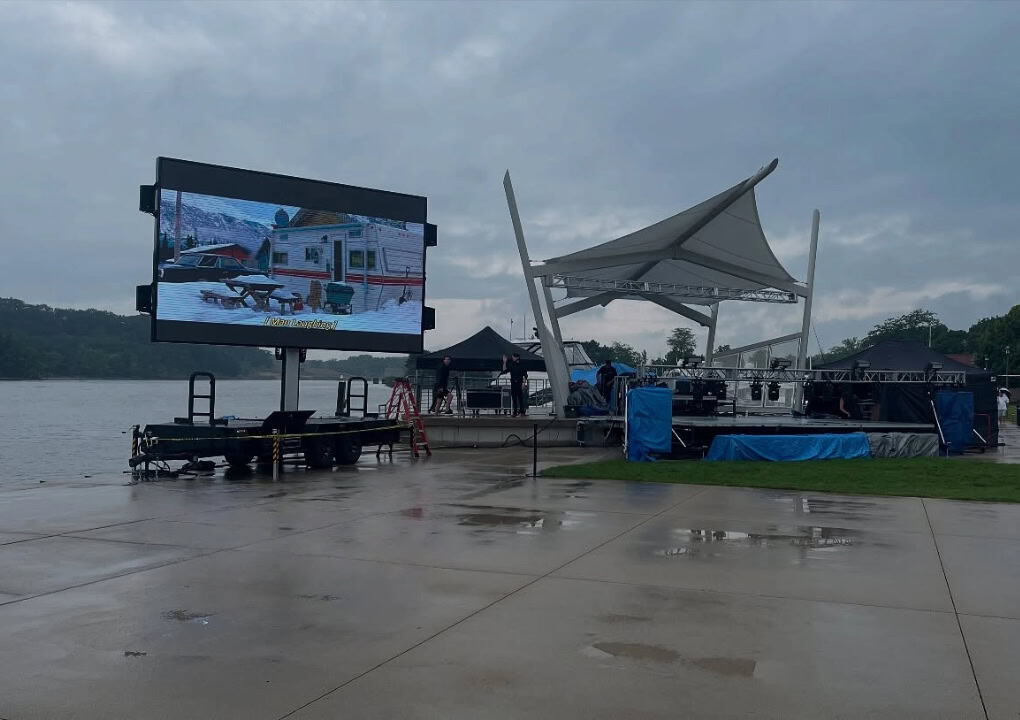

MB-28 LED trailer is designed with robust weather resistance, featuring an IP65-rated screen that effectively shields against water and dust. The LED trailer ensures optimal performance in rainy or dusty conditions. Its solid and sturdy trailer chassis is engineered to withstand harsh outdoor environments, including strong winds and extreme temperatures. MB-28 durable structure can make it ideal for events such as concerts, sports games, and outdoor advertising, where reliability and durability are paramount.

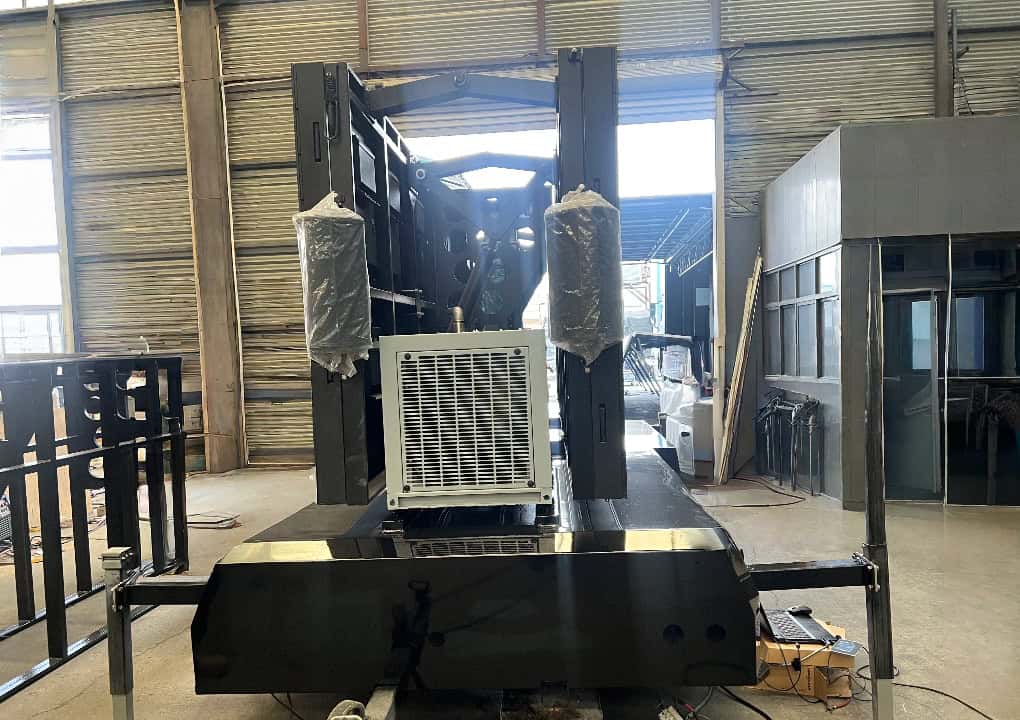

The optional 20kW super silent generator for the MB-28 LED trailer provides a reliable power source that ensures uninterrupted operation of the LED display. The noise of the generator control is world leading. It is customized for events that require continuous power with less noise. The generator's silent operation minimizes noise pollution, making it suitable for noise-sensitive environments like residential areas or outdoor events. MOBO high quality diesel generator is sufficient to supply power to the big screen.
MB-28 LED screen trailer can be a game changer in outdoor LED screen events. Imagine that you drive to a stadium, a music festival lawn or a city square, and your trailer is equipped with an astonishing 23’ X 13’ outdoor screen. This is a quickly set-up LED screen that is larger than any screen that competitors can transport.
There are no trusses, no cranes, no ten-person operation team - just a technician completed the preparations, installed four hydraulic stabilizing devices, pressed the "lift" button, connected the signals and power supply. Within 20 minutes, the equipment was ready for use, while the opening performance was still undergoing sound testing and debugging. All the screen setup work could be super easy to significantly reduce your daily labor costs.
Trailer Type
Platform, Flatbed
Transport Dimension (with drawbar)
25.7’ x 8’x 9.6’
Gross Vehicle Weight Rating(GVWR)
13,200 LBS
Axles
Tandem
Tires
LT265/70R16
Rim
8’’ x 16’’, Aluminum Alloy
Brake
Electric and hand brake

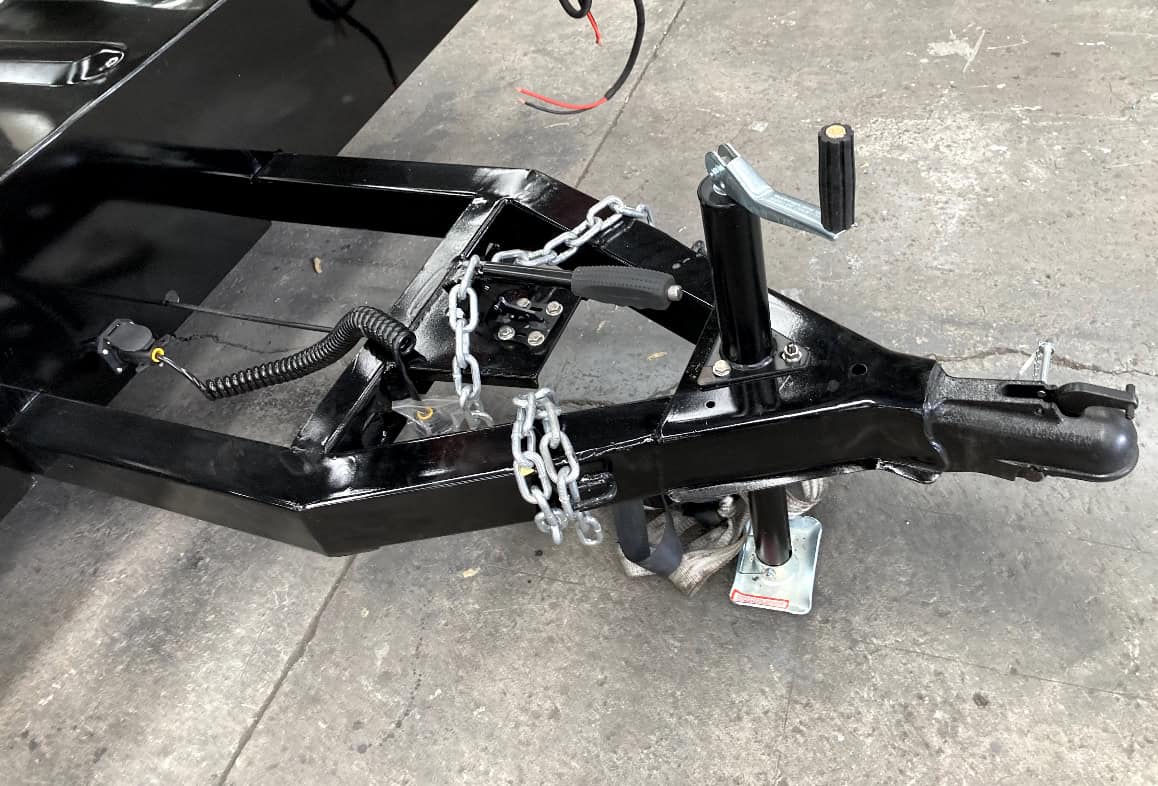

Brake Away System
✓
Coupler
2-5/16’’ Ball Hitch
Stabilizers
4 sets
Wind Rating
45 MPH
US DOT Road Approval
Screen Lifting Height(top to ground)
24.26ft (Screen top to ground)
Screen Rotating Degree
360 continuous
Control Mode
Remote controller + Wire control

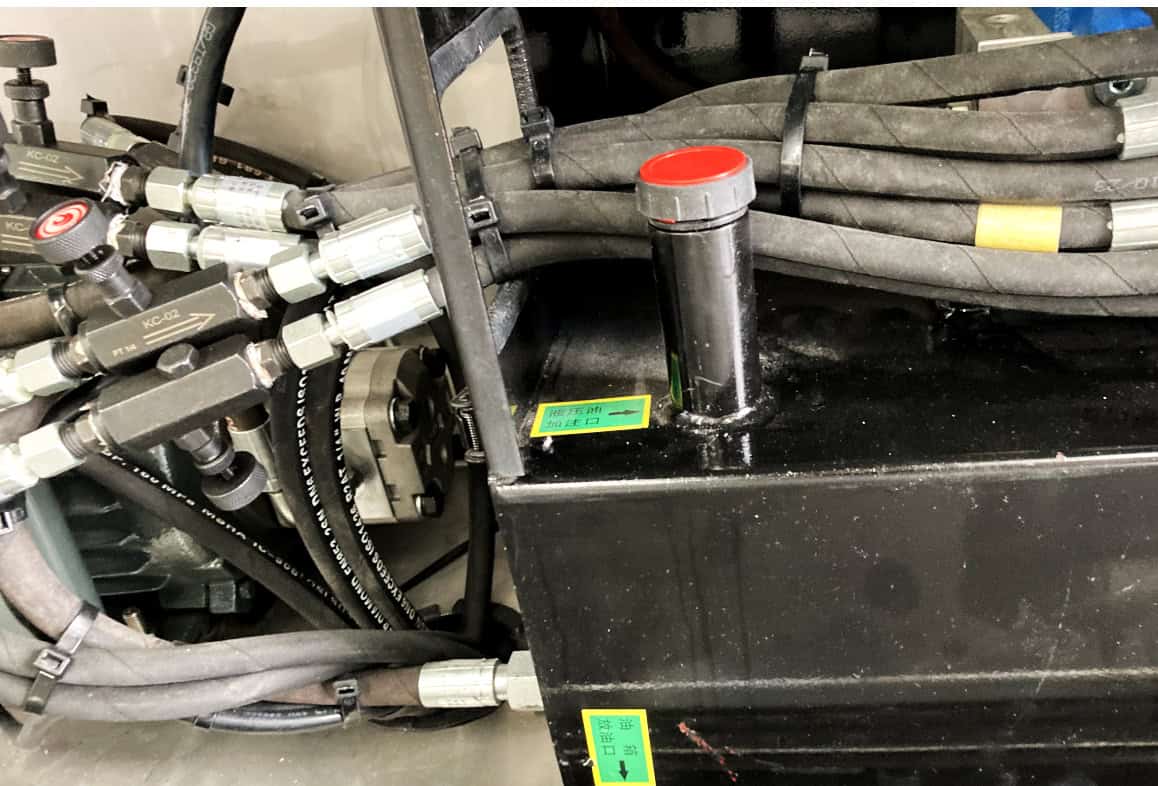

Motor Power
3KW
Nominal Pressure
11KPa
Oil Type
Aviation hydraulic fluid
Overheat Protection
Speakers(Watts)
120Watts x 4 sets
Amplifier
660watts x 1 set
Video Processor
NovaStar VX400
Input Resolution
Up to 1920 x 1200p @60Hz
Video Input
DPx1, HDMIx1, VGAx2, DVIx1, CVBSx2, SDIx1
Video Output
DVI Loop x1, DVI x1, VGA x1, SDI Loop x1
Audio Input
1/8inch(3.5mm)
Screen Dimension (Ft/mm)
23’W x 13’H/7000mm x 4000mm
Pixel Pitch
2.97
3.91
4.81
Screen Resolution
2352p x 1344p
1792p x 1024p
1456p x 832p
LED Module Size (mm)
1000 x 1000
Cabinet Material
Die Casting Aluminum
Standard Brightness(Nits)
4000-4500
5000-5500
Optional Highest Brightness (Nits)
≤5500
≤7000
Max. Refreshing Rate(Hz)
≥3840Hz
Scanning Code
1/21
1/16
1/13
Grey Scale(Bits)
14
Contrast Ratio
≥5000:1
Horizontal/Vertical View Angle(Degree)
140/120
Input Voltage/Frequency
110V～240V, 50~60Hz
Max. Screen Power Consumption
20,000 Watts
Avg. Screen Power Consumption
11,000 Watts
Other Equipment Power Consumption
(Speaker, amplifier, Video processor etc)
2,100 Watts
Input Voltage
240V/208V
Plug Type
50A breaker
MB-28 LED Trailer Drawing
MOBO commercial use LED screen trailers are built with high-resolution LED display for United States and other countries. The mounted LED display can range from 5m² up to 50m² with customized pixel pitch and LED screen brands. MOBO trailers can offer you convenient short installation and operation. Our mobile LED display trailer will be your creative solution to maximum visibility in all types of outdoor events.
