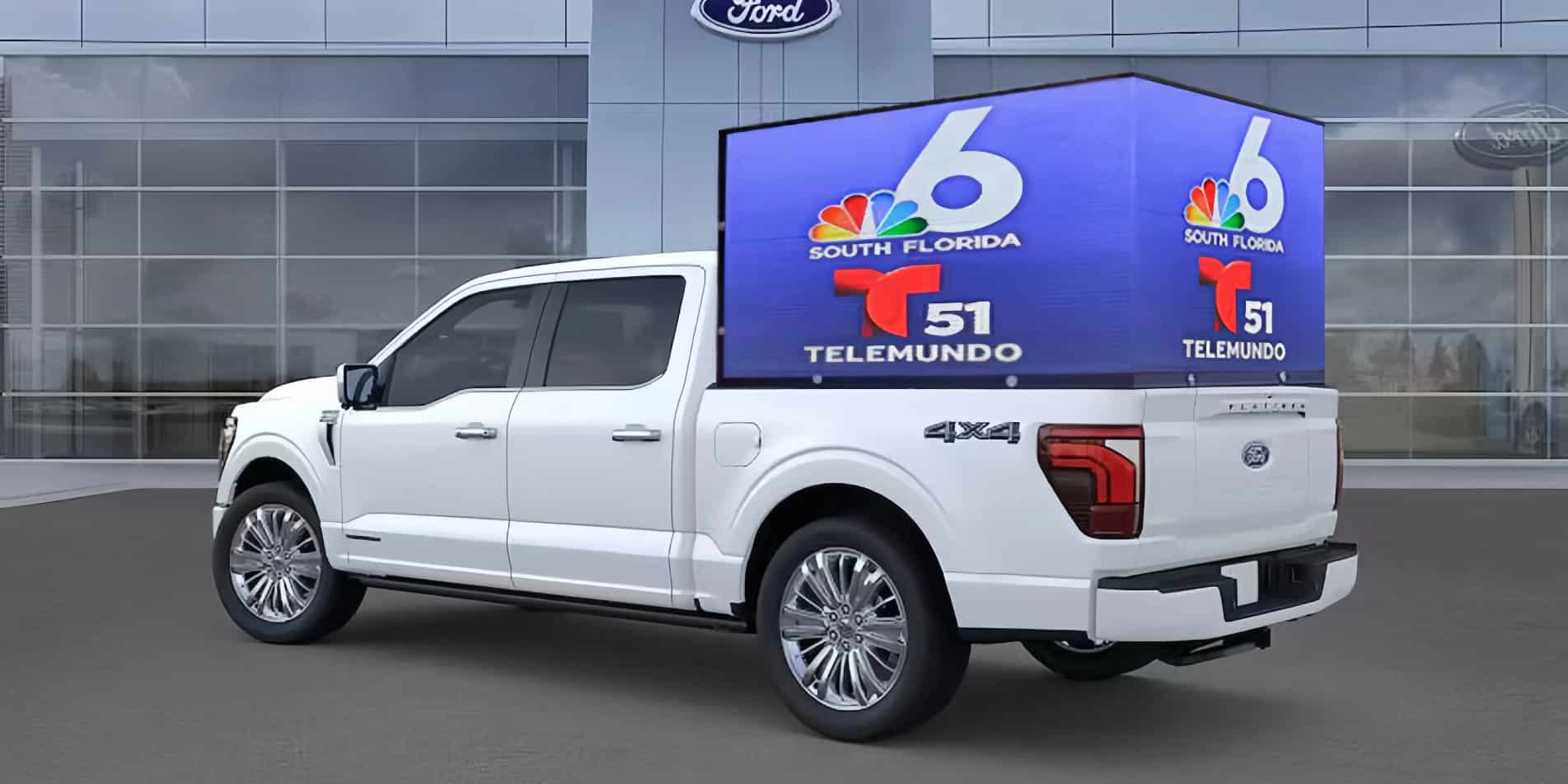

PU-5 Pickup LED Screen Box

The PU-5 advertising LED box turns your pickup truck into a mobile, high-definition outdoor billboard, bringing more attention to your company brand and business. PU-5 pickup LED display box is committed to enabling everyone to advertise their own business at a very lower cost as well as easy operation.

MOBO PU-5 LED display box can be quickly installed on your pickup truck whenever you need to advertise. A small digital gasoline inverter generator can easily power the 3-sided LED screen. You only need to upload your ads contents to the display box using your phone to start playing. The 2.6mm pixel pitch outdoor full color HD screen can bring high visual performance while driving on the street. When not in use, the LED screen box can be easily removed from the truck.

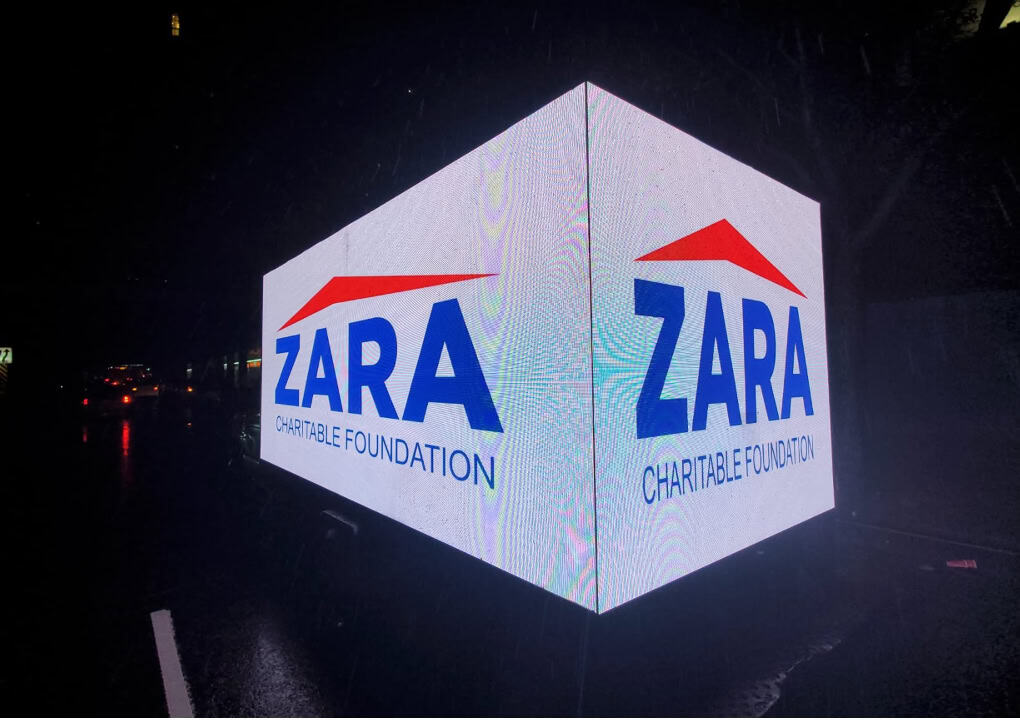

3 sides 5ft x 3.3ft full color outdoor P2.6 LED screen

Benefit: Seamless wide LED screens bring good advertising quality.

Easy installation for all kinds of pickup truck

Benefit: One worker can set up the pickup LED screen box in 10 minutes.

Cost saving advertising media on the street

Benefit: Even small business and company can afford the advertising cost.

Get A Quote +

Other benefits

Weather proof high quality LED screen
Support cellphone 4G and Wifi remote control
Low screen power consumption
Automatically screen brightness adjustment
Light weight design for easier installation
Spare parts for maintenance and 3 year warranty

Feature and Benefits

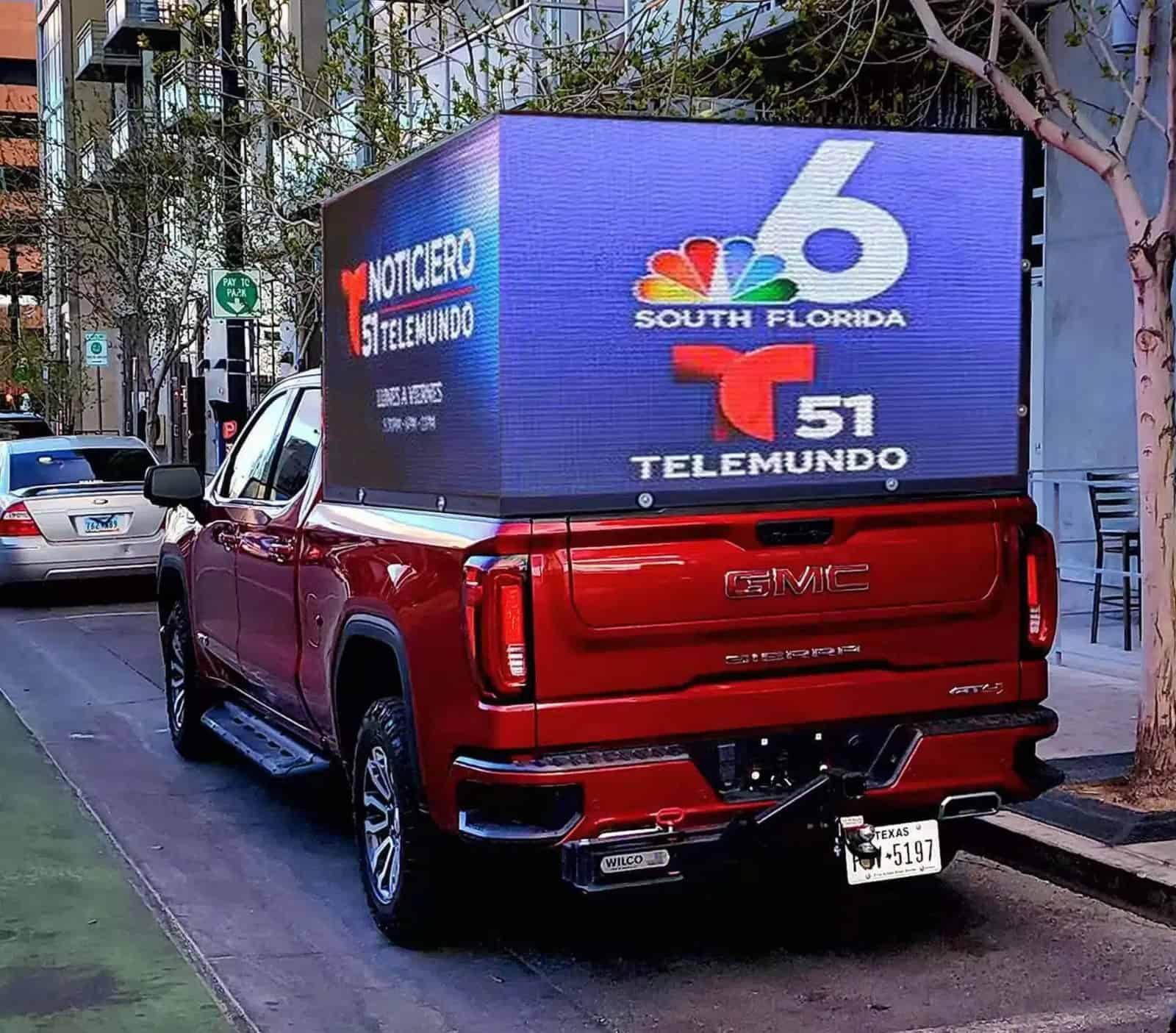

Have you ever thought about installing outdoor LED display on your pickup box? It used to be difficult for pickup owners. Now MOBO has released our new model PU-5 LED advertising box for different pickup truck brands and models. It is equipped with high quality outdoor screens and can be easily installed on your pickup truck box. PU-5 LED advertising box can be customized for your 5.7ft short bed pickup truck, 6.5ft standard bed pickup truck, and 8ft long bed pickup truck. Wherever you drive, the advertising of your business will be always there. MOBO PU-5 LED screen pickup can maximize your advertising performance in the city and greatly improve your brand awareness.

LED Box For Different Pickup Beds & Models

PU-5 LED screen box can be customized based on different length of the pickup bed like 5.7ft, 6.5ft and 8ft. When the truck box is larger, the LED screen on the pickup box will be larger too. Our box can fit popular pickup truck brands in the United States including FORD, RAM, GMC, TOYOTA, CHEVROLET, JEEP etc.

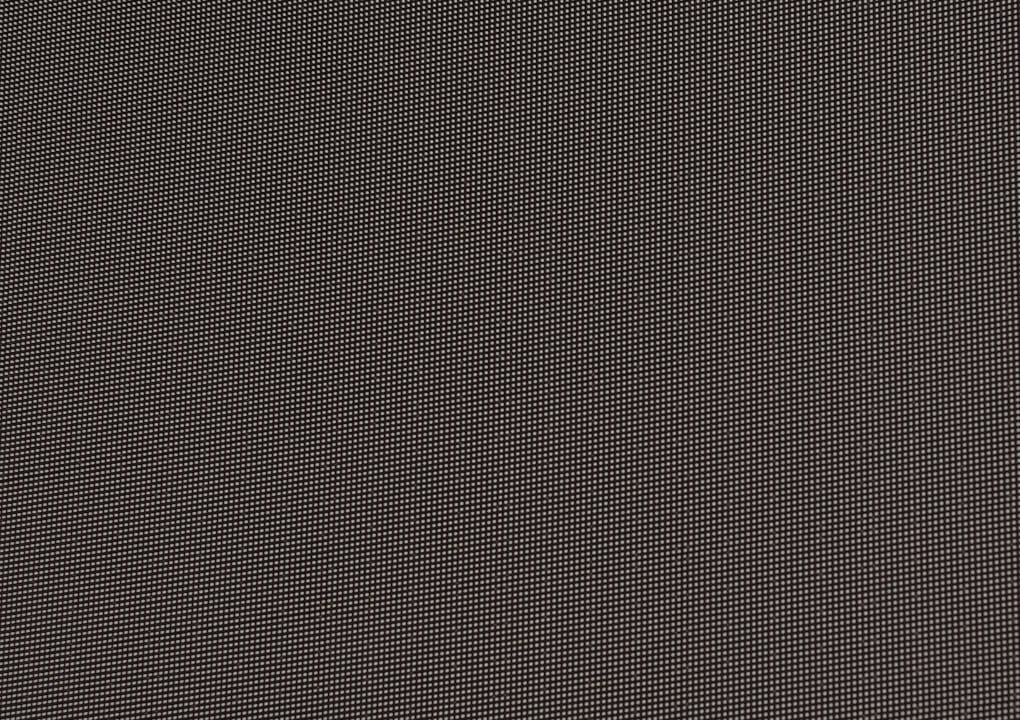

P2.5/P2.6/P2.97 Small Pixel Pitch LED Screen

MOBO SAT-3 solar LED trailer features advanced hydraulic lifting (3.28ft lifting height adjustment) and 360° rotation capabilities. This function can deliver optimal viewing angles from any direction. After parking the trailer, the lifting mechanism ensures your content on the screen reaches wider audiences with perfect visibility.
14000 nits Custom High Brightness LED lamps

SAT-3 solar LED screen trailer adopts unique high-brightness LED lamp design, which greatly improves the brightness of the outdoor screen. It can also achieve 14000 nits brightness at 6.67mm, 8mm, and 10mm pixel pitch. With high brightness performance, this screen can work against noon sunlight and is very suitable for road side advertising and way- finding.
Powered By Portable Gasoline Inverter Generator

3 sides of LED screens can be powered by portable gasoline inverter generator. Maximum power consumptions of screens are 3500watts, 5000watts, and 6500watts for 5.7ft short bed pickup, 6.5ft standard bed pickup, and 8ft long bed pickup. The average power consumptions of different beds pickup LED box are 1350watts, 1800watts, and 2250watts.

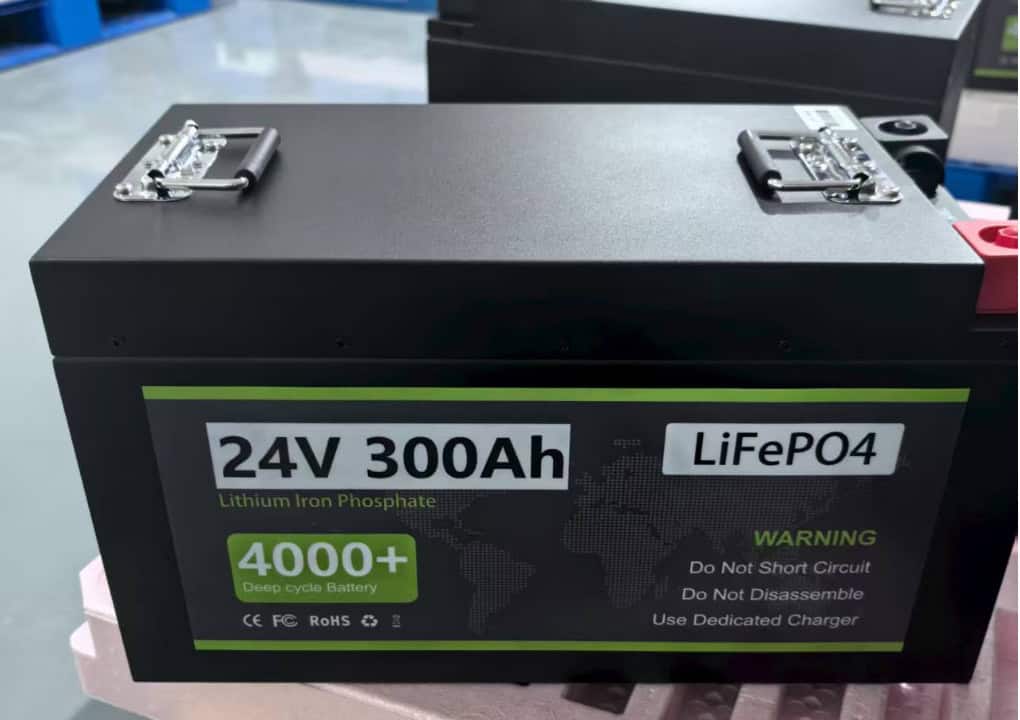

Optional Lithium Batteries Power Supply

We can also provide Lithium Batteries to power the 3 sides LED screen on PU-5 pickup advertising box. Those LiFePO4 batteries are built with top-tier Grade A cells, ensuring an extended cycle life and consistent performance. The normal voltage is 24V and the capacity can be 7200Wh. Those batteries are light weight, high energy, high power density, lower self-discharge rate, and long service life.

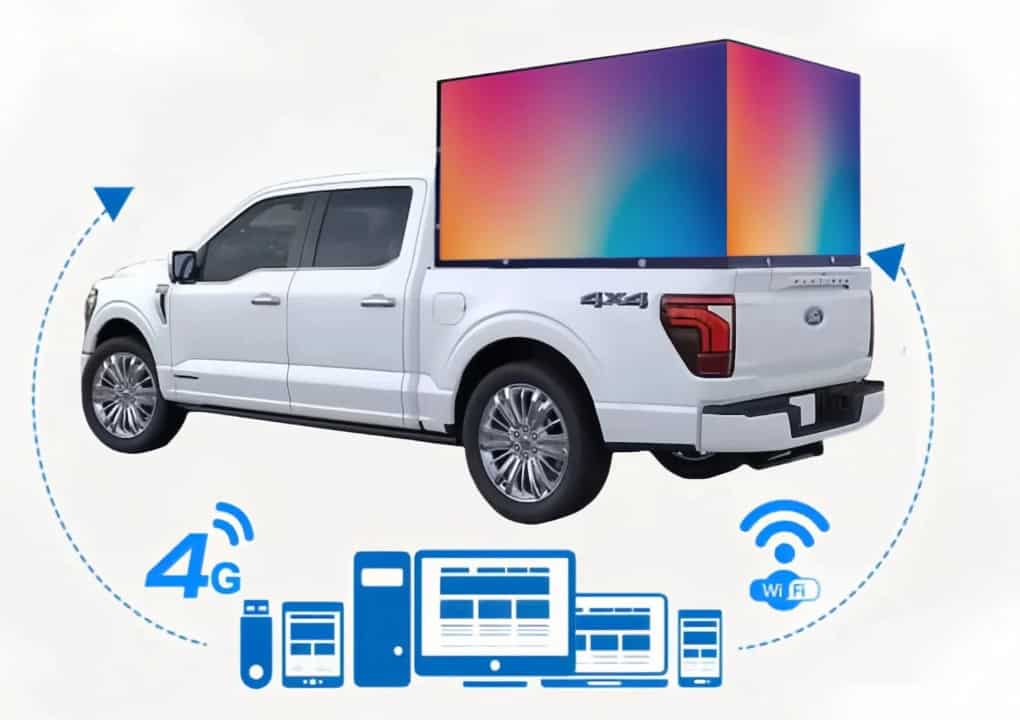

4G/WiFi Cellphone Video Control System

PU-5 LED screen pickup box has been installed with NovaStar cloud video/phone control system with Wi-Fi and optional 4G sim card for the driver to easily upload the ads programs by cellphone. It only takes minutes to send your MP4, AV, and JPG etc advertising contents to the screen. The LED screen control system is super easy to use .

View All Feature

Specifications

Part I Pickup Box Structure

Fit For Pickup Bed	5.5’-5.8’	6.5’	8’
Gross Weight	650lbs	800Lbs	1,000lbs
Maximum Box Height	5.5’-5.8’	6.5’	8’
Material	Steel
Color	Black or Custom RAL color

Part III Media Control System

LED Controller	NovaStar TB-40
Input Resolution	Up to 1920 x 1080p @60Hz
Video Input	1 x HDMI 1.4 2 x Sensor Connectors
Video Output	2 x Gigabit Ethernet Ports, 1 x Stereo Audio Connector − 1 x HDMI 1.4
Audio Input	1/8inch(3.5mm)
Control Mode	Cellphone, Tablet, PC, 4G, Wifi

Part V Optional Equipment List

Speakers(Watts)	30/60Watts x 2 sets
Amplifier	260watts x 1 set
Power Generator	Super Silent Inverter Generator
Battery	LiFePO4 batteries
Cover	Logo Printable, Tarpaulin
Warranty Extending	Extended from 3 years to 5 years

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	5’W x 3.3’H x 3 sides	6.5’W x 3.3’H x 3 sides	8.2’W x 5’H x 3 sides
Pixel Pitch	2.5mm	2.6mm	2.97mm
Cabinet Material	Iron
Standard Brightness(Nits)	4000-4500
Max. Refreshing Rate(Hz)	≥3840Hz
Contrast Ratio	≥5000:1
Horizontal/Vertical View Angle	140/140
Input Voltage/Frequency	110V～240V, 50~60Hz
Protection Grade	IP65
Control System	NovaStar
Max. Power Consumption	≤850Watt/㎡
Avg. Power Consumption	≤280Watt/㎡
Working Temperature	-4F ~ 175F

Part IV Power System Parameter

Input Voltage

120V

Output Voltage

120V

Plug Type

30A Twist Lock x 1 set

View All Specifications
