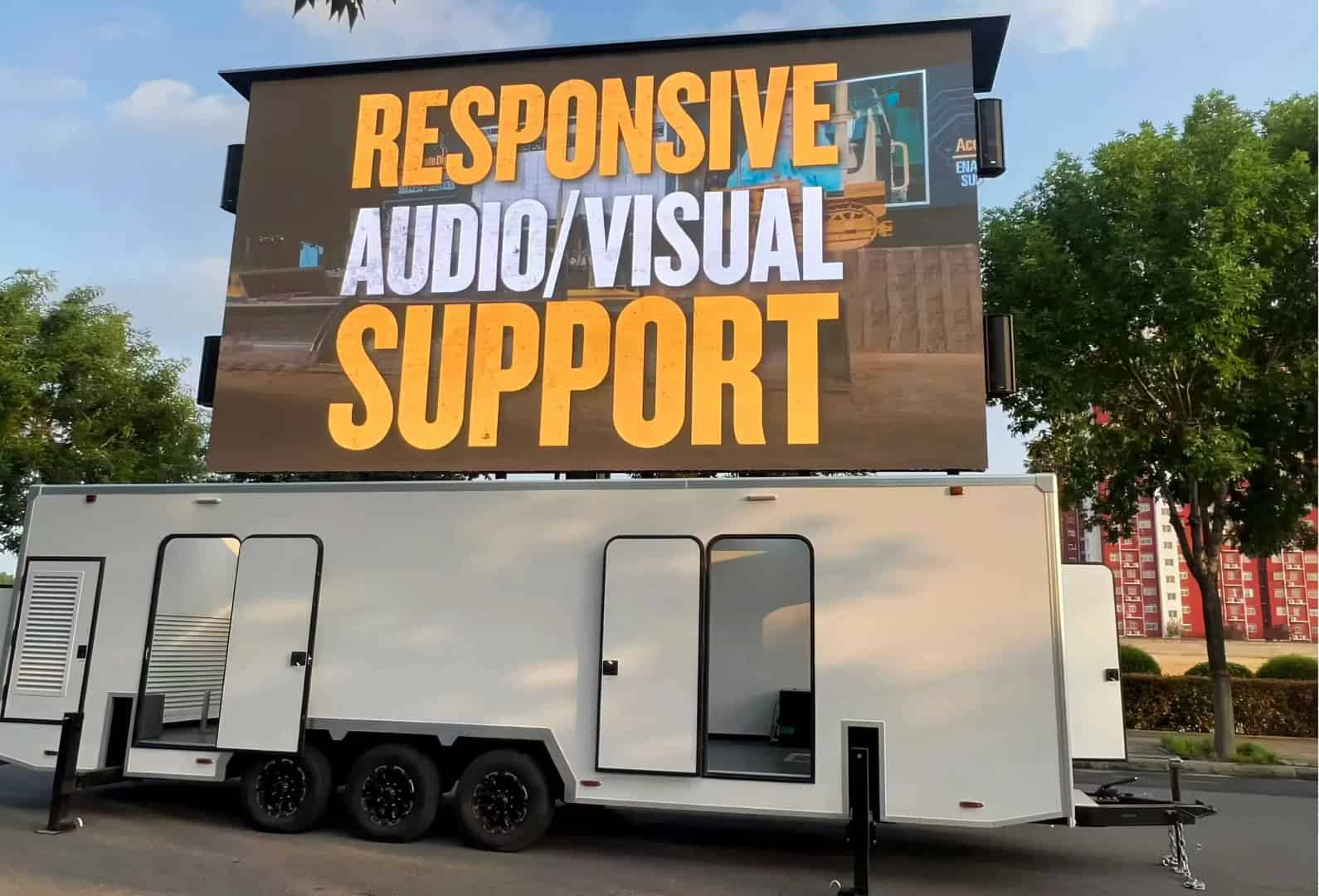

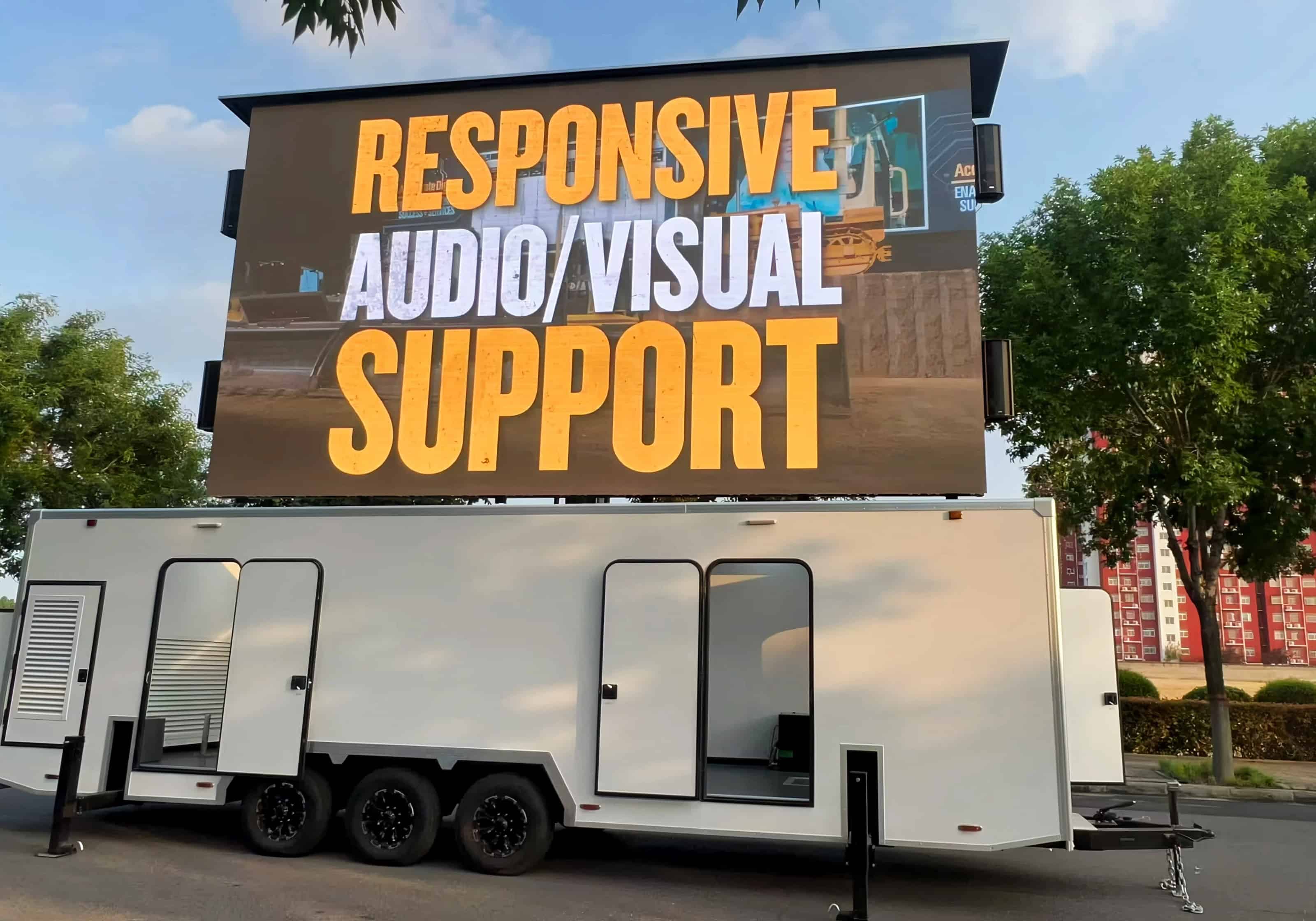

MB-28E Enclosed LED Trailer

MB-28E LED screen trailer has a large 23’x 13’ outdoor LED billboard which can be lifted up with hydraulic systems. This screen size is best for outdoor sport live streaming events. With convenient hydraulic control system, the mobile LED screen can be easily set up in 20 minutes. MB-28E LED trailer does not need professional technician to operate. The enclosed trailer design can also protect the screen well to last longer time to use.

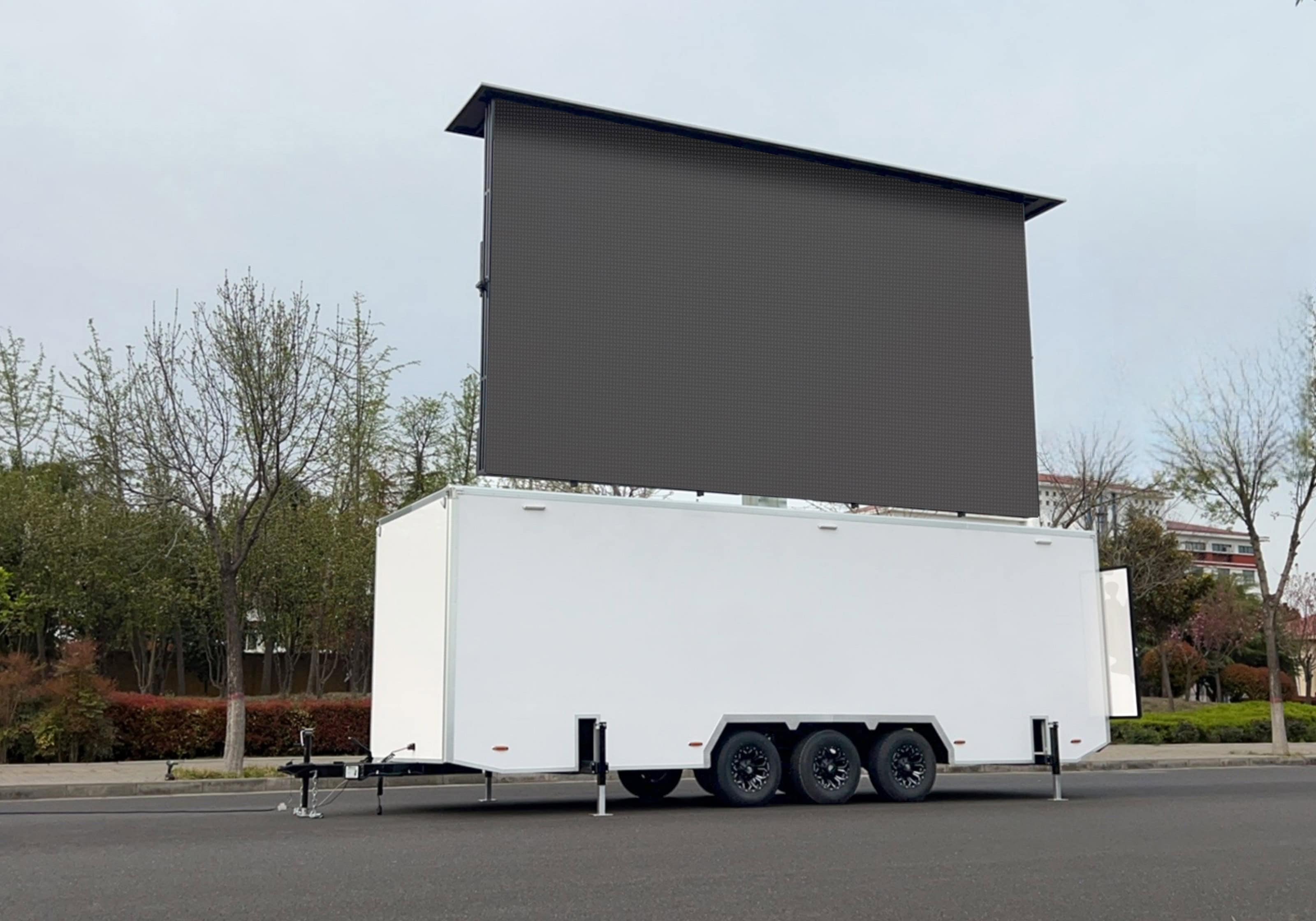

23ft by 13ft large outdoor LED screen

Benefit: 24ft screen lifting height increases the optimal field of view.

Enclosed trailer to protect the LED video wall

Benefit: Protect your screen when moving on road or store outdoor.

Fast set up and save your labor and time cost

Benefit: Only need one operator to set up this big screen.

Get A Quote +

Other benefits

High brightness outdoor LED screen
Redundancy backup for continuous operating
20 minutes to set up with one worker
Windproof design for better stability
Easy to work with media control system
Beautiful design for your high end events

Feature and Benefits

MB-28E is one of the largest mobile LED display trailers on the market. It is often used in large outdoor events and is welcomed by many video production companies and sports event companies. In order to meet the needs of high-end events, MOBO has made many excellent designs on the MB-28E LED trailer to ensure the convenience and stable operation of the MB-28E trailer in events. We bring better visual effects to customers at a lower cost to set up the screen.

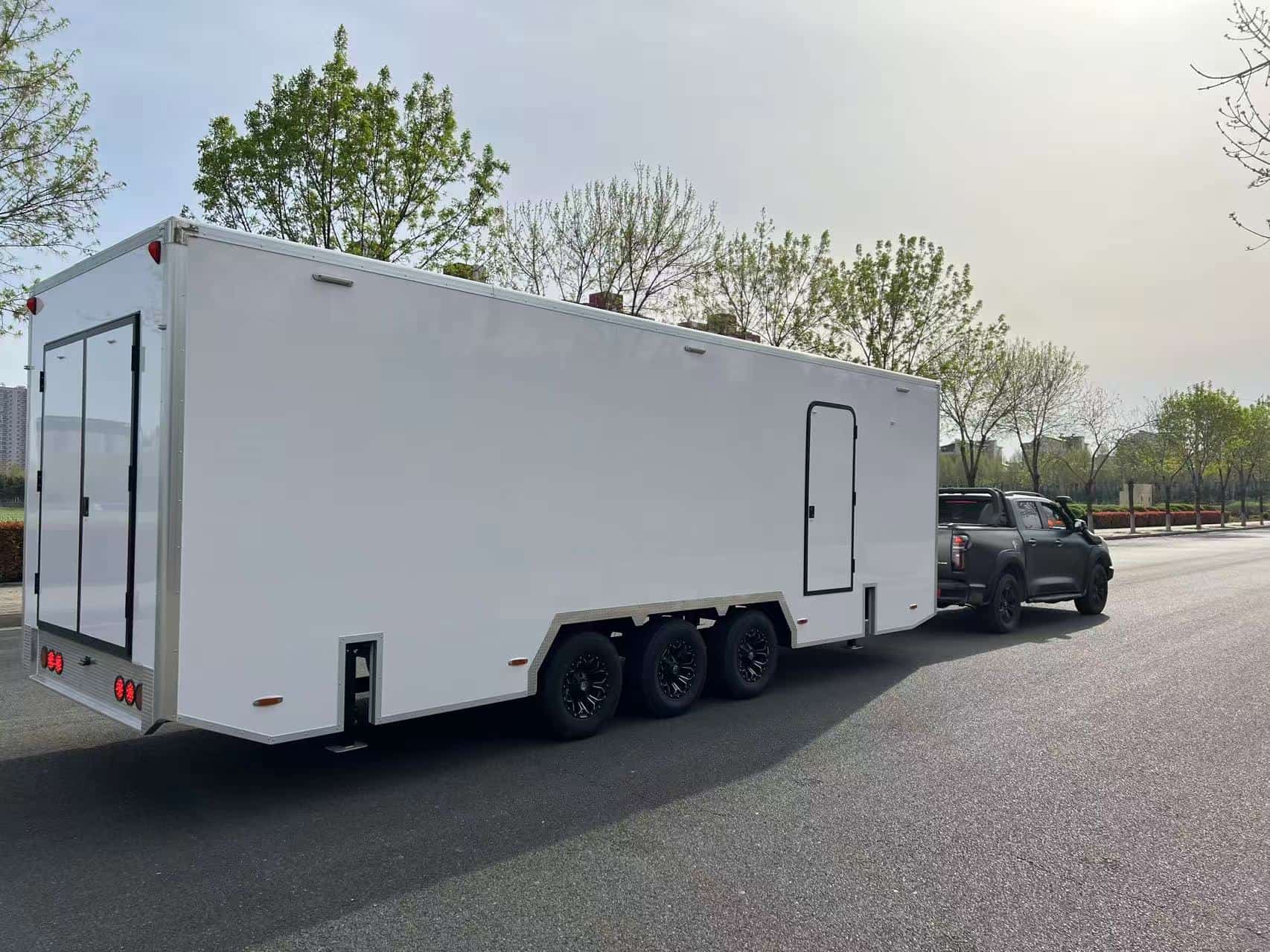

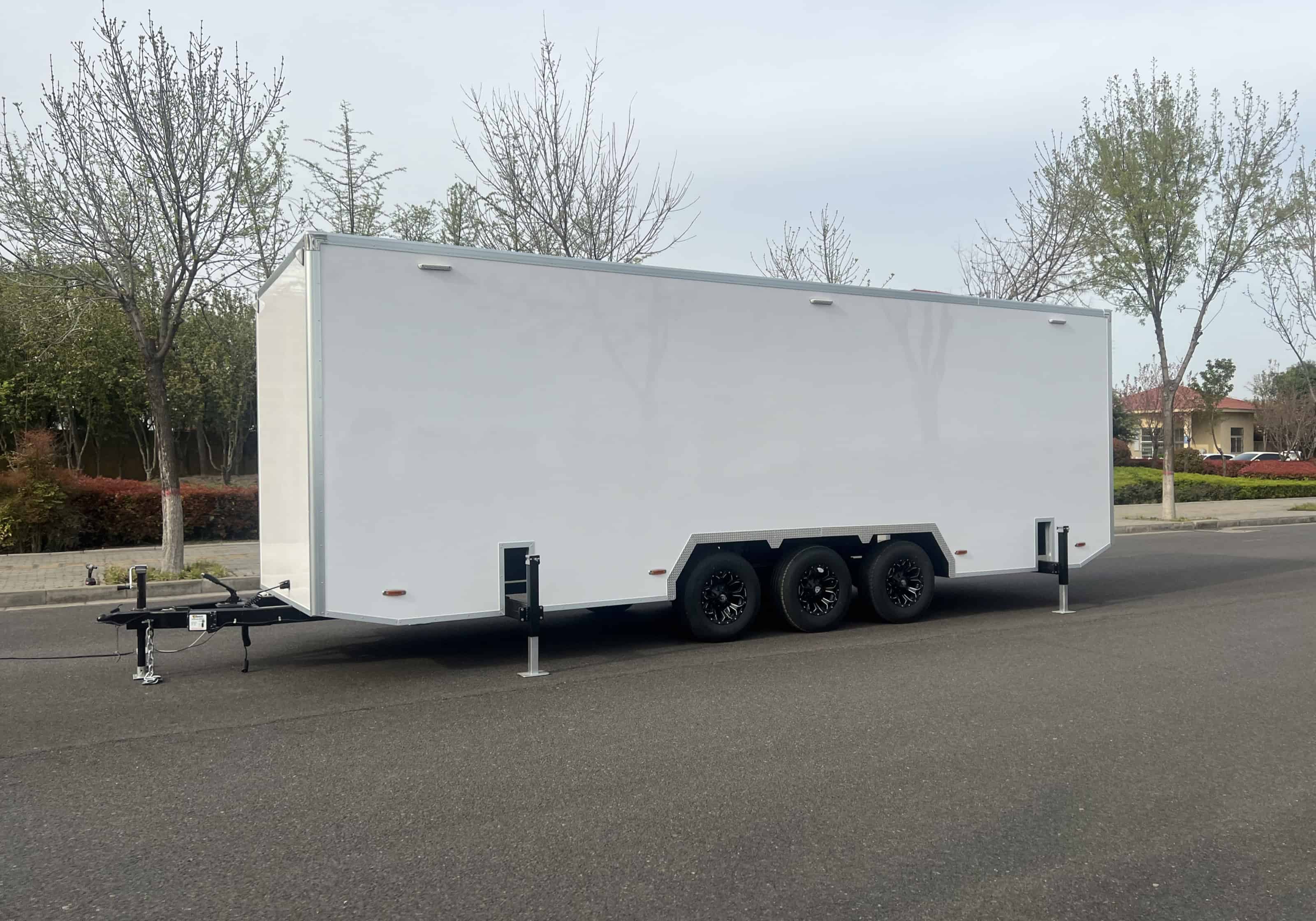

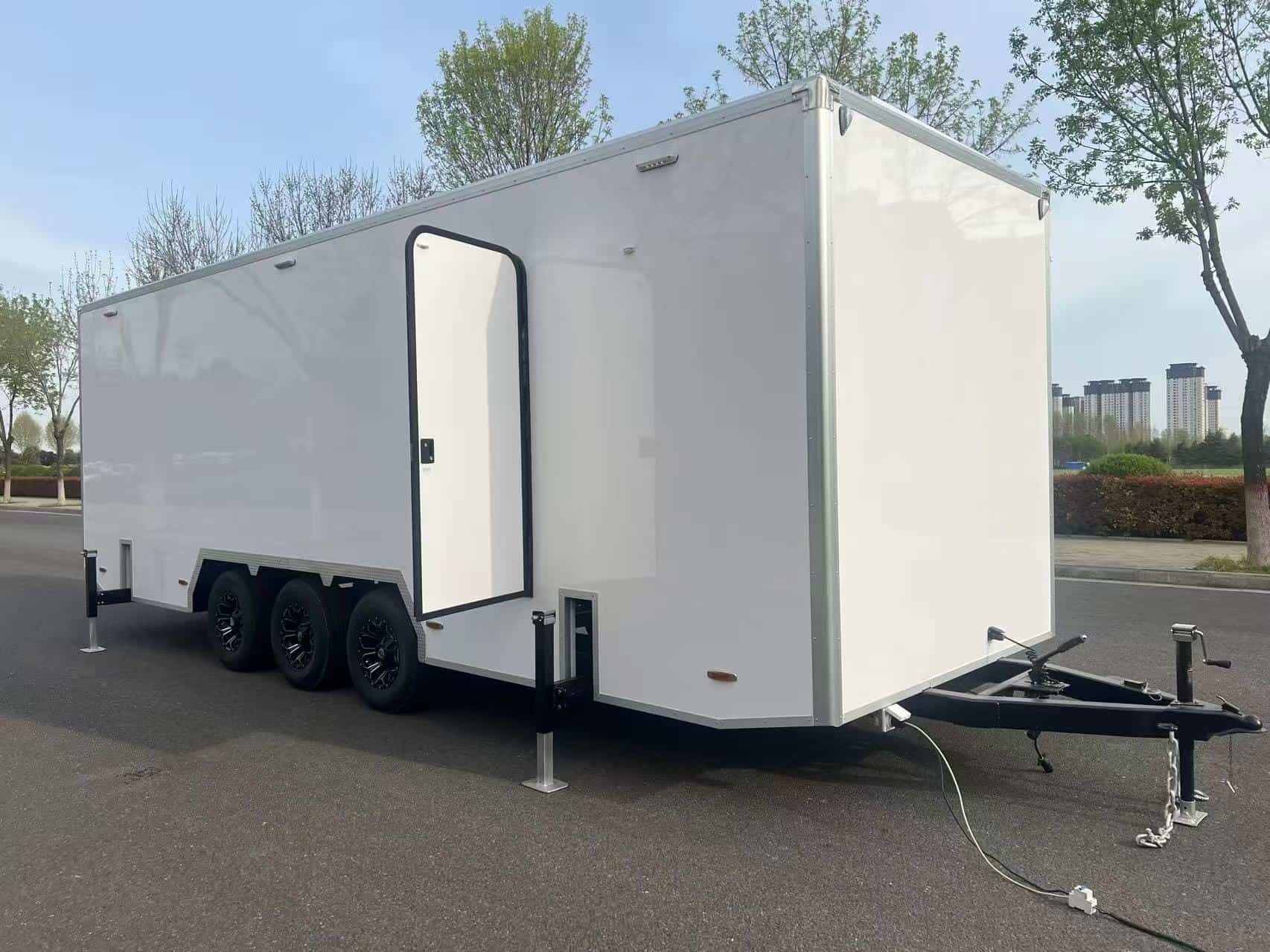

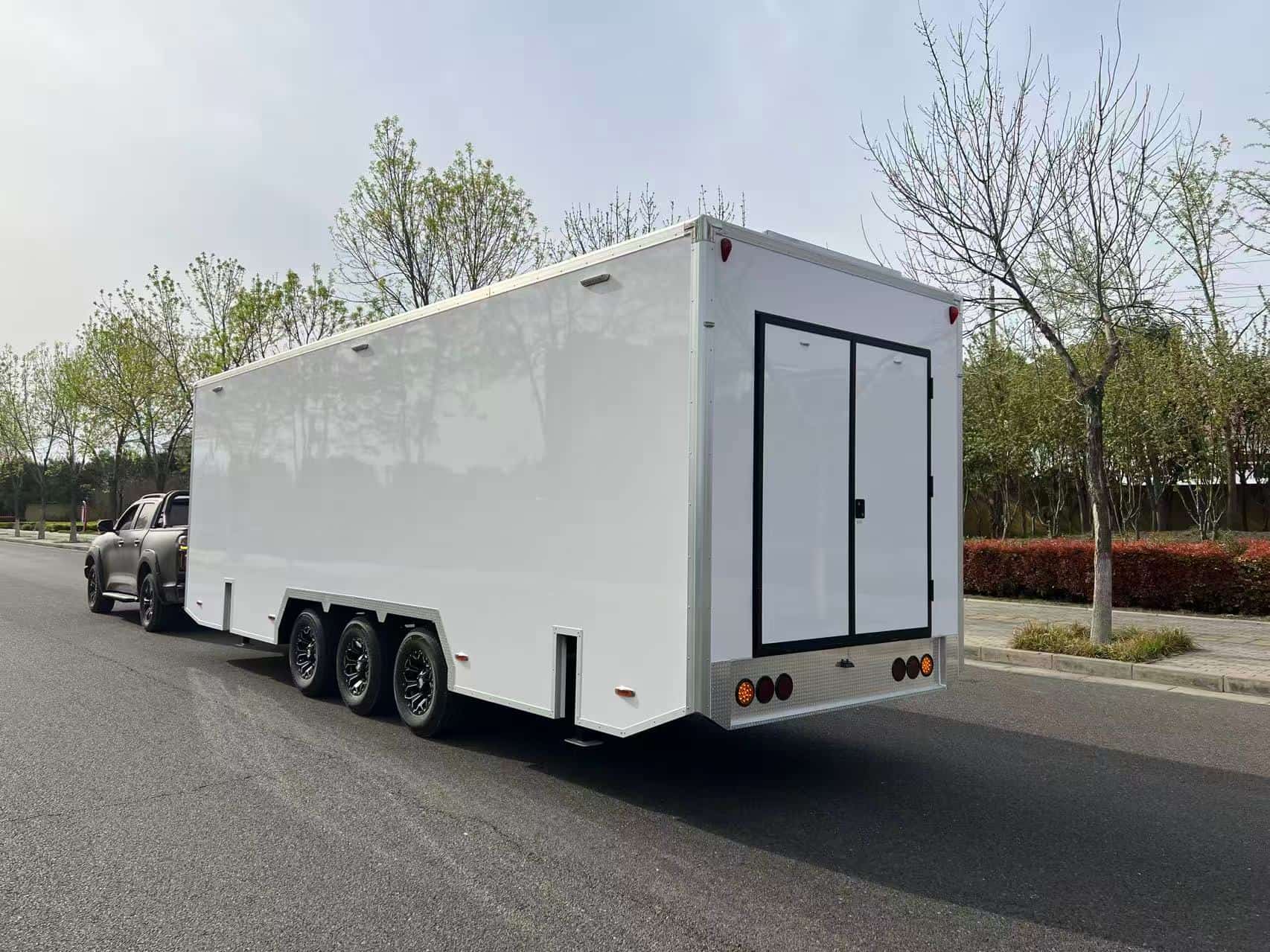

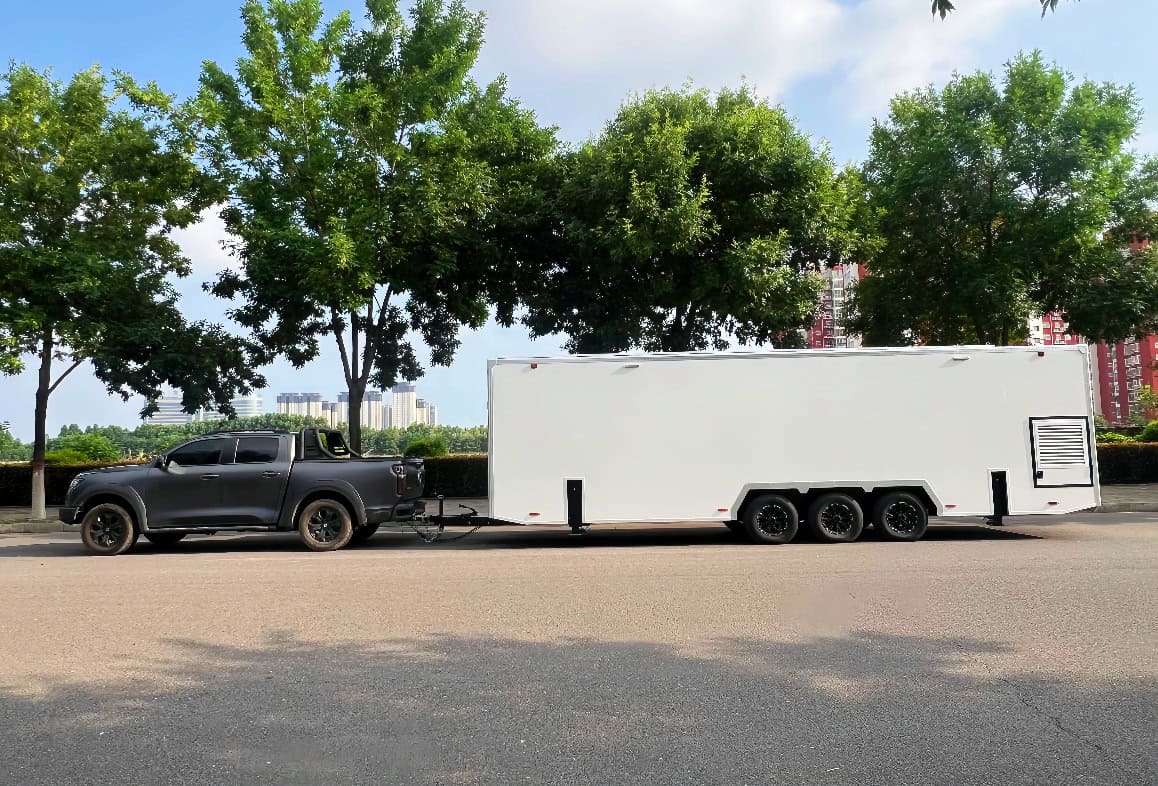

Enclosed Trailer to Protect Screen Well

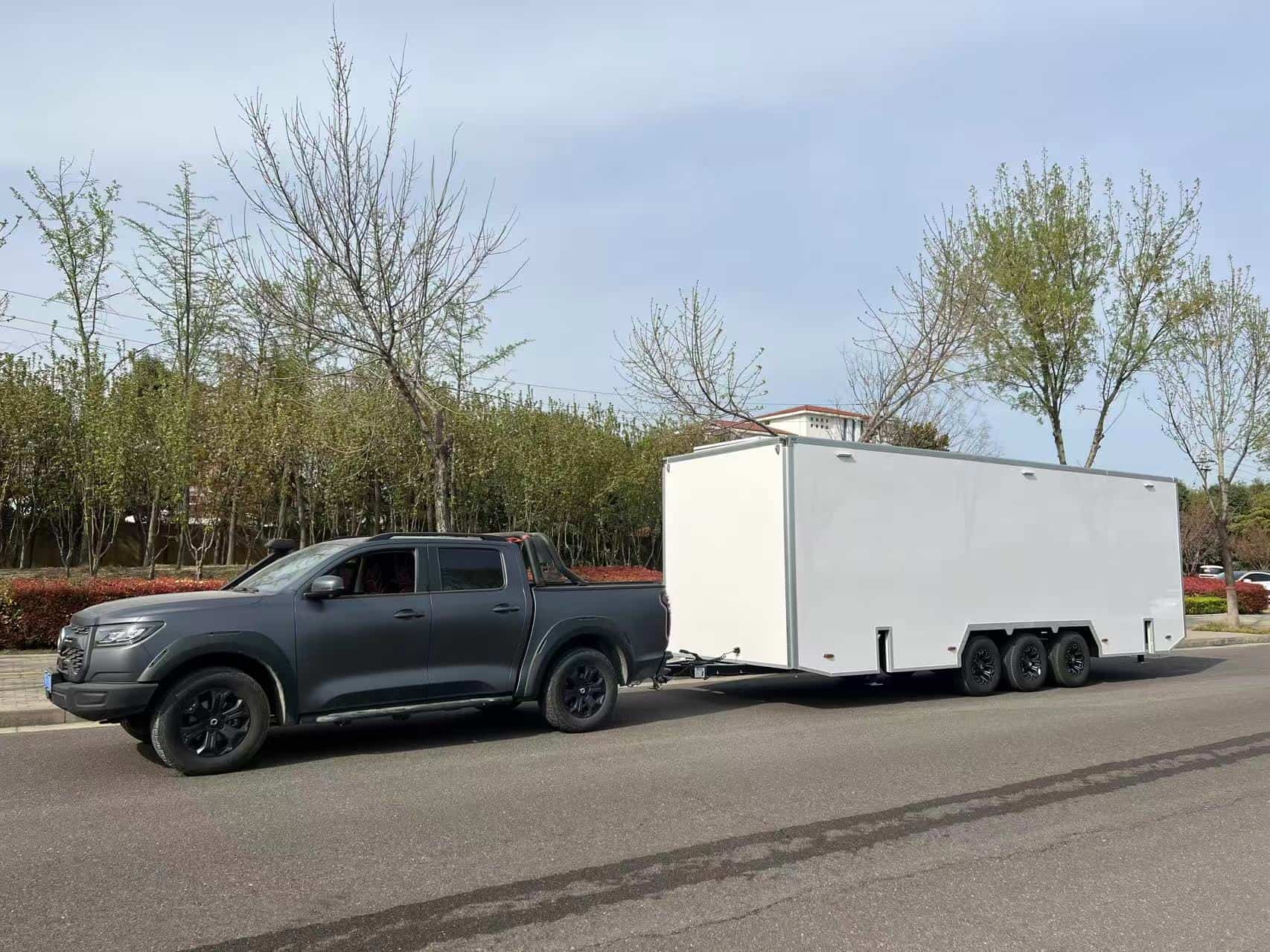

The enclosed LED trailer uses the RV exterior panel to build the structure. It has a beautiful appearance and also provides the best protection to the screen, allowing you to ensure the safety of the screen during long-distance transportation.

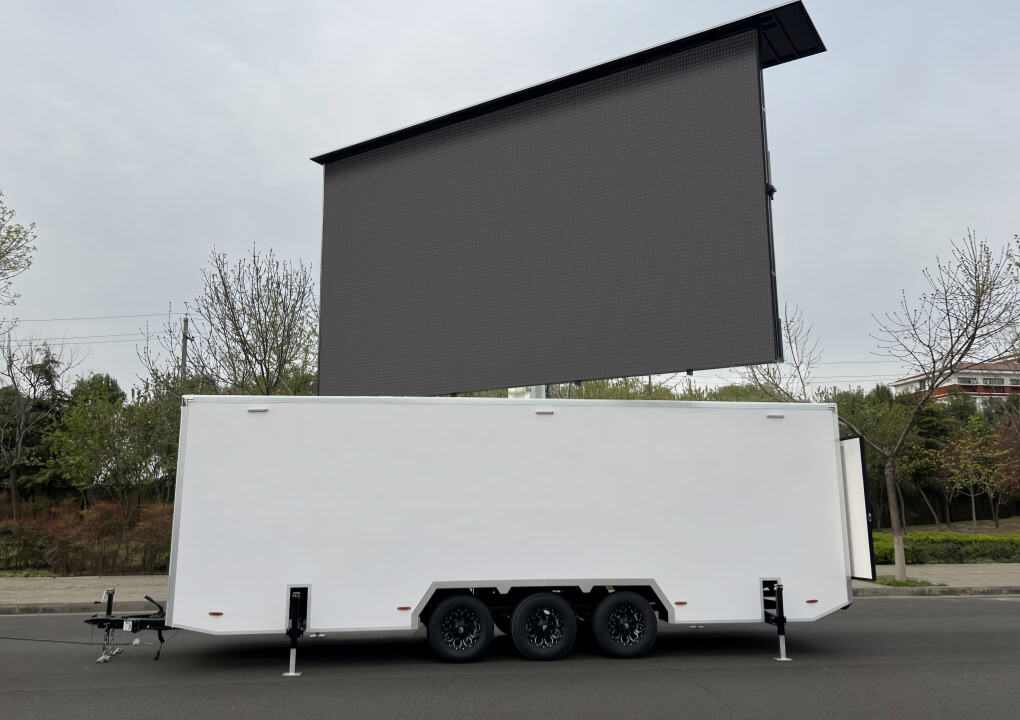

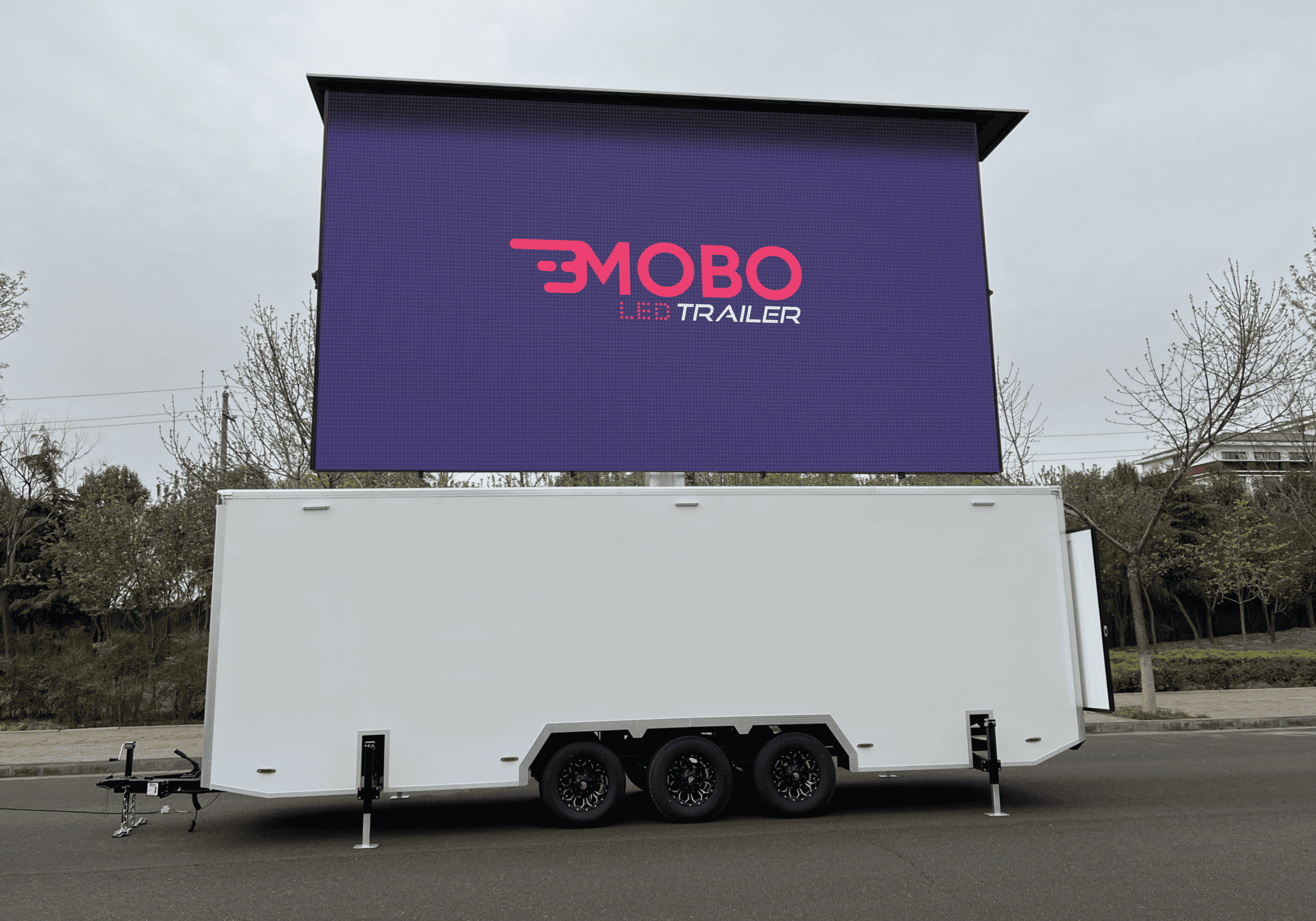

Fast Setting Up Lifting & Rotating LED Screen

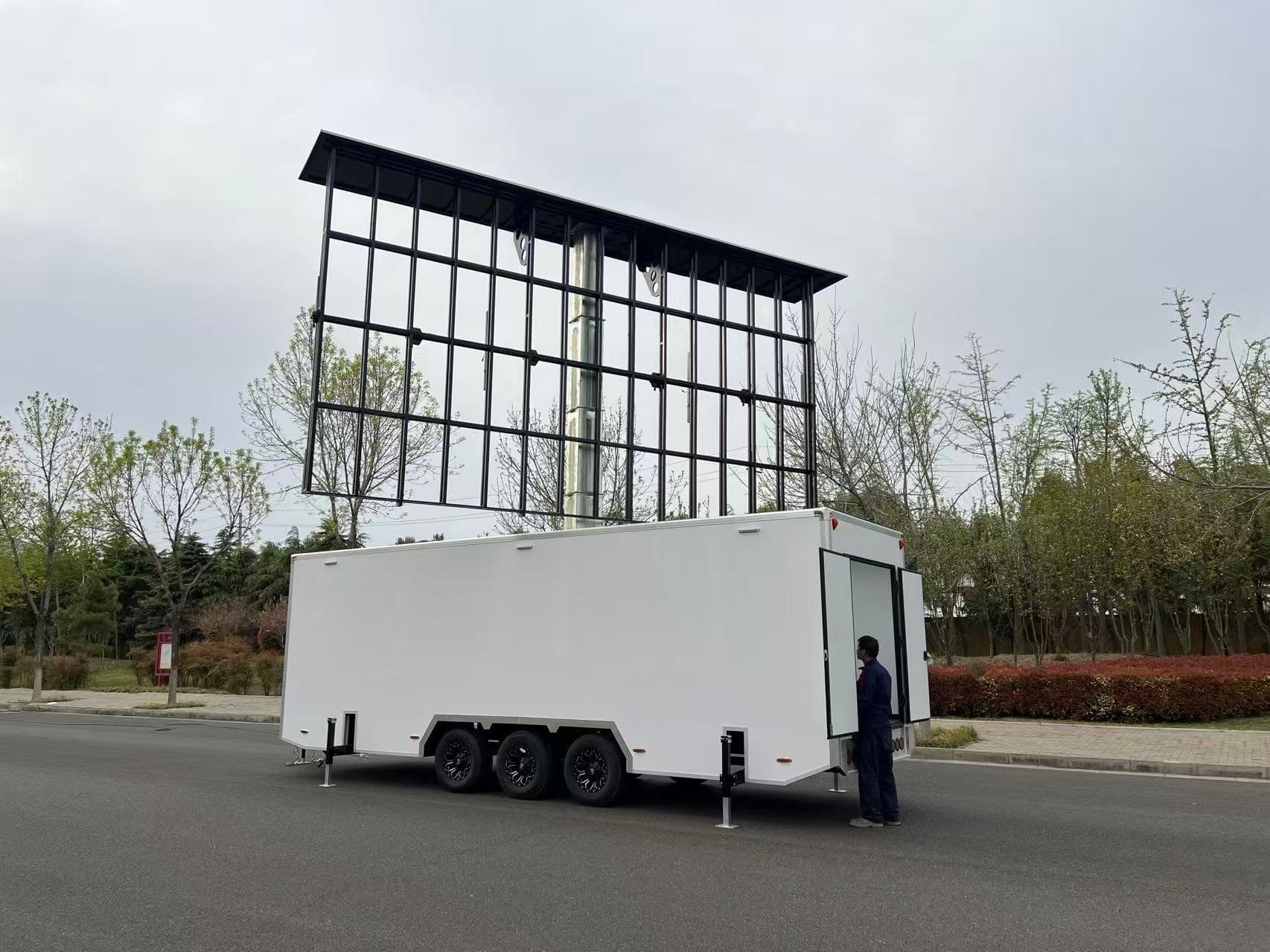

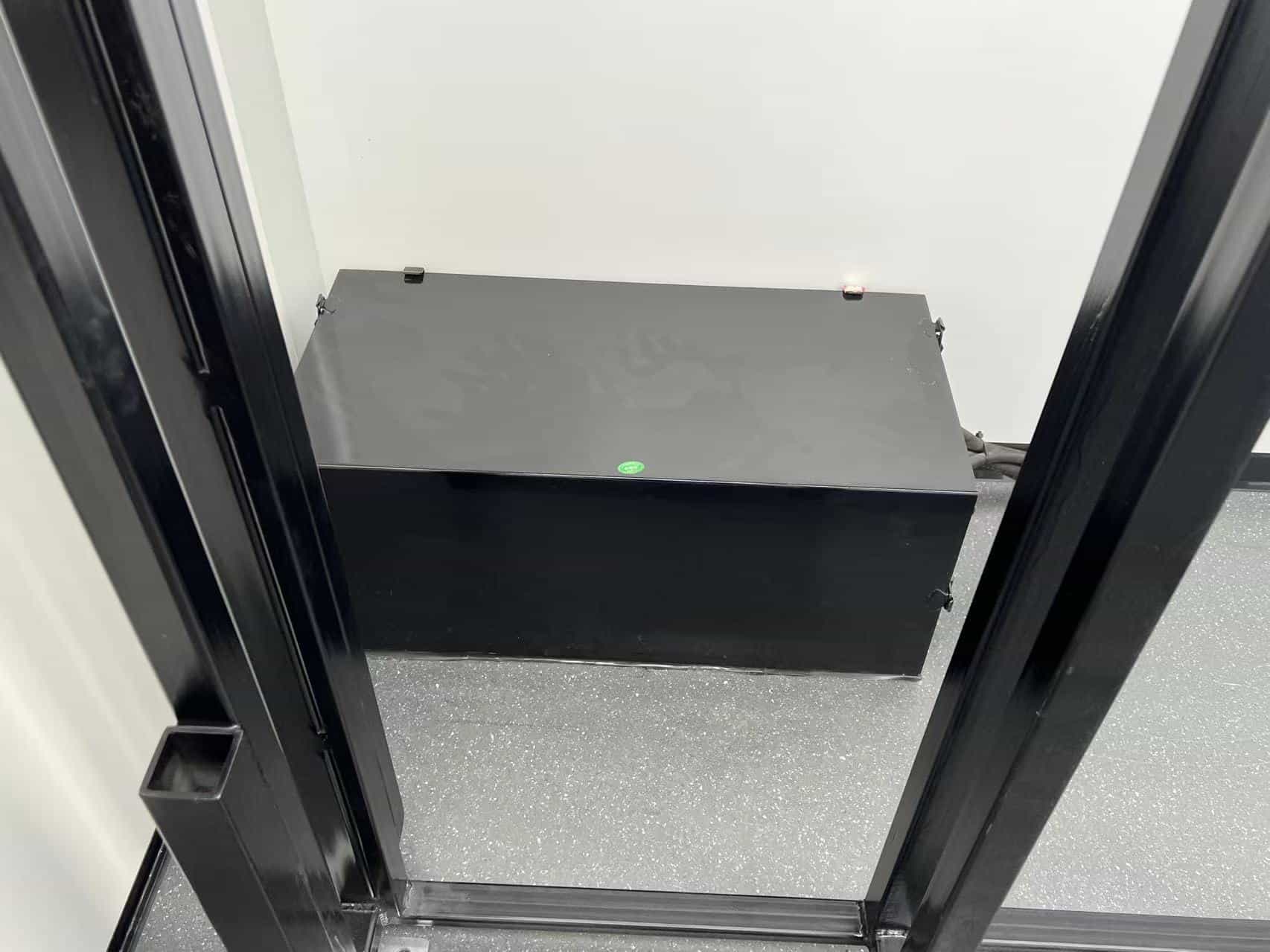

MB-28E LED screen trailer can raise the LED video wall at a height of 24ft from screen top to the ground. You can also rotate the screen easily at 360 degrees with remote controller. Our hydraulic system moves smoothly and the system is highly stable to secure the mechanical structure.
Small Pixel Pitch With Clear Video On Screen

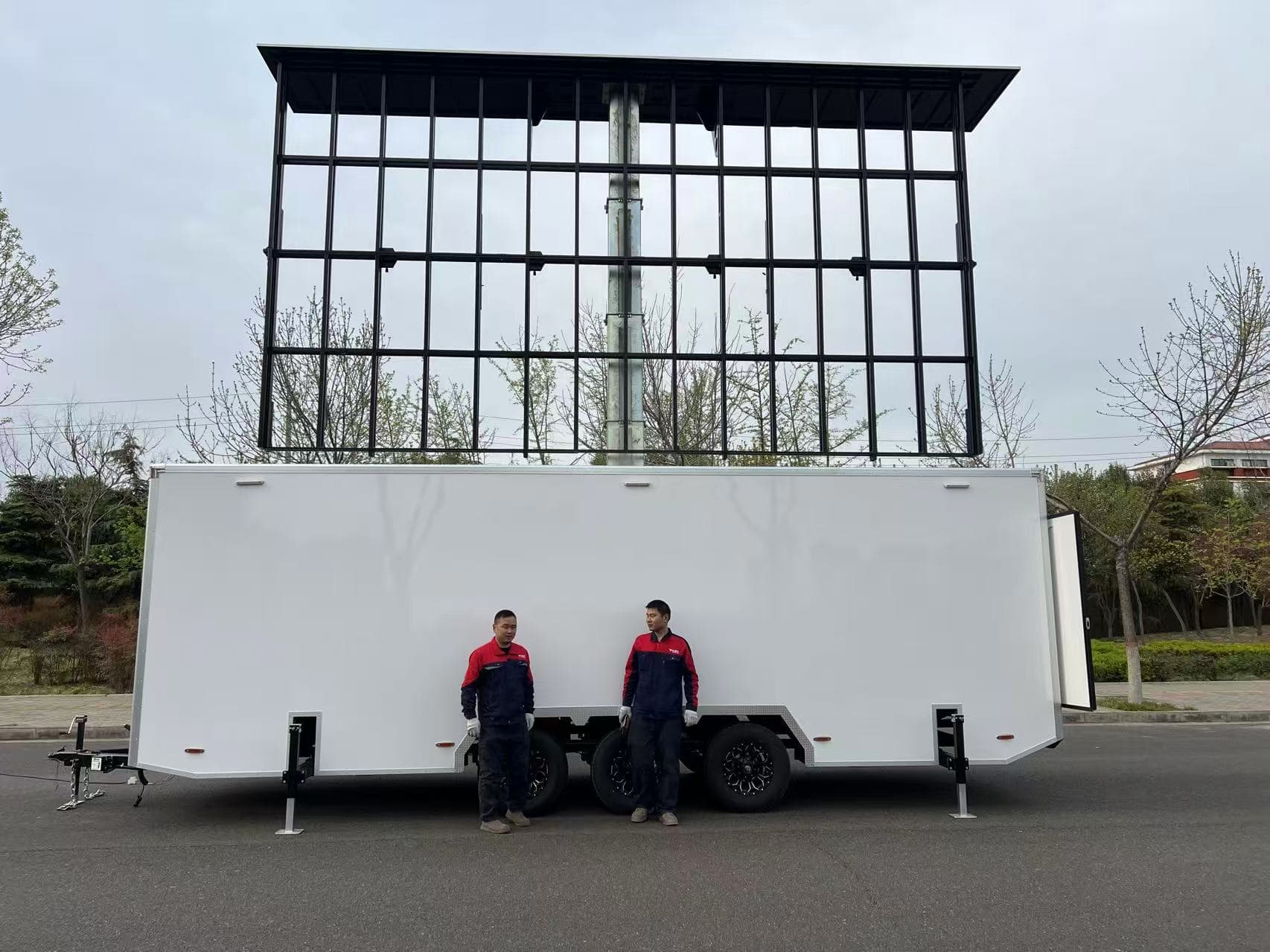

MOBO can provide different pixel pitches and bright outdoor LED screens on MB-28E trailer. You can also install your own LED screen panels on to our customized frames. 2.9mm, 3.9mm, 4.8mm can work well for your events to create stunning visual videos and images.

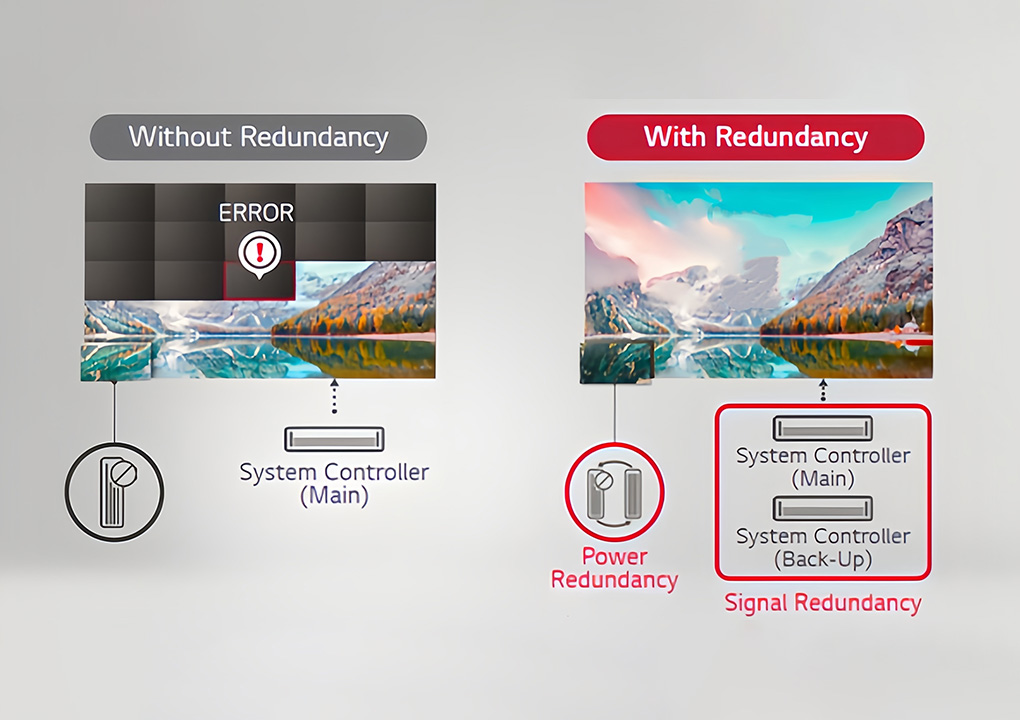

Signal & Power Redundancy in LED Displays

We build essential receiving cards and power supplies for MB-28E outdoor trailer mounted LED displays, ensuring the screen continue working even if one power or signal unit fails. This ensures reliability in critical applications of our MB-28E LED screen trailers such as live sports or musical events.
Less Labor Work And Less Cost

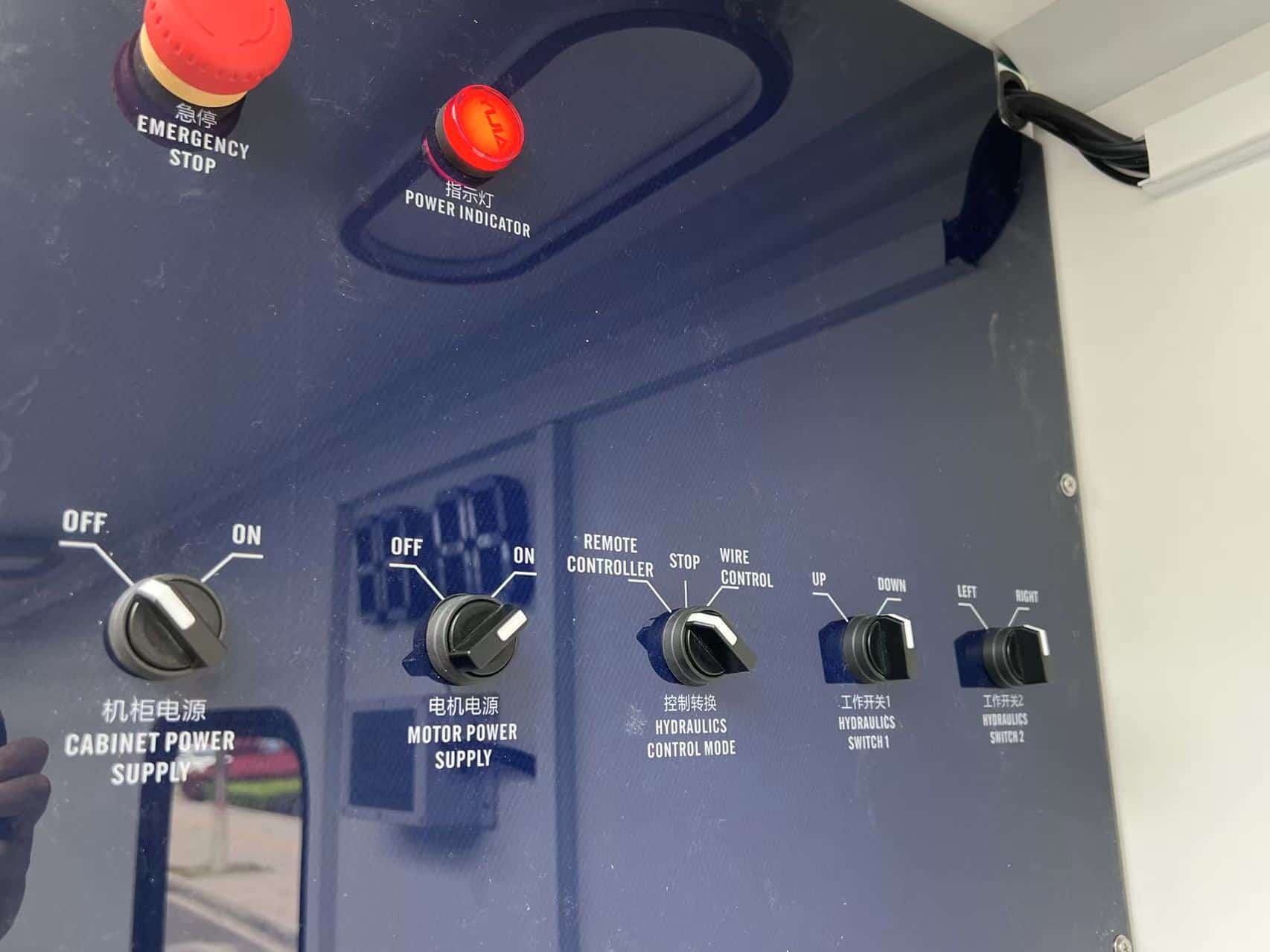

MB-28E trailer can be easily operated by one worker. You do not need to set up the truss and hang the screen panels any more. A few buttons can control the screen to lift and rotate in 10 minutes. All cables and signals between panels are well connected. You only need to plug and turn on the software to play your videos.
NovaStar All-in-one Video Processor

NovaStar VX400 video processor provides an all-in-one solution for driving MB-28E 23’ x 13’ large LED screen in your live streaming events. With high stability, durability and outstanding performance, VX400 video processor becomes a high-performing and dependable LED video wall player for continuous 24/7 use, particularly when consistent functioning and reliability are essential.
Windproof Structure & Wind Alarm System

MB-28E LED trailer has strong and durable support system for higher safety standard. Those outriggers and hydraulic mast are built with high grade steel and offer strong stability for the whole trailer. With wind alarm design, you can observe the wind speed at real time and make the trailer safe in the events at extreme weathers.

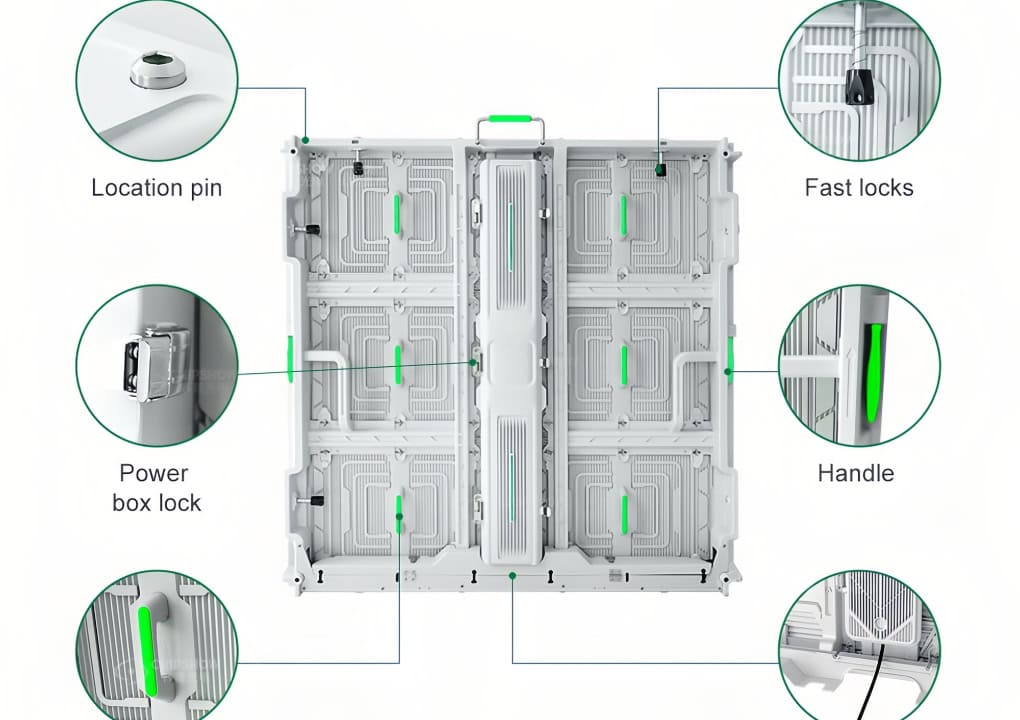

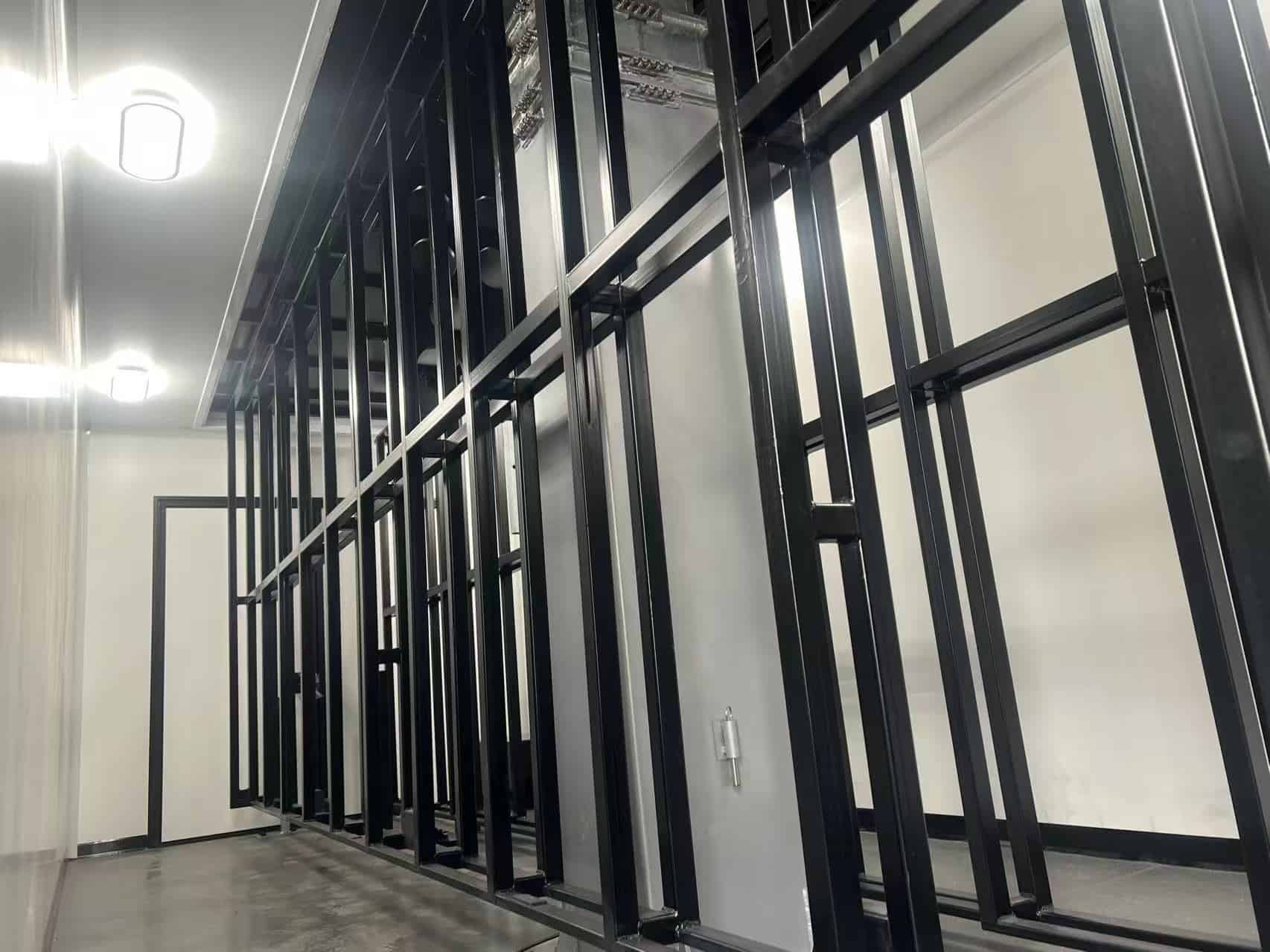

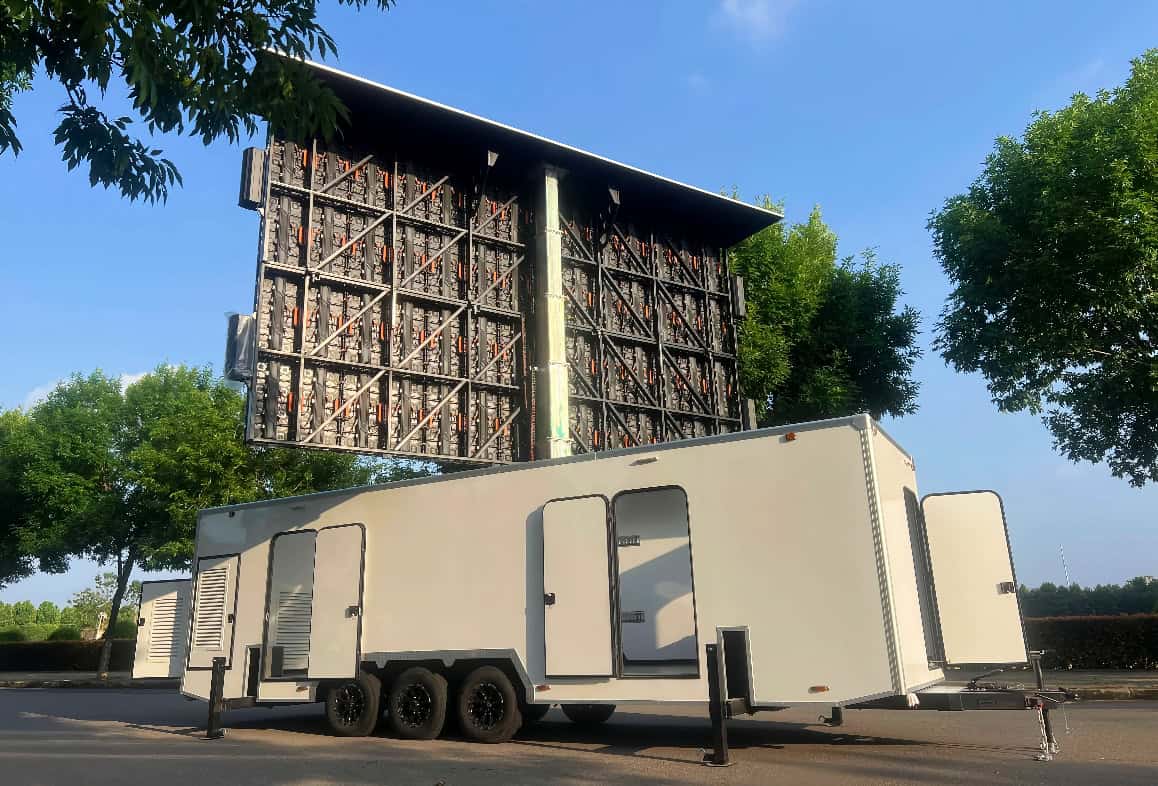

Custom Screen Cabinet Structure For Outdoor Protection

The trailer outdoor LED screen has front and rear maintenance cabinet and durable aluminum cabinet structure. With hidden cables, the whole screen cabinet looks clean and simple. The IP66 LED modules also have outstanding waterproof functions and good heat dissipation. Those features make MB-28E better used in outdoor applications with long-lasting service life.

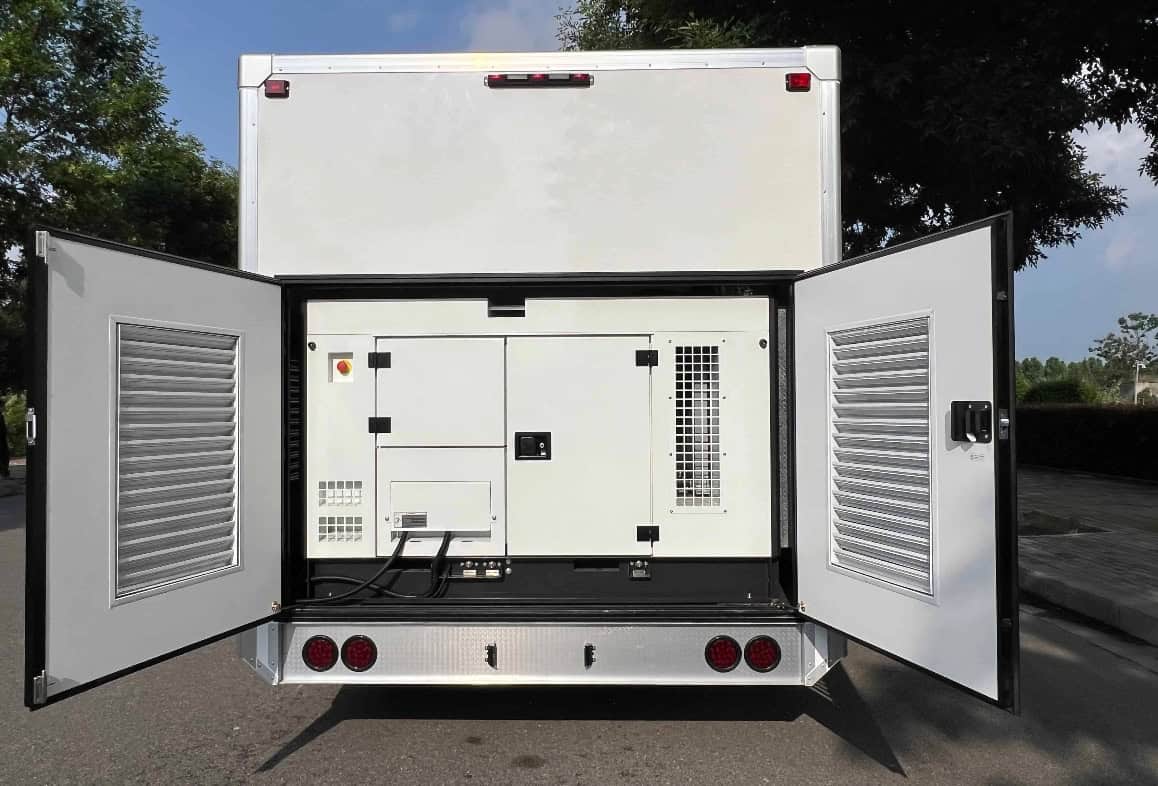

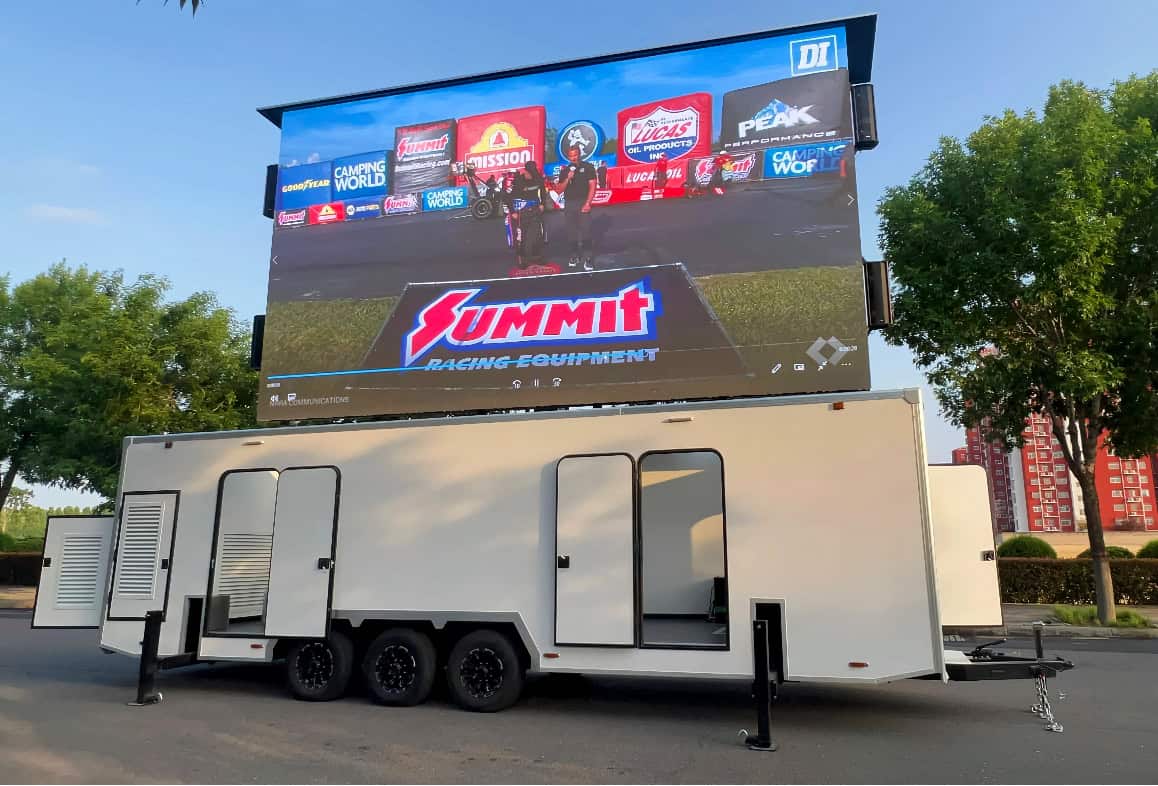

Continuous On-board Generator Power

MOBO provide 24KW super silent diesel generator to offer electricity supply. Our customized on-board generator has low noise at full loading rate. It can create a much quiet environment for the LED video wall and audio system. The high quality engine inside the generator set can also make sure 24h continuous power supply even in clod or hot weathers.

View All Feature

Specifications

Part I Trailer Chassis

Trailer Type	Enclosed
Operating Dimension (with drawbar)	30.6’x 7.87’ x 24.3’
Gross Vehicle Weight Rating(GVWR)	13,000 LBS

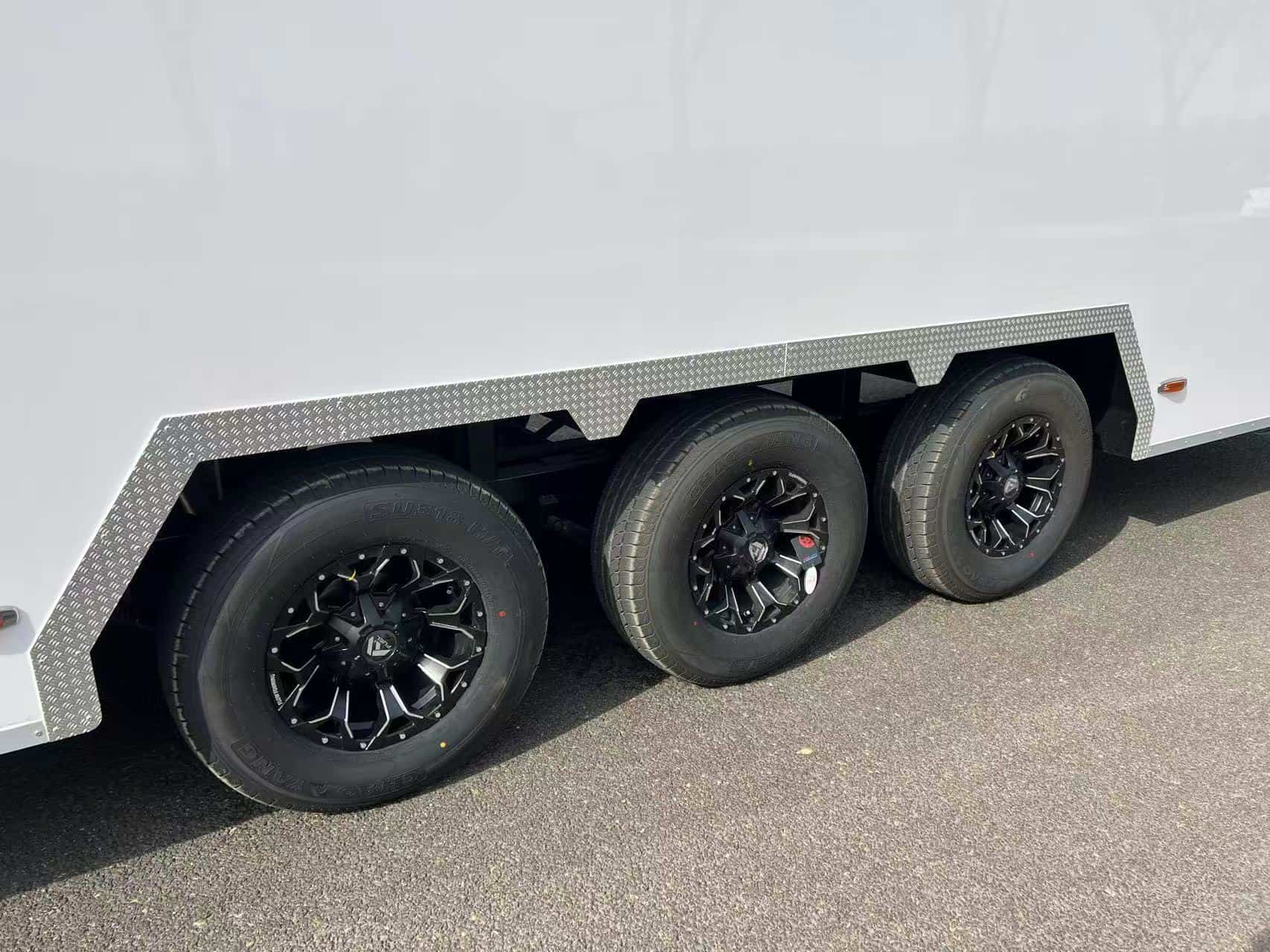

Axles	Tandem Axle
Tires	LT265/70R16
Rim	8’’ x 16’’, Aluminum Alloy

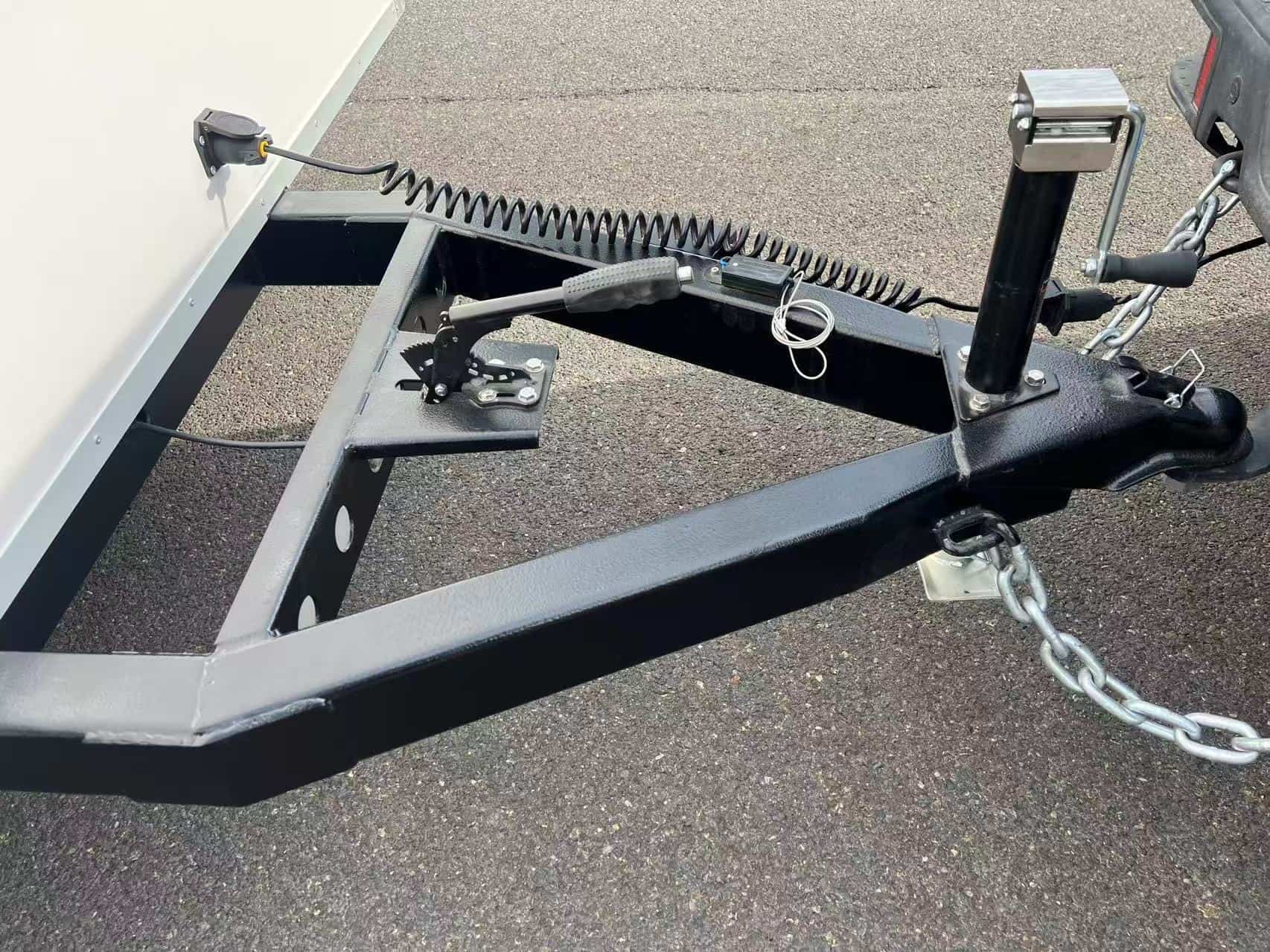

Coupler	2-5/16’’ Ball Hitch
Color	Grey, Black, White or Custom color
Wind Rating	45 MPH

Part III Hydraulic Mechanical Parameter

Screen Lifting Height	24.26ft (Screen top to ground)
Screen Rotating Degree	360 continuous
Control Mode	Remote controller + Wire control
Nominal Pressure	11KPa
Oil Type	Aviation hydraulic fluid
Overheat Protection	✓

Part V Power System Parameter

Max. Screen Power Consumption	24,000 Watts
Avg. Screen Power Consumption	11,000 Watts
Other Equipment Power Consumption (Speaker, amplifier, Video processor etc)	2,100 Watts
Input Voltage	240V
Plug Type	30A breaker x 5 sets

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	23'W x 13'H / 7000mmx4000mm
Pixel Pitch	2.97		3.91		4.81
Screen Resolution	2352p x 1344p		1792p x 1024p		1456p x 832p
Standard Brightness(Nits)	4000-4500	5000-5500		5000-5500
Optional Highest Brightness (Nits)	≤5500	≤7000		≤7000
Max. Refreshing Rate(Hz)	≥3840Hz
Input Voltage/Frequency	110V～240V, 50~60Hz
Protection Grade	IP65(Fully waterproof)
Control System	NovaStar

Part IV Media Control System

Speakers(Watts)	120Watts x 4 sets
Amplifier	660watts x 1 set
Video Processor	NovaStar VX400
Video Input	DPx1, HDMIx1, VGAx2, DVIx1, CVBSx2, SDIx1
Video Output	DVI Loop x1, DVI x1, VGA x1, SDI Loop x1
Audio Input	1/8inch(3.5mm)

Part VI Optional Equipment List

Power Generator

Super silent inverter generator

Trailer Wrap

Customized

Named LED Screen brand

✓

Warranty Extending

Extended from 3 years to 5 years
