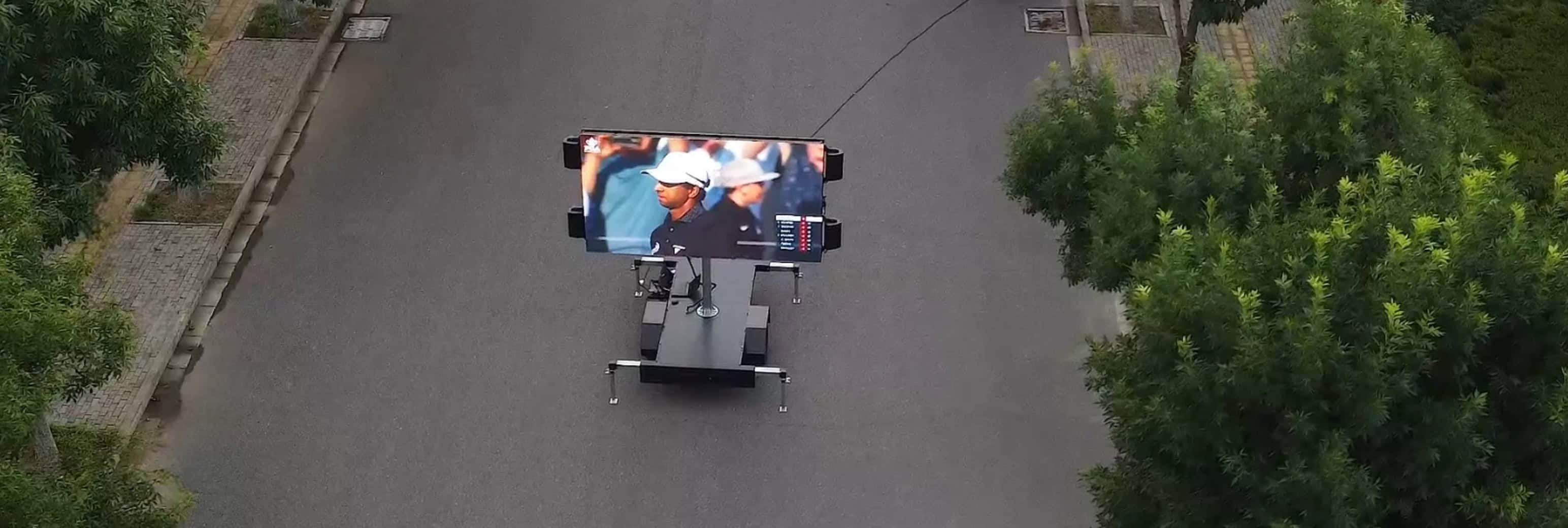

MB-7 Lite LED Trailer

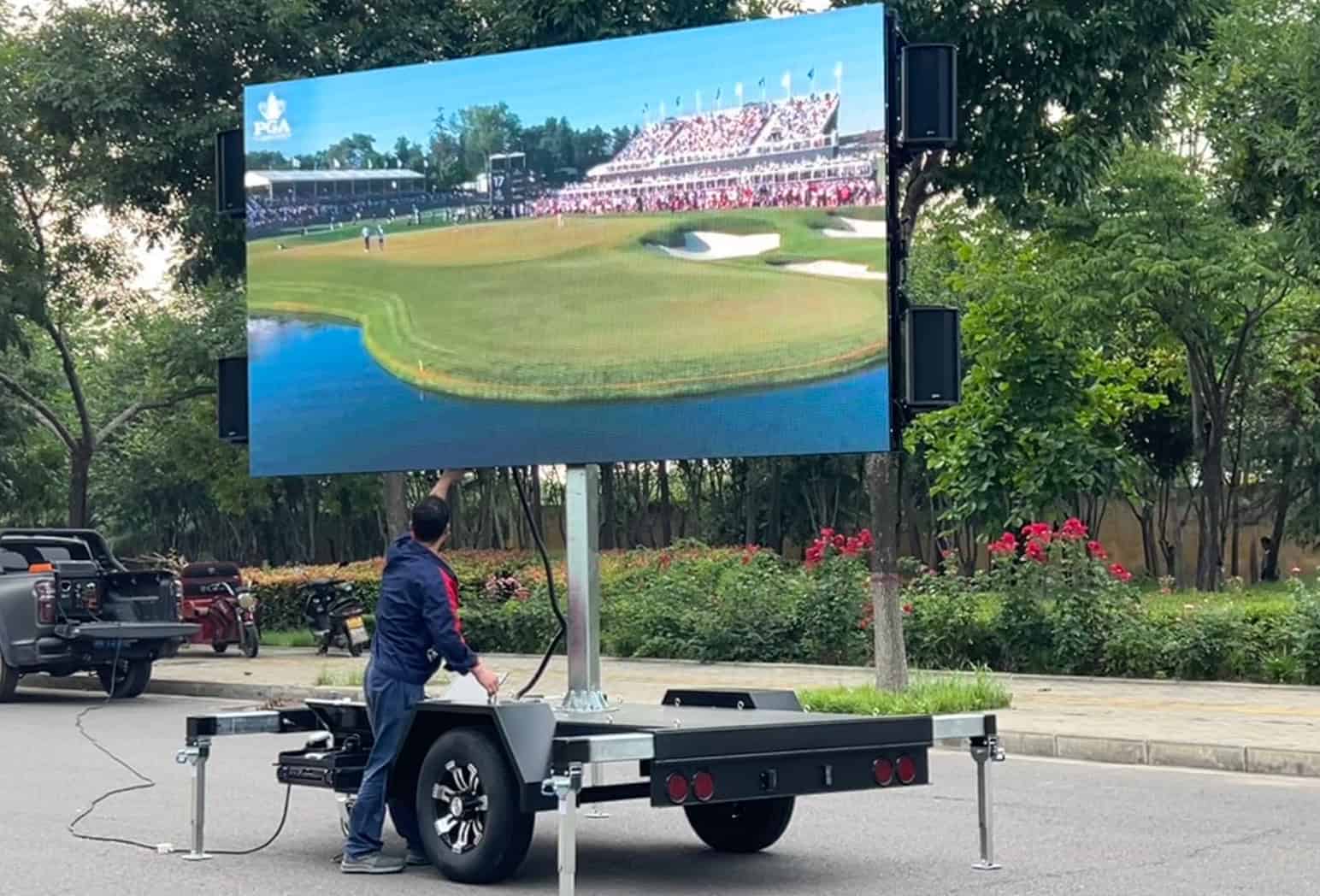

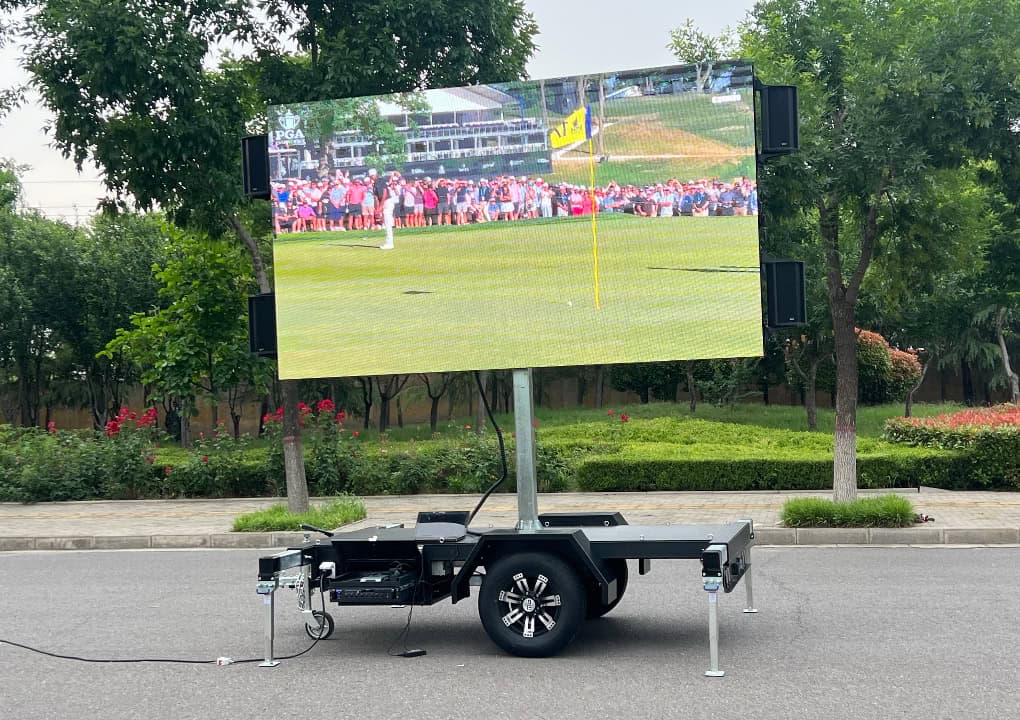

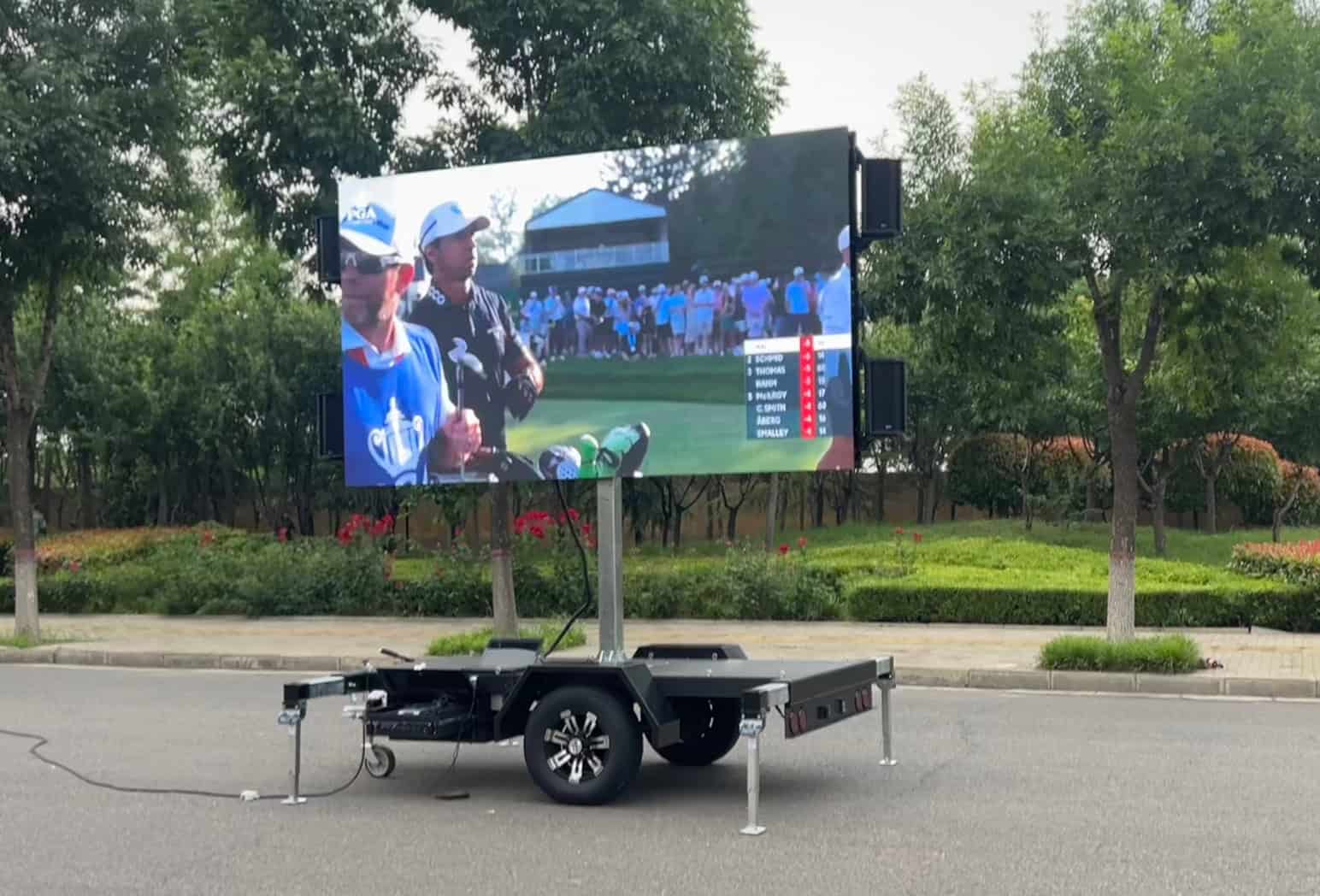

MB-7 Lite LED Trailer is a tailored portable LED screen for outdoor small and medium events. With an 11.48ft x 6.56ft high-resolution LED screen, it is perfect to display video and photo advertising or used for sports live streaming. The MB-7 Lite LED screen trailer also has an electric folding and lifting system to make the LED video wall set up easily. It is one of the most popular LED screen trailer models for start-up ads businesses and event companies who are seeking an affordable, portable, and reliable outdoor mobile video wall.

11.48ft x 6.56ft outdoor high-resolution LED screen

Benefit: Delivers crisp, vibrant and lively visuals close to 16:9 screen ratio.

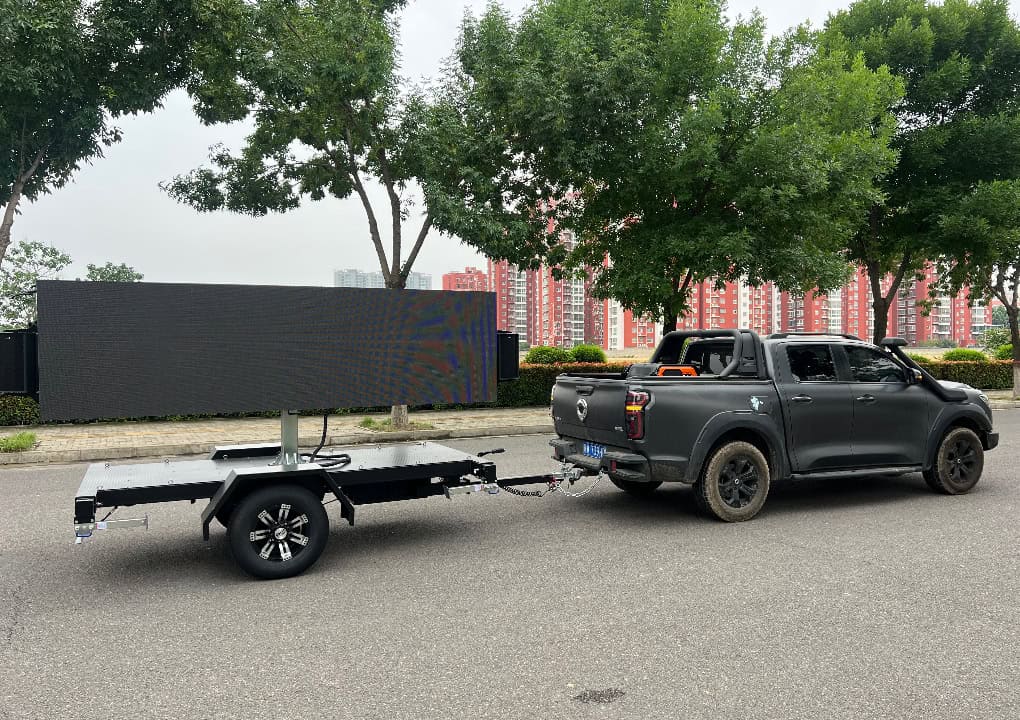

Sleek, compact, and road-legal trailer design

Benefit: Ensures easy towing, flexible parking, cost-effective and quick setup.

Small investment & Larger screen size

Benefit: Perfect for medium-to-large audiences and detailed content display.

Get A Quote +

Other benefits

High brightness outdoor LED display with 2.9mm/3.91mm fine pixel pitch
Popular model for advertising and video events
Budget-friendly price with durable chassis design
Drive and play even towed on the street

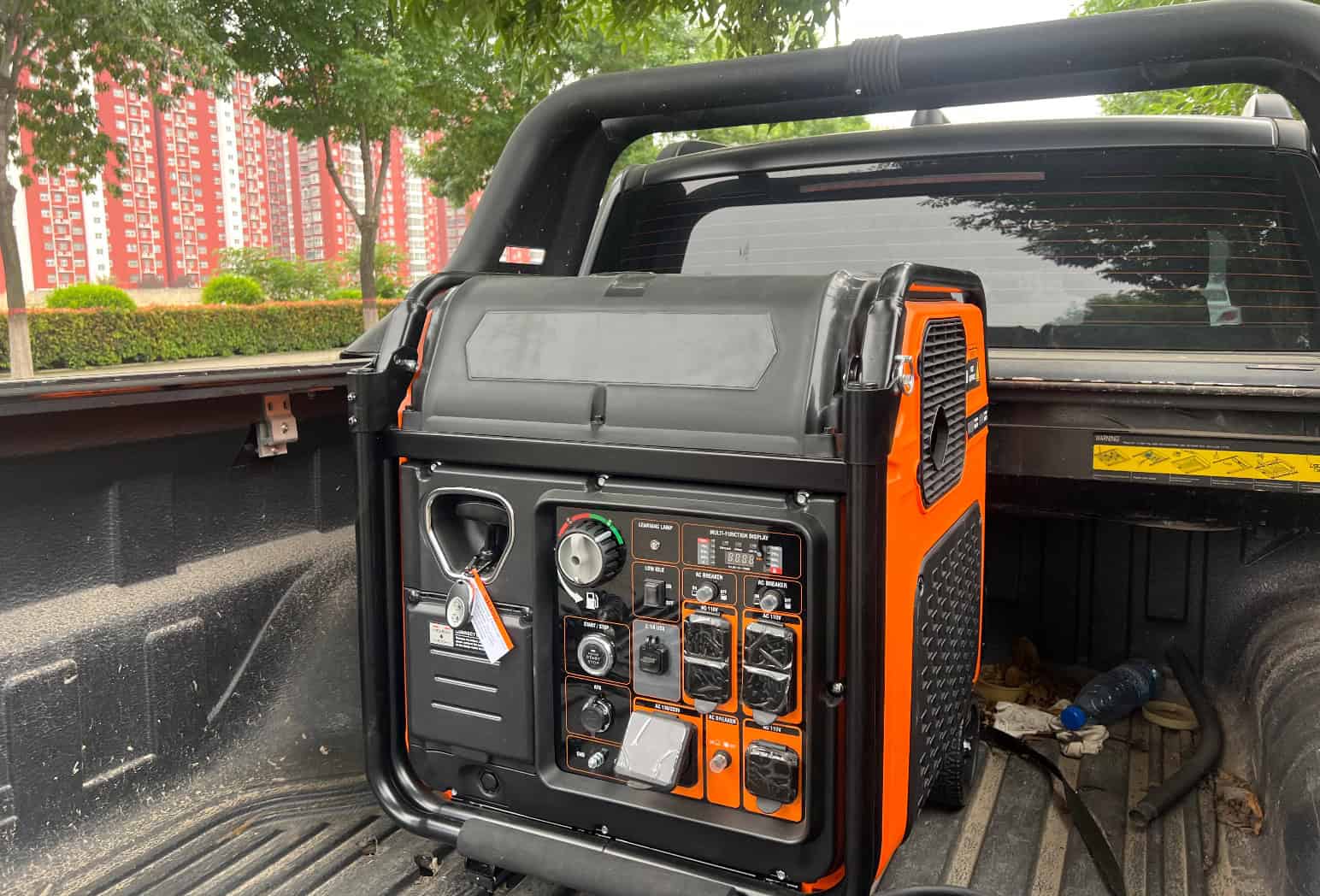

Silent gasoline generator or battery power supply
Compact and lightweight for easy transport
Built-in speakers, amplifier, and LED control system

Feature and Benefits

The MB-7 Lite LED screen trailer integrates professional-grade display technology and user-centric design, making it a standout choice for portable advertising and event visualization. Its high-resolution LED screen ensures stunning image quality, while the electric lifting/folding system and road-legal chassis enable flexible deployment across diverse scenarios—from concerts, sports events, and graduations to retail promotions, political campaigns, and charity activities.

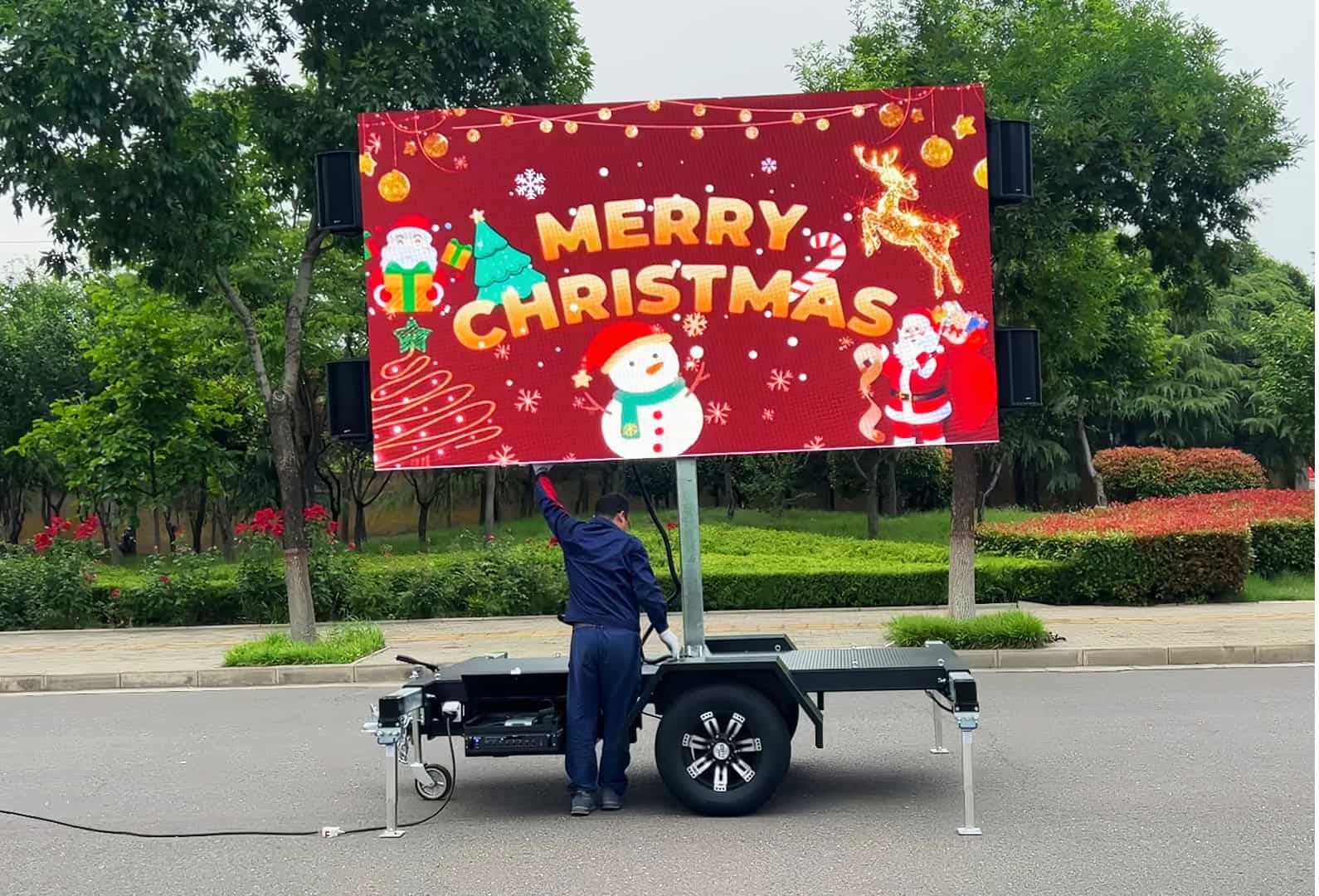

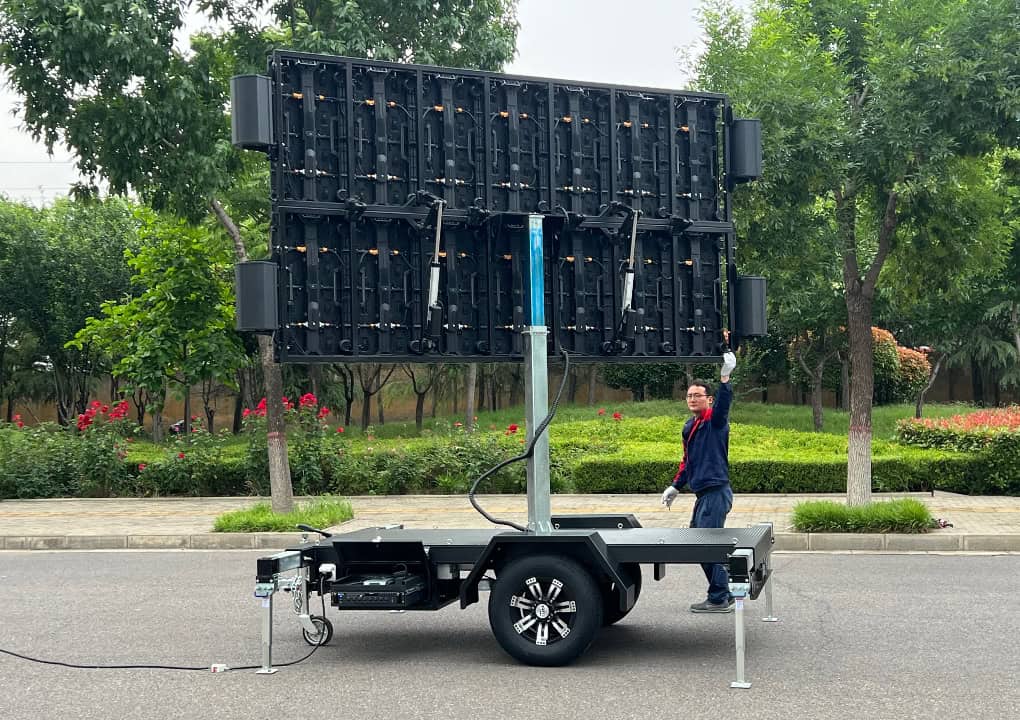

Electric Lifting, Folding & 360° Rotating

The MB-7 Lite is equipped with a fully electric lifting, folding, and rotating system for effortless operation. The screen smoothly raises up to 13ft or customized higher position and folds down compactly for transport and storage. Its 360 degree rotation lets you adjust the display to face audiences from any direction and maximize visibility.

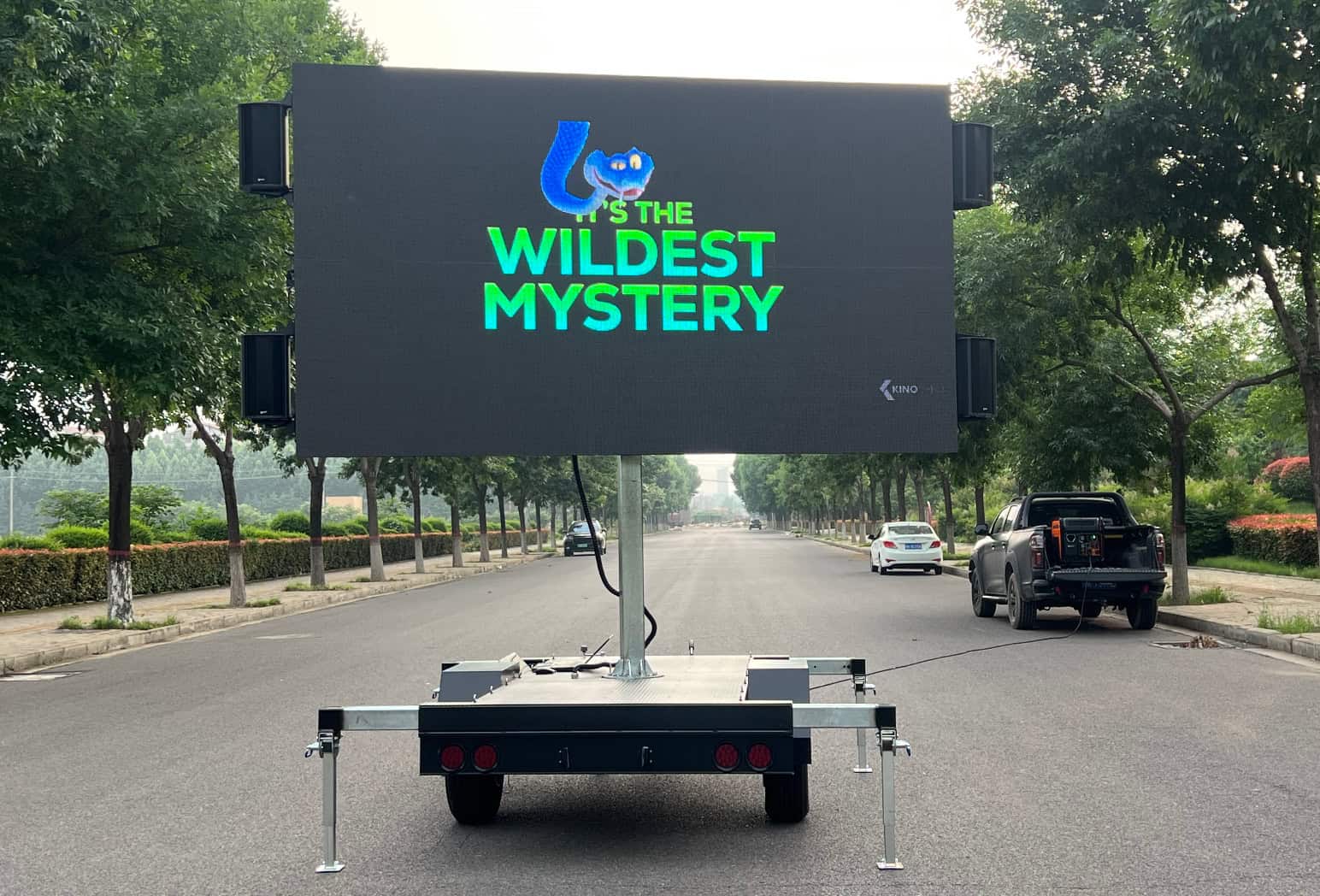

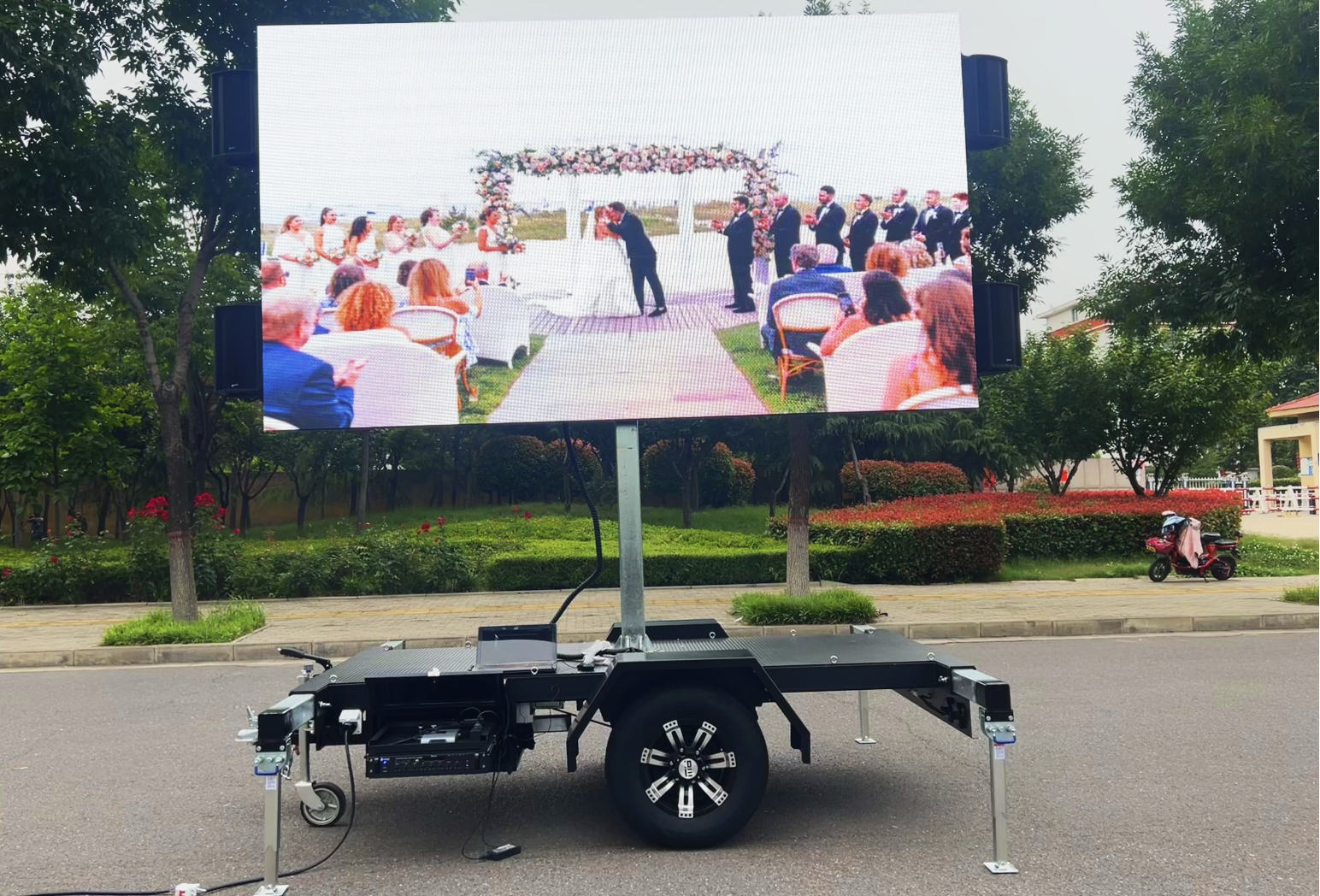

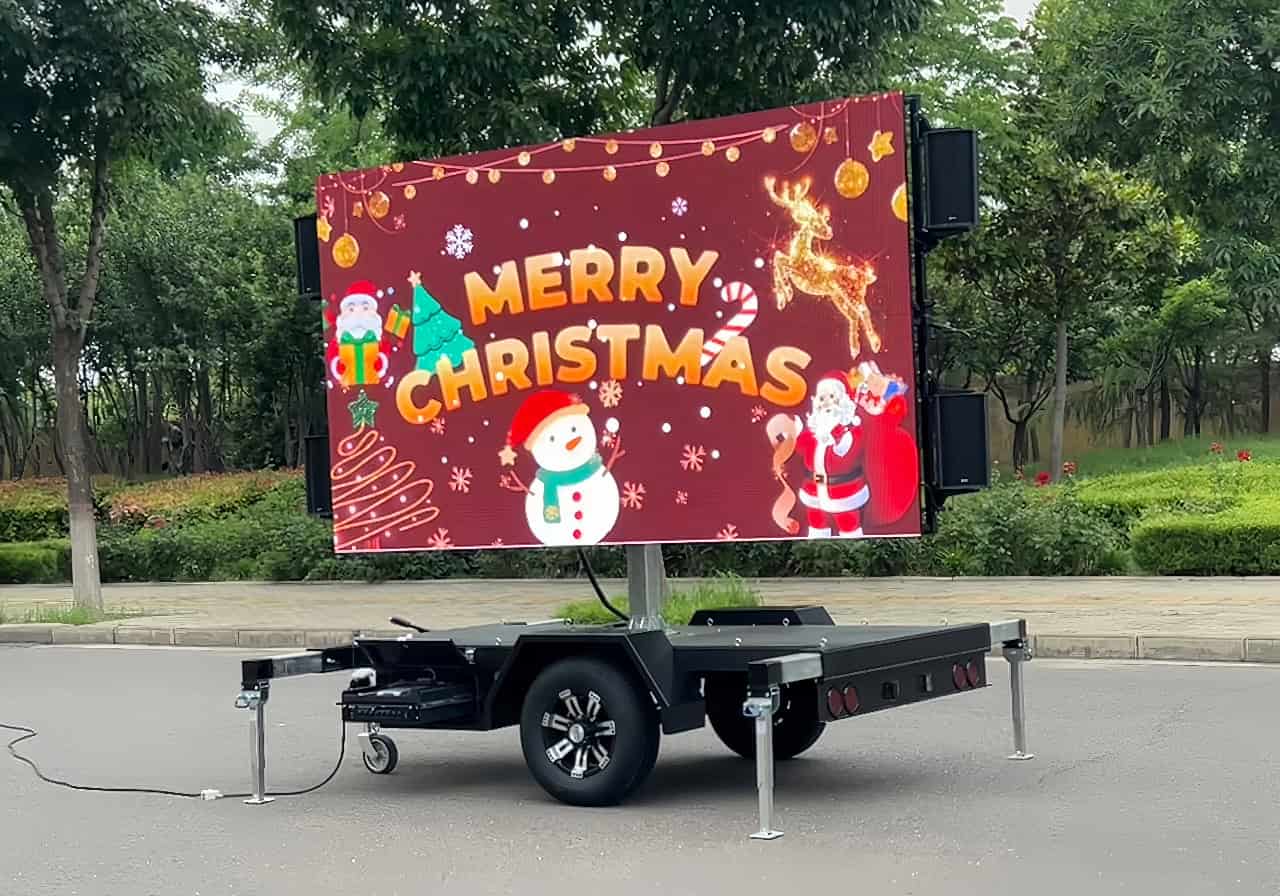

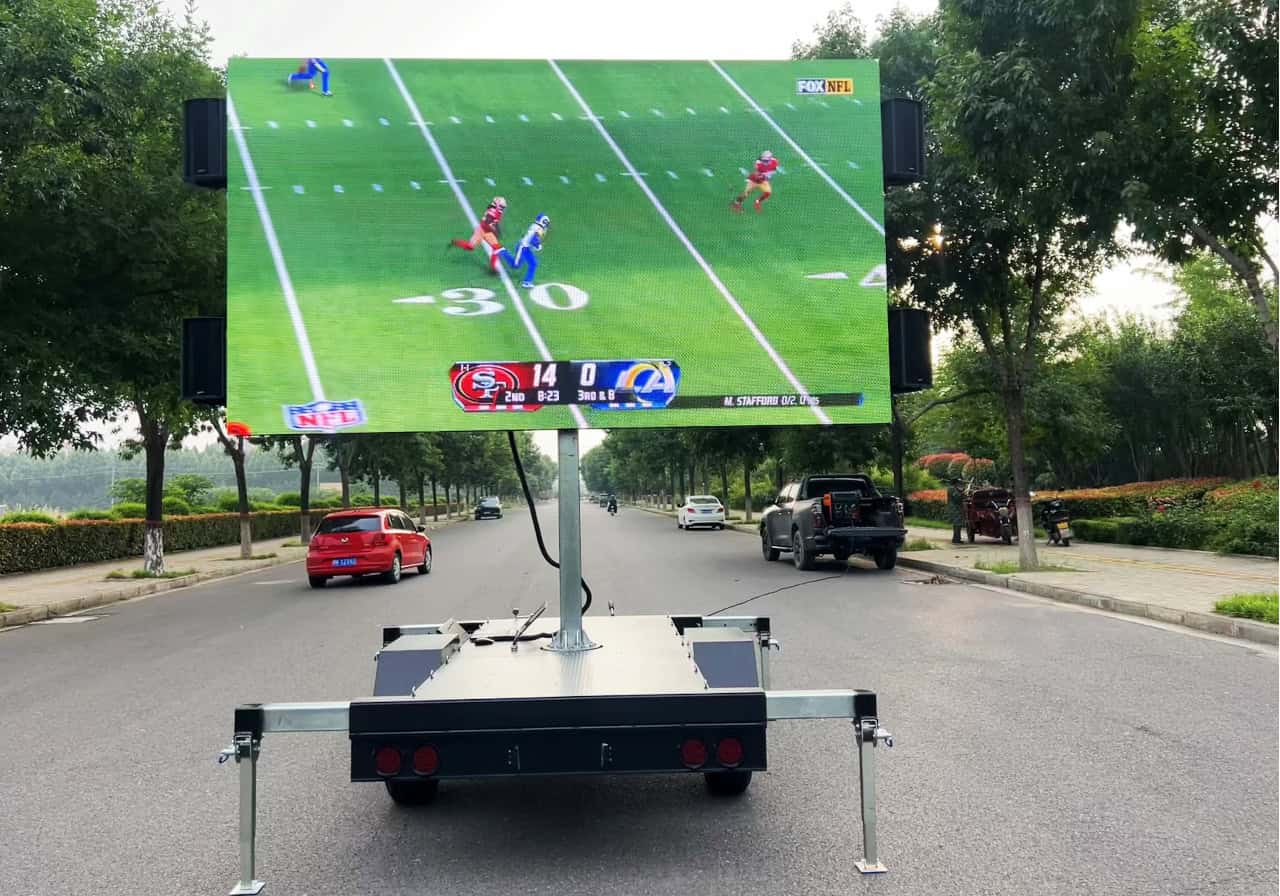

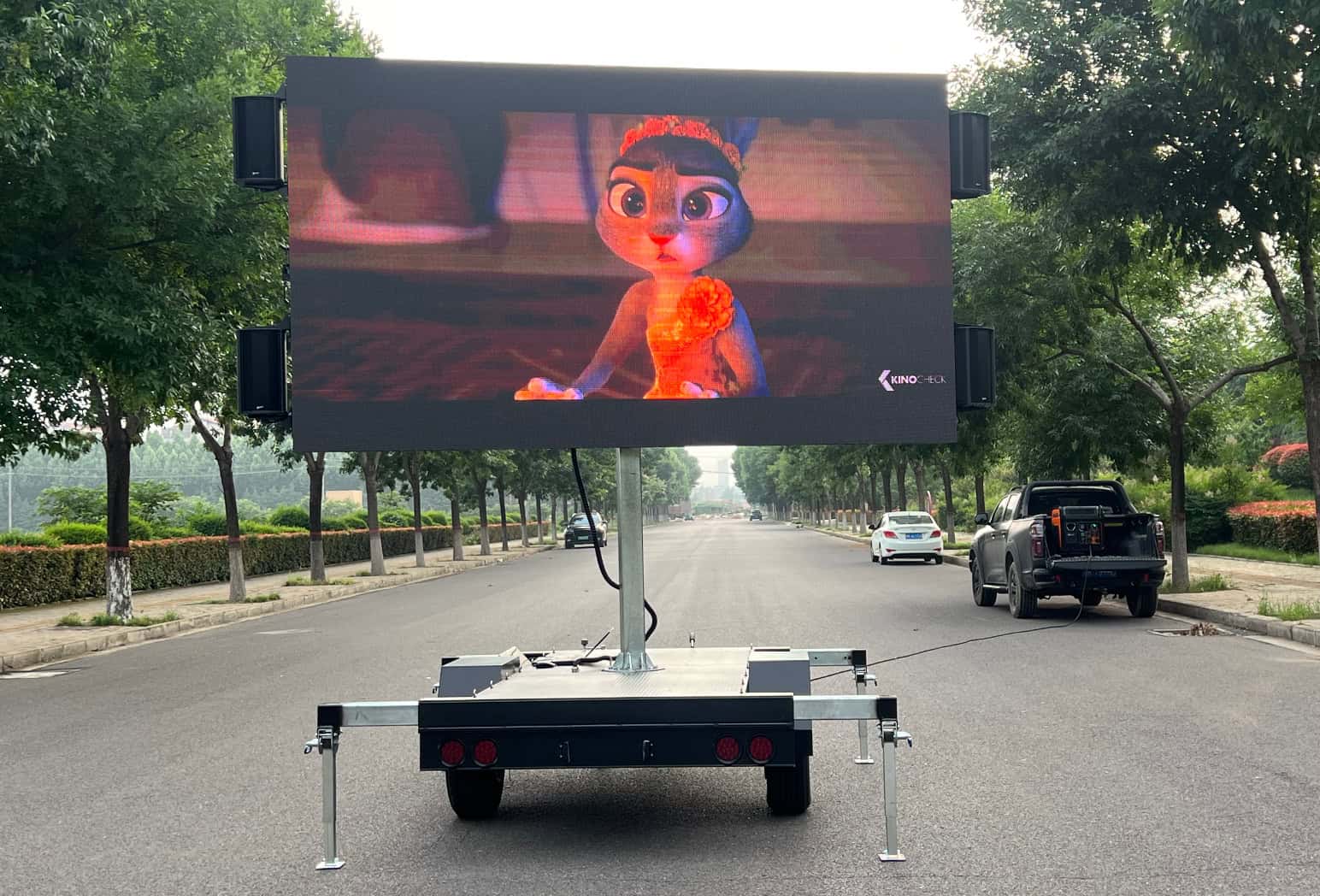

Larger, Versatile LED Screen for All Kinds of Events

This mobile LED screen trailer is equipped with bright, clear, and high-quality outdoor LED video wall. Its 7500nits high brightness can work against strong sunlight at soon and also display clear video and photos at raining days. This high standard LED video wall can be used for corporate events, business promotions, live music nights, community festivals, and many other outdoor activities.
All-Weather Durability & Reliable Outdoor Performance

This LED trailer is built with full weather protection. Its rugged construction guards against dust, rain, and temperature fluctuations, ensuring consistent video display performance quality in all seasons and conditions. Whether it’s dry hot weather or rainy wet season, the screen stays bright, clear, and functional, giving you stable video output through the entire event.
Single Operator 10Mins Quick Set Up

The MB-7 Lite is built for efficiency, with user-friendly electrical control design that prioritizes quick and easy setup. One operator can complete the screen set up in 10 minutes—from unhitching the trailer to raising the screen and display the video on wall. No need for specialized training , saving you valuable time and labor costs.
Smart Remote & Multi-Device LED Screen Control

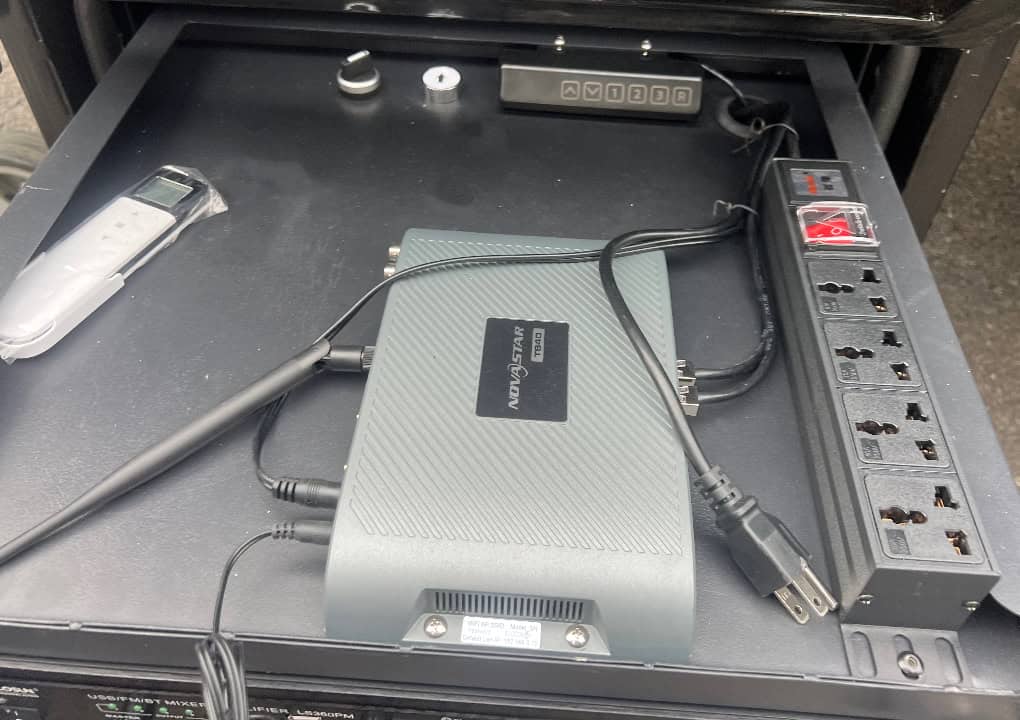

NovaStar TB-40 LED control box on the trailer can upload and manage the content on the LED video wall. It supports both synchronous control and asynchronous control with your laptop, PC, tablet, cellphone etc. You can also control the screen remotely via WiFi or 3G/4G sim card, ensuring seamless operation.

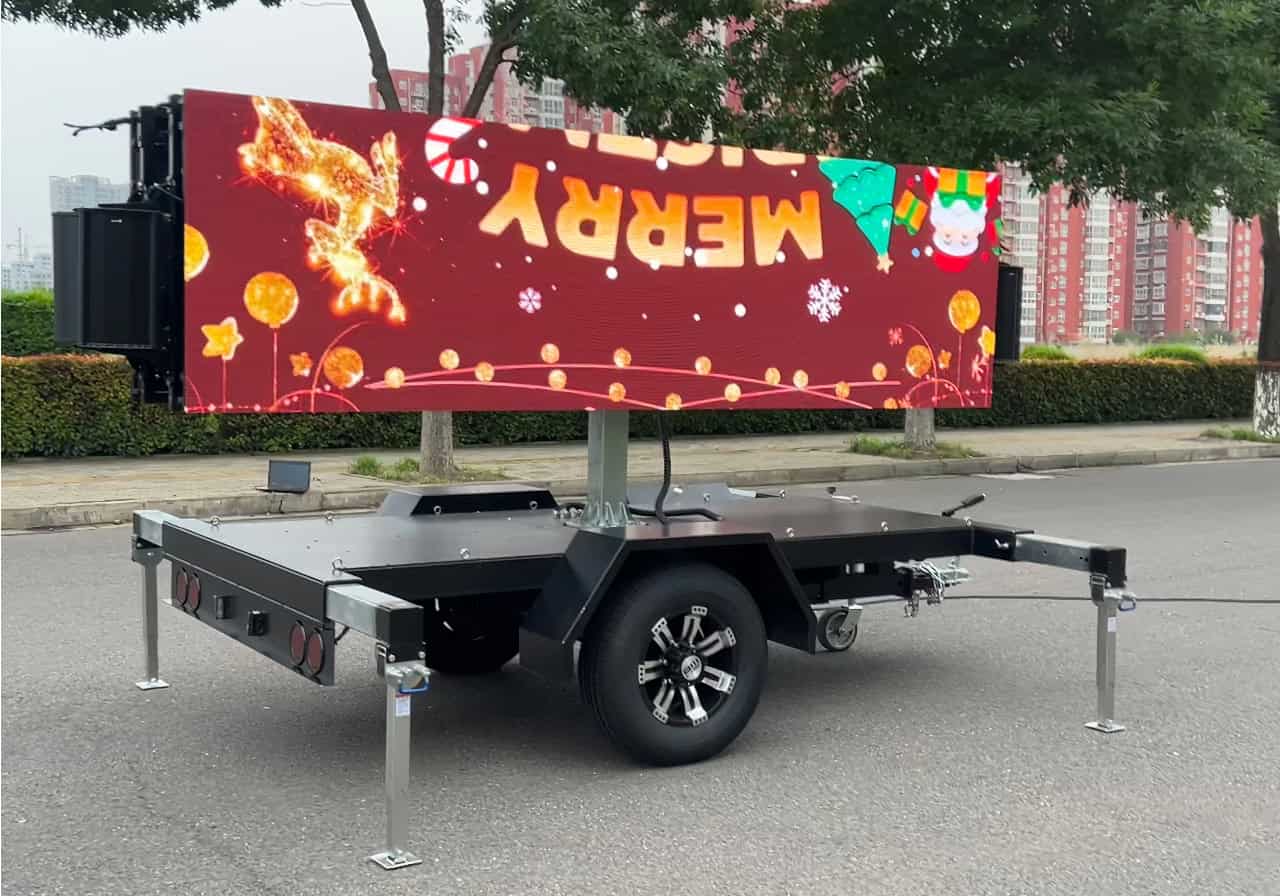

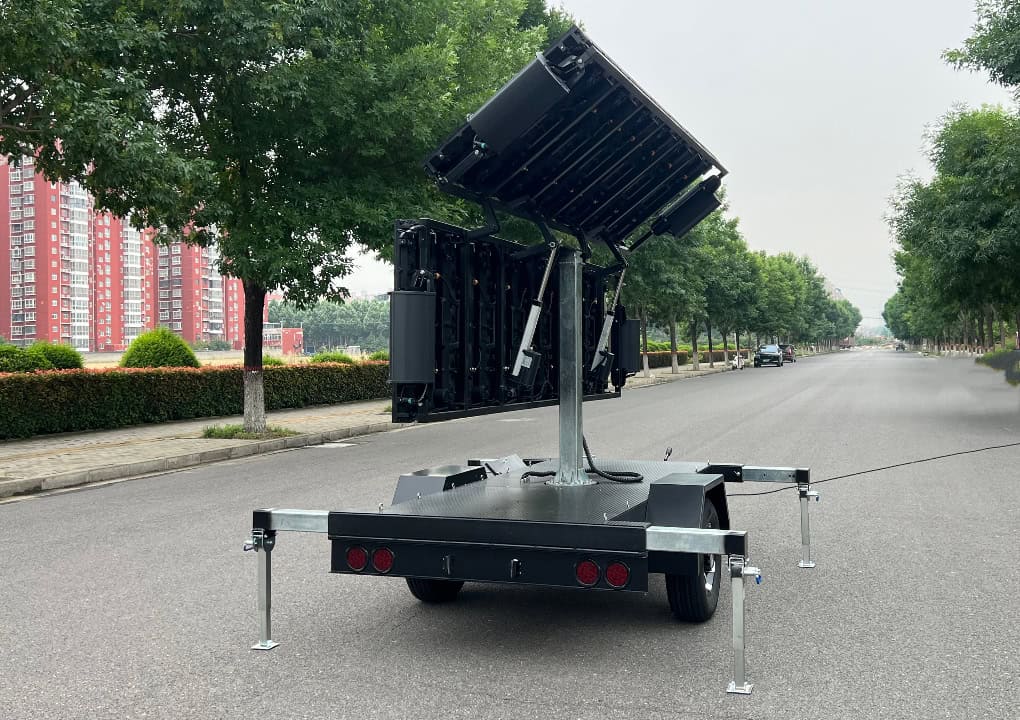

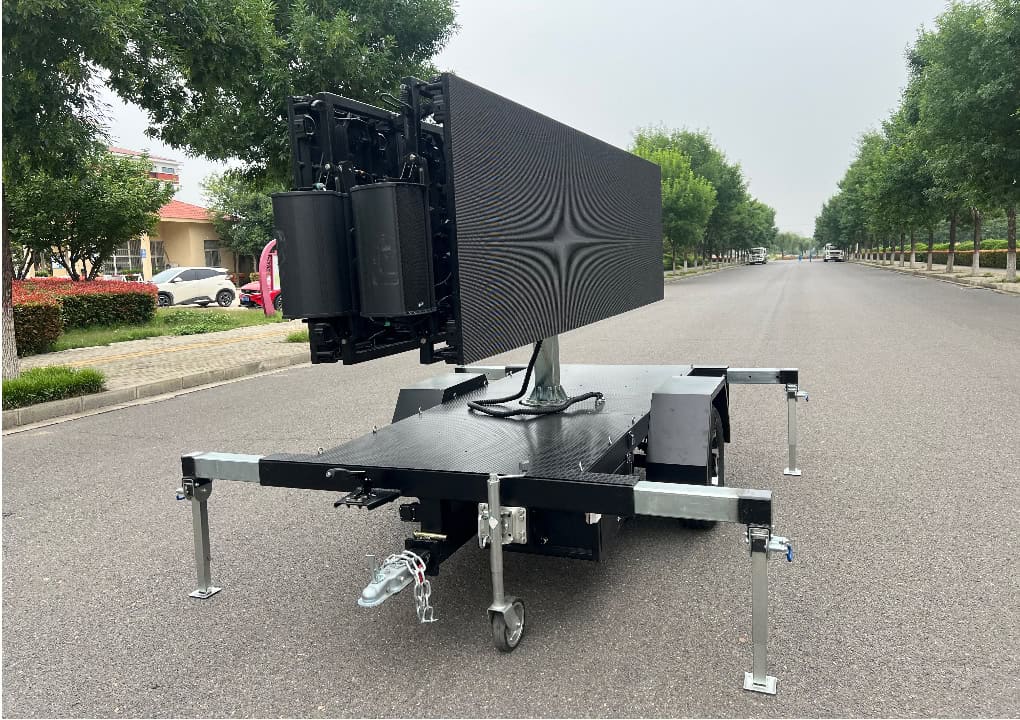

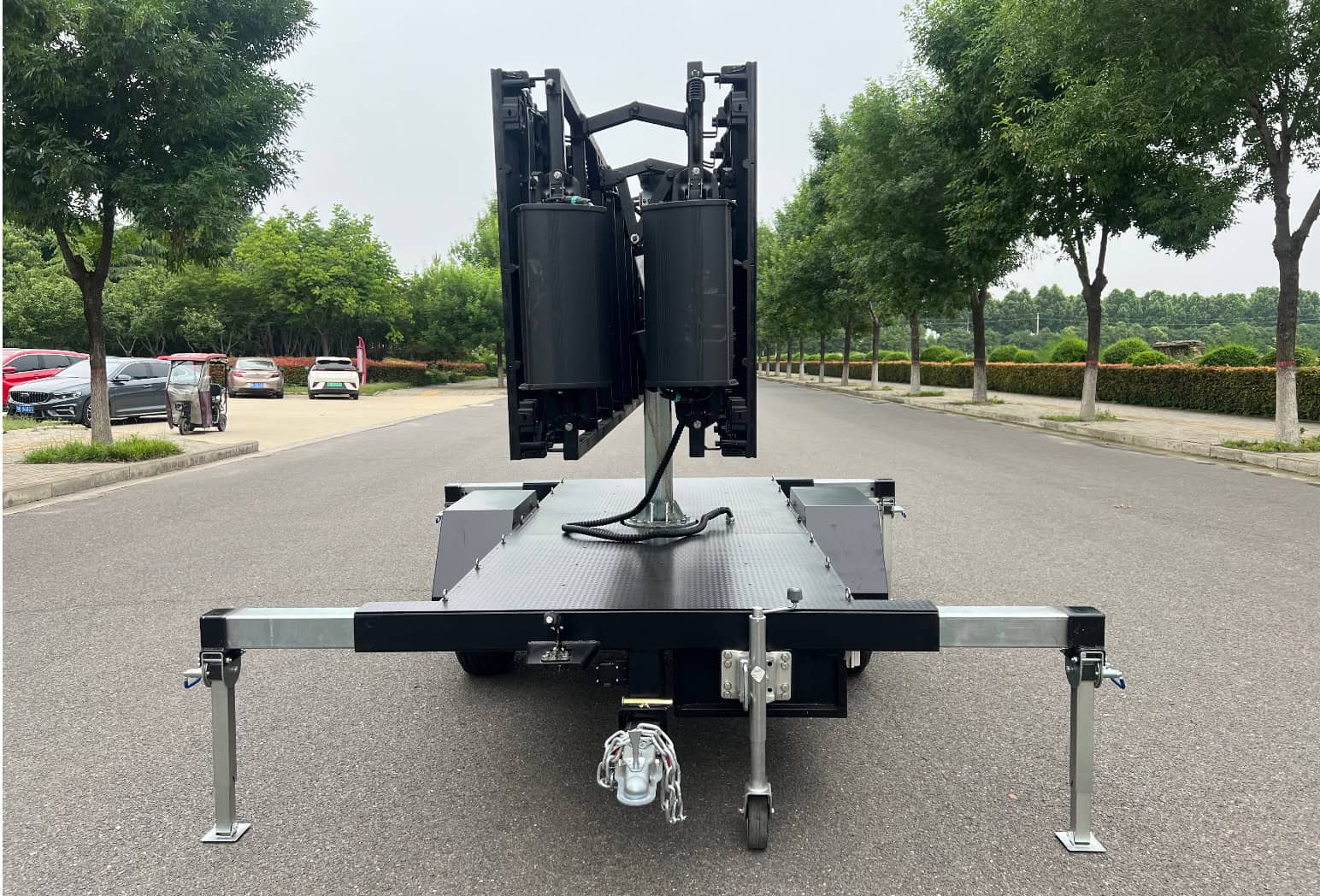

Space-Saving Foldable Trailer Structure

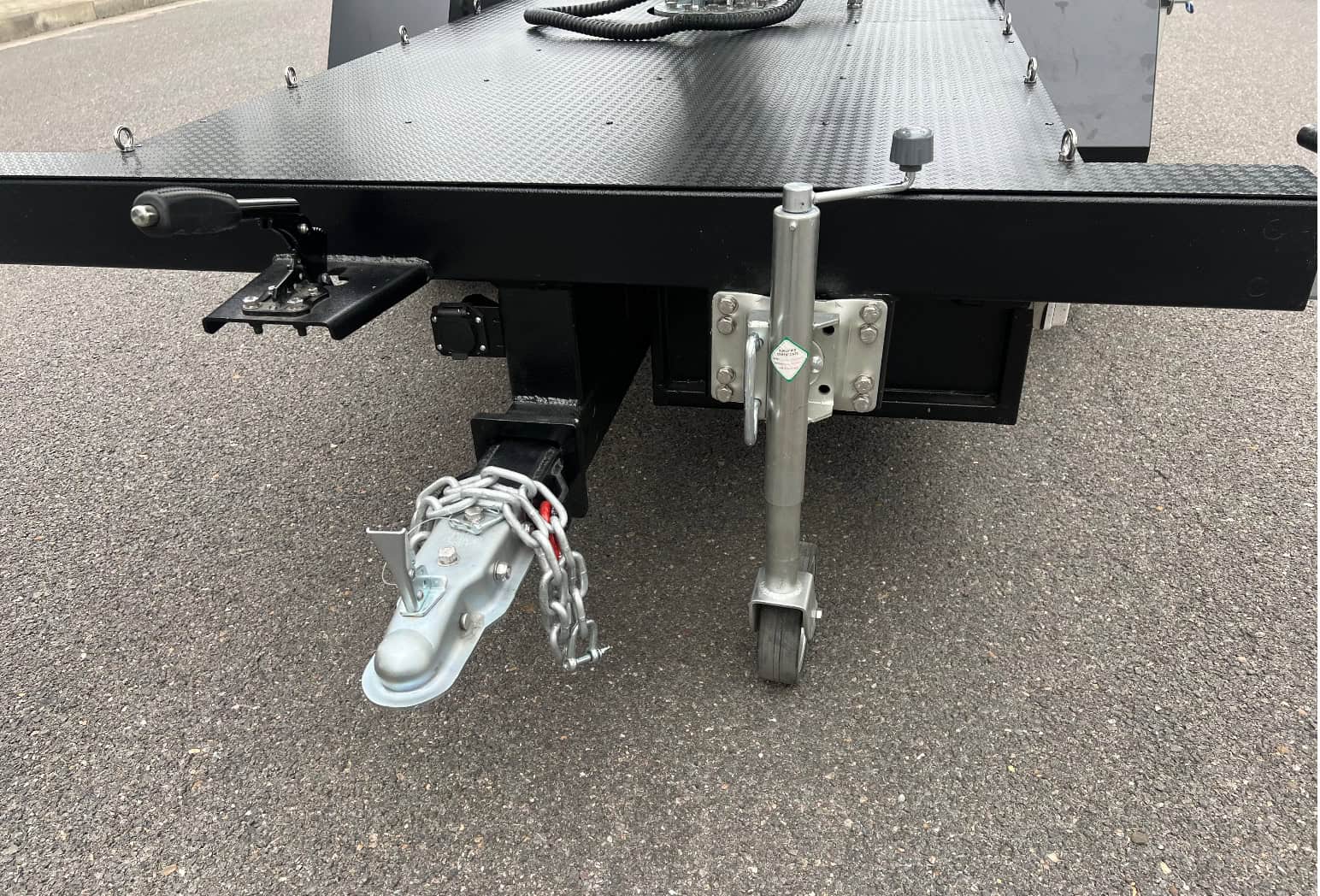

This LED screen trailer has its innovative foldable structure to make it easy to tow and park. The drawbar is extendable and need less space to operate. The screen can also folds down, significantly reducing the trailer’s overall height. This structure design can lower the center of gravity during transport, enhancing stability and reduce damage risk to the screen while driving on roads.

View All Feature

Specifications

Part I Trailer Chassis

Trailer Type	Platform, Flatbed
Operating Dimension (with drawbar)	16.9’ x 6.23’ x 9.91’
Folded Dimension (with drawbar)	16.9’ x 6.23’ x 6.63’
Gross Vehicle Weight Rating(GVWR)	4400LBS
Axles	Single
Tires	LT265/70R16
Rim	8’’ x 16’’, Aluminum Alloy
Coupler	2-5/16’’ Ball Hitch
Color	Glossy Black or Custom RAL color
Wind Rating	45 MPH

Part III Electric Mechanical Parameter

Trim Height (Screen bottom to ground）	6.6ft (2000mm)
Screen Lifting Height (Screen top to ground)	13.2ft (4000mm)
Screen Rotating Degree	360 degree
Control Mode	Wire control and remote control
Motor Type	Single Phase
Rated Output	600W

Part V Power System Parameter

Max. Screen Power Consumption	4,000 Watts
Avg. Screen Power Consumption	1,300 Watts
Other Equipment Power Consumption (Speaker, amplifier, LED controller etc)	500 Watts
Input Voltage	240V
Plug Type	30A Twist Lock x 1 set

Part II LED Screen Parameter

Screen Dimension (Ft/mm)	11.48’W x 6.56’H/ 3500mm x 2000mm
Pixel Pitch	3.91
Screen Resolution	896p x 512p
Cabinet Material	Die-cast Aluminum
Standard Brightness(Nits)	7500
Max. Refreshing Rate(Hz)	≥7680Hz
Protection Grade	Front IP68 / Rear IP66
Control System	NovaStar
Screen Warranty	10 years

Part IV Media Control System

Speakers	30/60Watts x 4 Pcs
Amplifier	360Watts x 1 set
LED Controller	NovaStar TB-50
Input Resolution	Up to 1920 x 1080p @60Hz
Video Input	1 x HDMI 1.4 2 x Sensor Connectors
Video Output	2 x Gigabit Ethernet Ports, 1 x Stereo Audio Connector − 1 x HDMI 1.4
Audio Input	1/8inch(3.5mm)

Part VI Optional Equipment List

Power Generator

Super Silent Inverter Generator

Battery

LiFePO4 Lithium Battery

Cover

Logo Printable
